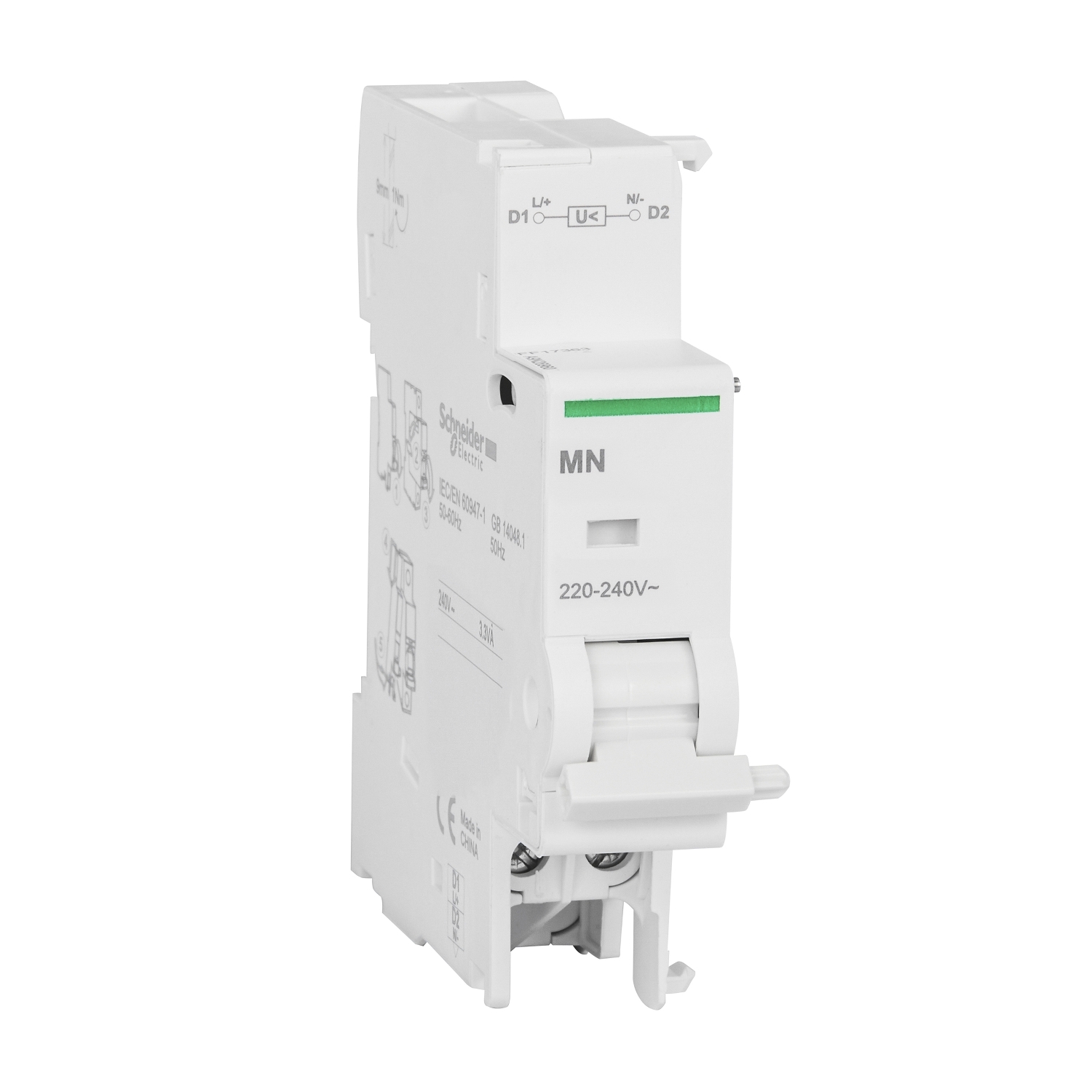

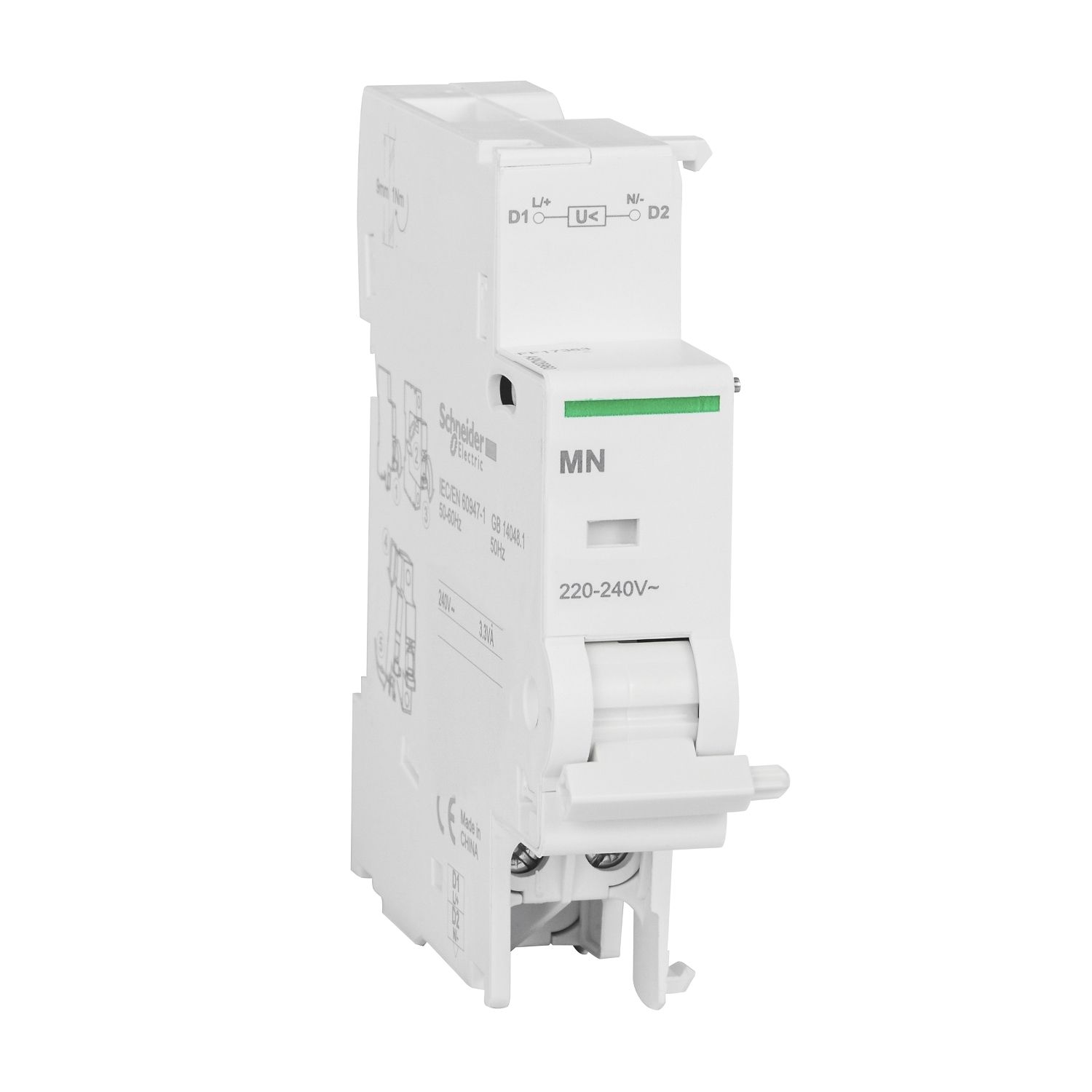

Voltage release, Acti9, MN 220-240VAC DC

Manufacturer: Schneider Electric

SKU: A9N26960

GTIN: 3606480382994

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $245.30 inc GST

Price: $85.65 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 MN electrical auxiliary for C60, C10, DPN, Vigi, ID, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC is an instantaneous undervoltage release. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It prevents device closing again until its input voltage has been restored. The Ue rated operational voltage is 220VAC to 240VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-1 and EN 60947-2 standards.

Products specifications

Attribute name	Attribute value
Main
Device short name	MN
Product compatibility	C40, ID C40, DPN Vigi, iDPN, IDc, DT40, DT60, ITG40, C60, C120
Control type	standard
Range	Acti9
Product or component type	undervoltage release
9 mm pitches	2
Range of product	C120, C60, Clario, ProDis, Librio, DPN, DPN Vigi
[Uc] control circuit voltage	220...240 V AC 50/60 Hz
Complementary
Tightening torque	1-1 N.m
Depth	73.5 mm
Market segment	small commercial, residential
Width	18 mm
Colour	white
Local signalling	action indicator
Compatibility code	MN
Mounting mode	fixed
Connections - terminals	clamp terminal - 2 cable(s) 1.5-1.5 mm² - rigid, clamp terminal - 2 cable(s) 1.5-1.5 mm² - flexible, clamp terminal - 1 cable(s) 2.5-2.5 mm² - rigid, clamp terminal - 1 cable(s) 2.5-2.5 mm² - flexible
Wire stripping length	9 mm
Net weight	66 g
Comb busbar and distribution block compatibility	top: YES
Range compatibility	Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support	35 mm symmetrical DIN rail
Height	82.5 mm
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Standards	EN/IEC 60947-5-1
Ambient air temperature for operation	-25-50 °C
Product certifications	ASEFA, LCIE, ASTA, KEMA
