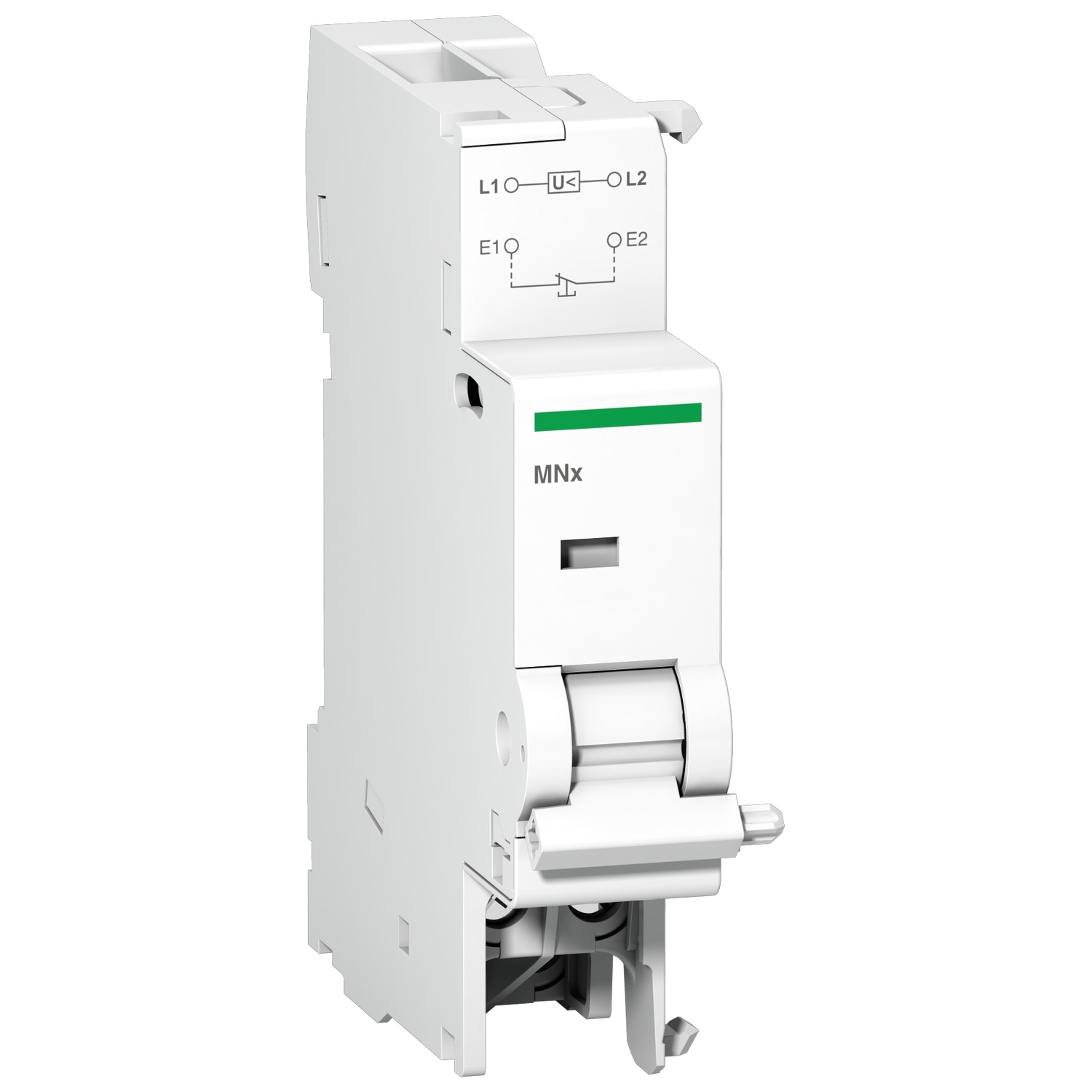

Voltage release, Acti9, MNx 220-240VAC DC

Manufacturer: Schneider Electric

SKU: A9N26969

GTIN: 3606480383021

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $321.75 inc GST

Price: $112.34 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 MNx electrical auxiliary is an undervoltage release independent of the supply voltage. It is dedicated to C60, C120, DPN Vigi, iD, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC. A locking push-button control allows the circuit protected to be placed in safety configuration. It provides a fail-safe emergency stop. The product is insentive to the varaition in the control circuit voltage to improve continuty of service. The product trips the associated device by opening of the circuit control. The width in 9mm pitches is 2. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name	Attribute value
Main
Device short name	MNx
Product compatibility	C120, ID C40, ITG40, C40, DPN Vigi, IDc, DT40, iDPN, DT60, C60
Control type	with external feeding
Range	Acti9
Product or component type	undervoltage release
9 mm pitches	2
Range of product	C60, C120, DPN Vigi, DPN, Librio, ID, ProDis, Clario
[Uc] control circuit voltage	230 V AC 50/60 Hz
Complementary
Tightening torque	1-1 N.m bottom
Depth	73.5 mm
Market segment	residential, small commercial
Width	18 mm
Colour	white
Local signalling	action indicator
Compatibility code	MNx
Mounting mode	fixed
Connections - terminals	screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible
Wire stripping length	9 mm for bottom connection
Net weight	73 g
Comb busbar and distribution block compatibility	top: YES
Range compatibility	Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support	35 mm symmetrical DIN rail
Height	82.5 mm
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Standards	EN/IEC 60947-5-1
Ambient air temperature for operation	-25-50 °C
Product certifications	ASEFA, KEMA, LCIE, ASTA
