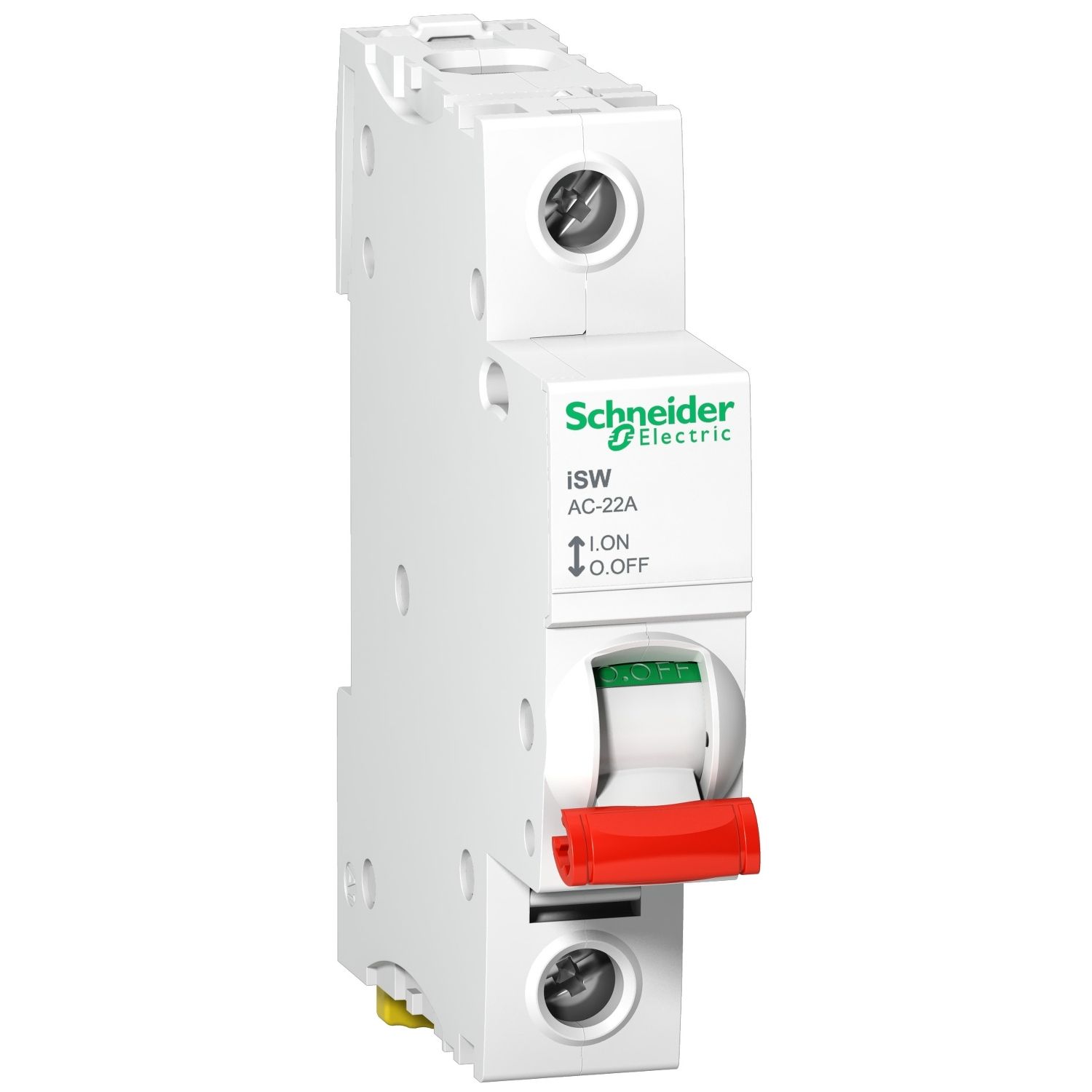

This Acti9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 100A, and operating voltage is 240VAC. Electrical endurance goes up to 10000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iSW |
| Device application | isolation, control |
| Poles description | 1P |
| Suitability for isolation | yes |
| Range | Acti9 |
| Utilisation category | AC-22A |
| Product name | Acti9 iSW |
| Product or component type | switch disconnector |
| Range of product | iSW 40...125 |
| Complementary | |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz |
| [Icw] rated short-time withstand current | 1500 A |
| Depth | 73 mm |
| Width | 18 mm |
| Connection pitch | 18 mm between devices |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Local signalling | ON/OFF indication |
| Compatibility code | iSW |
| Mechanical durability | 20000 cycles |
| [Ie] rated operational current | 100 A at 240 V AC 50/60 Hz |
| Tightening torque | 3.5 N.m |
| Colour | white |
| Electrical durability | 10000 cycles |
| [Icm] rated short-circuit making capacity | 5 kA switch-disconnector alone |
| Mounting mode | fixed |
| [Ui] rated insulation voltage | 250 V AC 50/60 Hz |
| Wire stripping length | 14 mm |
| Control type | toggle |
| Connections - terminals | tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule, tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible, tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid |
| Comb busbar and distribution block compatibility | top or bottom: YES |
| 9 mm pitches | 2 |
| Mounting support | DIN rail |
| Contact position indicator | yes |
| Height | 85 mm |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 |
| IP degree of protection | IP20 |
| Tropicalisation | 2 |
| Standards | IEC 60947-3, NZS 60947-3, EN 60947-3, BS EN 60947-3, AS 60947-3 |
| Ambient air temperature for operation | -25-60 °C |
