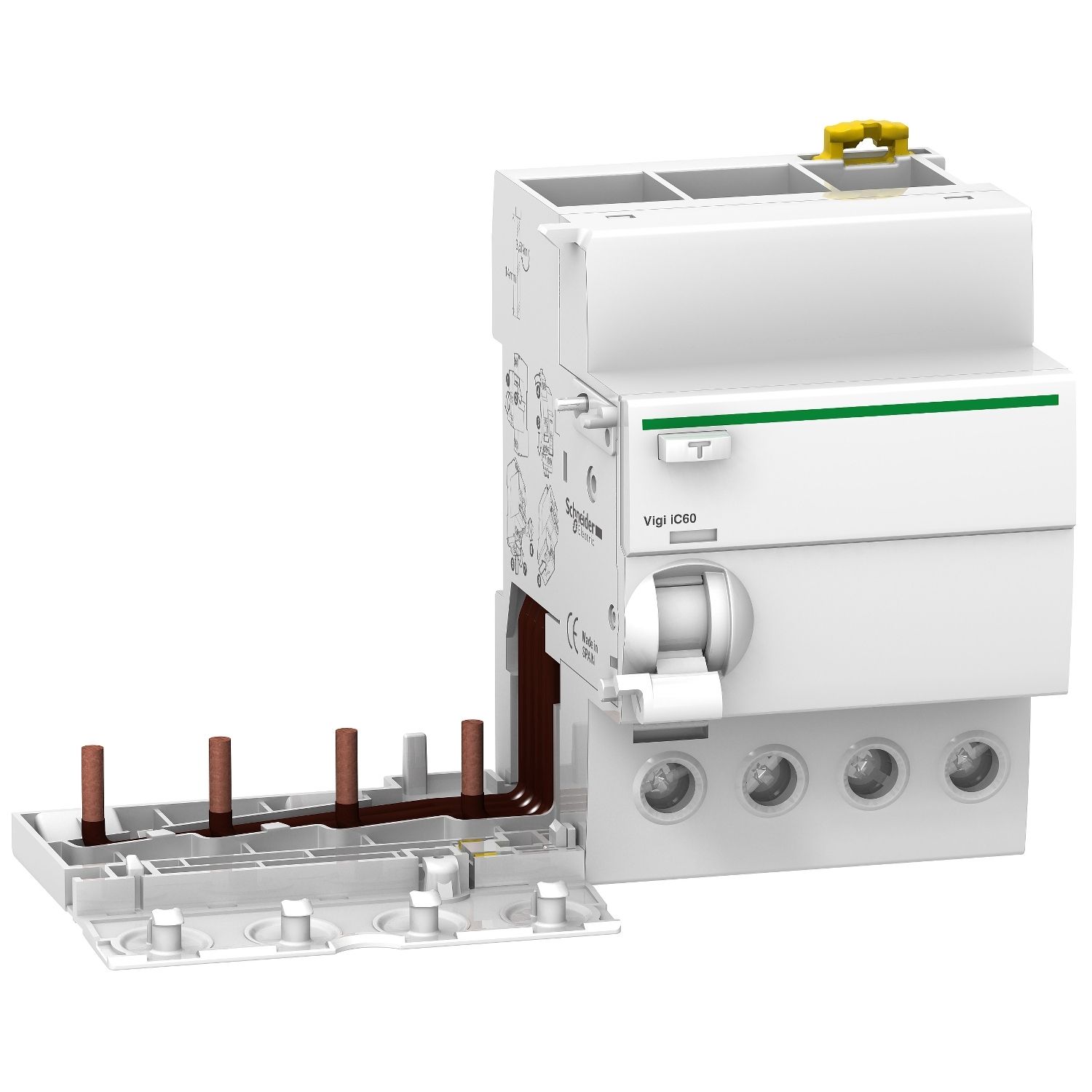

This Acti9 Vigi iC60 is a modular add-on residual current device. It is a 4P, rated current is 63A, operating voltage is 400VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. A VisiTrip window is present to indicate a fault tripping by a red mechanical indicator on the front face. It has to be combined with a iC60 circuit breaker. This product is compliant with IEC 61009-1 and EN 61009-1 standards. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 135mm x (H) 91mm x (D) 73.5mm. The weight is 245g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Network frequency | 50/60 Hz |
| [In] rated current | 63 A |
| Standards | EN/IEC 61009-1, EN/IEC 61009-2-1 |
| Earth-leakage sensitivity | 30 mA |
| Product or component type | add-on residual current device |
| Product name | Acti9 Vigi iC60 |
| Poles description | 4P |
| [Ue] rated operational voltage | 400...415 V AC 50/60 Hz conforming to EN/IEC 61009-1, 400...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Range of product | iC60, Reflex iC60 |
| Range | Acti9 |
| Device short name | Vigi iC60 |
| Network type | AC |
| 9 mm pitches | 7 |
| Earth-leakage protection time delay | instantaneous |
| Earth-leakage protection class | type A |
| Complementary | |
| Total power losses | 6.9 W |
| Mounting support | DIN rail |
| Local signalling | trip indicator |
| Depth | 73.5 mm |
| Wire stripping length | 14 mm for bottom connection |
| Mounting mode | clip-on |
| Power losses per pole | 2.3 W |
| Width | 135 mm |
| Tightening torque | 3.5-3.5 N.m bottom |
| Product compatibility | single terminal |
| Range compatibility | Acti9 iC60, Acti9 Reflex iC60 |
| Device location in system | outgoer |
| Net weight | 0.245 kg |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Market segment | small commercial |
| Height | 91 mm |
| Connections - terminals | tunnel type terminal downside for 1 cable(s) 1-35 mm² rigid without cable end, tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible without cable end, tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible with cable end |
| Comb busbar and distribution block compatibility | bottom: YES |
| Electrical connection to mcb | by screws |
| Residual current tripping technology | voltage independent |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Environment | |
| Ambient air temperature for operation | -25-60 °C |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to IEC 61009-1 |
| IP degree of protection | IP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Ambient air temperature for storage | -40-85 °C |
| Contractual warranty | |
| Warranty | 18 |
