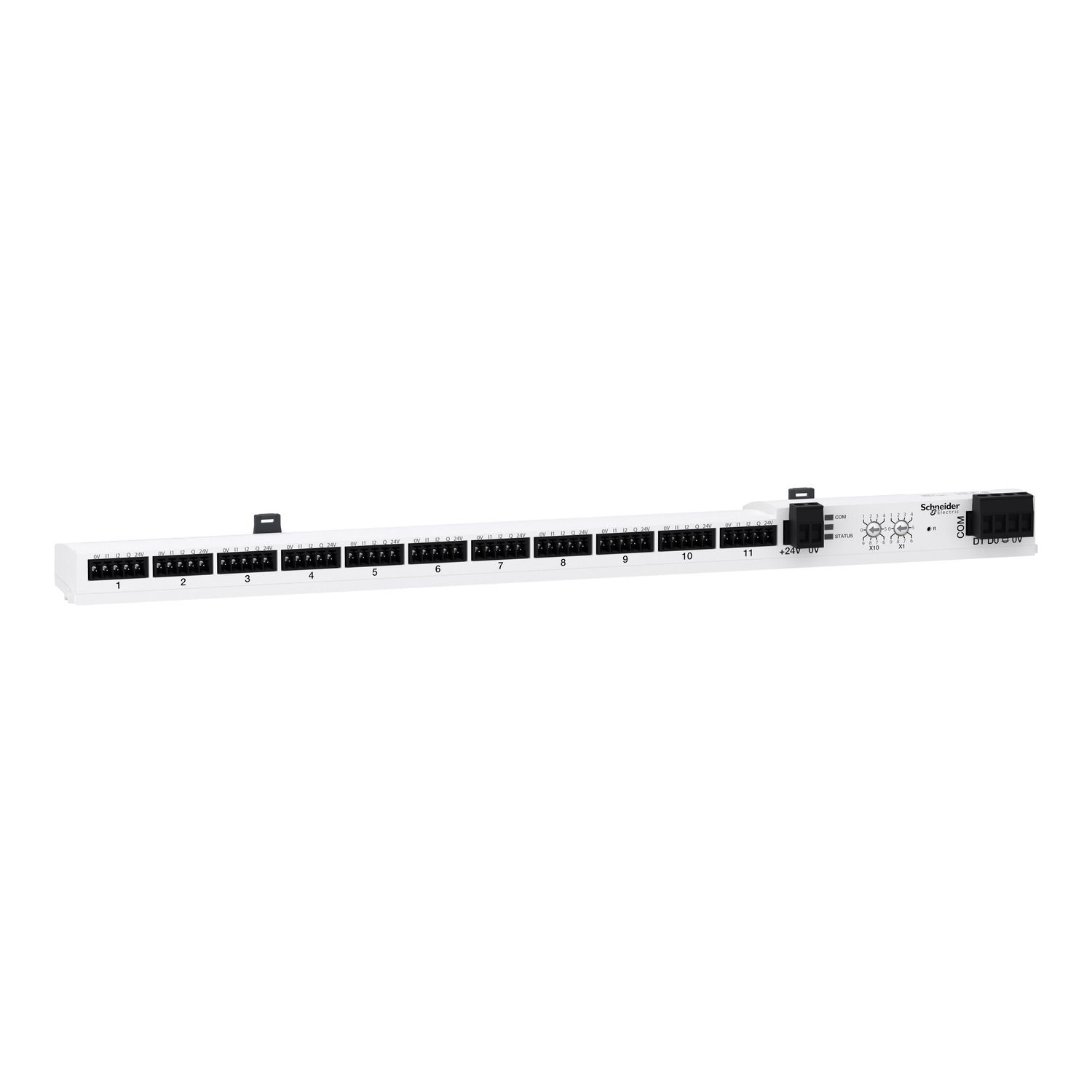

This Acti 9 SmartLink Modbus Slave is a smart communication module with 11 channels. It communicates with the auxiliaries iACT24 for iCT contactors, iATL24 for iTL impulse relays, iOF+SD24 for iC60, iID, ARA, RCA & iSW-NA. It needs to be associated to a Master SmartLink SI B thanks to the Modbus RS485 connector. It is used to transfer data from Acti 9 devices to a PLC or network monitoring system thanks to the Ethernet connector. It communicates also with OF+SD24 for C60, C120, DPN, ID & C60H-DC, Ti24 for RCA iC60 & Reflex iC60. It is supplied with 1 power supply connector 24VDC, 2 bolts for mounting on Linergy FM80. The link is Modbus, RTU, RS485 serial connection. The transfer rate is self-adaptable from 9600 to 19200 baud. The Modbus addresing range is 1 to 99. It is a 4-pin connector type of bus. It is a plug-in connection. The maximum length of the bus is 1000m. The maximum cable length is 500m. The voltage power supply is 24VDC +/- 10%. The Maximum input current is 1,5A. The Maximum inrush current is 3A. The degree of protection is IP20. The pollution degree is 3. It complies with RoHS directive. The duration of saving memory is 10 years. The dimensions are (W) 359mm x (H) 23mm x (D) 42mm. The weigth is 195g. The operating temperature is -25°C to + 60°C and only +50°C if vertical mouting. The storage temperature is -40°C to + 80°C. This product complies with IEC/EN 61131-2 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Web server | BMS controller compatible |
| Device short name | I/O Smart Link |
| Device application | basic energy metering E, breaker status monitoring, load control |
| Web services | web page |
| Maximum supply current | 1.5 A |
| Connectivity to devices | pulse output meter, digital input and output |
| Range | EcoStruxure |
| Range of product | Acti9 |
| Group of channels | 1 group of 11 digital channels |
| Connected auxiliaries | up to 11 wired devices |
| Communication service | Modbus server for RS485 |
| Product name | EcoStruxure I/O Smart Link |
| Product or component type | smart communication module |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Complementary | |
| Input/output type | 2 inputs + 1 output per digital channel |
| Type of setting | reset for plug in, plug out the auxiliary supply, reset for address encoders, Modbus address 01...99 for address encoders |
| Inrush current | 7 A for power supply, 0.5 A for digital output |
| Colour | white (RAL 9003) |
| Compatibility code | Acti 9 Smartlink |
| Application specific I/O | pulse converter, pulse totalising counter |
| Local signalling | status: 1 LED (green, orange and red), communication: 1 LED (yellow) |
| Commissioning interface | web page, EcoStruxure Power Commission |
| Maximum voltage drop | <1 V at state 1 digital output |
| Wire stripping length | communication bus: 7 mm, supply circuit: 7 mm, control: 10 mm |
| Output type | logic current source: 24 V - DC - 100 mA |
| Protection type | overvoltage at 33 V DC for digital output, against reverse polarity for input, against reverse polarity for auxiliary supply |
| Maximum permanent current | 5 mA for digital input |
| Immunity to microbreaks | 10 ms |
| Connections - terminals | plug-in connector qty: 1 for communication bus, plug-in connector qty: 1 for supply circuit, spring-loaded terminal Ti24 qty: 11 for digital input/output, ordered separately |
| Height | 22.5 mm |
| Input type | current sink for digital input, 24 V DC +/- 20 % at 2.5 mA |
| 9 mm pitches | 0 useful |
| Depth | 42 mm |
| Market segment | small commercial, buildings |
| Width | 359 mm |
| Communication network type | RS485 Modbus RTU client/server SUB-D 9 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
| Location of connection | front |
| Mounting position | horizontal and vertical on DIN rail |
| Net weight | 188 g |
| Clamping connection capacity | 2 x 0.2...2 x 1.5 mm², rigid without cable end for supply circuit, 2 x 0.2...2 x 1.5 mm², rigid with cable end for supply circuit, 2 x 0.2...2 x 1.5 mm², flexible without cable end for supply circuit, 2 x 0.2...2 x 1.5 mm², flexible with cable end for supply circuit, 1 x 0.2...1 x 1.5 mm², rigid without cable end for control, 1 x 0.2...1 x 1.5 mm², rigid with cable end for control, 1 x 0.2...1 x 1.5 mm², flexible without cable end for control, 1 x 0.2...1 x 1.5 mm², flexible with cable end for control, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid without cable end for communication bus, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid with cable end for communication bus, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible without cable end for communication bus, 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible with cable end for communication bus |
| Range compatibility | Acti 9 Acti9 Reflex iC60 Ti24 connector, Acti 9 Acti9 iDPN, Acti 9 Acti9 ITG40, Acti 9 Acti9 I-NA, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Multi9 Multi9 C60, Acti 9 Acti9 C40, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iC60, Acti 9 Acti9 iCT auxiliary, Acti 9 RCA iC60, PowerLogic pulse output meter, Acti 9 iATL24, Acti 9 iACT24, Acti 9 iOF+SD 24, Linergy Linergy FM, Acti 9 iTL auxiliary |
| Provided equipment | set of 2 locking clips, set of 1 power supply connector, set of 1 bus connector |
| Electronic filtering time | 2 ms for digital input from state 0 to state 1 |
| Reset | by plug in, plug out the power supply, by address encoder, by booted push-button, factory reset on front face |
| Environment | |
| Fire resistance | on connection terminals: 960 °C ( 30 s ) conforming to IEC 60695-2-10, other parts: 650 °C ( 30 s ) conforming to IEC 60695-2-10 |
| Relative humidity | 0-93 % at 40-40 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 |
| Electromagnetic compatibility | communication bus: surges (CM coupling 2 Ohm), class B, 1 kV, conforming to IEC 61000-4-5, power supply: surges (CM coupling 42 Ohm), class B, 2 kV, conforming to IEC 61000-4-5, power supply: surges (DM coupling 42 Ohm), class B, 1 kV, conforming to IEC 61000-4-5, radiated emission (30...6000 MHz), class B, conforming to CISPR 11, radiated emission (30...6000 MHz), class B, conforming to IEC 61326-1, conducted emission (0.15...30 MHz), class B, conforming to CISPR 11, conducted emission (0.15...30 MHz), class B, conforming to IEC 61326-1, conducted EMC (0.15...80 MHz), class A, 3 V, conforming to IEC 61000-4-6, communication bus: resistance to fast transient (0.15...80 MHz), class B, 1 kV, conforming to IEC 61000-4-4, input/output: resistance to fast transient, class B, 1 kV, conforming to IEC 61000-4-4, power supply: resistance to fast transient (5...100 kHz), class B, 2 kV, conforming to IEC 61000-4-4, power supply: resistance to radiated electromagnetic fields (1.4…6 GHz), class A, 3 V/m, conforming to IEC 61000-4-3, resistance to radiated electromagnetic fields (80 MHz...3 GHz), class A, 10 V/m, conforming to IEC 61000-4-3, resistance to electrostatic discharge (contact discharge), class B, 4 kV, conforming to IEC 61000-4-2, resistance to electrostatic discharge (air discharge), class B, 8 kV, conforming to IEC 61000-4-2 |
| IP degree of protection | IP20 |
| Standards | IEC 61010-1, IEC 61010-2-201 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK06 conforming to IEC 62262 |
| Operating altitude | 0...2000 m |
| Environmental characteristic | salt mist 2 conforming to IEC 60068-2-52, corrosive 3C2 conforming to IEC 60721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 1 gn, amplitude = 3.5 mm (f = 5-300 Hz)10 cycles conforming to EN/IEC 60068-2-6 |
