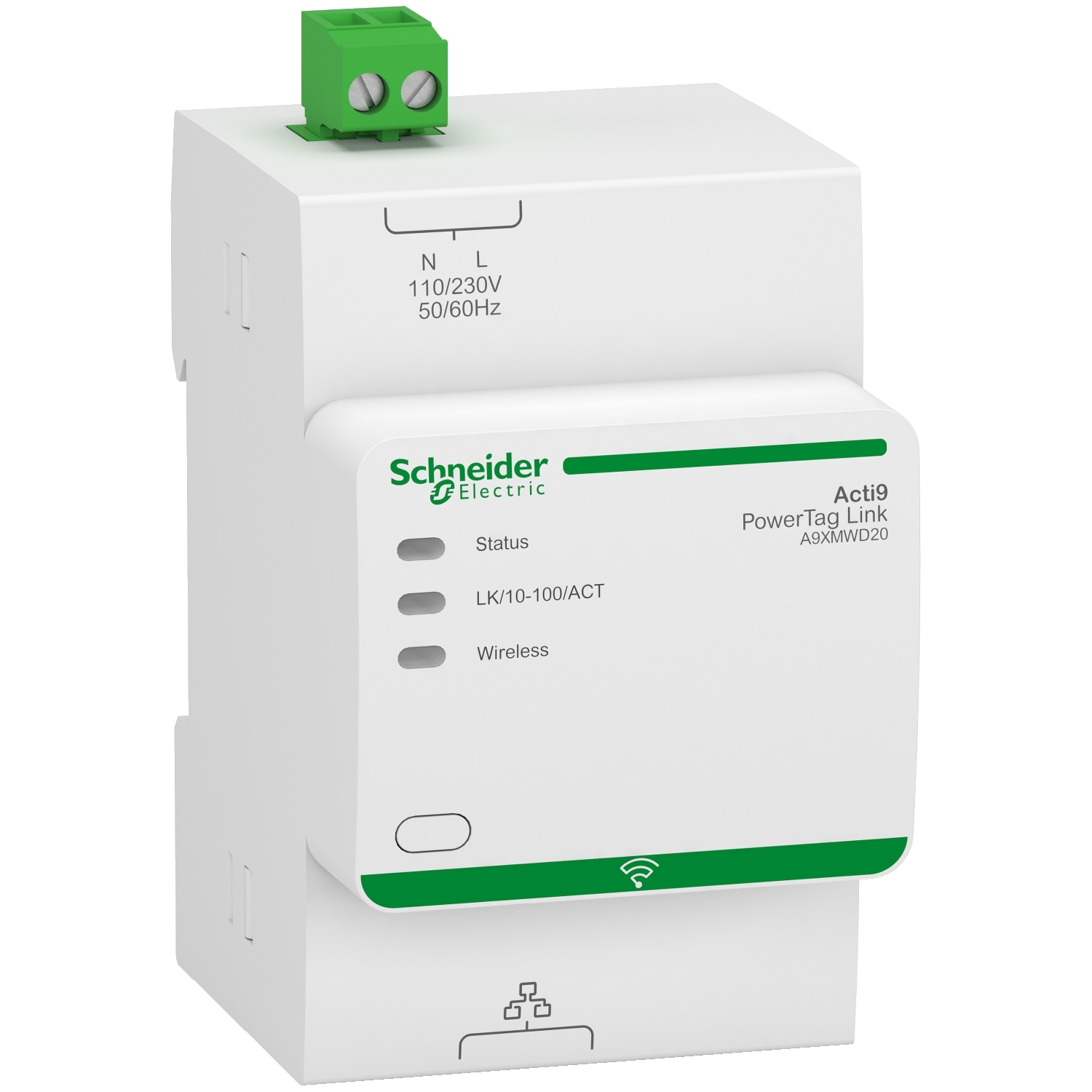

This Acti 9 PowerTag Link is a Wireless to Modbus TCP/IP Concentrator smart communication module. It has to be associated with a PowerTag wireless-communication energy sensor to provide circuit monitoring and diagnosis down to load level. The number of HW-interfaces industrial Ethernet is 1. Number of HW-interfaces Wireless is 1. The voltage power supply is 110VAC to 230VAC. The operating frequency is 50Hz or 60Hz. It is a screw connection. The degree of protection is IP20 or IP40 for modular enclosure. The pollution degree is 2. It complies with RoHS directive. The dimensions are (W) 54mm x (H) 85mm x (D) 67.5mm. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 61131-2 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Web server | BMS controller compatible, embedded web page |
| Device short name | PowerTag Link |
| Device application | load alarming, improved load monitoring E, U, I, P, Pf, basic energy metering E |
| Web services | web page |
| Maximum supply current | 2 A |
| Connectivity to devices | wireless energy sensor |
| Transmission support medium | radio frequency 2.4-2.4835 GHz PowerTag 20 |
| Range | Acti9 |
| Connected auxiliaries | up to 20 wireless devices |
| Communication service | web server, Ethernet Modbus TCP/IP server |
| Product name | Acti9 PowerTag Link |
| Product or component type | smart communication module |
| [Us] rated supply voltage | 110...230 V AC +/- 15 % |
| Complementary | |
| Colour | white (RAL 9003) |
| Compatibility code | Acti9 PowerTag Link |
| Application specific I/O | pulse totalising counter |
| Local signalling | Ethernet status (LAN ST): 1 LED (green, orange and red), product status: 1 LED (green, orange and red) |
| Commissioning interface | ECOREACH, web page |
| Immunity to microbreaks | 10 ms |
| Height | 85 mm |
| 9 mm pitches | 6 useful |
| Depth | 67.5 mm |
| Overvoltage category | III |
| Width | 54 mm |
| Location of connection | upstream |
| Power consumption in VA | 5 VA |
| Mounting position | horizontal/vertical on DIN rail |
| Net weight | 133 g |
| Range compatibility | Acti 9 PowerTag wireless energy sensor |
| Reset | factory reset on front face |
| Environment | |
| Relative humidity | 93-93 % at 40-40 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -25-60 °C |
| Operating altitude | 0...2000 m |
