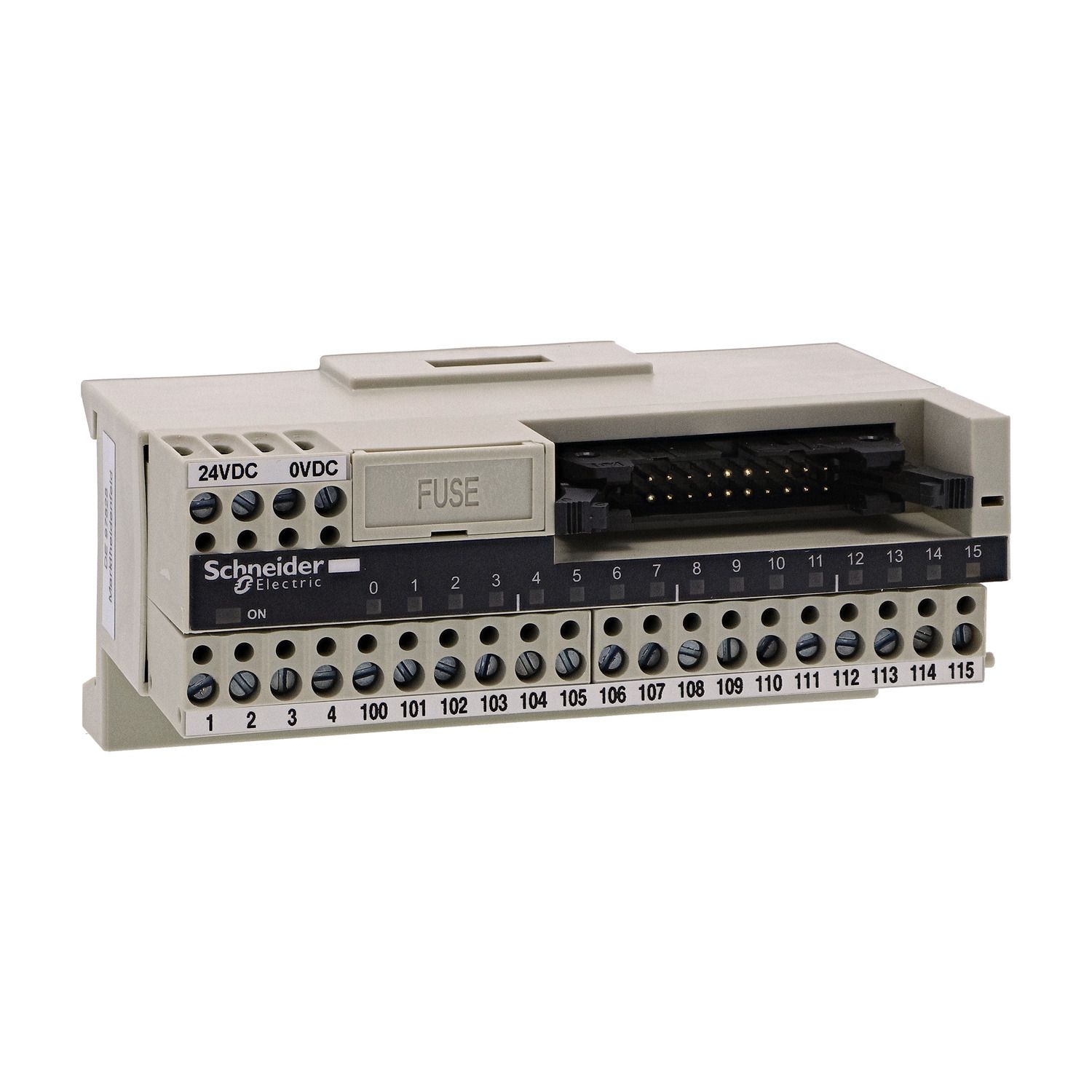

passive connection sub-base ABE7 - 16 inputs or outputs - Led

Manufacturer: Schneider Electric

SKU: ABE7H16C11

GTIN: 3389110251180

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $262.35 inc GST

Price: $289.24 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 1 terminal per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.16kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	19...30 V conforming to IEC 61131-2
Sub-base type	miniature sub-base
Number of channels	16
Connections - terminals	screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel	1
Product or component type	passive discrete I/O sub-base
Range of product	Modicon ABE7
Complementary
Voltage drop on power supply fuse	0.3 V
Supply circuit type	DC
Maximum supply current	1.8 A
Tightening torque	0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution	no
Fixing mode	by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight	0.16 kg
[Ui] rated insulation voltage	2000 V
Maximum current per output common	1.8 A
Installation category	II conforming to IEC 60664-1
Status LED	1 LED (green) power ON, 1 LED per channel (green) channel status
Current per channel	0.5 A
Number of horizontal rows	1
Short-circuit protection	2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients	2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge	8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage	-40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire	750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree	2 conforming to IEC 60664-1
IP degree of protection	IP2X conforming to IEC 60529
Vibration resistance	2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation	-5-60 °C conforming to IEC 61131-2
Resistance to radiated fields	10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications	EAC, GL, DNV, CSA, UL
