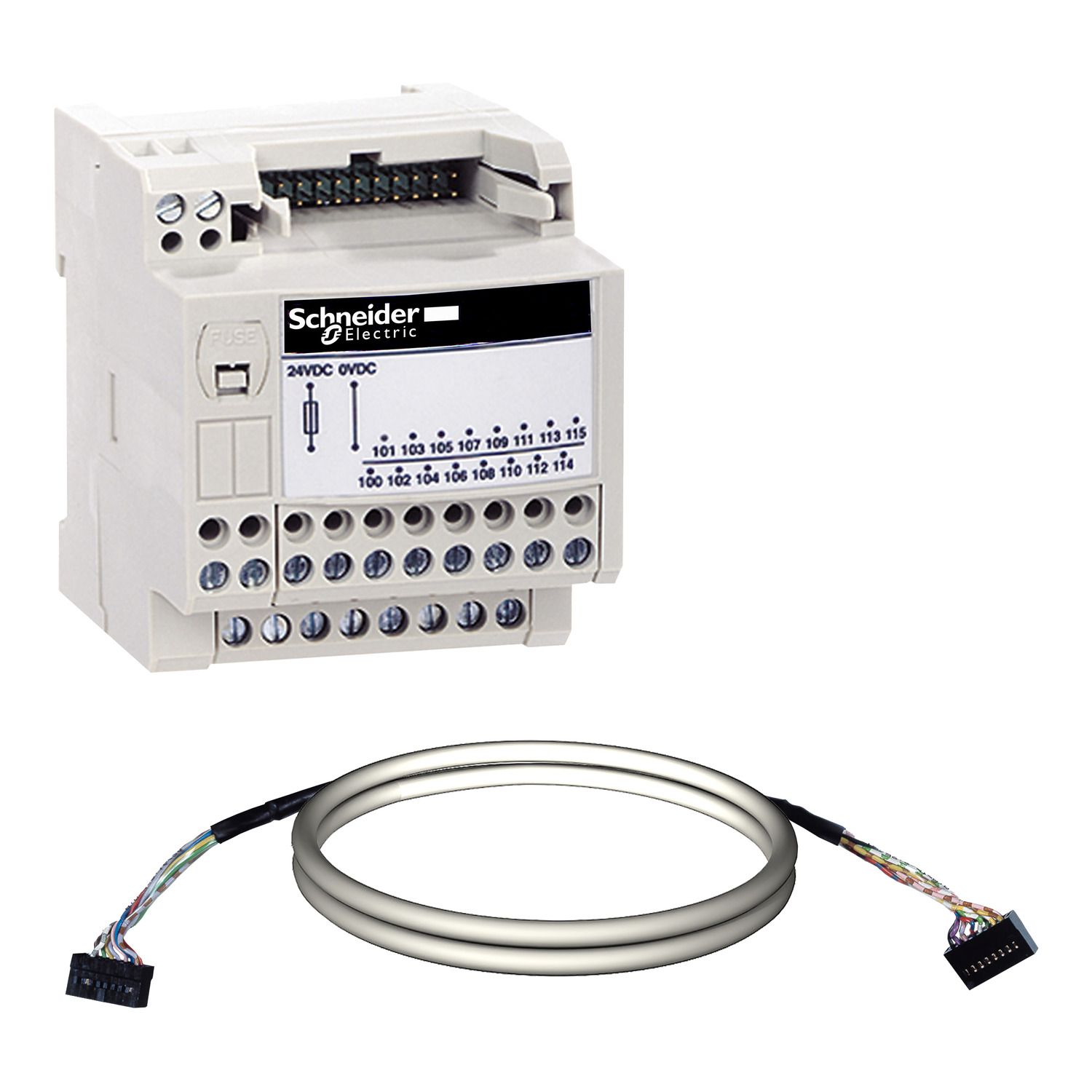

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 16 channels with 1 terminal per channel. The Low cast sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. It is compatible with Modicon TSX Micro PLC and Modicon Premium PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Sub-base type | low cost sub-base |
| Number of channels | 16 |
| Range of product | Modicon ABE7 |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Connections - terminals | screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end |
| Number of terminal per channel | 1 |
| Product or component type | passive discrete I/O sub-base |
| Complementary | |
| Product compatibility | Modicon Premium PLC, Modicon TSX Micro PLC |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum supply current | 1.8 A |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Fixing mode | by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail) |
| Maximum current per output common | 1.8 A |
| Installation category | II conforming to IEC 60664-1 |
| Status LED | 1 LED (amber) APP1, 1 LED (green) power ON |
| Current per channel | 0.5 A |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Supply circuit type | DC |
| Net weight | 0.33 kg |
| Number of horizontal rows | 2 |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Environment | |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -5-60 °C conforming to IEC 61131-2 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Vibration resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Product certifications | EAC, CSA, UL, DNV, GL |
