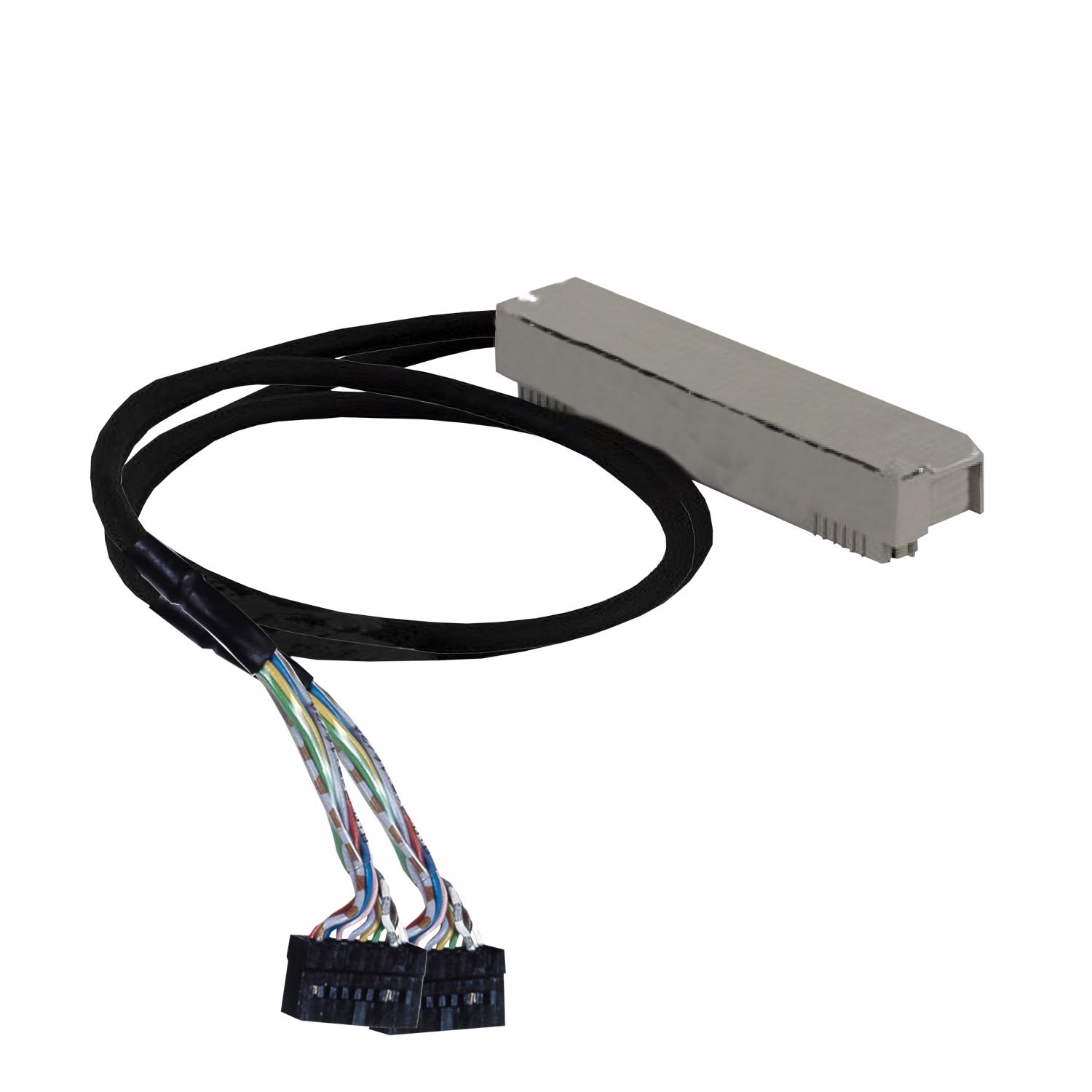

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a connection cable between Modicon Quantum plc and passive and relay sub-bases with 16 channels. It is pre-equipped with one connectors at the Quantum end and one 20-way HE 10 connector at the Sub-Base end. It is used to connect the input and relay output between ABE7 sub-bases and Modicon Quantum PLCs. It measures 3m. It weighs 1.150kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with 140DDI353, 140DDI853, 140DDO353 Quantum I/O modules. It is delivered in 1 package (PCE type). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | Modicon Quantum PLC |
| Accessory / separate part type | connector |
| Number of channels | 32 |
| Accessory / separate part category | connection accessories |
| Accessory / separate part designation | cabled connector |
| Range of product | Modicon Quantum |
| Complementary | |
| Electrical connection | 2 connectors |
| Number of ways | 20 ways |
| AWG gauge | AWG 22 |
| Connector type | HE10 |
| Net weight | 1.15 kg |
| Type of signal | relay I/O |
| Channel splitting | 2 x 16 |
| Cable length | 3 m |
| Wire section | 0.324 mm² |
