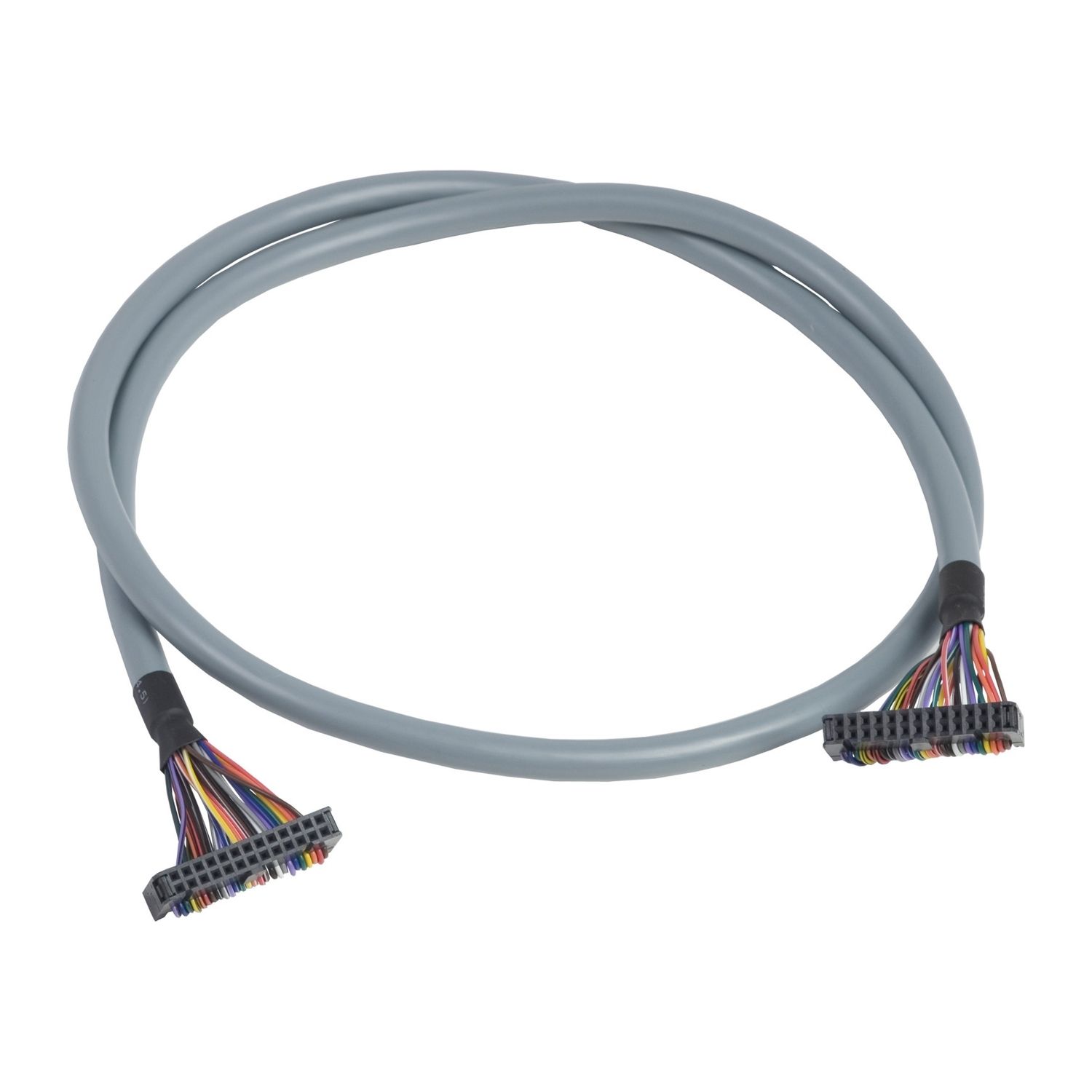

This product is part of the Modicon ABE7 range, an offer of connection accessories for IP20 sub-bases. This discrete I/O connecting cable is suitable for modular base controller. The length of this cable is 2m. The cable has AWG 28 gauge with 0.08mm² cable cross section. It is furnished with 20-way HE10 connector for controller side and 20-way HE10 connector for Telefast ABE7 side. It weighs 0.14kg. It is suitable for all types of industrial applications. It is compatible with Advantys Telefast ABE7 and Twido range of products such as TWDDDO32TK, TWDDDI32DK, TWDDDI16DK and TWDDDO16TK. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | modular base controller |
| Accessory / separate part type | connecting cable |
| Product compatibility | TWDDDO32TK, TWDDDI32DK, TWDDDI16DK, TWDDDO16TK |
| Range compatibility | Twido, Advantys Telefast ABE7 |
| Accessory / separate part category | connection accessories |
| Accessory / separate part designation | discrete I/O connecting cable |
| Complementary | |
| Depth | 180 mm |
| Width | 165 mm |
| Cable cross section | 0.08-0.08 mm² |
| AWG gauge | AWG 28 |
| Net weight | 0.14 kg |
| Cable length | 2 m |
| Electrical connection | 1 connector HE10, 20 ways for Telefast ABE7 side, 1 connector HE10, 20 ways for controller side |
| Height | 20 mm |
