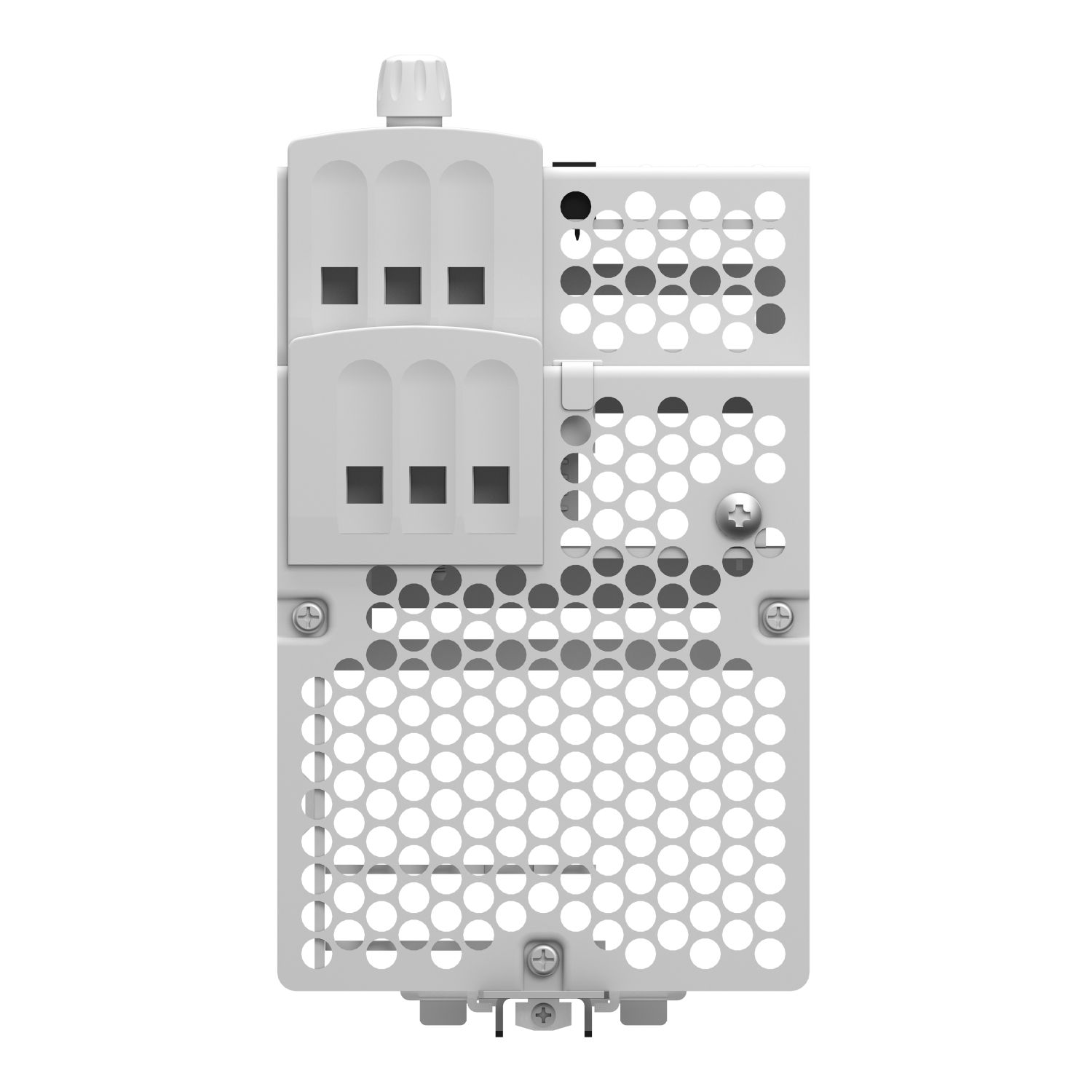

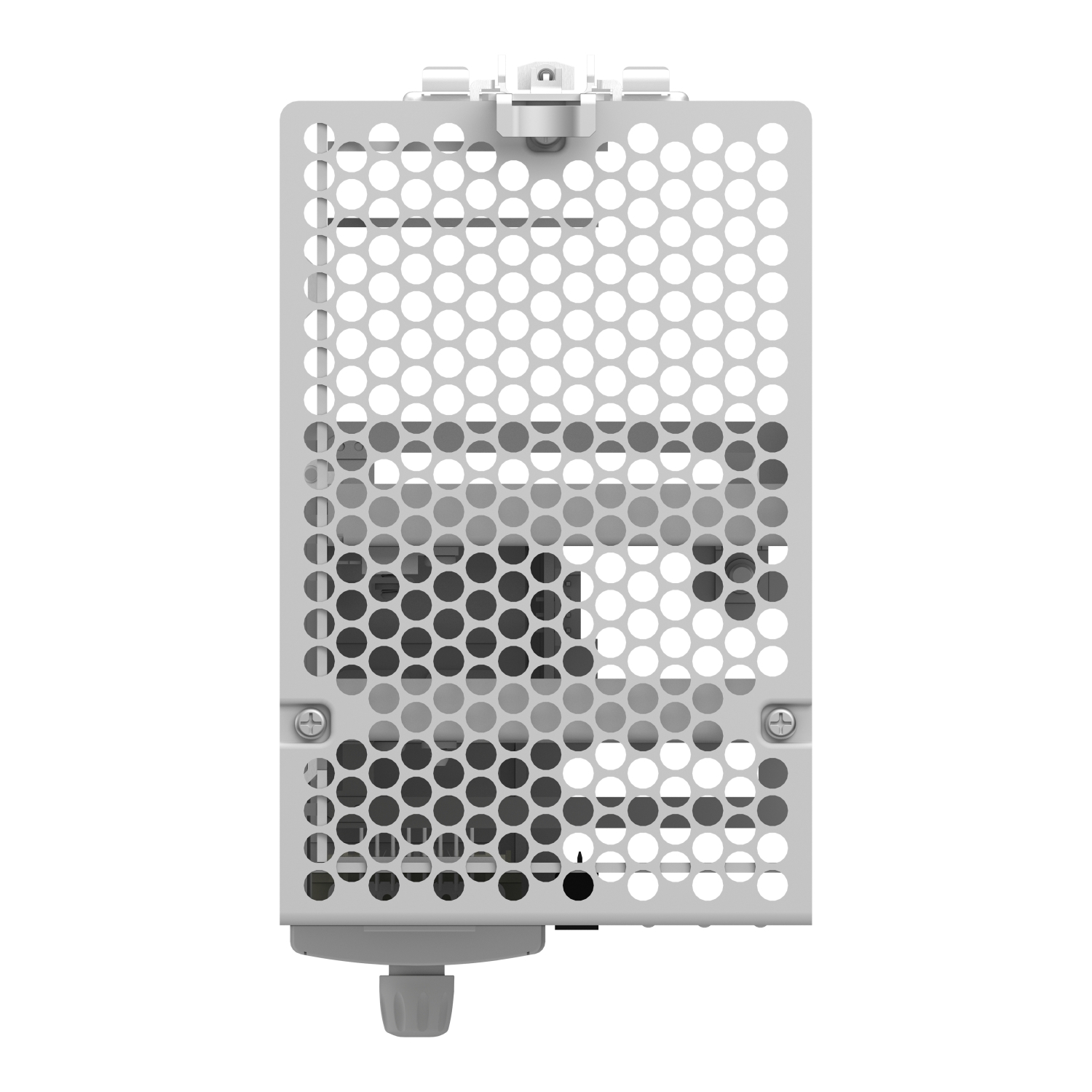

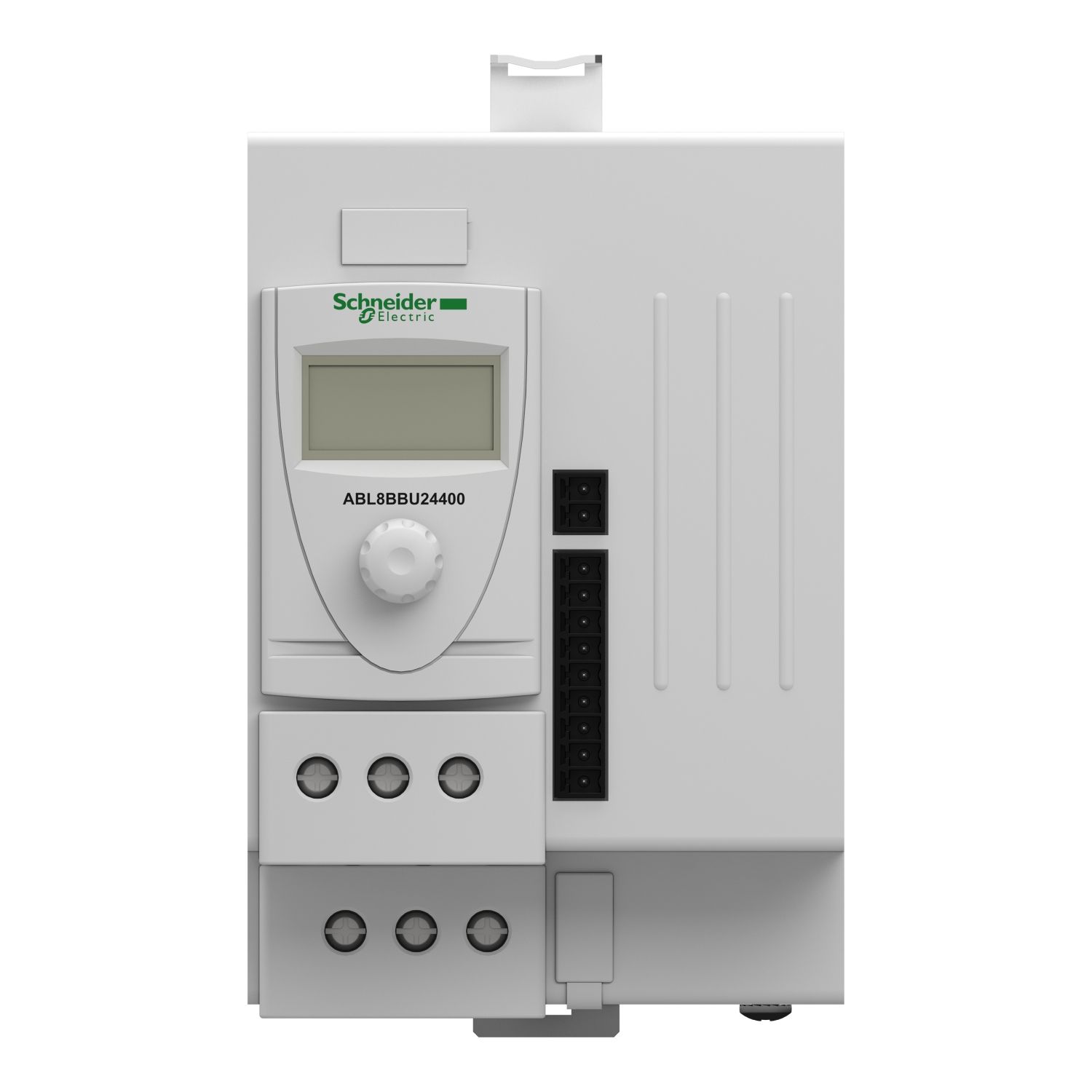

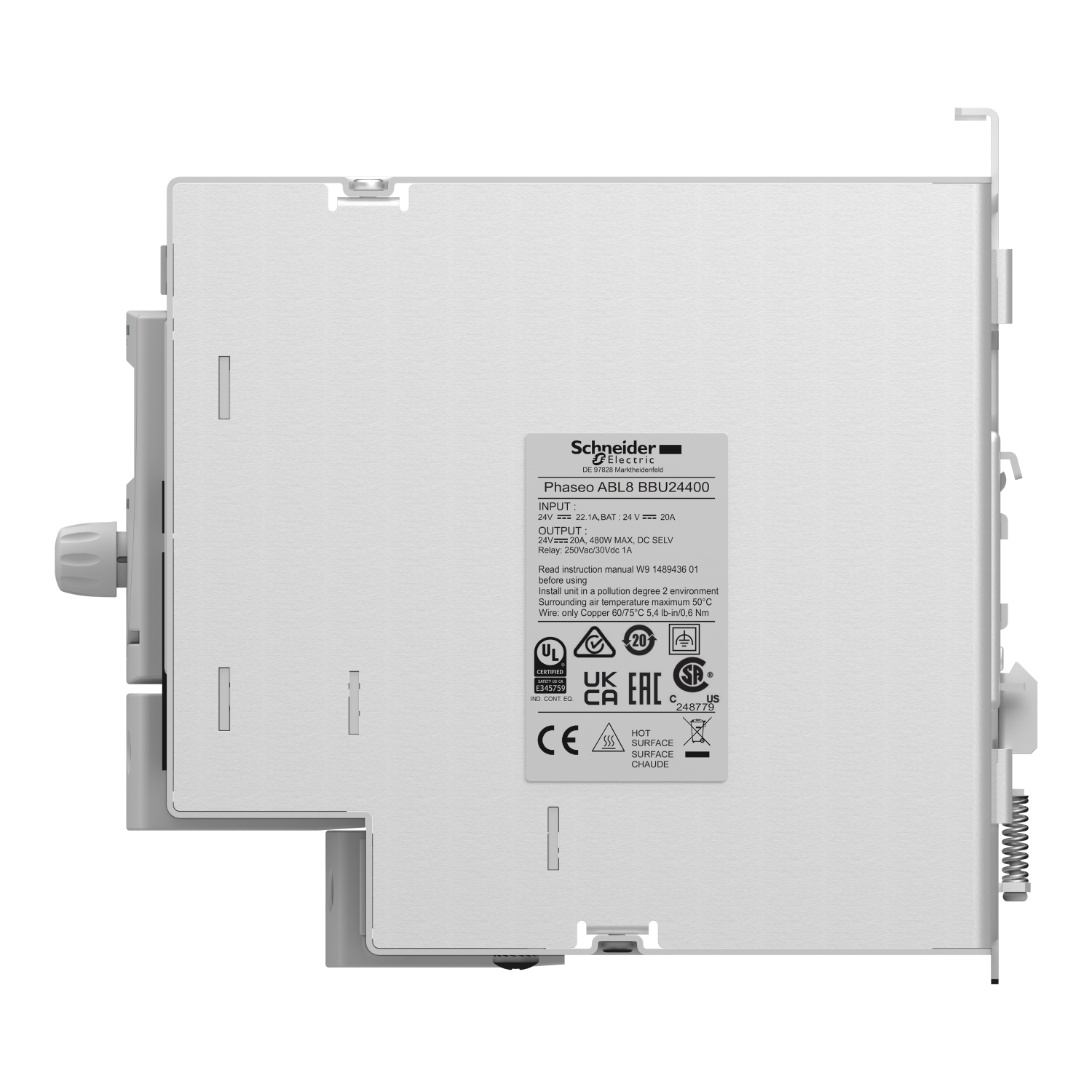

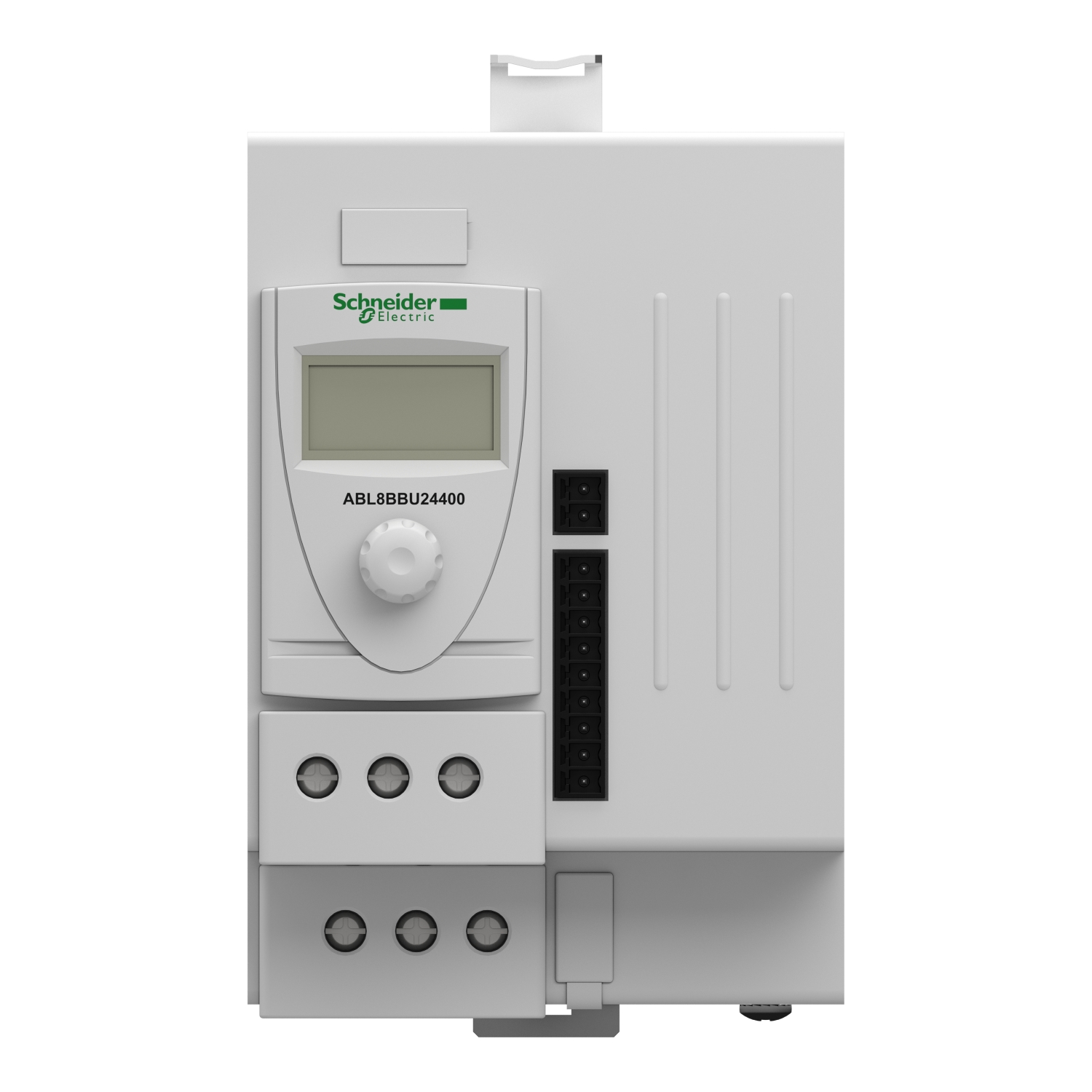

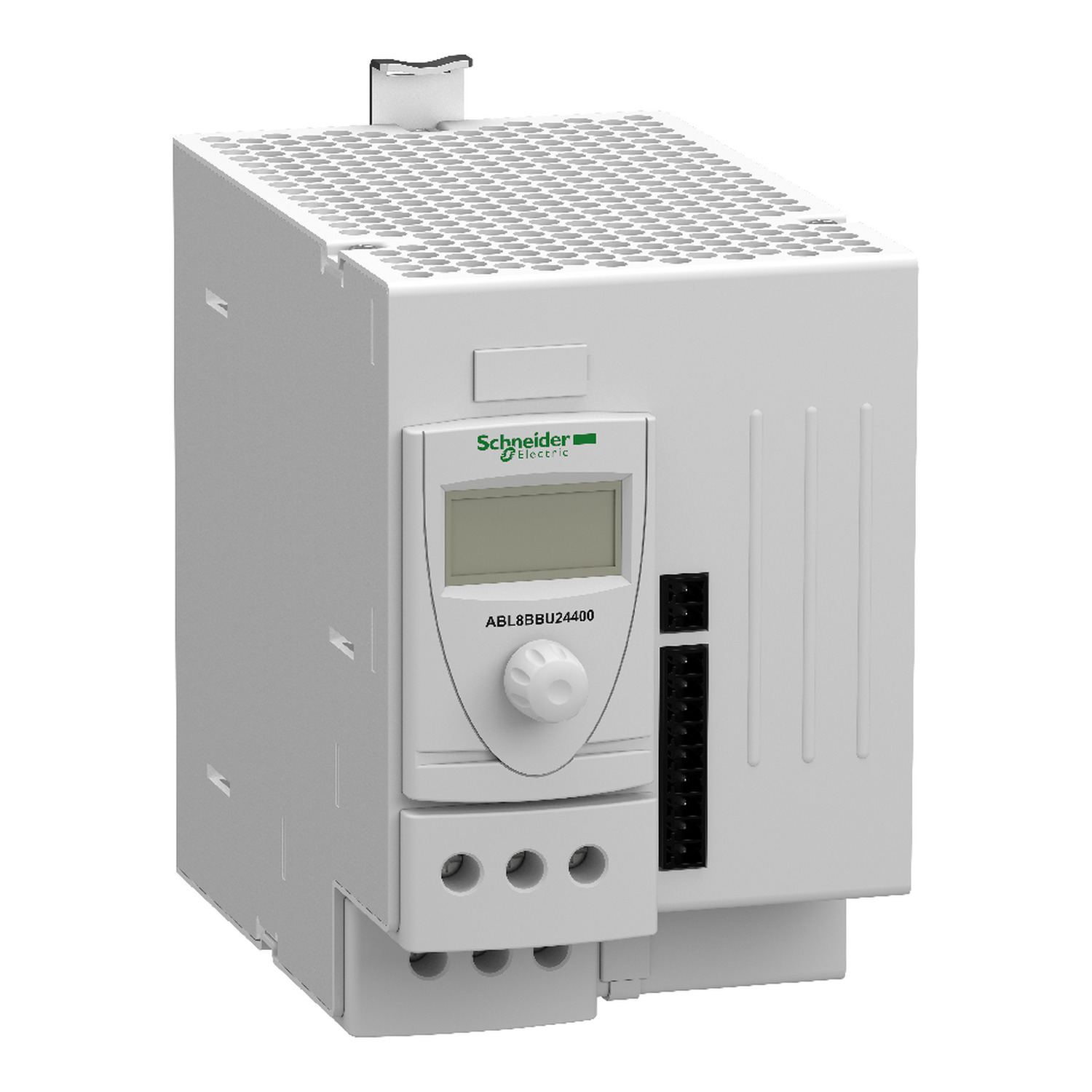

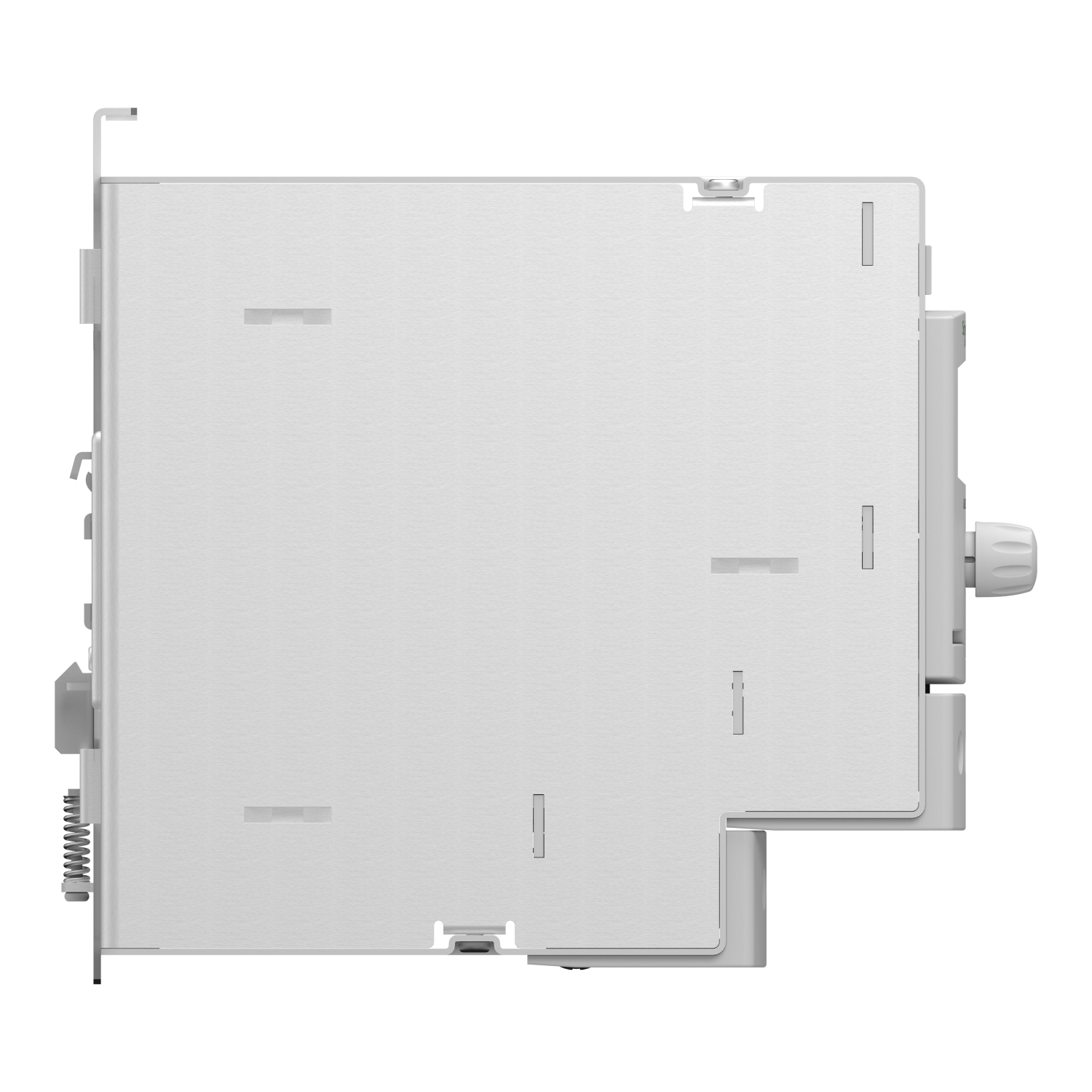

This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during significant network power shortages. It has control backup battery charging and backup supply to ensure the longest battery life-time. It provides reliable and fast switching between network supply and battery supply avoiding disturbances on your critical control power supply lines. It weighs 0,700kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Maximum output current | 40 A |
| Input voltage | 24...28.8 V DC |
| Range of product | Phaseo |
| Product or component type | battery control module |
| Output voltage | (Uin-0.25) V in nominal mode DC, (Ubattery-0.5) V in battery mode DC |
| Complementary | |
| Number of output channels | 1 |
| Compatibility code | ABL8B |
| Name of test | conducted/radiated emissions conforming to EN 55022 class B, 20 %, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3, emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2 |
| Maximum power dissipation in W | 12 W |
| Input voltage limits | 22...30 V |
| Marking | CE |
| Holding solution | use of battery modules |

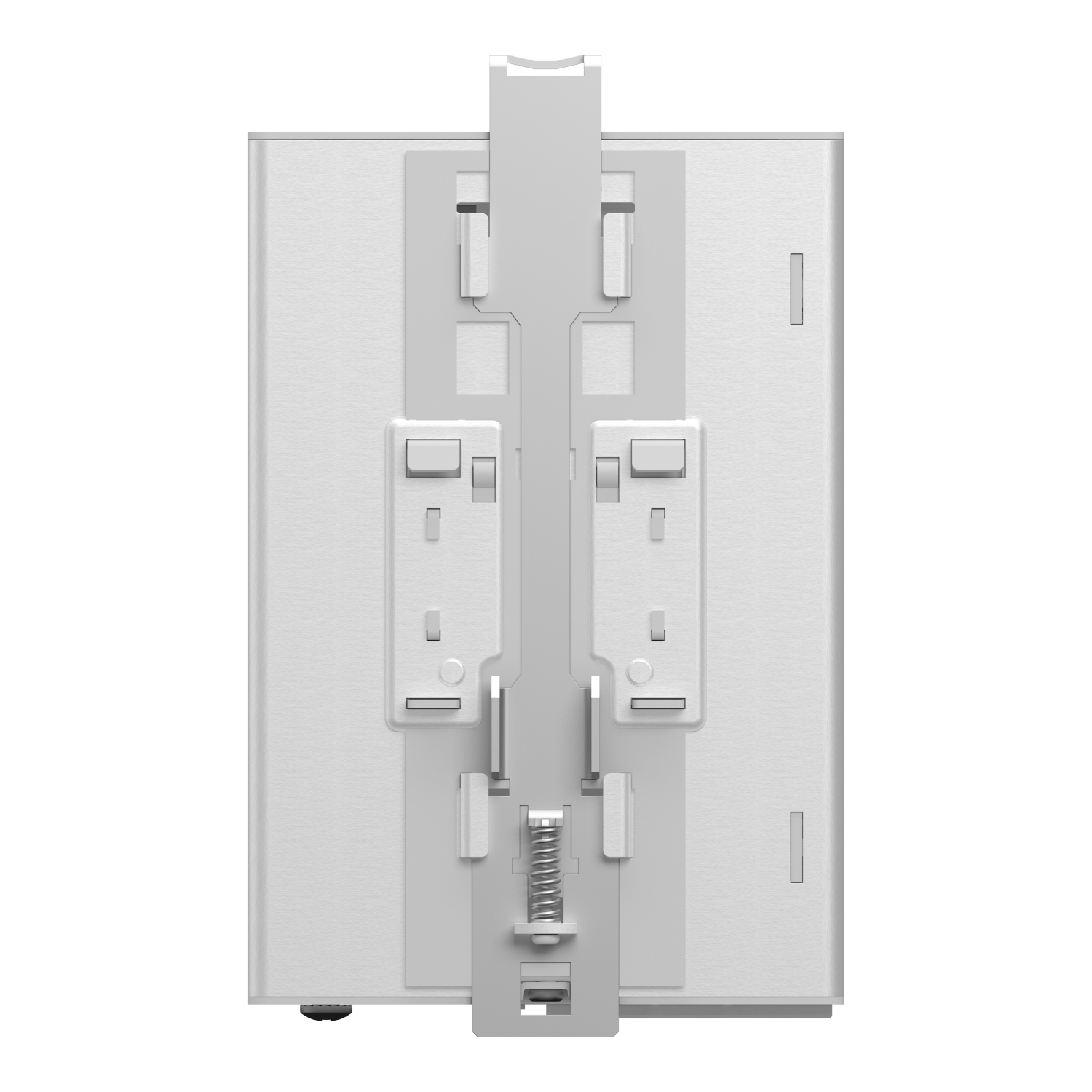

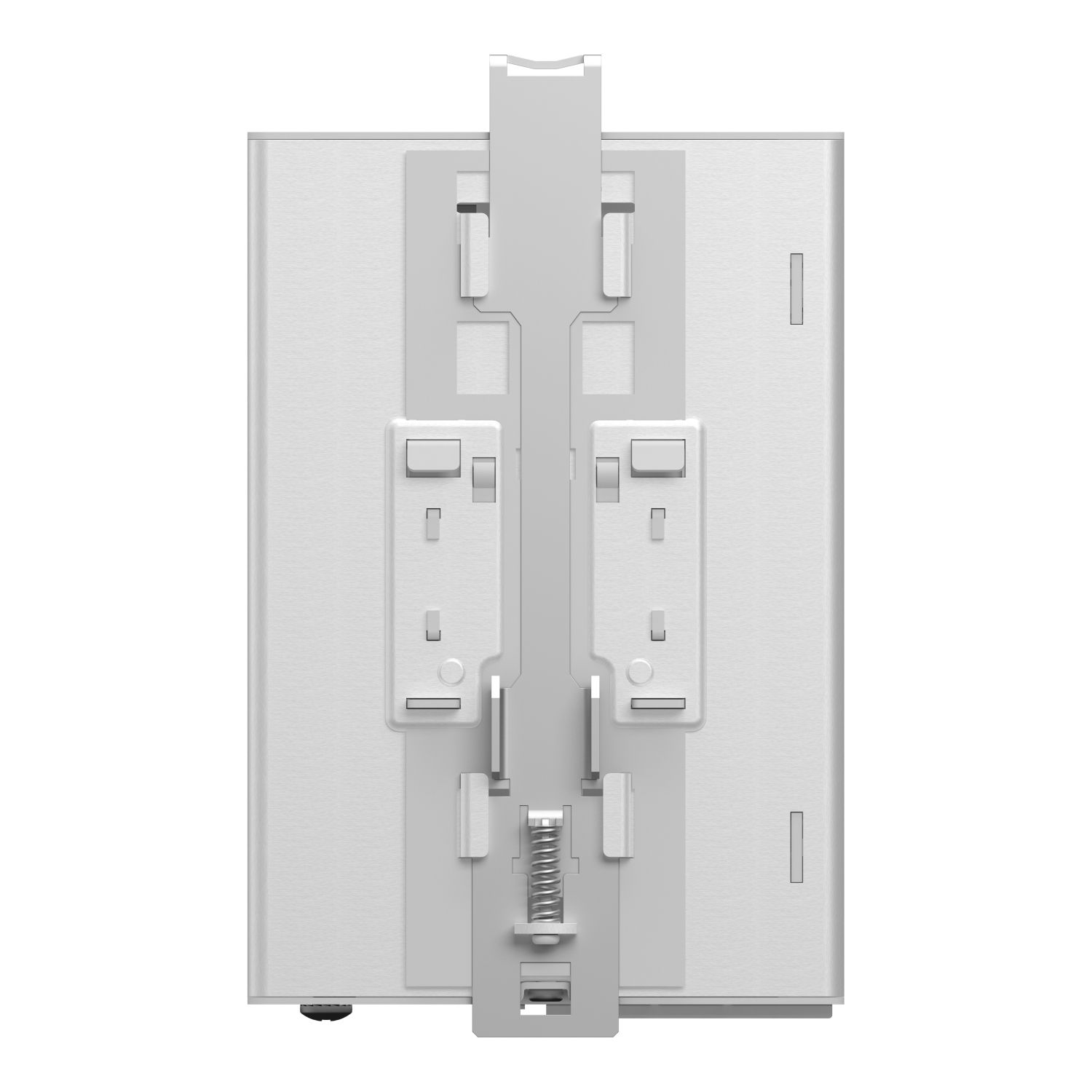

| Fixing mode | by clips on 35 mm symmetrical DIN rail, operating position: vertical, by clips on 35 mm symmetrical DIN rail, operating position: horizontal |
| Activation threshold | adjustable 22...36 V |
| Local signalling | LCD screen for module status, 1 C/O relay for power supply status, 1 C/O relay for battery status, 1 C/O relay for alarm status |
| Output protection type | against short-circuits, protection technology: power-supplied mode, against short-circuits, protection technology: battery-backed mode, automatic reset, against overload, protection technology: 1.5 x In |
| Connections - terminals | for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, for diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm² |
| Holding time | 20 mn, 2 s, 10 mn, 8 mn, 0.2 s, 3 mn, 1 mn, 30 s, 6 mn, 5 s, 1 s, 5 mn, 9 mn, 4 mn, 0.5 s, 2 mn, 15 mn, 10 s, 7 mn |
| Net weight | 0.7 kg |
| Holding current | 30 A, 25 A, 40 A, 35 A |
| Current consumption | <= 40.6 A, 0.1 mA no load, 0.6 A on load |
| Environment | |
| Relative humidity | 0-95 % during storage, 0-90 % during operation |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| MTBF reliability | 707945 H at 24 V DC with UTE C80-810 calculation method |
| Ambient air temperature for operation | -25-60 °C |
| Dielectric strength | 500 V between output and ground, 500 V between input and ground |
| Overvoltage category | class II conforming to VDE 0106-1 |
| Vibration resistance | 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2 |
| Environmental characteristic | safety conforming to EN/IEC 61204-3, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3 |
| Standards | CSA C22.2 No 60950-1, UL 508 |
| Product certifications | EAC, RCM |
