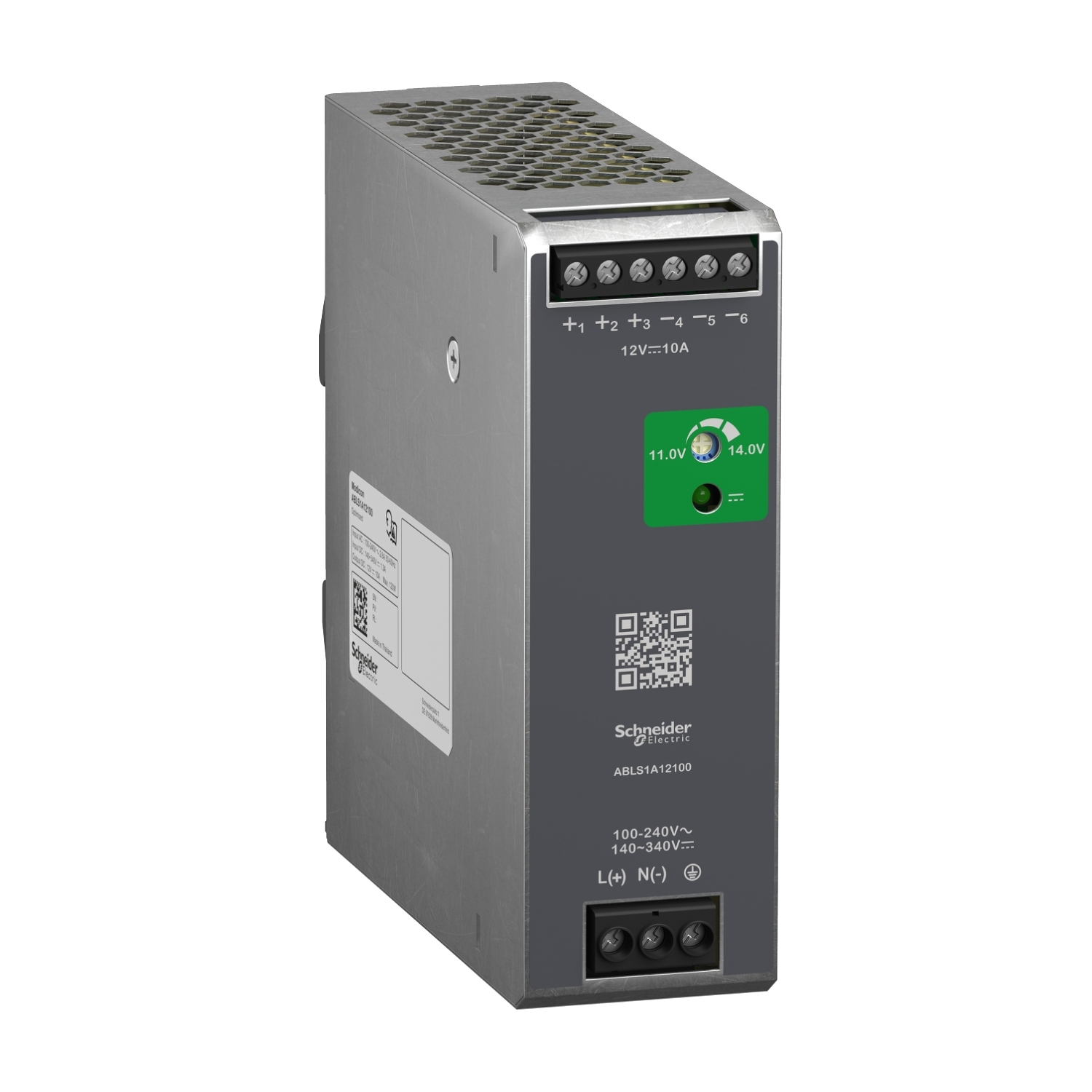

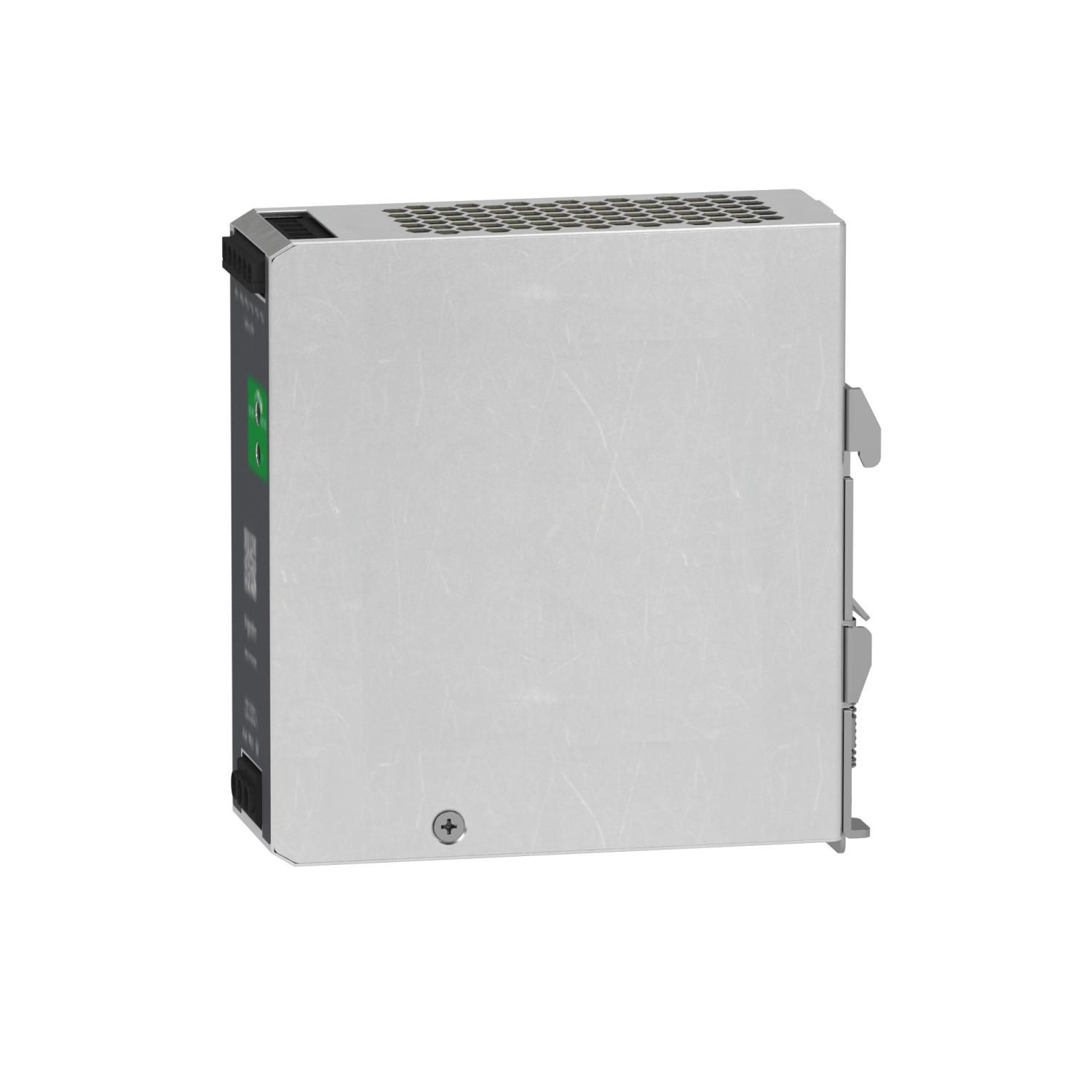

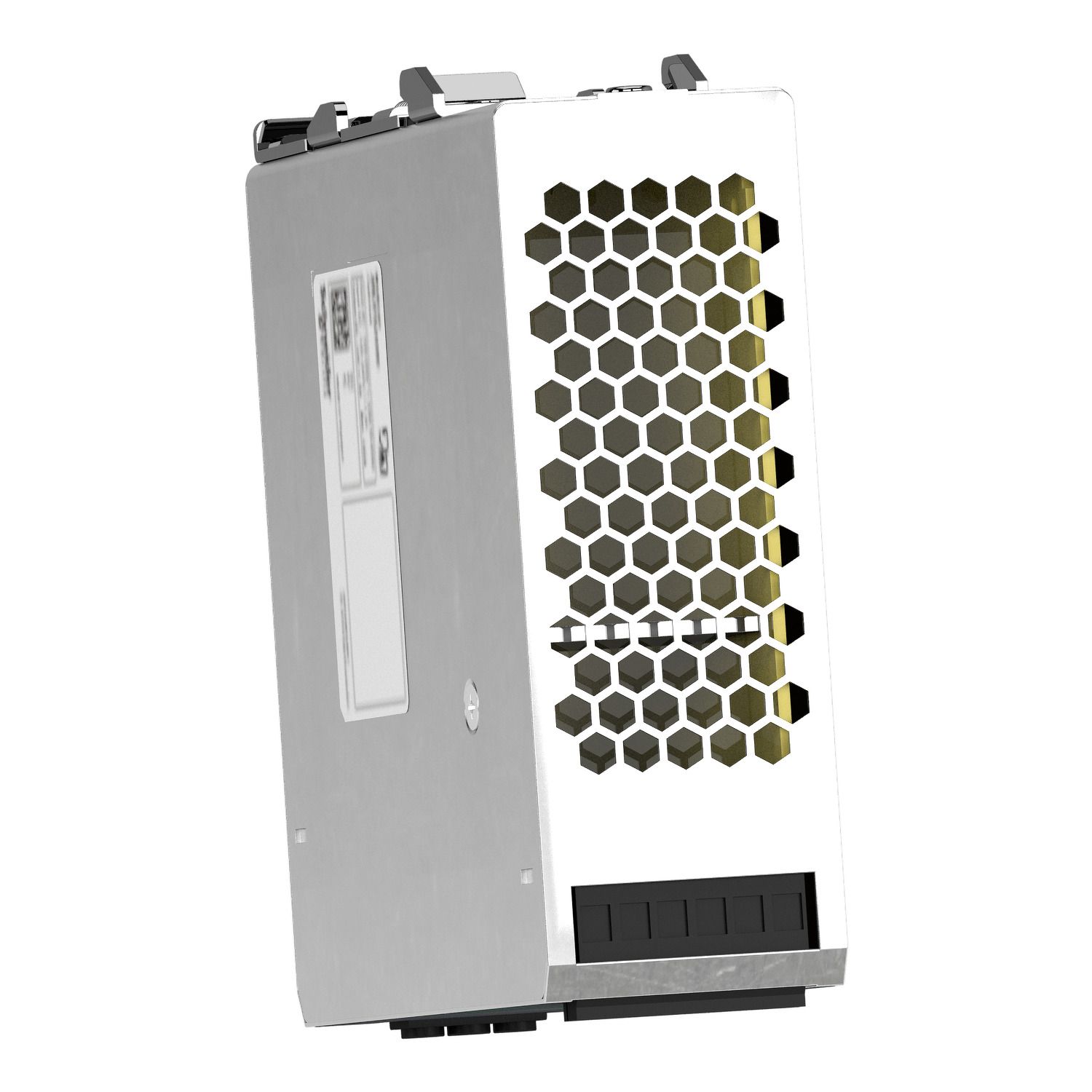

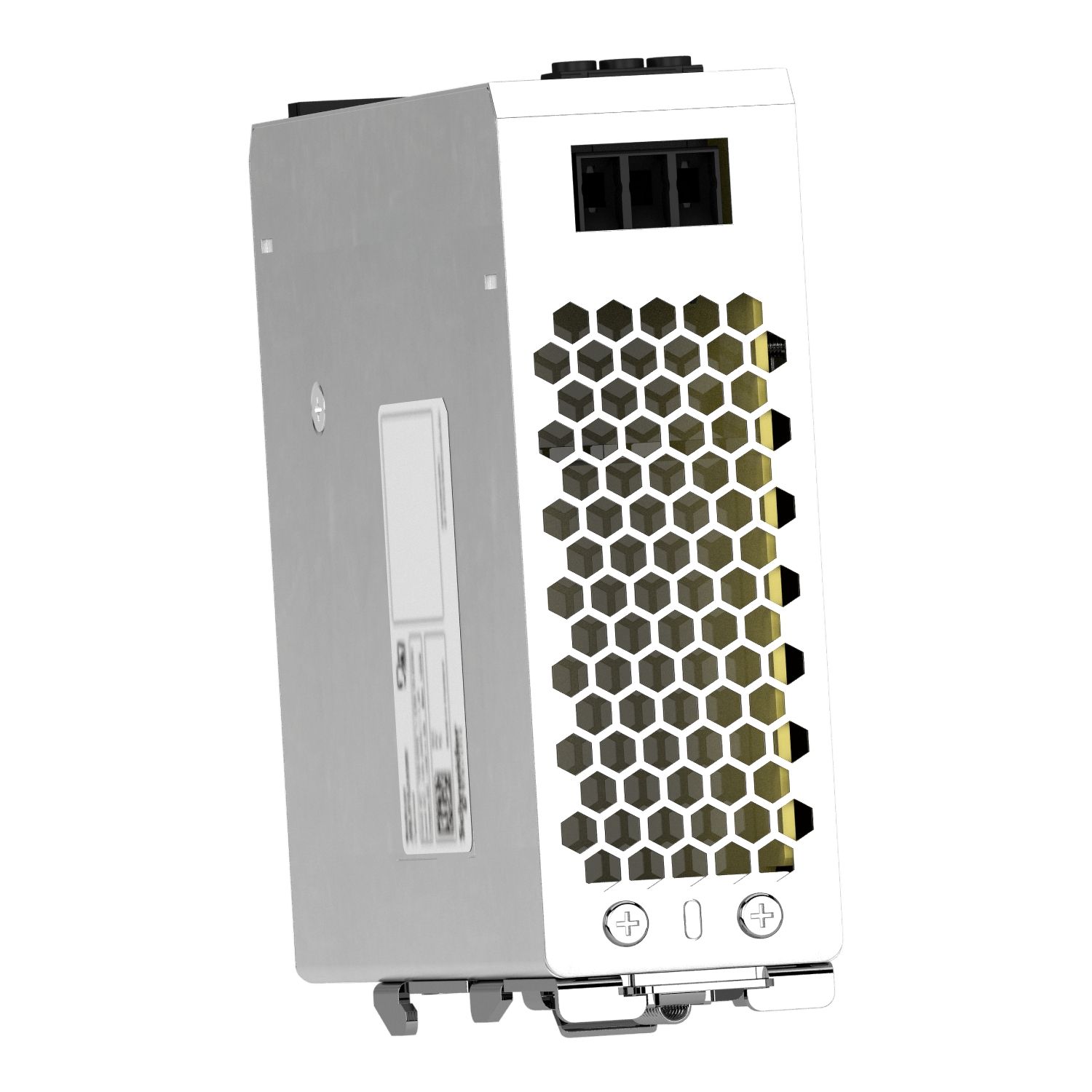

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 10A at 12V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 40mm, its height is 123,6mm, its depth is 117,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.520kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 13A, C-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rated power in W | 120 W |
| Input voltage | 140...340 V DC, 100...240 V AC phase to phase, 100...240 V AC single phase |
| Output voltage | 12 V DC |
| Range of product | Modicon Power Supply |
| Enclosure material | aluminium |
| Power supply output current | 10 A |
| Power supply type | regulated switch mode |
| Product or component type | power supply |
| Complementary | |
| Power factor | 0.45 at 230 V AC, 0.55 at 115 V AC |
| Inrush current | 60.0 A at 230 V, 30.0 A at 115 V |
| Efficiency | 86 % at 230 V AC, 84 % at 115 V AC |
| Load capacitance | 8000 µF |
| Power dissipation in W | 25 W |
| Meantime between failure [MTBF] | 700000 h at 25 °C, full load conforming to SR 332 |
| Input protection type | external protection (recommended) 13 A Curve C, external protection (recommended) 20 A Curve C, integrated fuse (not interchangeable) 4 A |
| Network frequency limits | 50-60 Hz |
| Connections - terminals | screw connection: 0.75...4 mm², (AWG 18...AWG 12) with wire end ferrule for input, screw connection: 0.75...4 mm², (AWG 18...AWG 12) without wire end ferrule for input, screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) with wire end ferrule for output, screw connection: 0.5...4 mm², (AWG 20...AWG 12) without wire end ferrule for output |
| Earthing system | IT, TT, TN |
| Input voltage limits | 85…120 V DC with temperature derating, 120...375 V DC without temperature derating, 85...264 V AC without temperature derating |
| Status LED | 1 LED (green) output voltage |
| Residual ripple | < 120 mV |
| Height | 123.6 mm |
| Depth | 117.6 mm |
| Overvoltage category | II |
| Width | 40 mm |
| Line and load regulation | < 1 % at full voltage range in line at 25 °C, < 0.5 % at 0 to 100 % load at 25 °C |
| Response time | < 1 s |

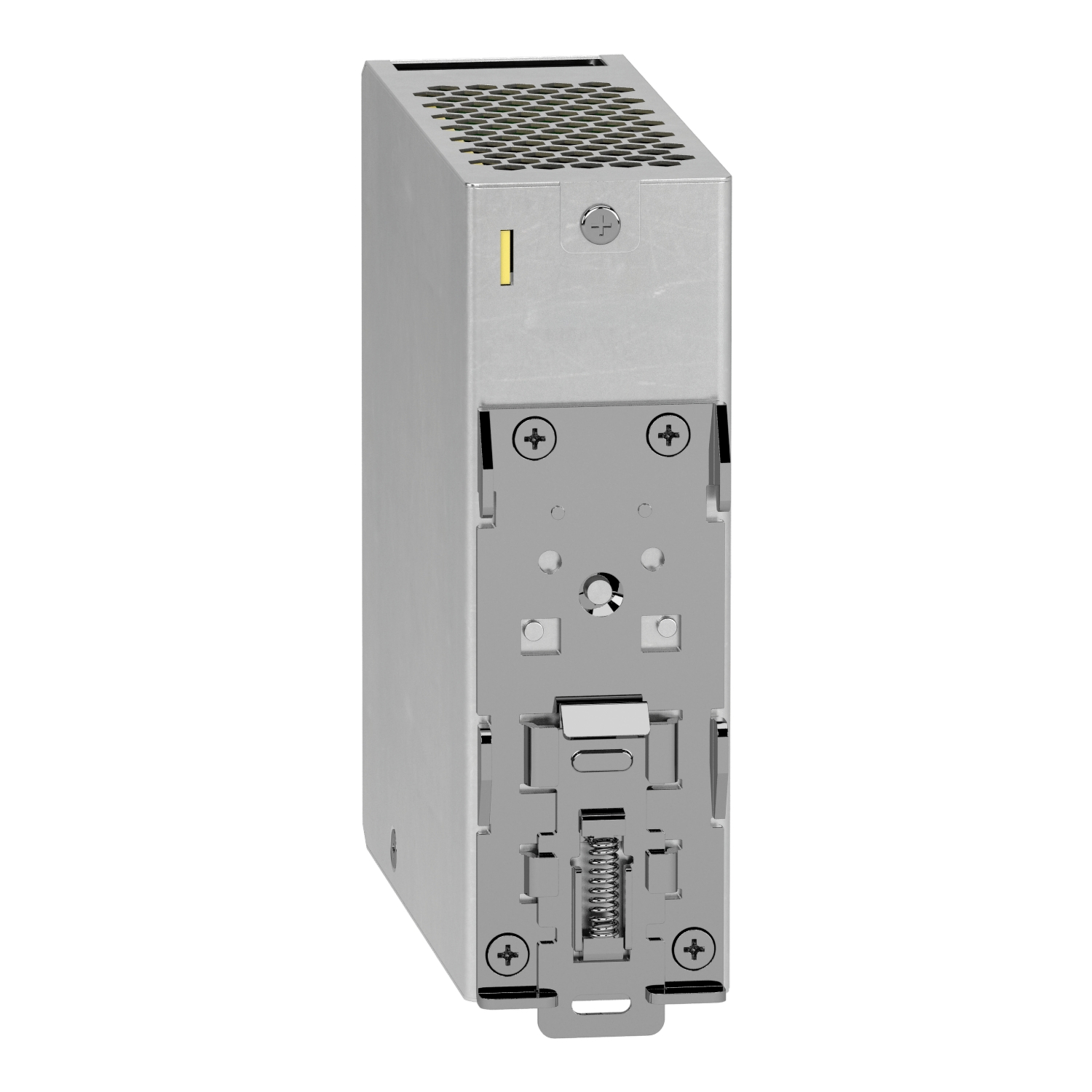

| Mounting support | double-profile DIN rail, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Output voltage limits | 11...14 V |
| Service life | 10 year(s) |
| Output protection type | against overvoltage, protection technology: manual reset, against over temperature, protection technology: manual reset, against overload and short-circuits, protection technology: automatic reset |
| Maximum leakage current | 1 mA 240 V AC |
| Net weight | 0.52 kg |
| Supply | SELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1 |
| Current consumption | < 1.3 A 140 V DC, < 1.4 A 230 V AC, < 2.5 A 115 V AC |
| Dielectric strength | 3000 V AC with input to output |
| Holding time | > 40 ms 230 V AC, > 20 ms 115 V AC |
| Output coupling | serial, parallel |
| Environment | |
| IP degree of protection | IP20 |
| Electromagnetic compatibility | conforming to EN 55016-2-1, conforming to EN 55016-1-2, limits for harmonic current emissions conforming to IEC 61000-3-2, disturbing field emission conforming to EN 55016-2-3, immunity to voltage dips conforming to IEC 61000-4-11, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 |
| Pollution degree | 2 |
| Product certifications | KC, EAC, CB Scheme, RCM, cUL recognized, cUL listed, CE |
| Ambient air temperature for operation | 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m, 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m, -10-50 °C without derating mounting position A 230 V AC < 2000 m, -10-40 °C without derating mounting position A 115 V AC < 2000 m, -20--10 °C with current derating of 2 % per °C mounting position A < 2000 m |
| Electromagnetic emission | radiated emissions conforming to IEC 61000-6-4, conducted emissions conforming to IEC 61000-6-3 |
| Electrical shock protection class | class I |
| Operating altitude | < 5000 m |
| Vibration resistance | 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6, 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 150 m/s² for 11 ms |
| Standards | EN/IEC 62368-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1, CSA C22.2 No 62368-1, UL 61010-2-201, UL 61010-1, UL 62368-1, EN 61000-3-3, IEC 61000-3-2, IEC 61000-6-4, IEC 61000-6-3, IEC 61000-6-2, IEC 61000-6-1, EN/IEC 61204-3, EN 61010-2-201, EN/IEC 61010-1, IEC 62368-1 |
| Variant option | optimized |
