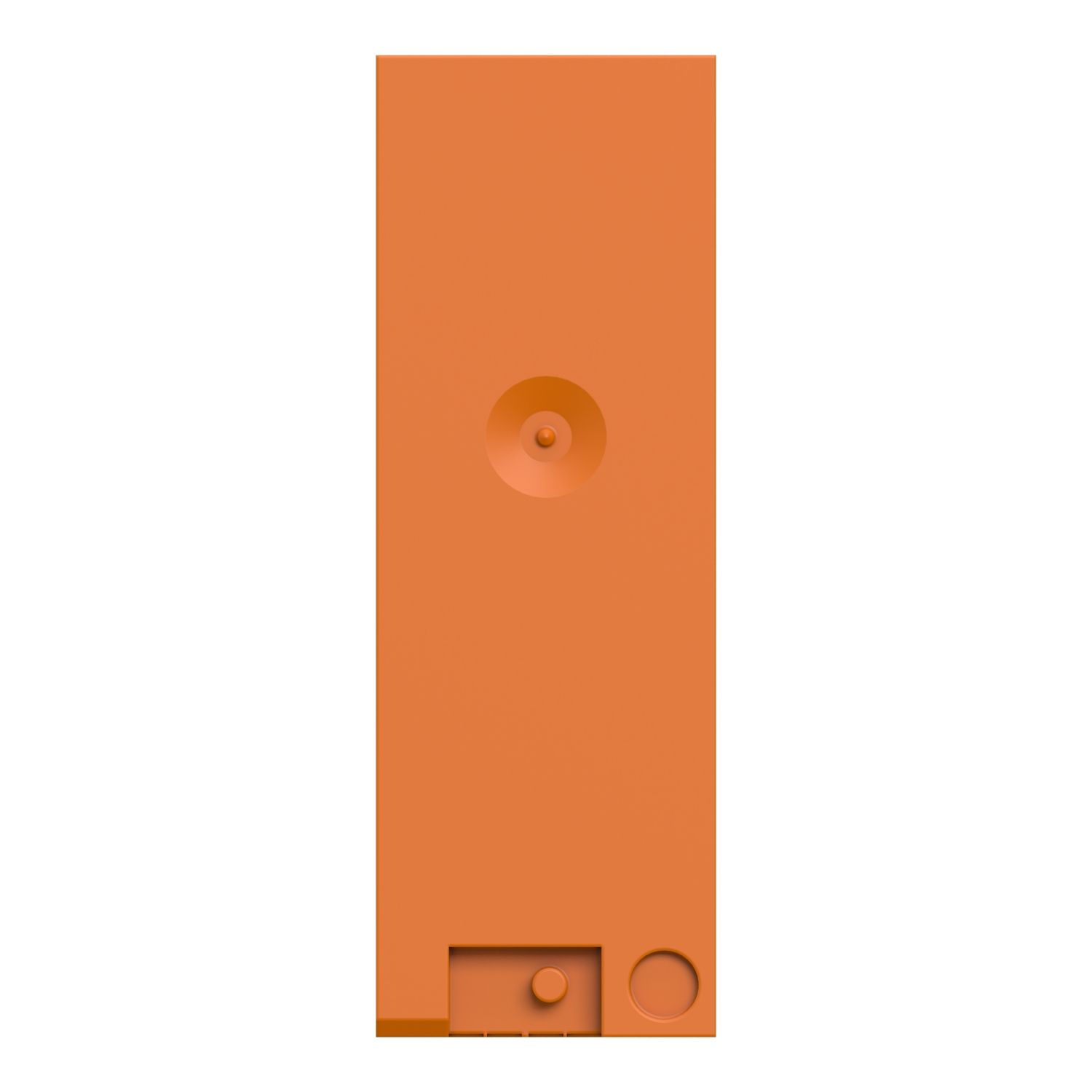

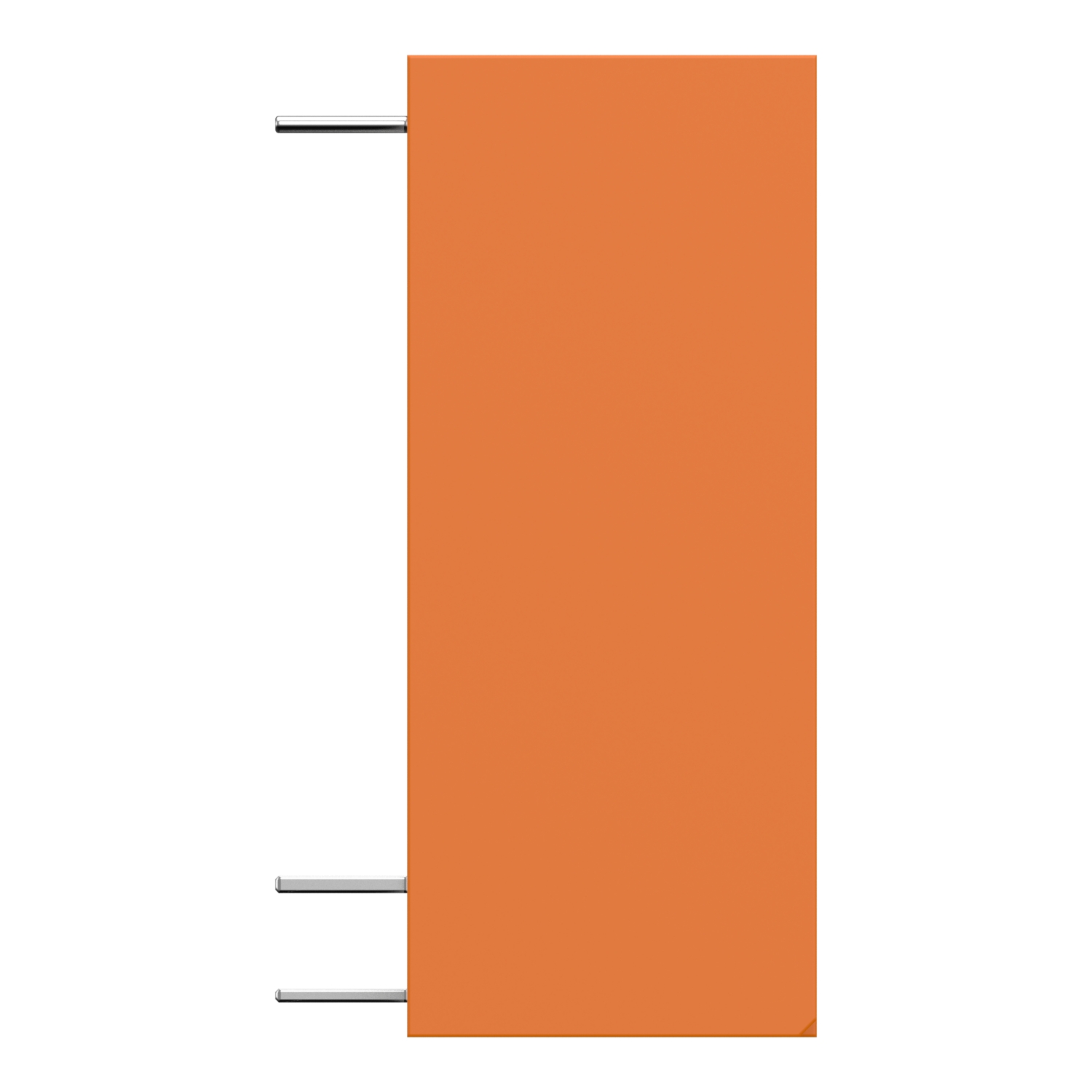

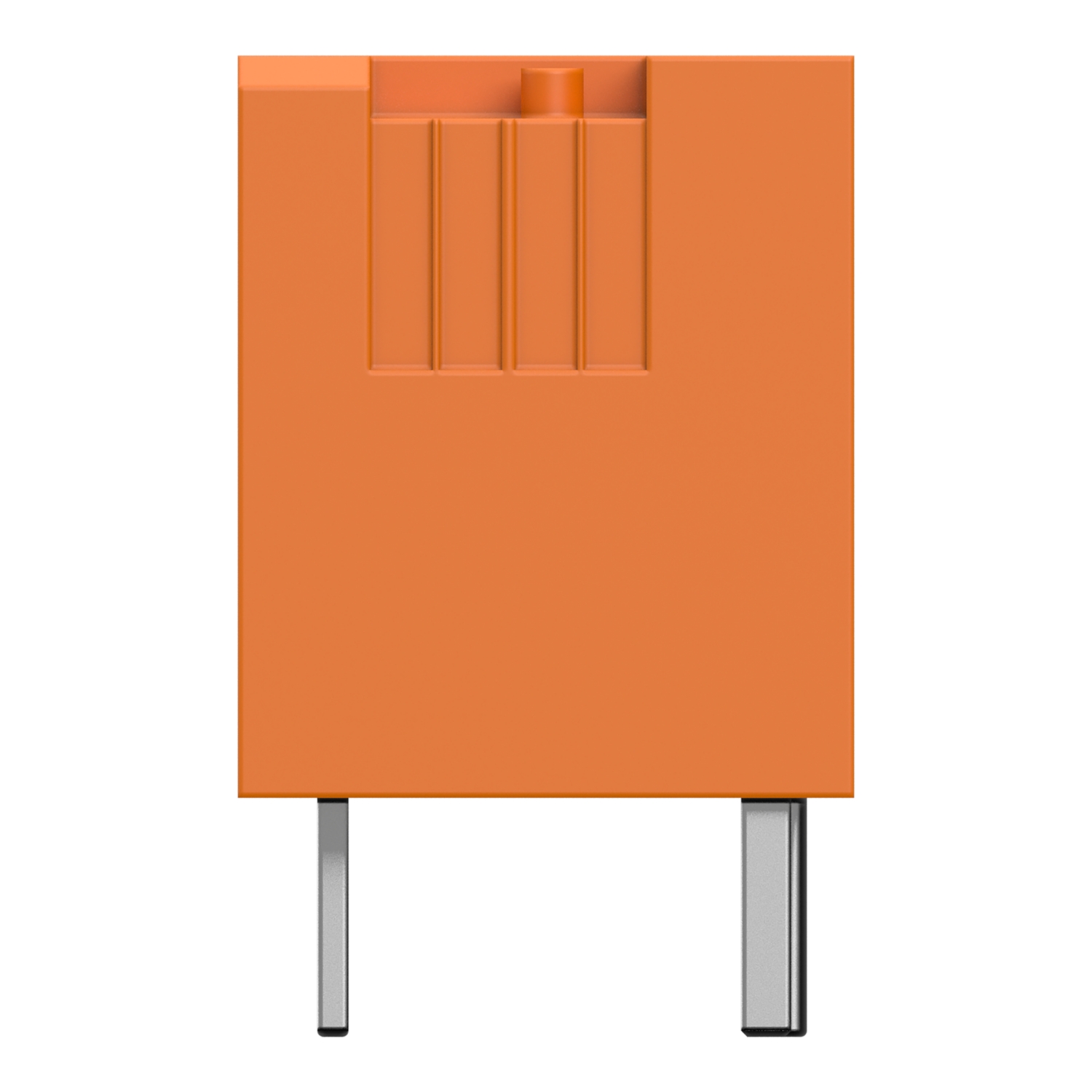

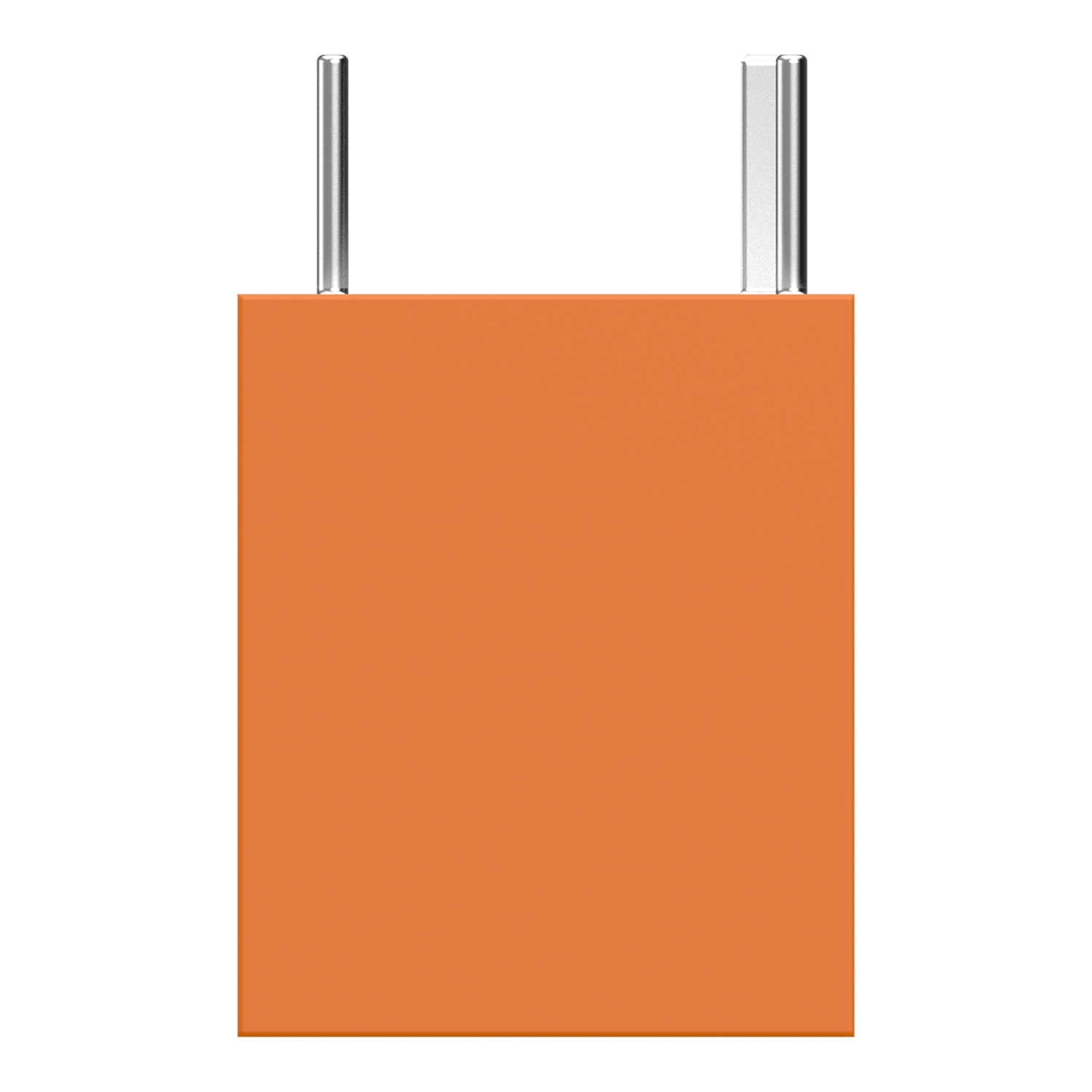

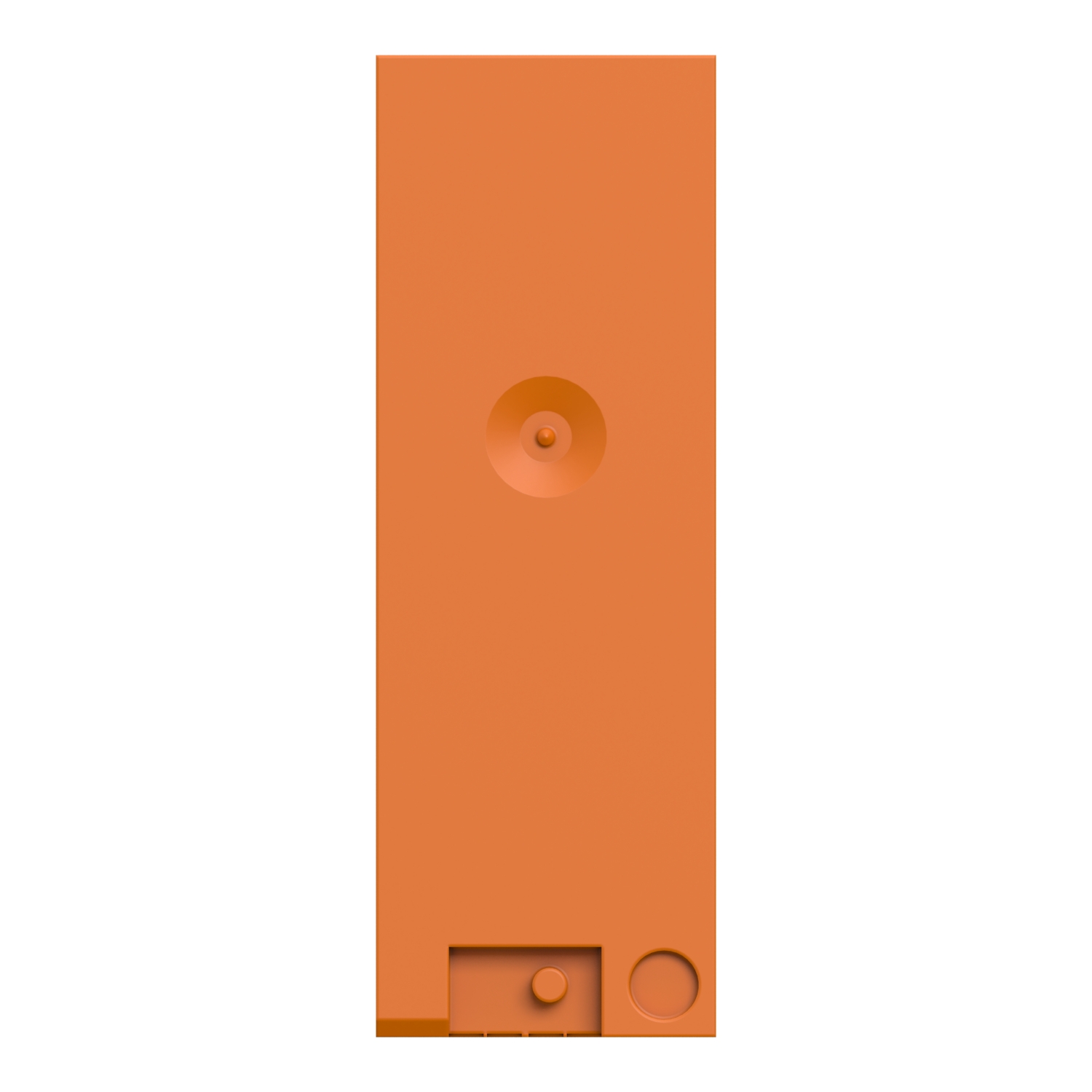

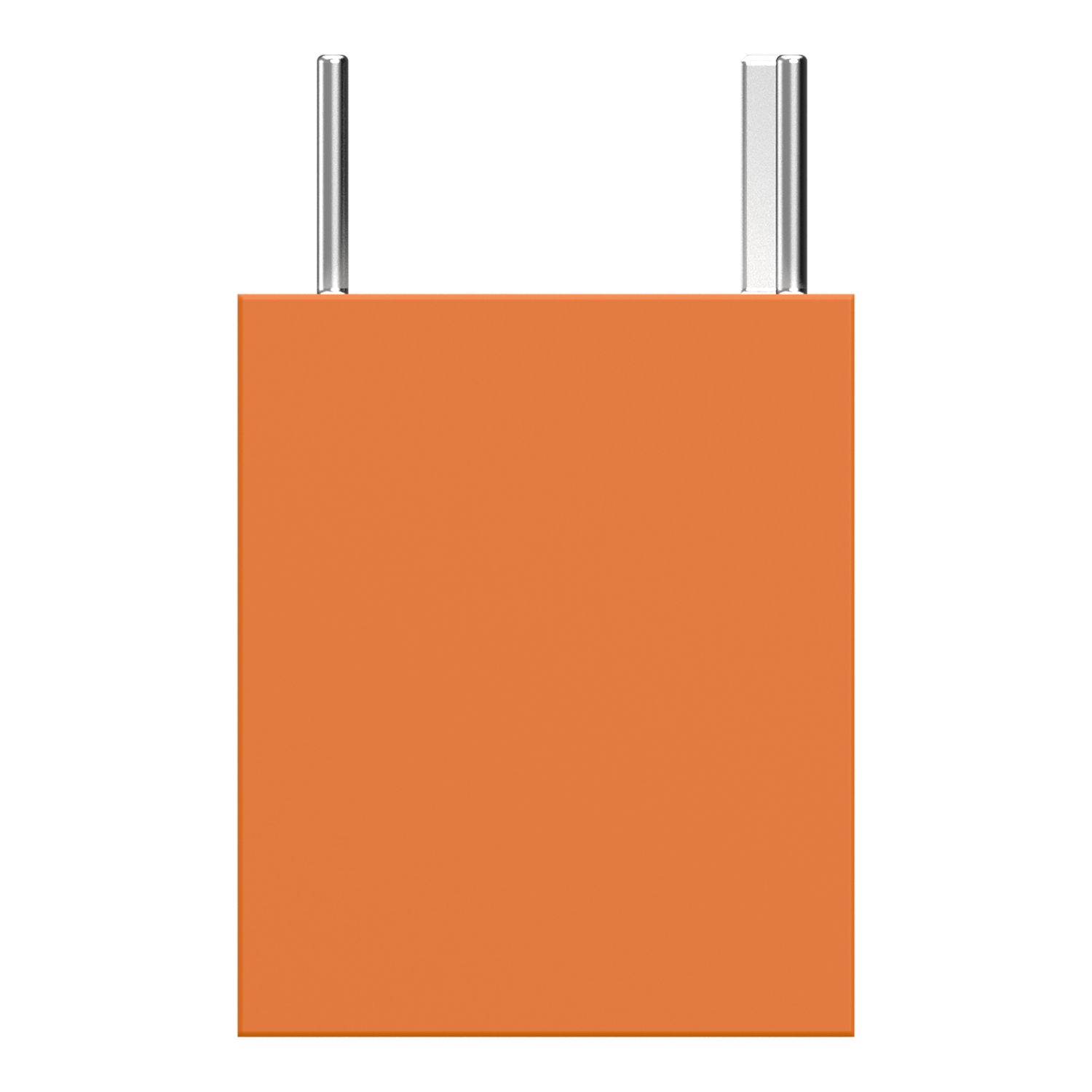

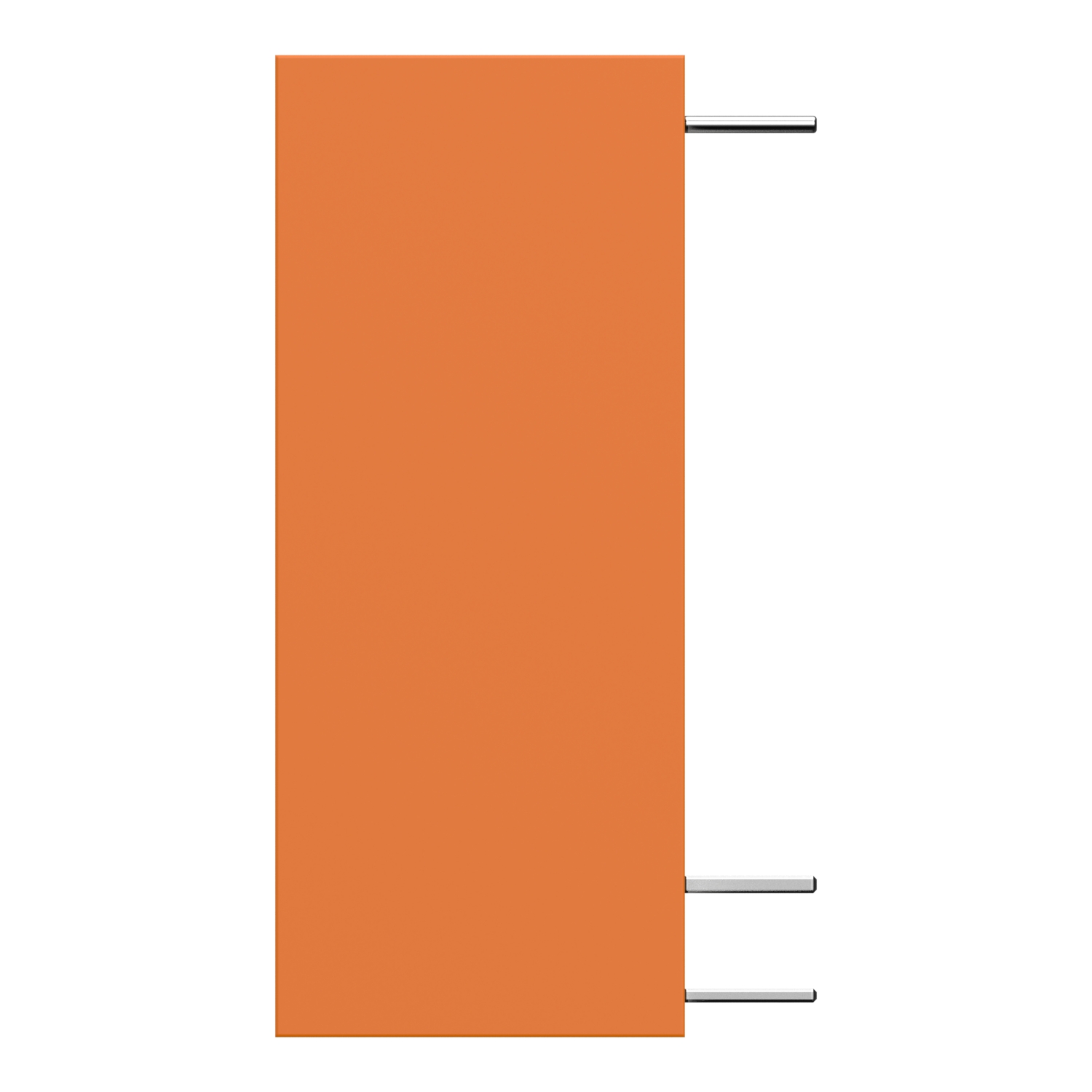

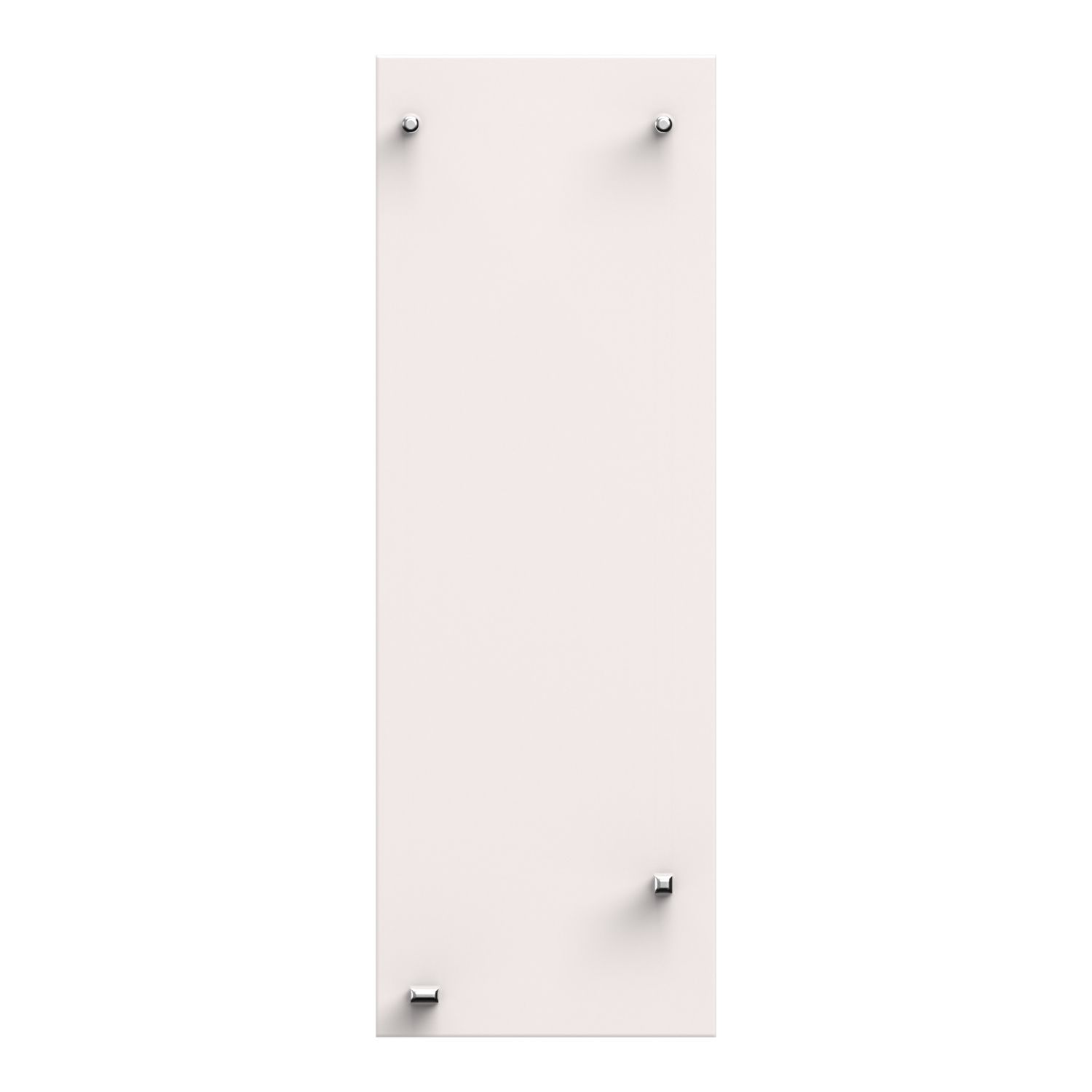

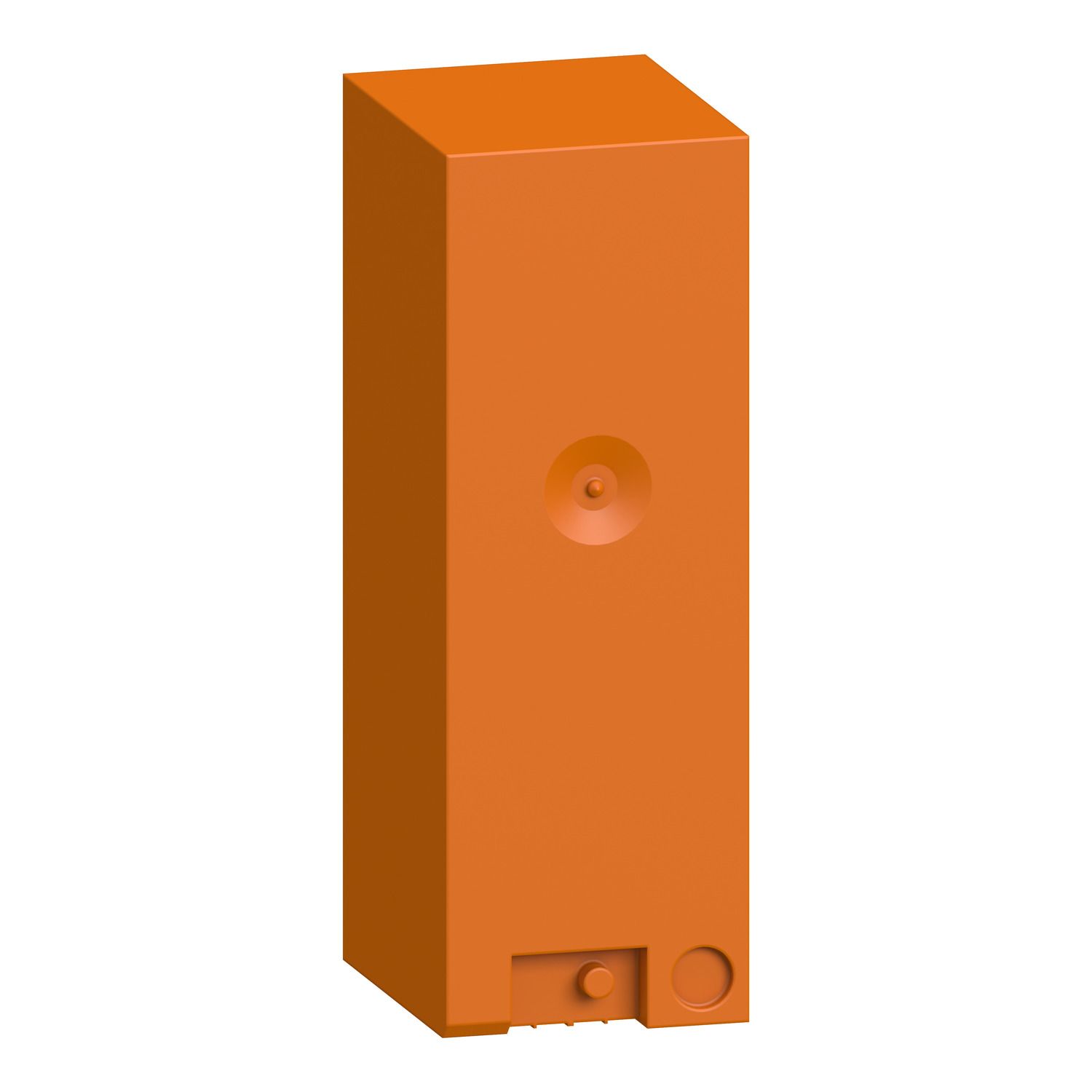

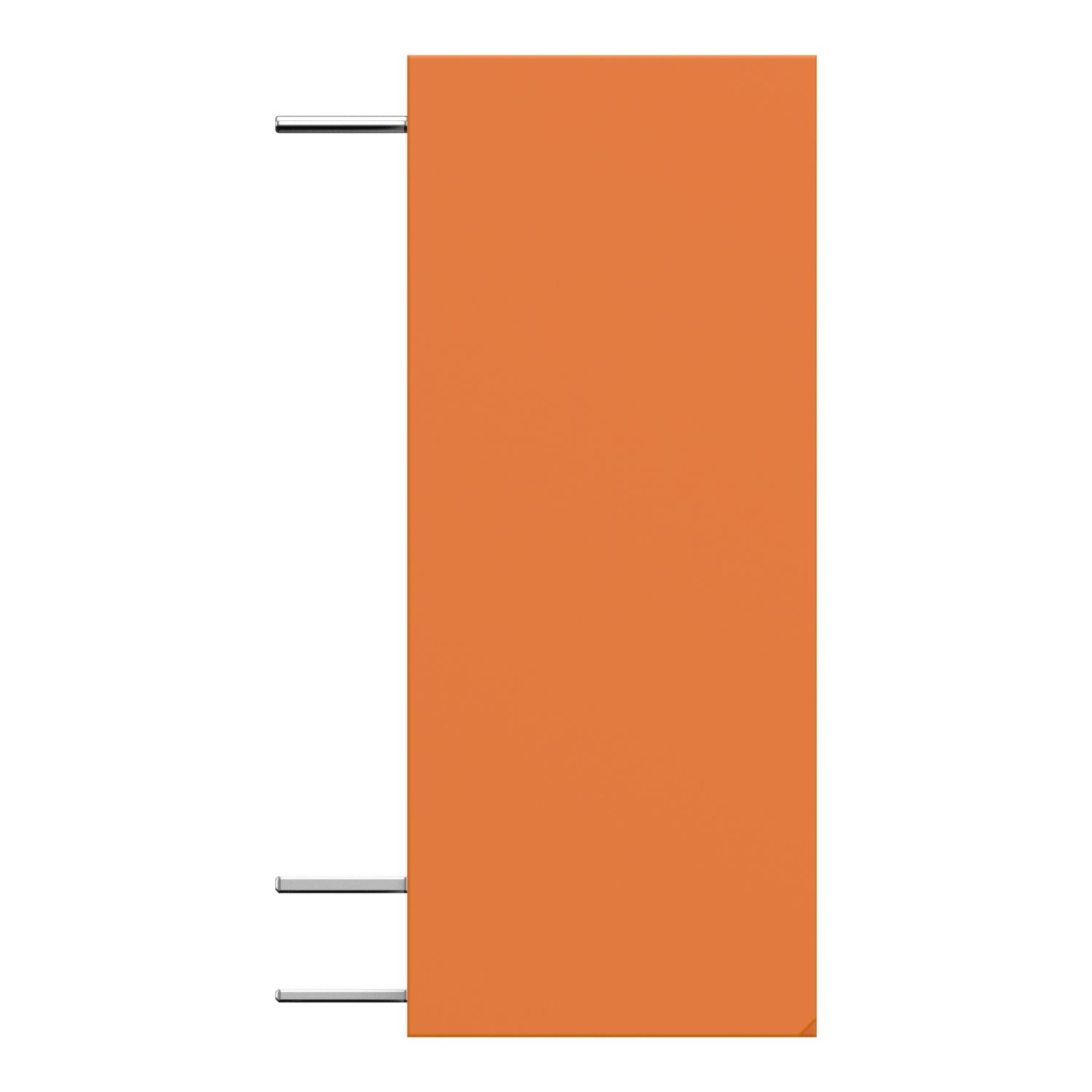

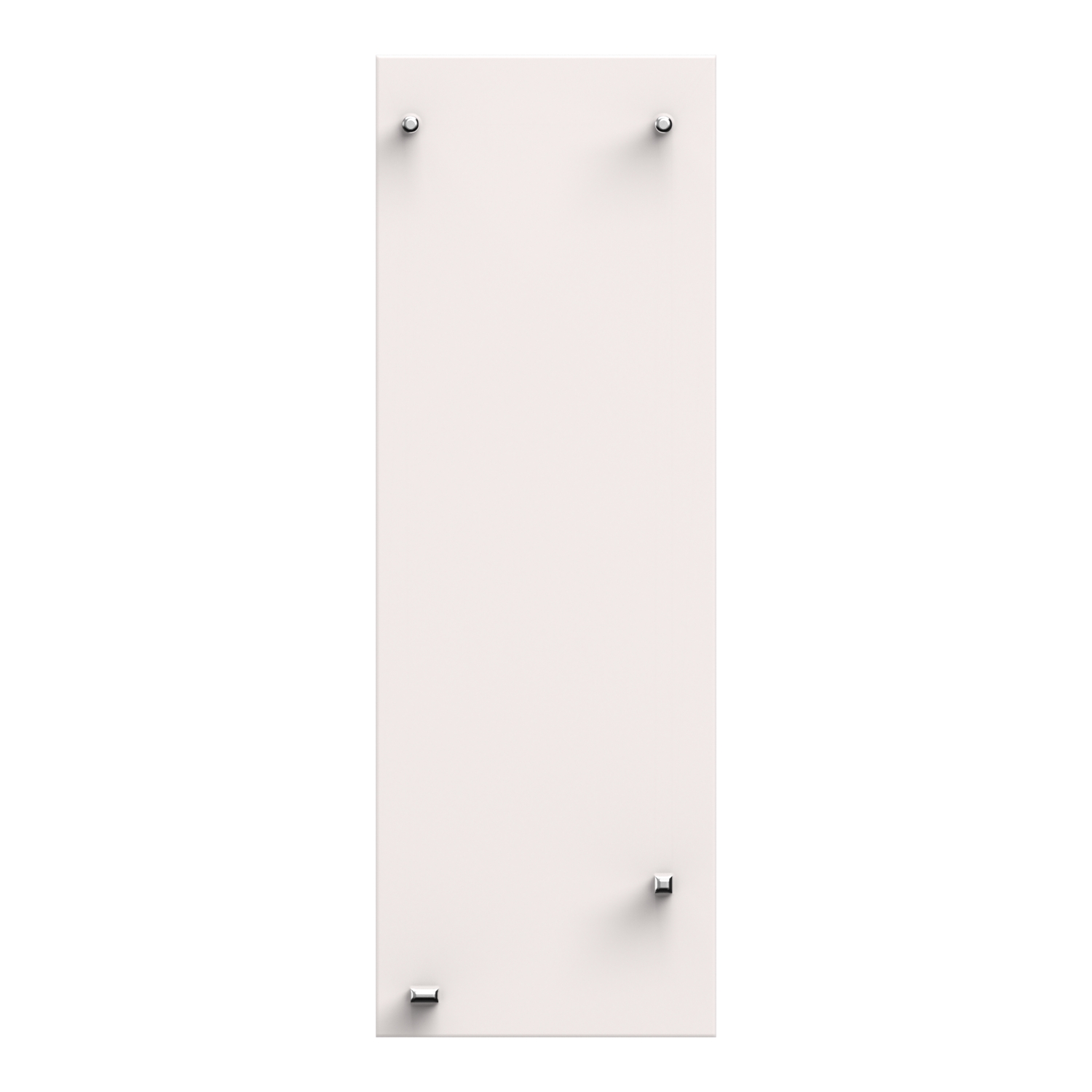

plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO

Manufacturer: Schneider Electric

SKU: ABR7S21

GTIN: 3389110644739

Catalog

Instruction sheet

Declaration of conformity

Old price: $27.61 inc GST

Price: $30.44 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Modicon ABE7 range, an offer of plug-in electromechanical relays. The plug-in power relay has 1 NO contact with 5A conventional free air thermal current. It is an electromechanical relay with a control circuit voltage of 24V. It offers electrical durability of about 5,00,000 cycles and mechanical durability of about 20 million cycles. The width of this product is 10mm. It weighs 0.008kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215 and ABE7P16T230. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 4
Product or component type	plug-in electromechanical relay
Range of product	Advantys Telefast ABE7
Control circuit type	DC
Complementary
Drop-out current	1 mA at 20 °C
Threshold tripping voltage	19.7 V at 40 °C
Electrical reliability	1E-08
[Uc] control circuit voltage	24 V
Product compatibility	ABE7P16T230, ABE7P16T215, ABE7R16T212, ABE7R16T210, ABE7P16T230E, ABE7P16T210, ABE7P16T214, ABE7P16T212
Operating rate in Hz	0.5 Hz at Ie, 10 Hz no load
Width	10 mm
Drop-out voltage	2.4 V at 20 °C
Mechanical durability	20000000 cycles
Contacts type and composition	1 NO
Maximum switching voltage	250 V AC 50/60 Hz conforming to IEC 60947-5-1, 130 V DC conforming to IEC 60947-5-1
Width pitch dimension	10 mm
[Uimp] rated impulse withstand voltage	2.5 kV conforming to IEC 60947-1
Net weight	0.008 kg
Electrical durability	500000 cycles, maximum switching current: 900 mA at 230 V AC-15, 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms, 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12, 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12
Associated fuse rating	1 A, fast blow
[Ith] conventional free air thermal current	5 A
Maximum power dissipation per pole	0.36 W
Minimum switching current	10 mA at >= 5 V
Environment
Max immunity to microbreaks	5 ms
Dielectric strength	2000 V conforming to IEC 60947-1
