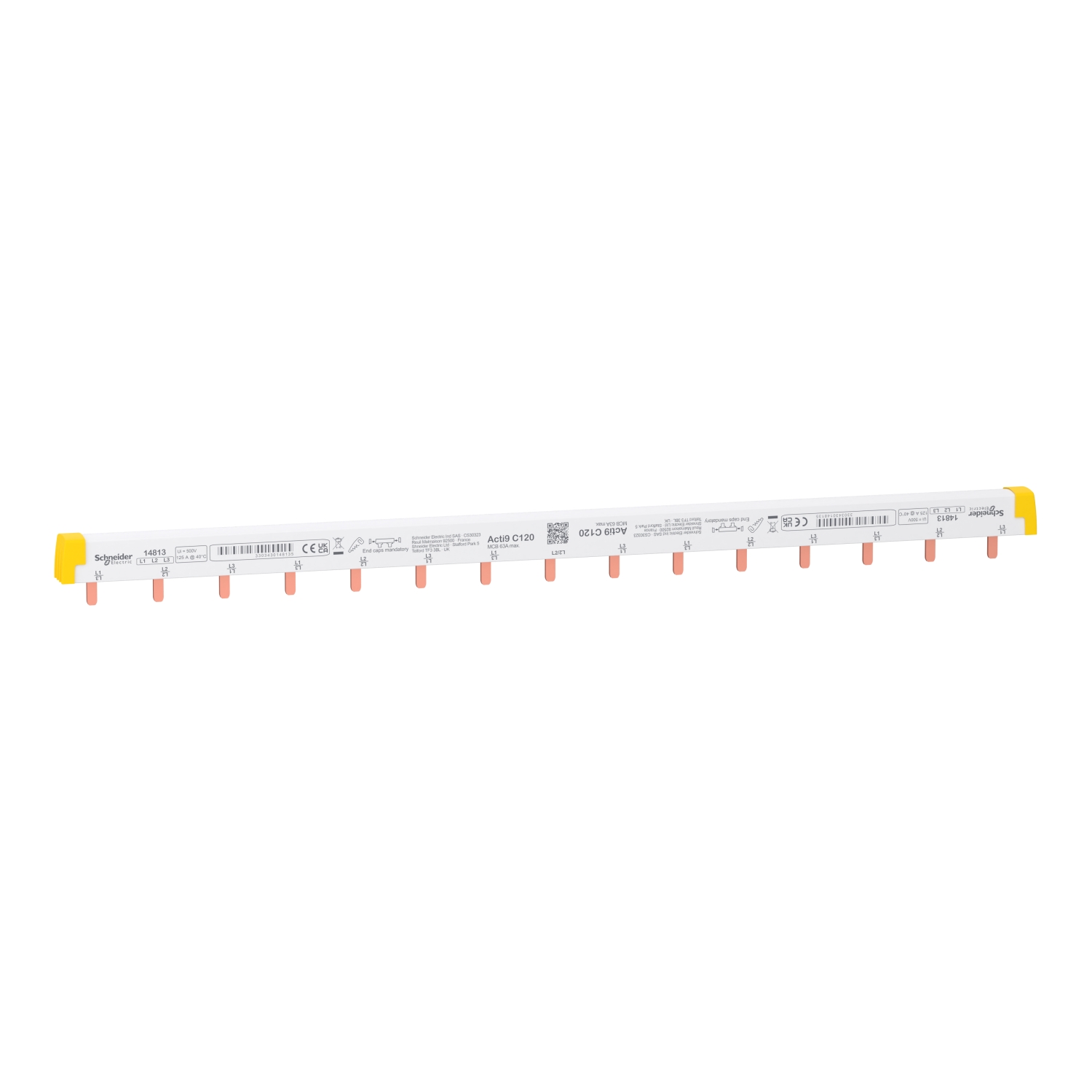

This Acti9 connection accessory is a horizontal insulated cuttable comb busbar. It has a width of 22 modules of 18mm. It is dedicated to (Line) installations. The distribution type is (L1, L2, L3). It is suitable for 5 devices with a 3P pole description. The distance between way is 81mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Lines description | 3L |
| Mounting mode | horizontal |
| Range | Acti9 |
| Product or component type | comb busbar |
| Accessory / separate part category | connection accessory |
| Total number of 18 mm modules | 22 |
| Complementary | |
| Poles configuration for 1 way | 1 x 3P |
| Mounting location | bottom on tunnel type terminals, top on tunnel type terminals |
| Width | 405 mm |
| Colour | white (RAL 9003) |
| Connection pitch | 27 mm |
| [Ue] rated operational voltage | 500 V AC |
| Insulation | insulated |
| [Ie] rated operational current | 125 A at 40 °C |
| [Ui] rated insulation voltage | 500 V AC |
| Device presentation | cuttable |
| Connector type | tooth |
| Marking | L1 L2 L3 |
| Distance between way | 81 mm |
| 9 mm pitches | 45 |
| Number of ways | 5 ways 3 L |
| Range compatibility | Acti 9 Acti9 C120, Acti 9 Acti9 NG125 |
| Environment | |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 3 |
| Standards | IEC 60664-1 |
