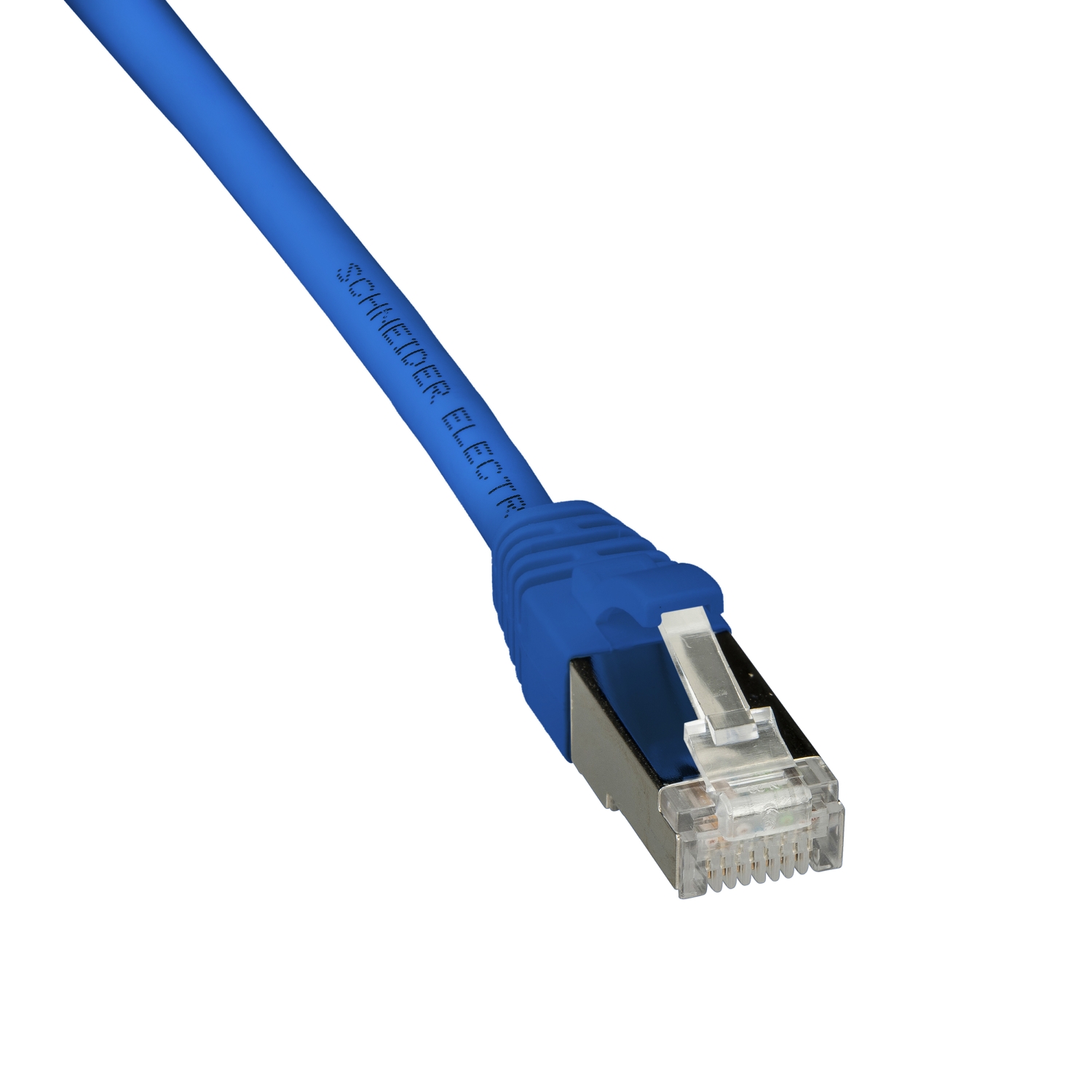

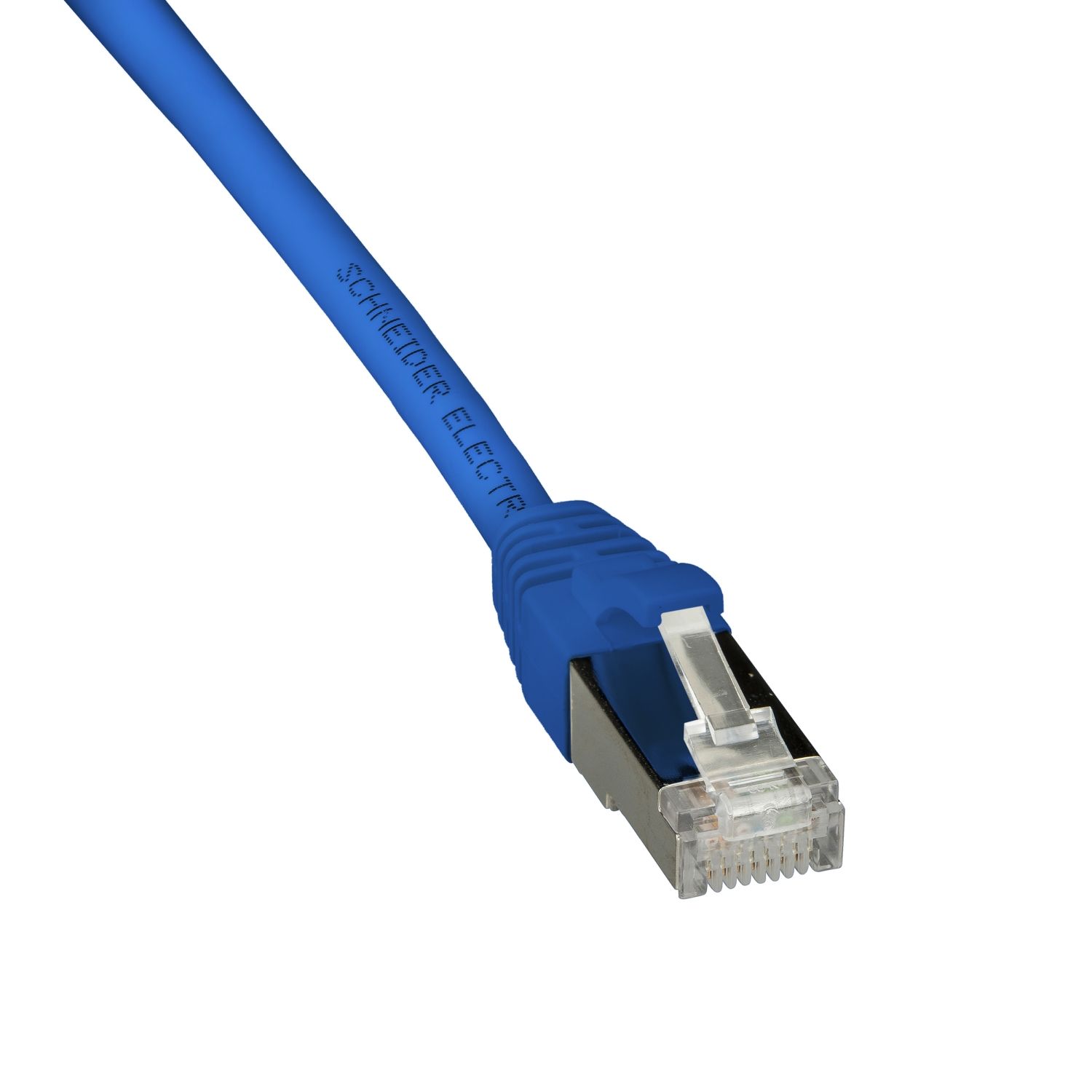

This Actassi patch cord is a 4 pairs Cat 6A S/FTP patch cord and is blue. It is compliant to the following standards - EN 50173, IEC 61935-2, ISO/IEC 11081, TIA/EIA-568-C.2. The copper cable diameter is AWG 28. The patch cord is made of PE (polyethylene), aluminium/polyester, tin plated copper. The contacts material are phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel. The transmission frequency is 500 MHz.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | communication |
| Colour | blue |
| Range | Actassi |
| Cable shielding type | S/FTP |
| Product or component type | patch cord |
| Complementary | |
| Length | 5-5 m |
| Number of cables | 24 in cabinet for 4PPoE Type 4 (up to 90 W), 48 in cabinet for 4PPoE Type 3 (up to 60 W) |
| AWG gauge | AWG 28 |
| Communication network category | 6<sub>A</sub> |
| Minimum number of matings | 750 cycles |
| Material | PE (polyethylene): sheath, tin plated copper: braid shield, aluminium/polyester: foil, PE (polyethylene): wire insulation, copper: conductor |
| Cable outer diameter | 5.5 mm +/- 0.2 mm |
| Contacts material | phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| Transmission frequency | 500 MHz |
| Type of cable | 4 pair cables |
| Cable length | 7 m with 90 m 2-point permanent link at 20 °C, 10 m with 84 m 2-point permanent link at 20 °C |
| Environment | |
| Flame retardance | LSZH |
| Standards | IEC 61935-2 performance, EN 50173-2018 performance, TIA/EIA-568-C.2 performance, ISO/IEC 11081-2017 performance |
