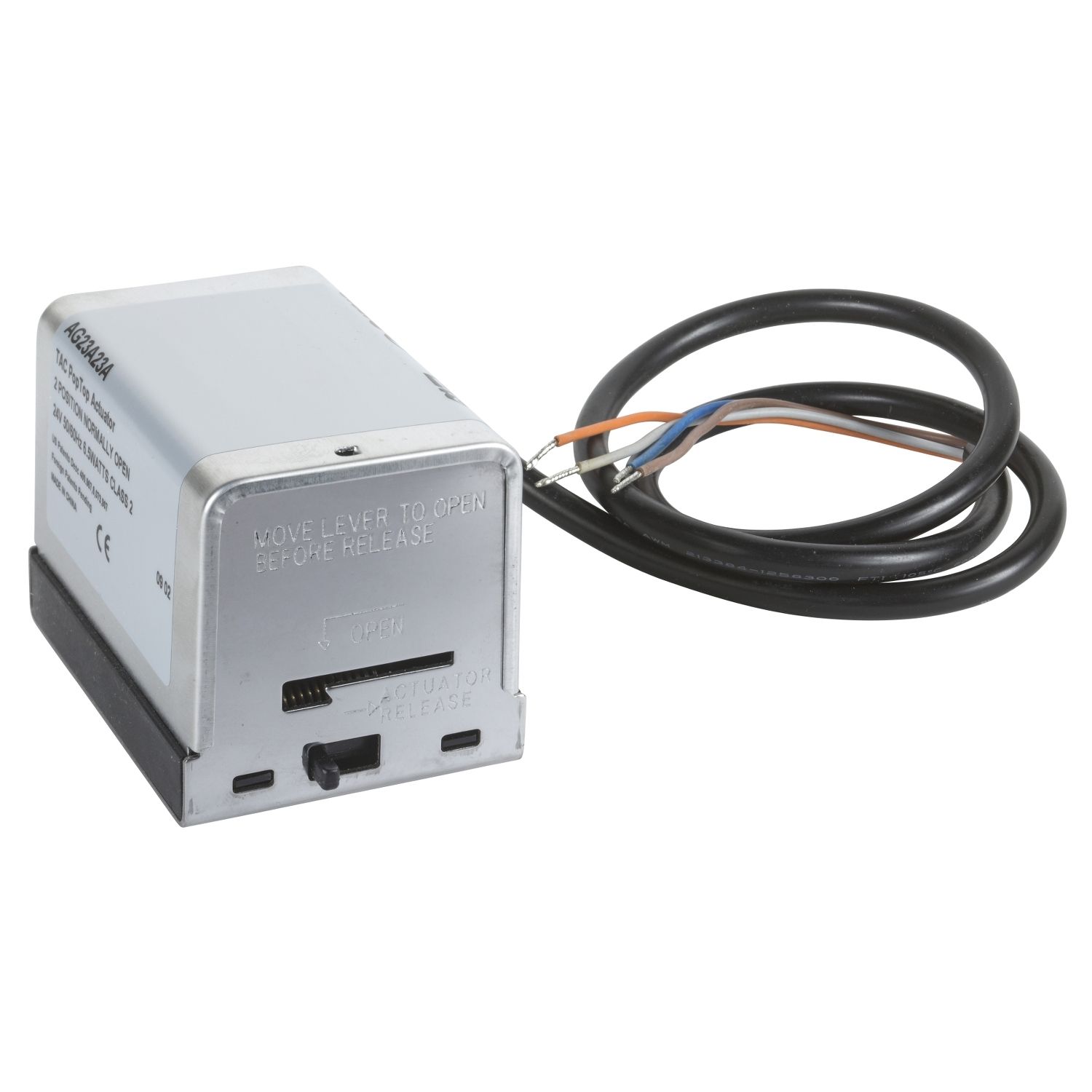

The AG (General Close Off) actuators are spring return, two-position actuators for coupling to the VT series valves. Power Supply: 230 Vac. On-Off/2P Control Signal. And IP degree of protection is IP53. The actuator provide a working temperature range of 0 °C to 40 °C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Switch function | No |
| Material | aluminium: housing |
| IP degree of protection | IP53 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -40-71 °C |
| [Us] rated supply voltage | 230 V AC |
| Product destination | zone valves |
| Control type | automatic reset |
| Product or component type | actuator |
| Power consumption in VA | 7.5 VA AC |
| Transformer rated power in VA | 7.5 VA |
| Targeted region | Australia., Asia Pacific., Europe |
| Power consumption in W | 6.5 W |
| Spring return timing | 9 s |
| Actuator | rotary |
| Ambient air temperature for operation | 0-40 °C |
| Power loss return | spring return |
| Control signal | 2-position (on/off) |
| Lead length | 1 m |
| Leads and connections | appliance |
| Actuator type | electric |
| Actuator product series | AG |
| Position indicator | green push stem with color markers |
Only registered users can write reviews
Related products

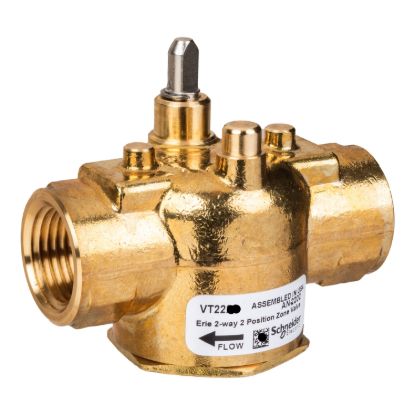

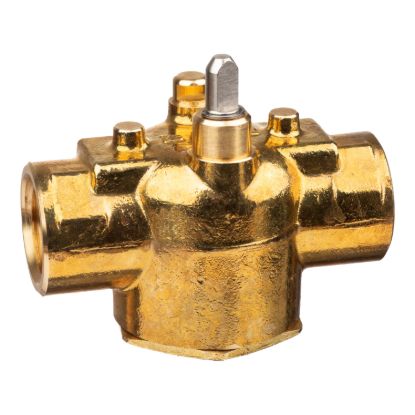

Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.
VT2232
Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.
$102.74 inc GST
$135.87 inc GST
Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.
VT2332
Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.
$89.65 inc GST
$118.56 inc GST

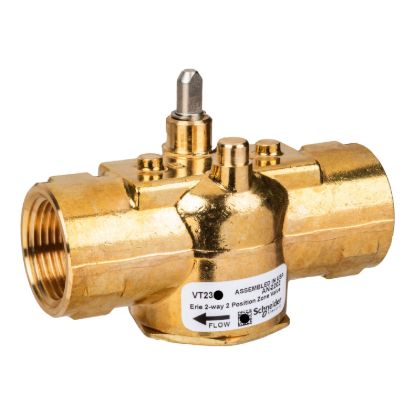

Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.
VT2333
Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 3.0 m³/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body.
$87.67 inc GST
$115.94 inc GST
Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 4.3 m³/h (Cv 5.0), Pop-Top Actuator Connection, Brass Body.
VT2335
Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 4.3 m³/h (Cv 5.0), Pop-Top Actuator Connection, Brass Body.
$90.75 inc GST
$120.02 inc GST
Erie Zone Valve, 3-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.6 m³/h (Cv 3.0), Pop-Top Actuator Connection, Brass Body.
VT3232
Erie Zone Valve, 3-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.6 m³/h (Cv 3.0), Pop-Top Actuator Connection, Brass Body.
$148.72 inc GST
$196.68 inc GST

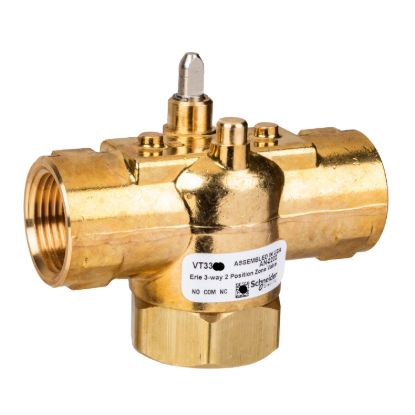

Erie Zone Valve, 3-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 6.5 m³/h (Cv 7.5), Pop-Top Actuator Connection, Brass Body.
VT3337
Erie Zone Valve, 3-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 6.5 m³/h (Cv 7.5), Pop-Top Actuator Connection, Brass Body.
$121.44 inc GST
$160.60 inc GST

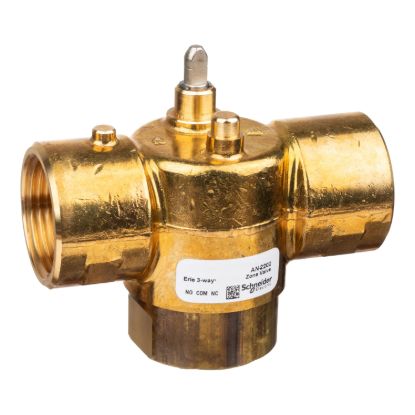

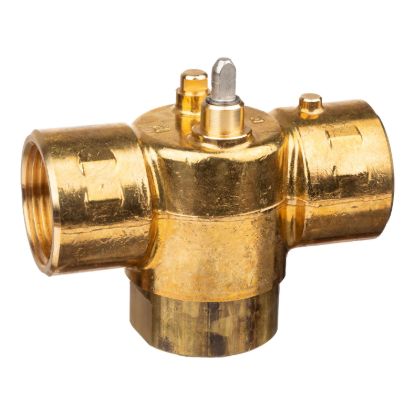

Erie Zone Valve, 3-Way, PN16, DN25 (1"), Rp Thread, Kvs 6.9 m³/h (Cv 8), Pop-Top Actuator Connection, Brass Body.
