Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| I²t on activation | 200000 A².s |
| Depth | 61 mm |
| Width | 54 mm |
| Poles description | 3P + N |
| Number of cables | 4 cable(s) 4-4 mm² at 105 °C |
| Range | Linergy |
| Product name | HK |

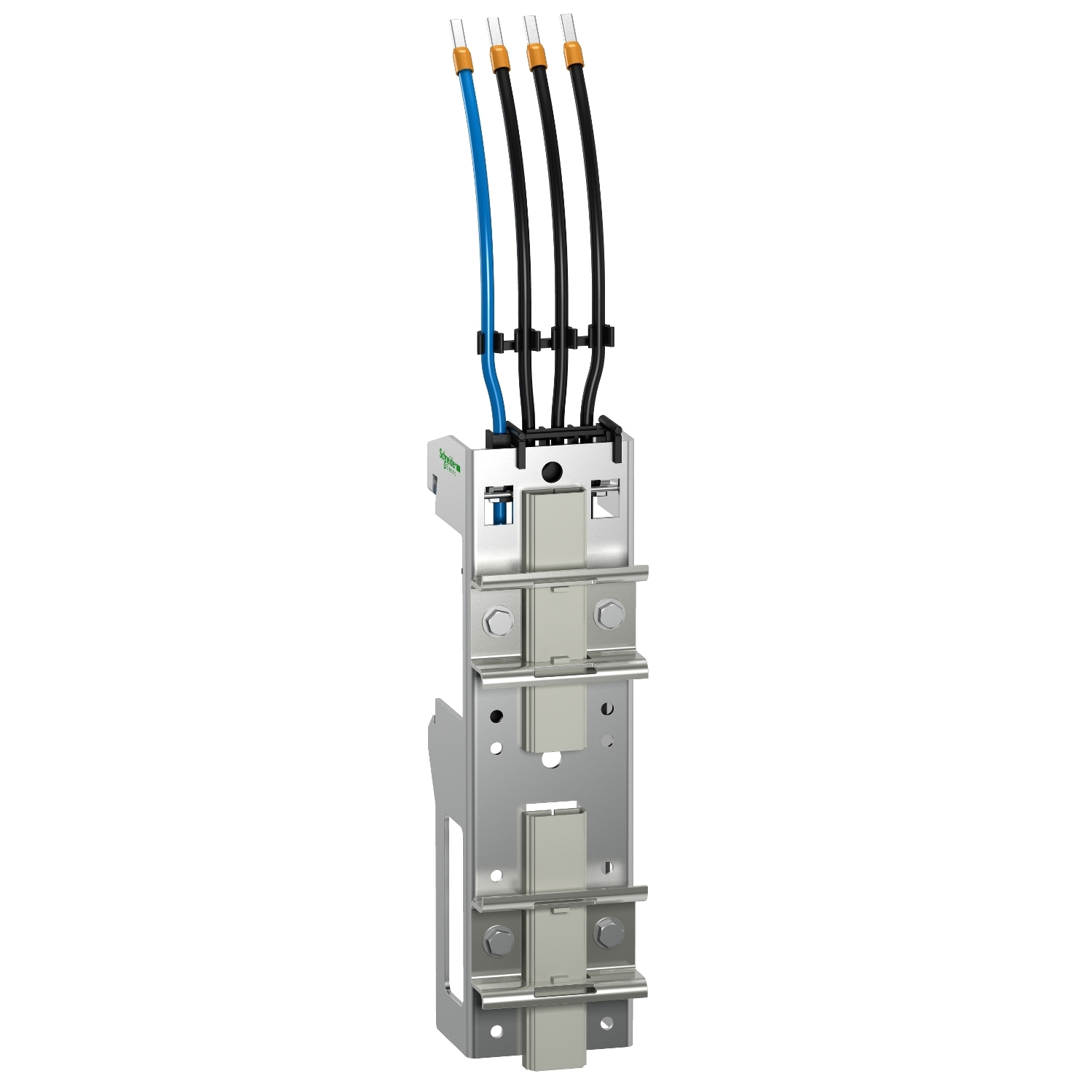

| Product or component type | mounting plate |
| Range of product | AK5 |
| [Ith] conventional free air thermal current | 25 A |
| Height | 190 mm |
| Complementary | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60439-1 |
| Net weight | 0.23 kg |
| 9 mm pitches | 6 |
| Environment | |
| Standards | IEC 60439 |
| Product certifications | DNV, CSA, LROS (Lloyds register of shipping), UL |
