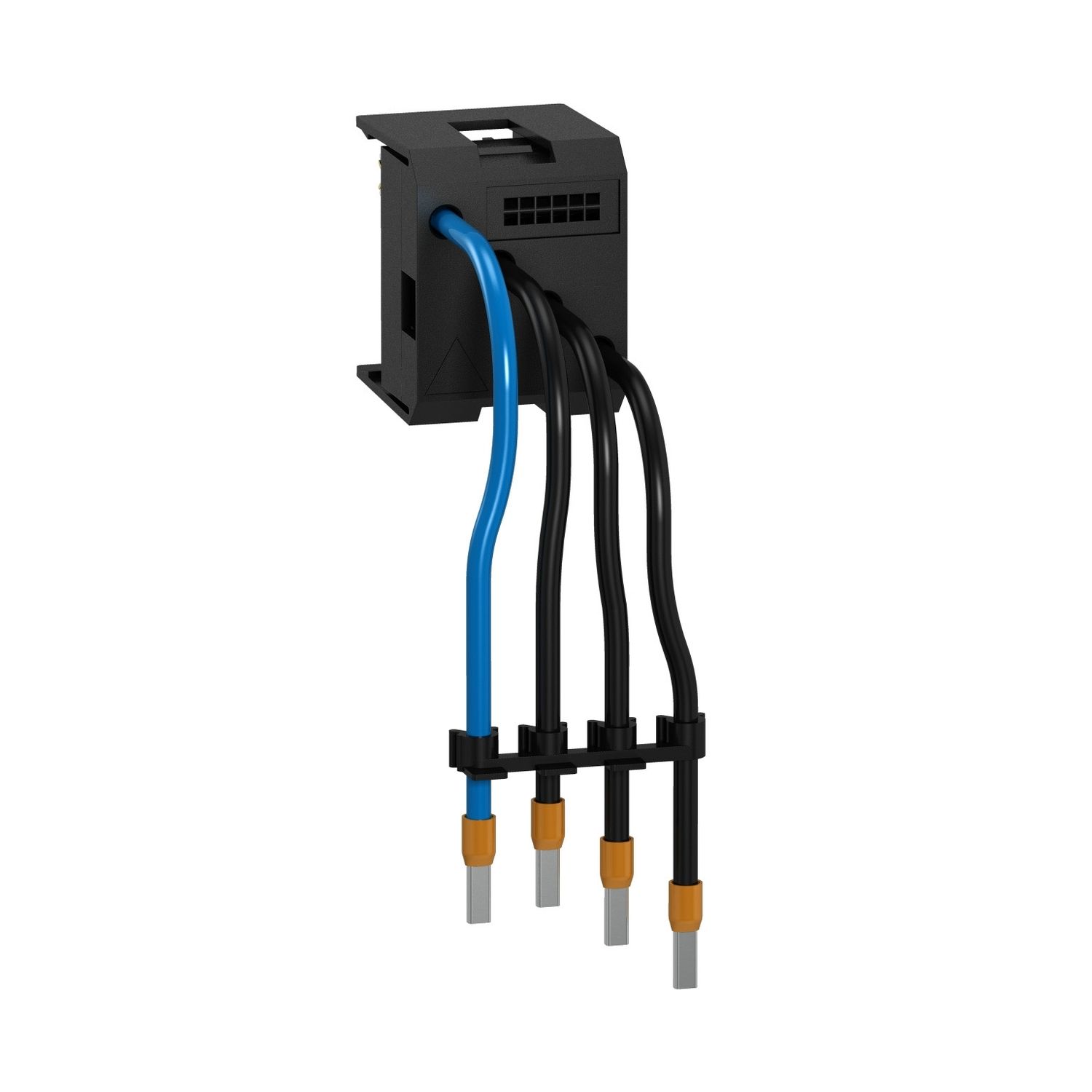

Linergy 3P plug outlet. It provides 3P, 2 points and 3 cables with 2.5 mm². The conventional free air thermal current is 16A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| I²t on activation | 100000 A².s |
| Quantity per set | set of 6 |
| Poles description | 3P |
| Number of cables | 3 cable(s) 2.5-2.5 mm² |
| Range | Linergy |
| Product name | HK |
| Product or component type | plug outlet |
| Cable length | 0.2 m |
| Range of product | AK5 |
| [Ith] conventional free air thermal current | 16 A |
| Number of points | 2 |
| Complementary | |
| Peak current | 25 kA |
| Depth | 38 mm |
| Width | 36 mm |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA |
| Net weight | 0.04 kg |
| Height | 46 mm |
| Environment | |
| Standards | IEC 60439 |
| Product certifications | CSA, UL, LROS (Lloyds register of shipping), DNV |
