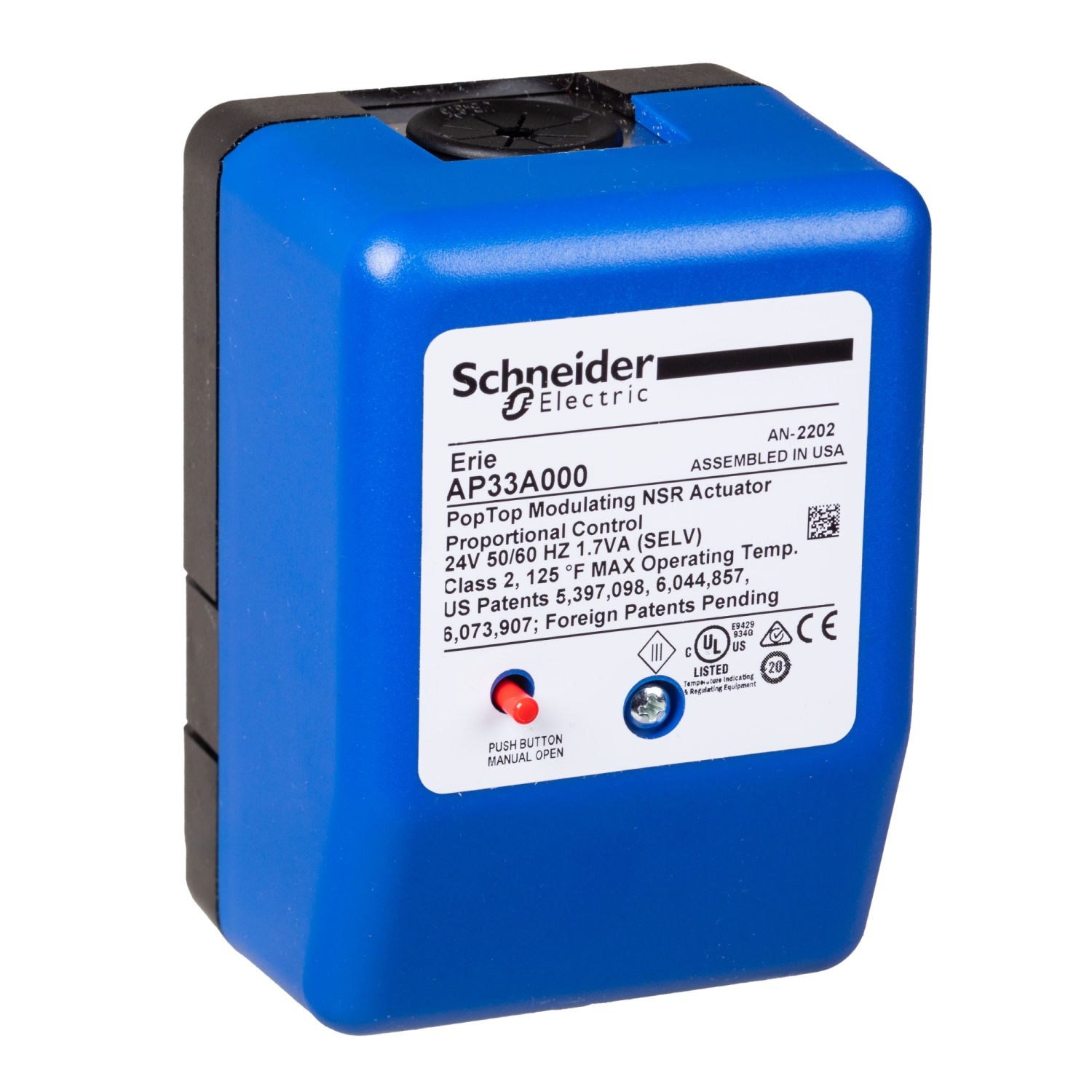

Act (AP33A000): Elec, Prop, 0-10 VDC/4-20mAdc, NSR, 24 VAC, No Leads, Rotary, N1, Erie PopTop
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | zone valves |
| Control type | automatic reset |
| Product or component type | actuator |
| Power consumption in VA | 1.7 VA AC |
| Targeted region | North America. |
| Switch function | No |
| Material | polymer: housing |
| IP degree of protection | IP10 |
| Relative humidity | 5-95 % non-condensing |
| Analogue input range | 4...20 mA DC, 0...10 V DC |
| Motor type | AC synchronous servo motor |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 1 |
| Actuator | rotary |
| [Us] rated supply voltage | 24 V AC |
| Ambient air temperature for operation | 1.6-51.6 °C |
| Power loss return | non-spring return |
| Leads and connections | no leads |
| Actuator type | electric |
| Actuator product range | Erie PopTop |
| Control signal | proportional/modulating |
| Actuator product series | AP |
| Position indicator | housing scale |
