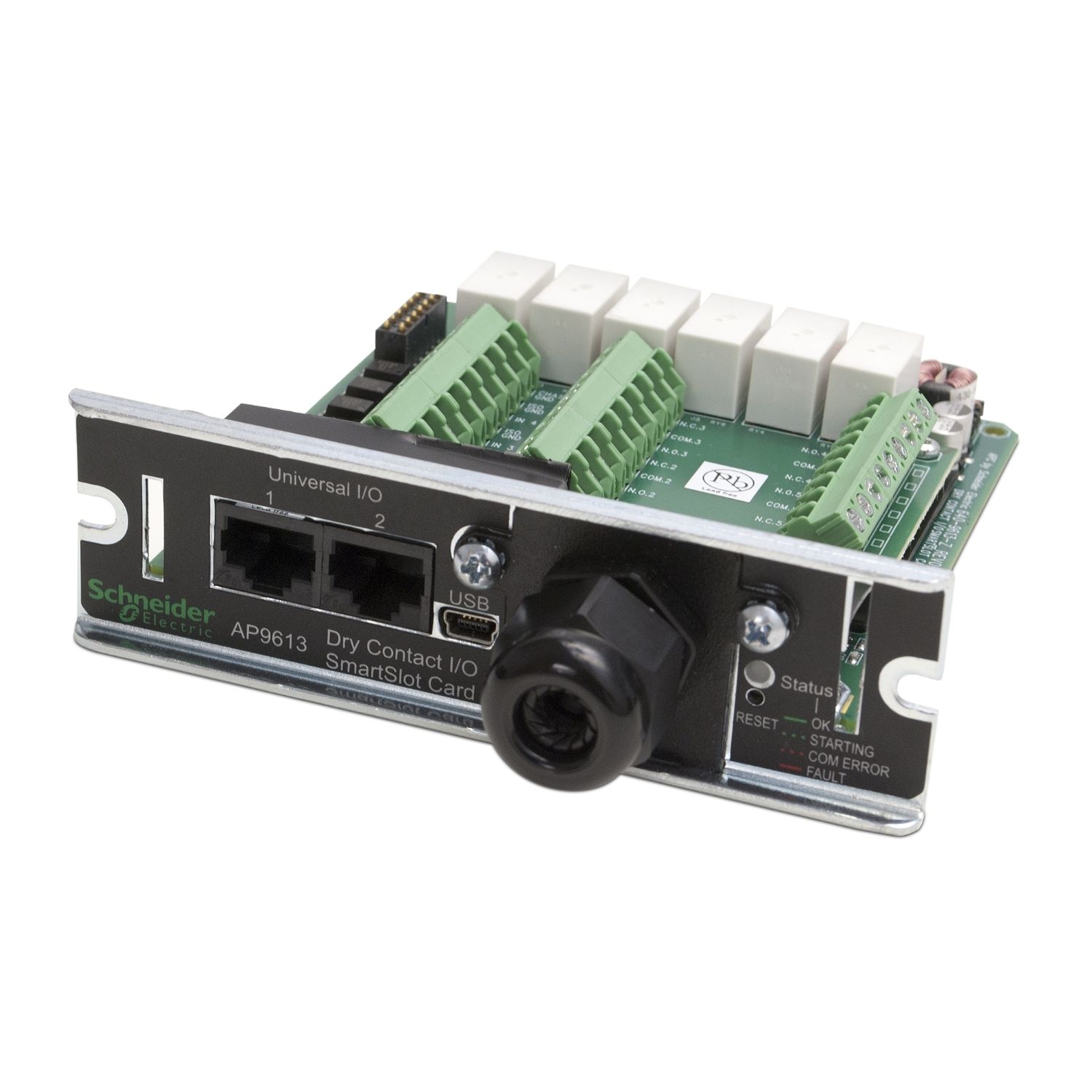

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Provided equipment | USB cable, user manual |
| Number of rack unit | 0U |
| Mounting preference | no preference |
| Environmental | |
| Operating altitude | 0...10000 ft |
| Relative humidity | 0-95 % |
| Ambient air temperature for storage | -15-65 °C |
| Storage altitude | 0-50000 ft |
| Ambient air temperature for operation | 0-40 °C |
| Storage Relative Humidity | 0-95 % |
| Physical | |
| Depth | 11.4 cm |
| Width | 12.1 cm |
| Colour | black |
| Mounting mode | not rack-mountable |
| Net weight | 0.21 kg |
| Height | 3.8 cm |
| Conformance | |
| Standards | FCC part 15 class A, EN 61000-4-6, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-3-3, EN 61000-3-2, EN 55024, EN 55022 class A |
| General | |
| Additional specification | dry contact management |
| Power supply type | self powered via SmartSlot |
