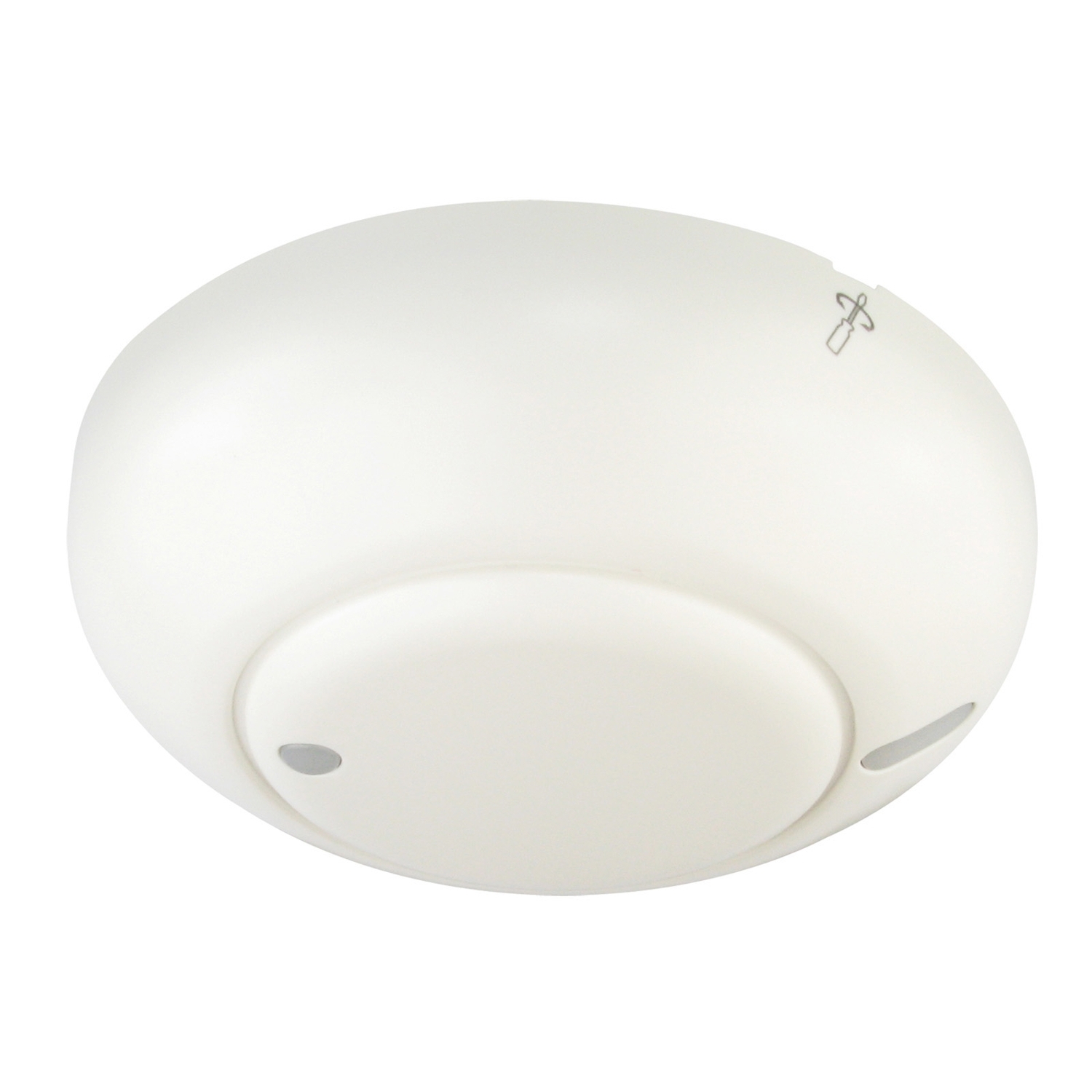

Occupancy sensor with microwave technology, integrated timer and light level sensor. The device switches lights on upon movement detection for a defined time period depending on the ambient light level. Suitable for indoor use in buildings with high ceilings, e.g. warehouse, gymnasium. Detection range of 5m radius at 10m height. Timer range for channel 1 is 10s to 30min, timer range for channel 2 is 10s to 60min. 752 series. Operating voltage 240V a.c. 50Hz, 3-wire design. Note: Requires installation by an appropriately licenced electrician.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | ARGUS |
| Load type | relay: : 5 A - 250 V, motor: : 100 W, compact fluorescent lamp: : 100 W, fluorescent tube: 900 VA, halogen lamp: : 1000 W - 230 V, incandescent lamps: : 2000 W - 230 V, LED lighting: : 100 W |
| Range of product | ARGUS standard movement detector |
| Colour tint | white |
| Product or component type | presence detector |
| Complementary | |
| Horizontal detection angle | 360-360 ° |
| Mounting height | 2.5-5 m, 5.5-10 m |
| Number of channels | 2 |
| Function available | light control |
| Control type | movement sensor |
| Output voltage | 220...250 V |
| Input function | ON/OFF status, switch |
| Light intensity adjustment | 10-2000 lux |
| Device mounting | flush, surface |
| Detection face | radius: 5000 mm, radius: 7000 mm |
| Output current | 10 A |
| Network frequency | 50/60 Hz |
| Environment | |
| IP degree of protection | IP52, IP40 |
