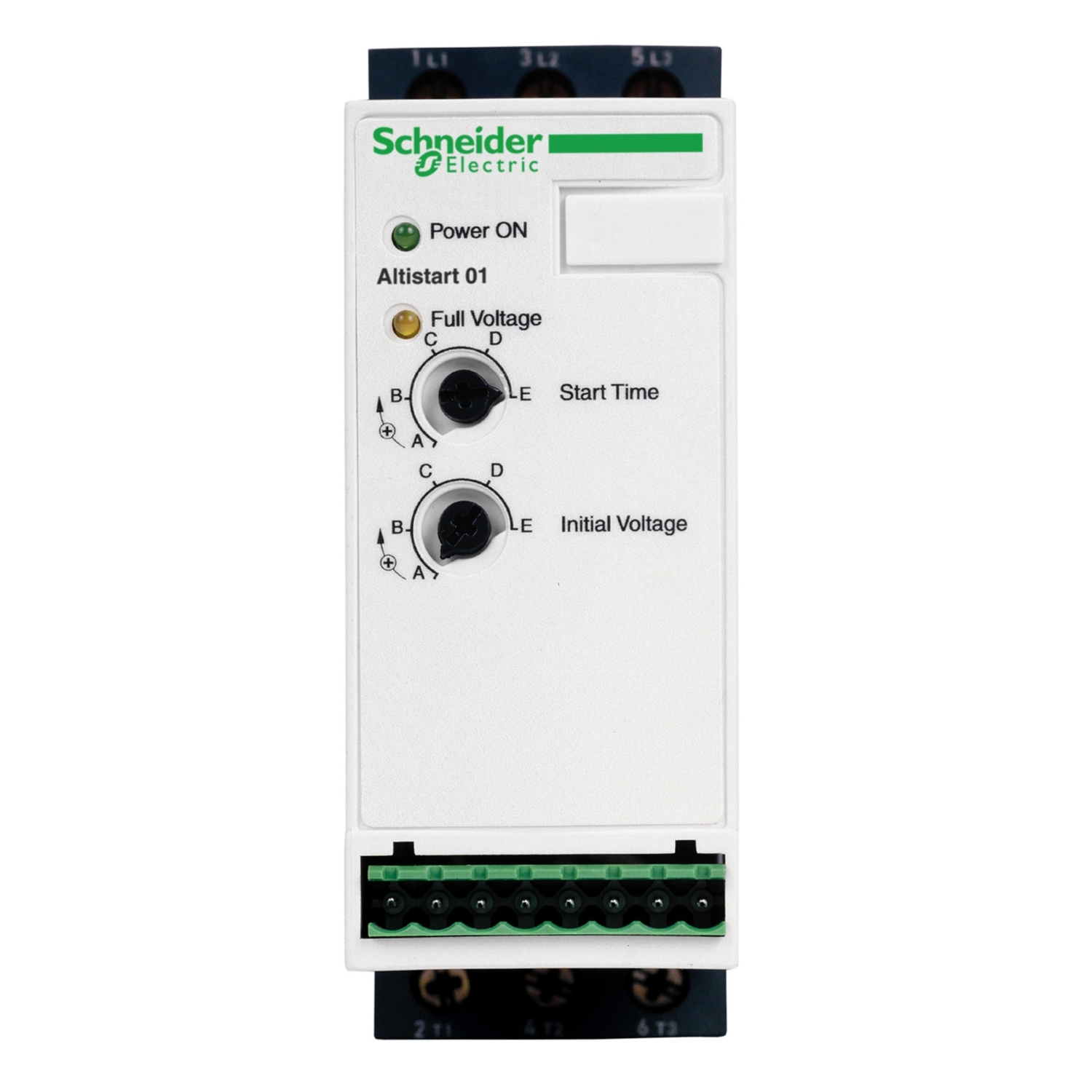

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 4kW or 5hp for 3-phase (110V to 480V AC) and up to 1.1kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ATS01 |
| [Us] rated supply voltage | 110...480 V - 10...10 % |
| Power dissipation in W | 46 W in transient state, 1 W at full load and at end of starting |
| Motor power kW | 1.1 kW, 1 phase at 230 V, 1.5 kW, 3 phases at 230 V, 4 kW, 3 phases at 400 V |
| Range of product | Altistart 01 |
| Motor power hp | 5 hp, 3 phases at 460 V, 2 hp, 3 phases at 230 V, 1 hp, 3 phases at 210 V |
| Product specific application | simple machine |
| Type of start | start with voltage ramp |
| IcL starter rating | 9 A |
| Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
| Network number of phases | 1 phase |
| Product or component type | soft starter |
| Product destination | asynchronous motors |
| Current consumption | 45 A at nominal load |
| Complementary | |
| Operating position | vertical +/- 10 degree |
| Output voltage | <= power supply voltage |
| Compatibility code | ATS01N1 |
| Assembly style | with heat sink |
| Supply voltage limits | 99-528 V |
| Function available | integrated bypass |
| Motor starter type | soft starter |
| Discrete output current | 3 A AC-15, 2 A DC-13 |
| Marking | CE |
| Height | 124 mm |
| Electrical connection | screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit, screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit, screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit, screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit |
| Supply frequency | 50...60 Hz - 5...5 % |
| Tightening torque | 1.9-2.5 N.m, 0.5-0.5 N.m |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Depth | 131 mm |
| Width | 45 mm |
| Starting time | adjustable from 1 to 5 s, 5 s / 20 , 1 s / 100 |
| Net weight | 0.28 kg |
| Power range | 4-6 kW at 380-440 V 3 phases, 2.2-3 kW at 200-240 V 3 phases, 1.1-2 kW at 200-240 V 1 phase |
| [Uc] control circuit voltage | 240 V AC +/- 10 % at 80 mA, 24 V AC/DC +/- 10 % at 30 mA, 110 V AC +/- 10 % at 35 mA |
| Network frequency | 47.5...63 Hz |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for storage | -25-70 °C conforming to EN/IEC 60947-4-2 |
| Pollution degree | 2 conforming to EN/IEC 60947-4-2 |
| Ambient air temperature for operation | 40-50 °C (with current derating of 2 % per °C), -10-40 °C (without derating) |
| Electromagnetic compatibility | voltage/current impulse level 3 conforming to IEC 61000-4-5, micro-cuts and voltage fluctuation conforming to IEC 61000-4-11, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6, harmonics level 3 conforming to IEC 1000-3-4, harmonics level 3 conforming to IEC 1000-3-2, EMC immunity level B conforming to EN 50082-2, EMC immunity level 3 conforming to EN 50082-1, electrostatic discharge level 3 conforming to IEC 61000-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions level B conforming to IEC 60947-4-2, conducted and radiated emissions level B conforming to CISPR 11 |
| Operating altitude | > 1000 m with current derating of 2.2 % per additional 100 m, <= 1000 m without derating |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | UL, CCC, CSA, GOST, C-Tick |
Only registered users can write reviews
Related products
Contactor, TeSys D, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VDC coil
LC1D09BD
Contactor, TeSys D, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VDC coil
$183.48 inc GST
$72.82 inc GST

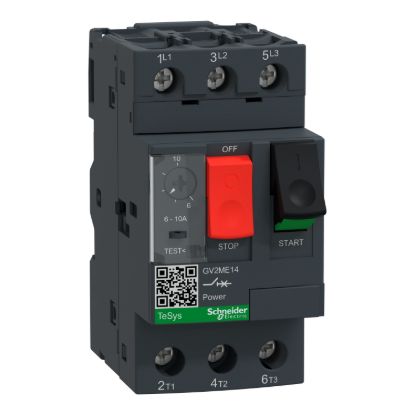

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control
