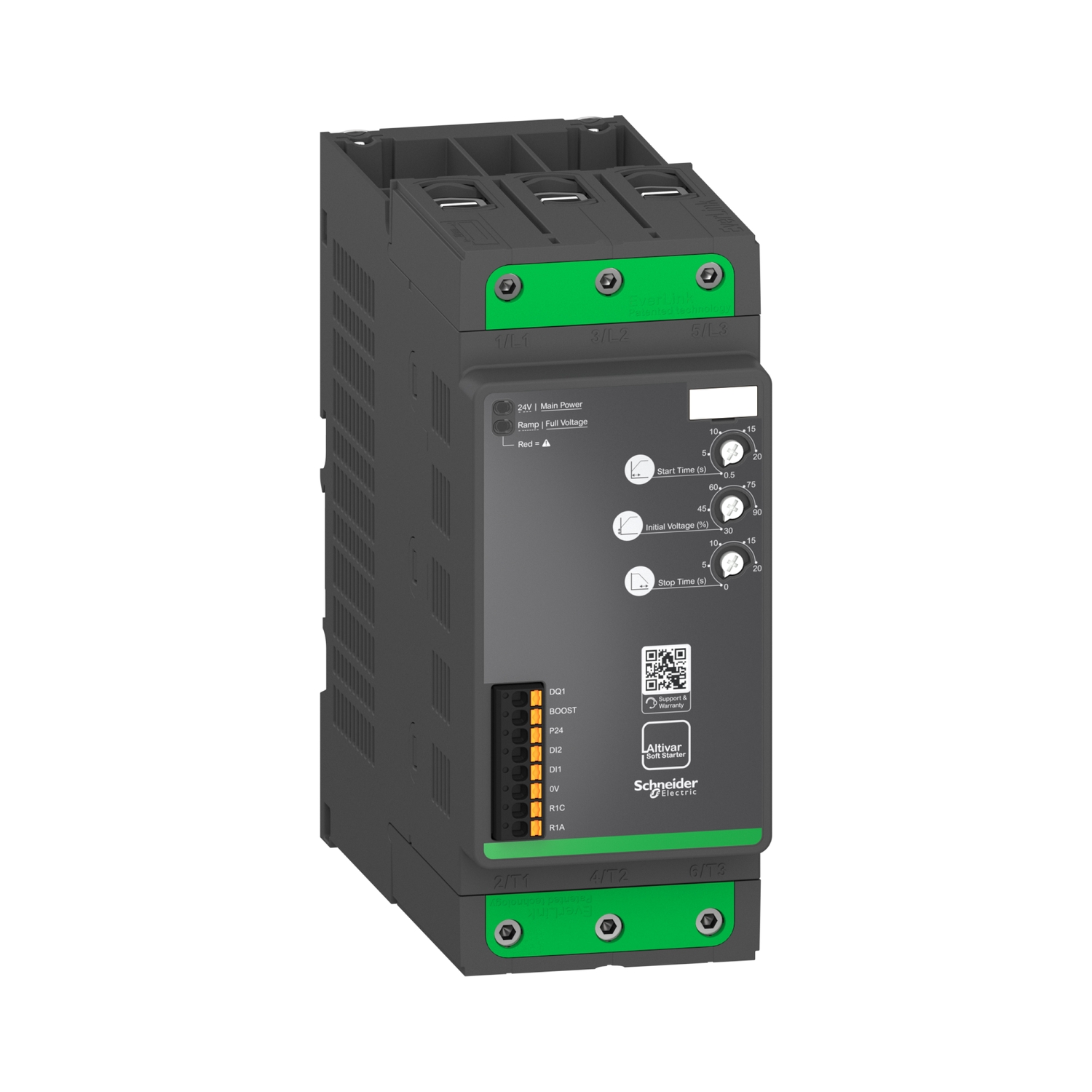

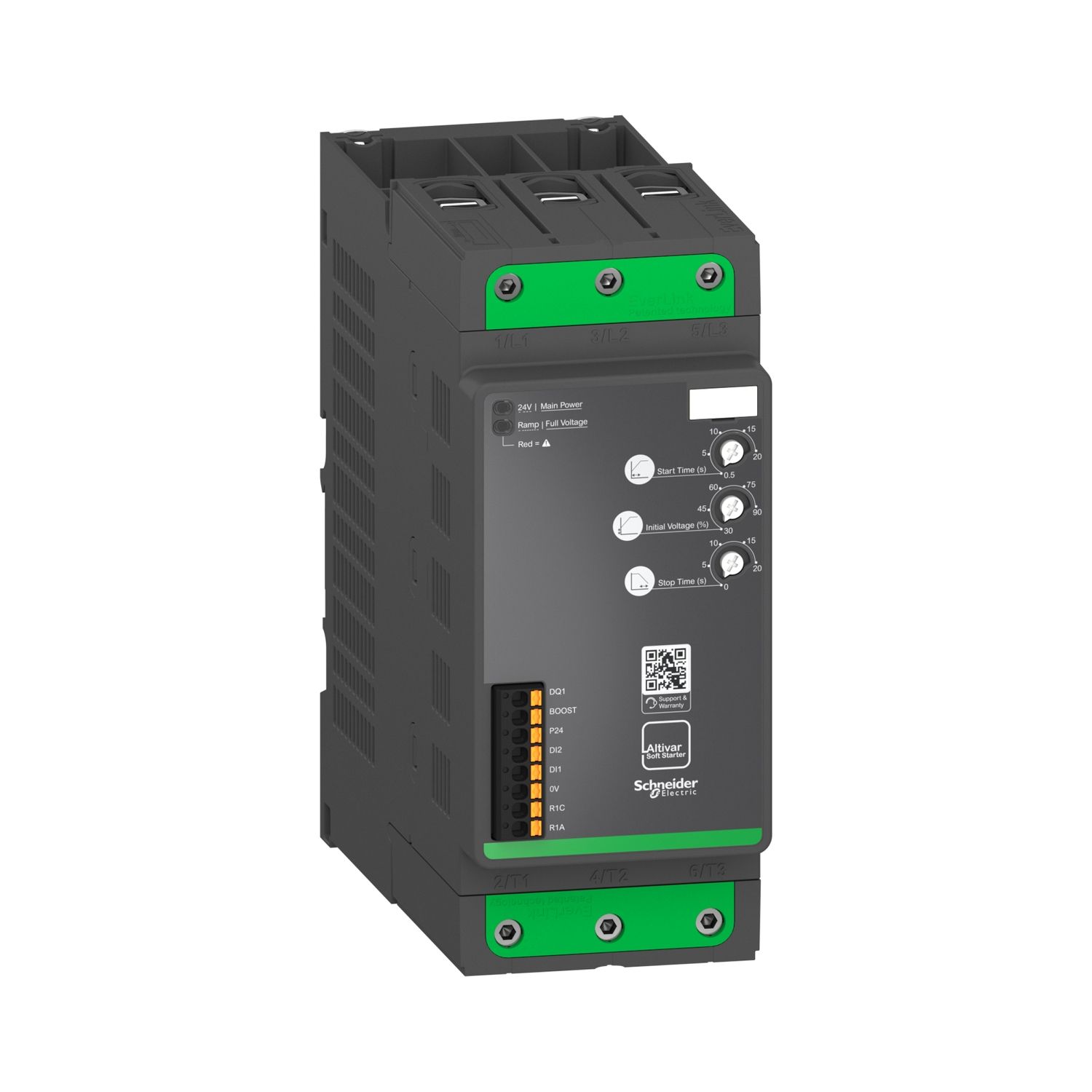

This soft starter belongs to the Altivar Soft Starter ATS130 range that is intended to start and stop asynchronous motors supplied from 200 to 480V. With an operational rated current of 105A in normal duty, it supplies motor from 30 to 55kW according to mains voltage. Compact, it provides mechanical and electrical flexibility in control panel design. ATS130 is preventive maintenance free and allows optimized motor management especially in combination with TeSys Deca motor circuit breaker. It is designed with Everlink power terminals and spring control terminals that avoid annual wire retightening. This soft starter has the same width (80mm) as the TeSys Deca frame 4 motor circuit breaker; it allows the building of the ATS130 Soft Motor Starter. Its dimensions are 80mm (width) x 180mm (depth) x 222 mm (height), and it weighs 2.06kg. Altivar Soft Starter ATS130 is designed to address pumps, fans, compressors, conveyors, and other simple machines. It conforms to the IEC/EN60947-4-1 standard and has received the CE, EAC, UKCA, CCC, and RCM certifications. It is possible to add a fixing kit to mount the TeSys Deca frame 4 motor circuit breaker on top of ATS130 or a cooling fan to extend the number of starts per hour. The ATS130 soft starters can be mounted on a backplate or on a DIN rail, side by side, and they are compatible with a 200mm depth cabinet. The Altivar Soft Starter ATS130 range is preventive maintenance-free and increases operational efficiency during design, manufacturing, and commissioning. Ecolabel Green Premium compliant, this range is designed to take environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | asynchronous motors |
| [Ue] rated operational voltage | 200 V 30 hp normal duty, 208 V 30 hp normal duty, 230 V 40 hp normal duty, 230 V 30 kW normal duty, 400 V 55 kW normal duty, 440 V 55 kW normal duty, 460 V 75 hp normal duty, 480 V 75 hp normal duty |
| Product or component type | soft starter |
| Network number of phases | 3 phases |
| Utilisation category | AC-53A |
| [Ie] rated operational current | 105 A in line (at <40 °C) |
| Product specific application | simple machine |
| Motor power hp | 30 hp at 200 V normal duty, 30 hp at 208 V normal duty, 40 hp at 230 V normal duty, 75 hp at 460 V normal duty, 75 hp at 480 V normal duty |
| Supply frequency | 50...60 Hz +/- 5 Hz |
| Range of product | Altivar Soft Starter ATS130 |
| Service factor | 100 |
| Motor power kW | 30 kW at 230 V normal duty, 55 kW at 400 V normal duty, 55 kW at 440 V normal duty |
| [Us] rated supply voltage | 200...480 V - 15...10 % |
| Device short name | ATS130 |
| IP degree of protection | IP20 |
| Complementary | |
| Product certifications | CE, UKCA, CCC, RCM, EAC, UL |
| Device connection | in line |
| [Uc] control circuit voltage | 24 V DC +/- 10 %, 24 V DC |
| Standards | EN/IEC 60947-4-2, UL 60947-4-2, IEC 60664-1 |
| Discrete output type | non programmable digital output DQ1 <= 30 V 200 mA |
| Maximum switching current | on resistive load for relay outputs : 1 A 250 V AC 400000 cycles, on resistive load for relay outputs : 1 A 30 V DC 400000 cycles, on inductive load for relay outputs : 1 A 250 V AC cos phi = 0.4 100000 cycles, on inductive load for relay outputs : 1 A 30 V DC cos phi = 0.4 100000 cycles |
| Display screen available | false |
| Net weight | 2.3 kg |
| With safety function Safe Direction (SDI) | False |
| Relay output type | relay outputs R1A, R1C NO |
| Discrete output number | 1 |
| With safety function Safe Position (SP) | False |
| With safety function Safely Limited Position (SLP) | False |
| Integrated motor overload protection | false |
| With safety function Safe Operating Stop (SOS) | False |
| Discrete input number | 3 |
| Suitable for mounting onto standard rails | true |
| Power loss per device current dependent | 27 W |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe Stop 1 (SS1) | False |
| material declaration | true |
| Width | 81 mm |
| Depth | 180 mm |
| Discrete input logic | digital input at State 0: 0...< 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA |
| Operating rate | 10 cyc/h |
| With safety function Safe brake management (SBC/SBT) | False |
| Height | 197 mm |
| With safety function Safe Speed Monitor (SSM) | False |
| Relay output number | 1 |
| With safety function Safe torque off (STO) | False |
| Volume of cooling air | 9 m3/h |
| Marking | CE, CCC, UKCA, RCM, EAC |
| internal bypass | true |
| Overload current | 300 % Ie for 5 s |
| Power losses | 703 W 300 % Ie |
| Input compatibility | discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| Control power | 21.6 W starting and stopping, 3 W steady state |
| Function available | deceleration voltage ramp, boost |
| Discrete input type | (DI) digital input, 10 kOhm, (DI2) digital input, 10 kOhm, (BOOST) digital input, 10 kOhm |
| Minimum switching current | 2.5 mA at 24 V DC for relay outputs |
| Rated current pwr loss specification | 105 A |
| With safety function Safe programmable logic | False |
| On-load factor | 70 % |
| Operating position | vertical +/- 30 degree |
| Display type | 1 LED (green) for control power energized, 1 LED (yellow and red) for motor operation phases, errors |
| Power loss static current independent | 3 W |
| Minimum motor current | 20 % Ie |
| Protection type | phase failure: mains, thermal protection: starter, bypass error: starter, control voltage Us: starter |
| With safety function Safely Limited Speed (SLS) | False |
| Environment | |
| Maximum deflection under vibratory load (during operation) | 3 mm at 2-9 Hz |
| Maximum deflection under vibratory load (during transport) | 3 mm at 2-9 Hz |
| [Ui] rated insulation voltage | 480 V |
| Environmental characteristic | without salt mist: 3C3 conforming to IEC 60721-3-3, 3S3 conforming to IEC 60721-3-3 |
| Operating altitude | 0...1000 m without derating, 1000...4000 m 1 % per 100 m |
| Maximum acceleration under vibratory load (during transport) | 10 m/s² at 9...200 Hz |
| Maximum acceleration under shock load (during transport) | 100 m/s² at 11 ms |
| Maximum acceleration under shock impact (during operation) | 100 m/s² at 11 ms |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Pollution degree | level 2 |
| Electromagnetic compatibility | conducted and radiated emissions level B conforming to IEC 60947-4-2, short voltage interruptions level 3 conforming to IEC 61000-4-11, electrostatic discharge level 2 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 1 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 2 conforming to IEC 61000-4-4, oscillatory waves immunity level 3 conforming to IEC 61000-4-12, voltage/current impulse level 2 conforming to IEC 61000-4-5, conducted disturbances, induced by radiofrequency fields level 1 conforming to IEC 61000-4-6 |
| Ambient air temperature for operation | -10-40 °C (without derating), 40-60 °C (with current derating of 2 % per °C) |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 9...200 Hz |
| Maximum acceleration under vibratory load (during storage) | 10 m/s² at 9...200 Hz |
| Ambient air temperature for storage | -25-70 °C |
| Relative humidity | 5-95 % non condensing without dripping water conforming to IEC 60068-2-3 |
| Maximum acceleration under shock load (during storage) | 100 m/s² at 11 ms |
| Ambient air transport temperature | -40-70 °C |
| Maximum deflection under vibratory load (during storage) | 3 mm at 2-9 Hz |
| Contractual warranty | |
| Warranty | 18 |
