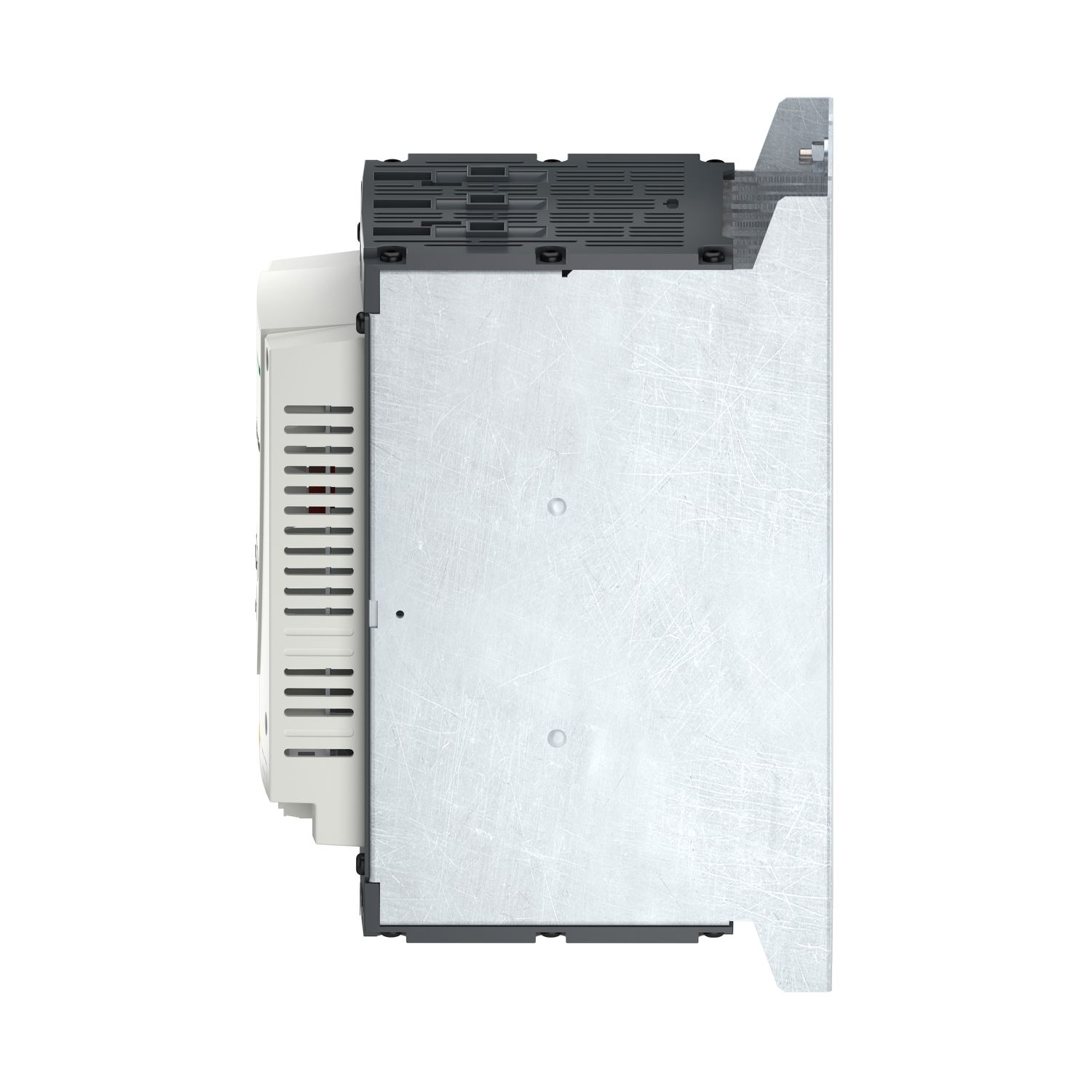

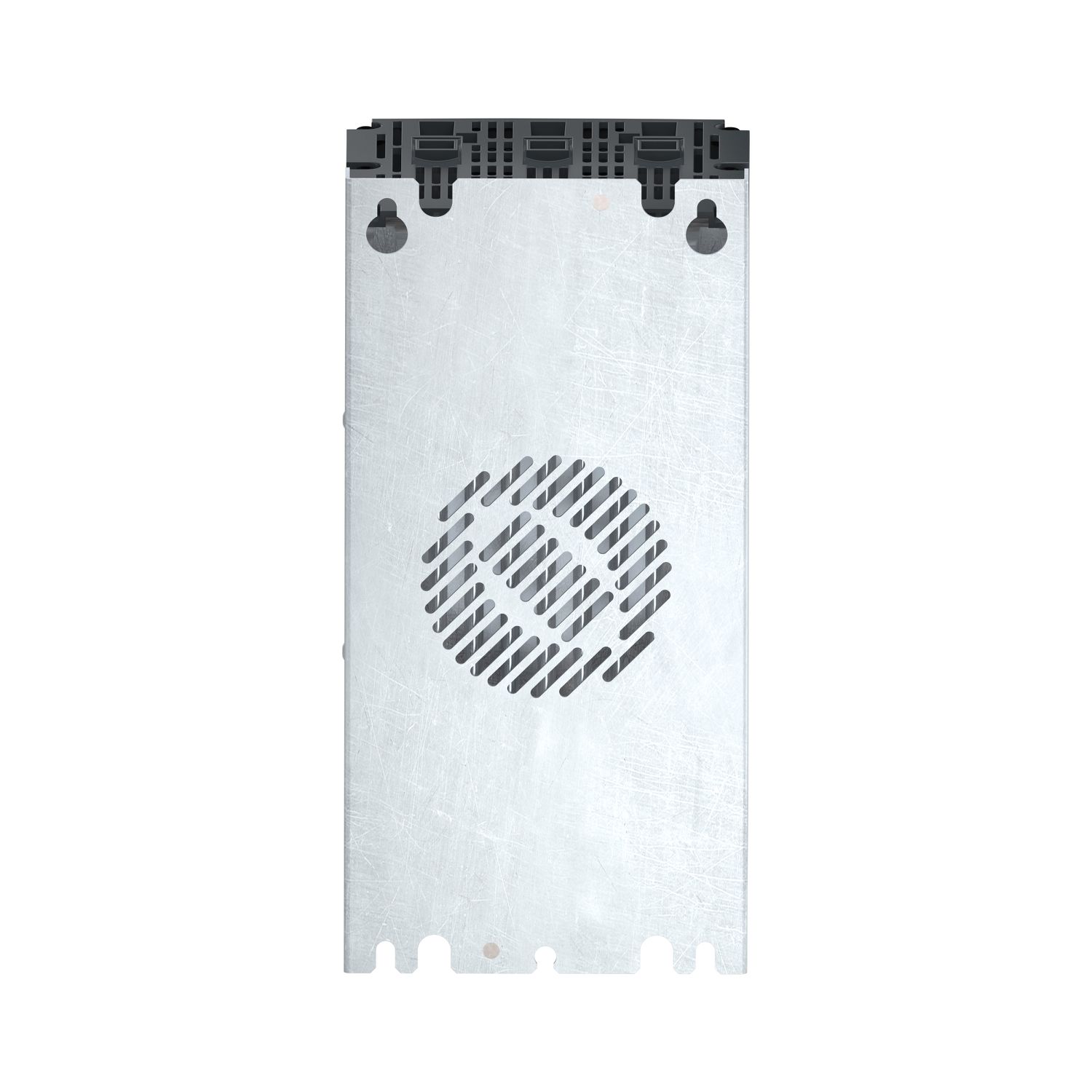

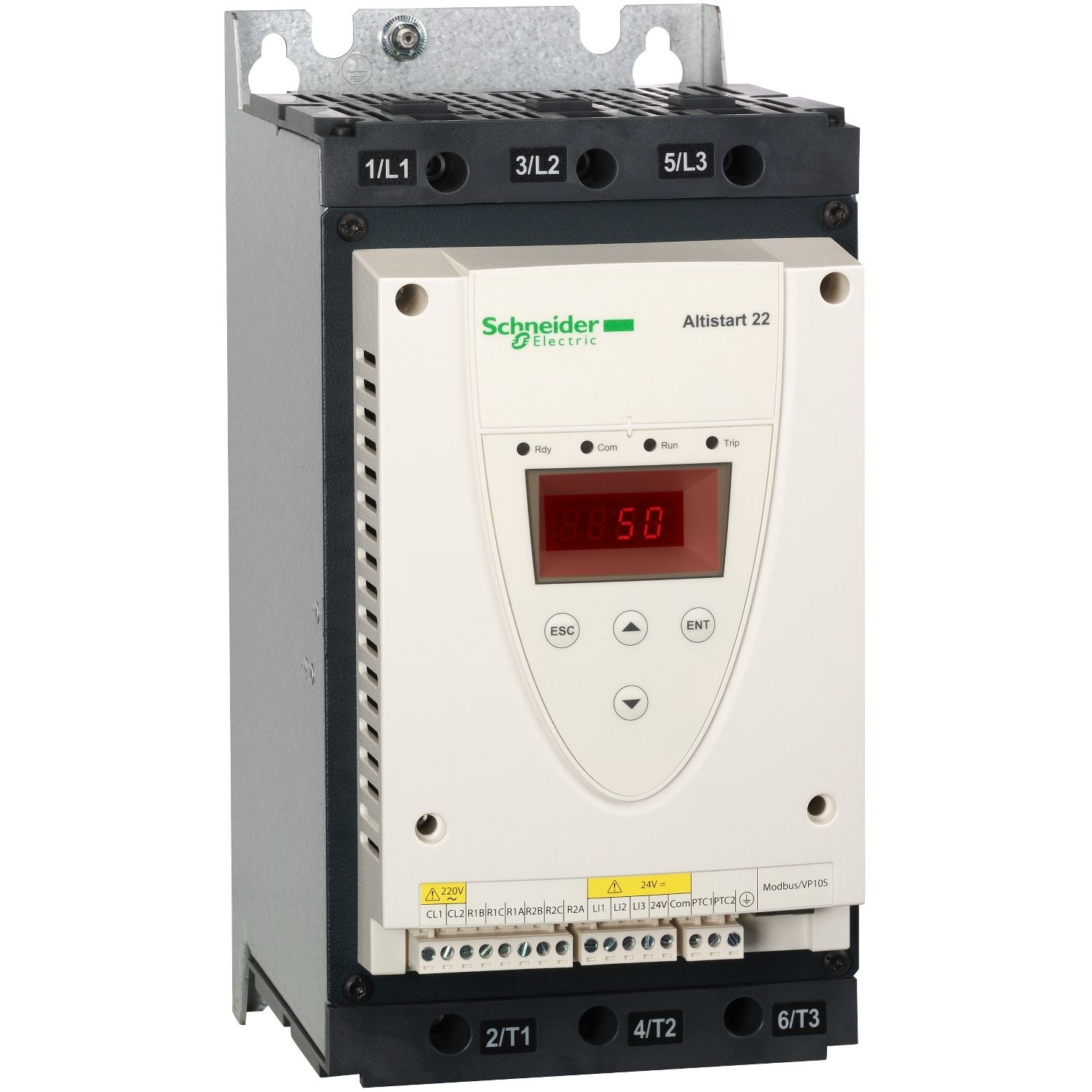

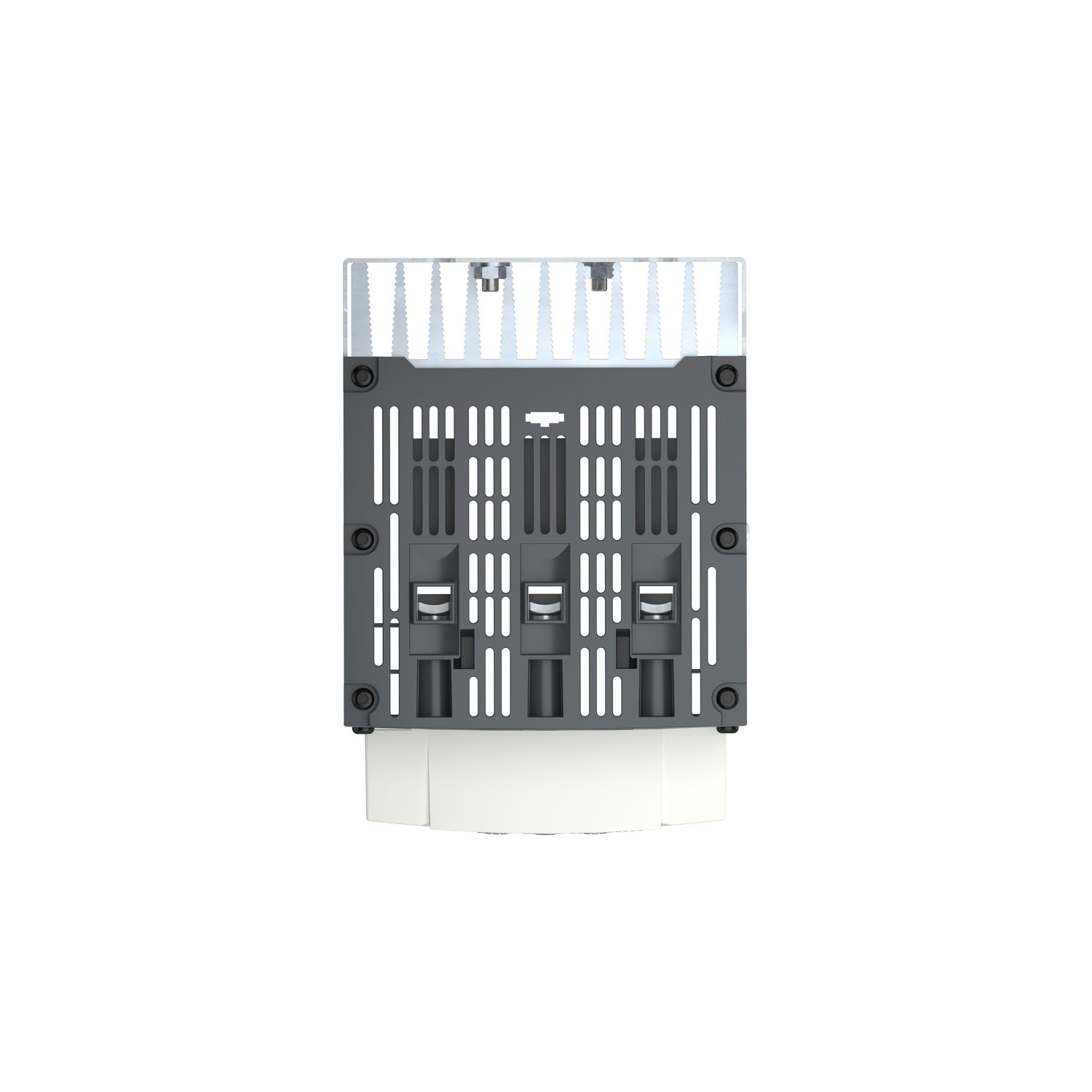

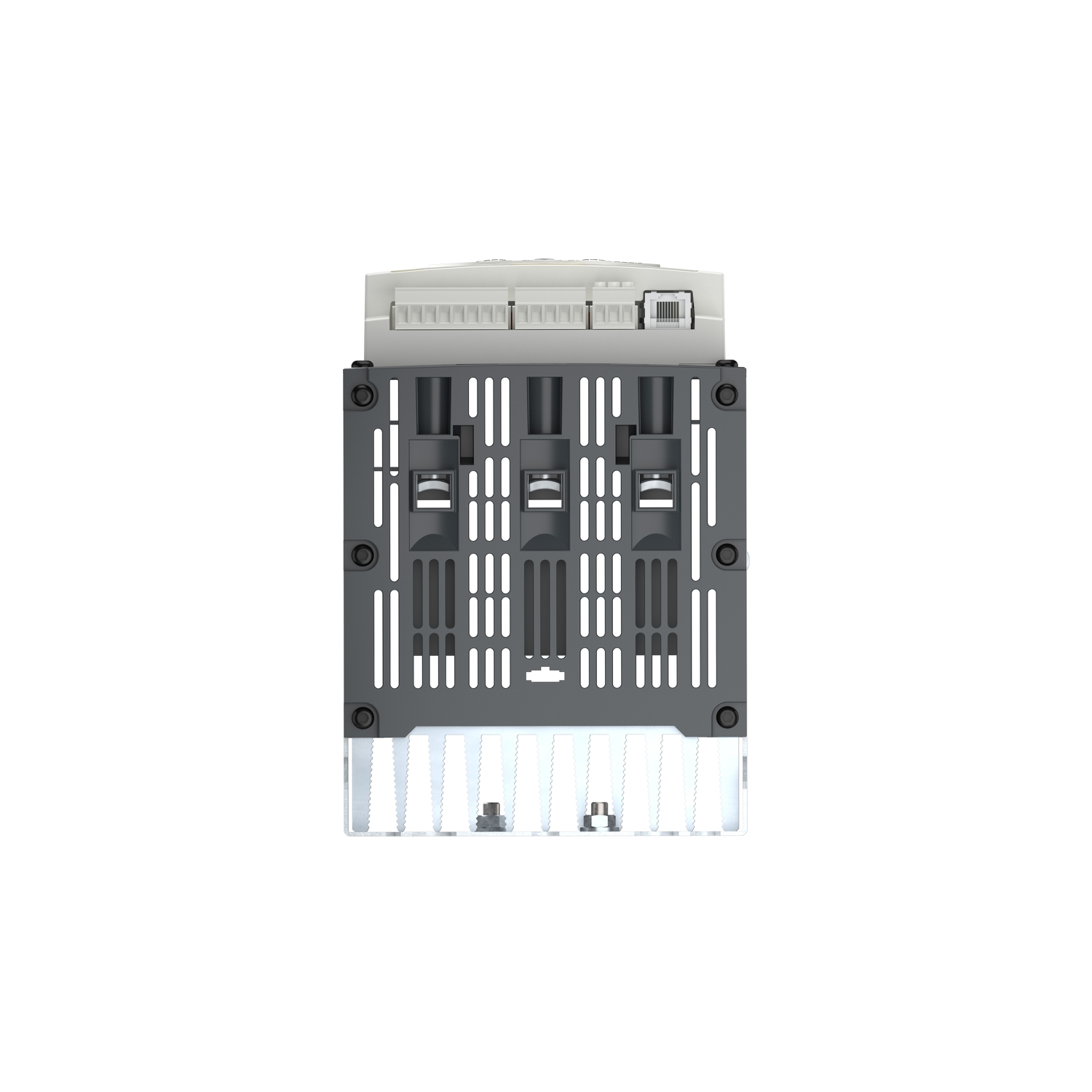

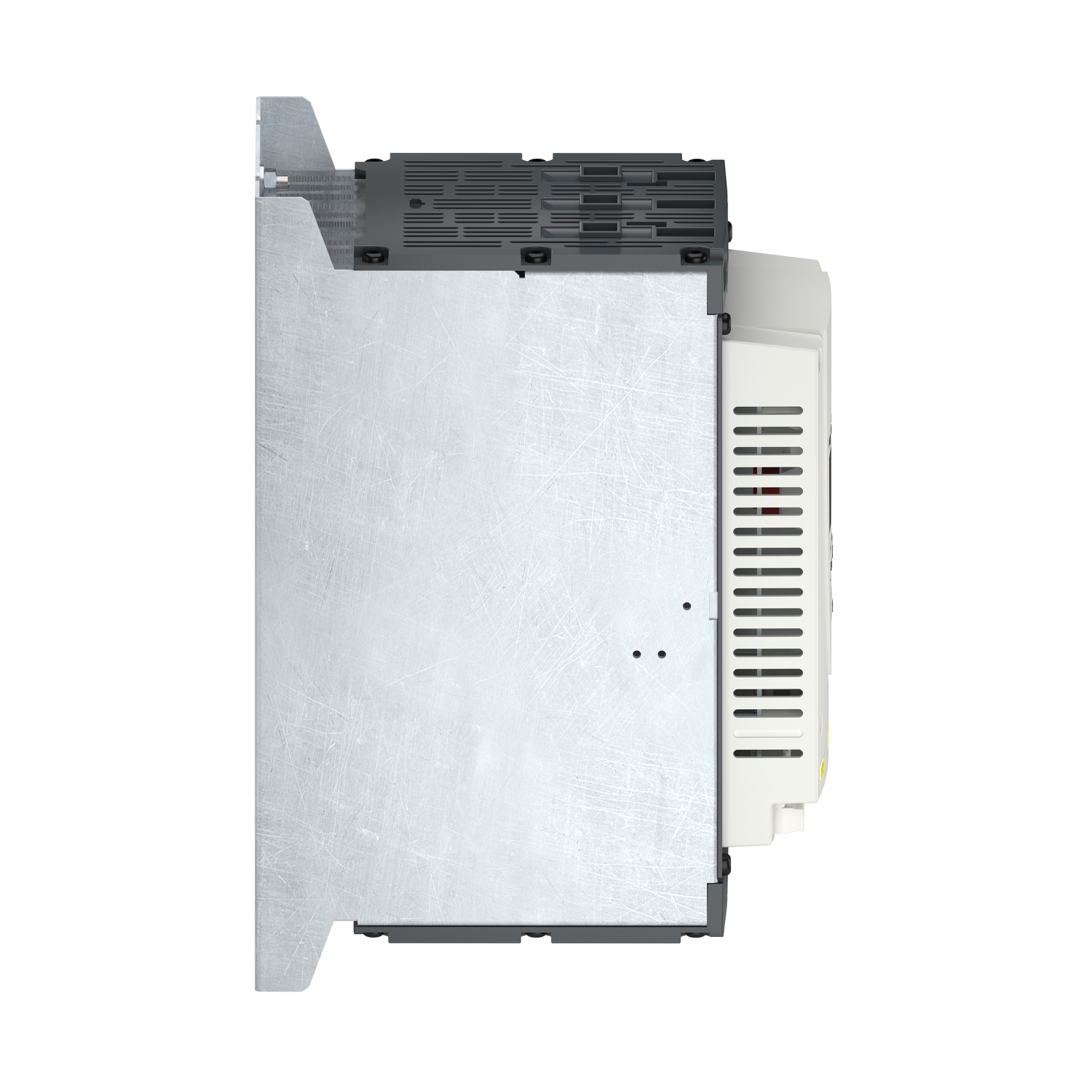

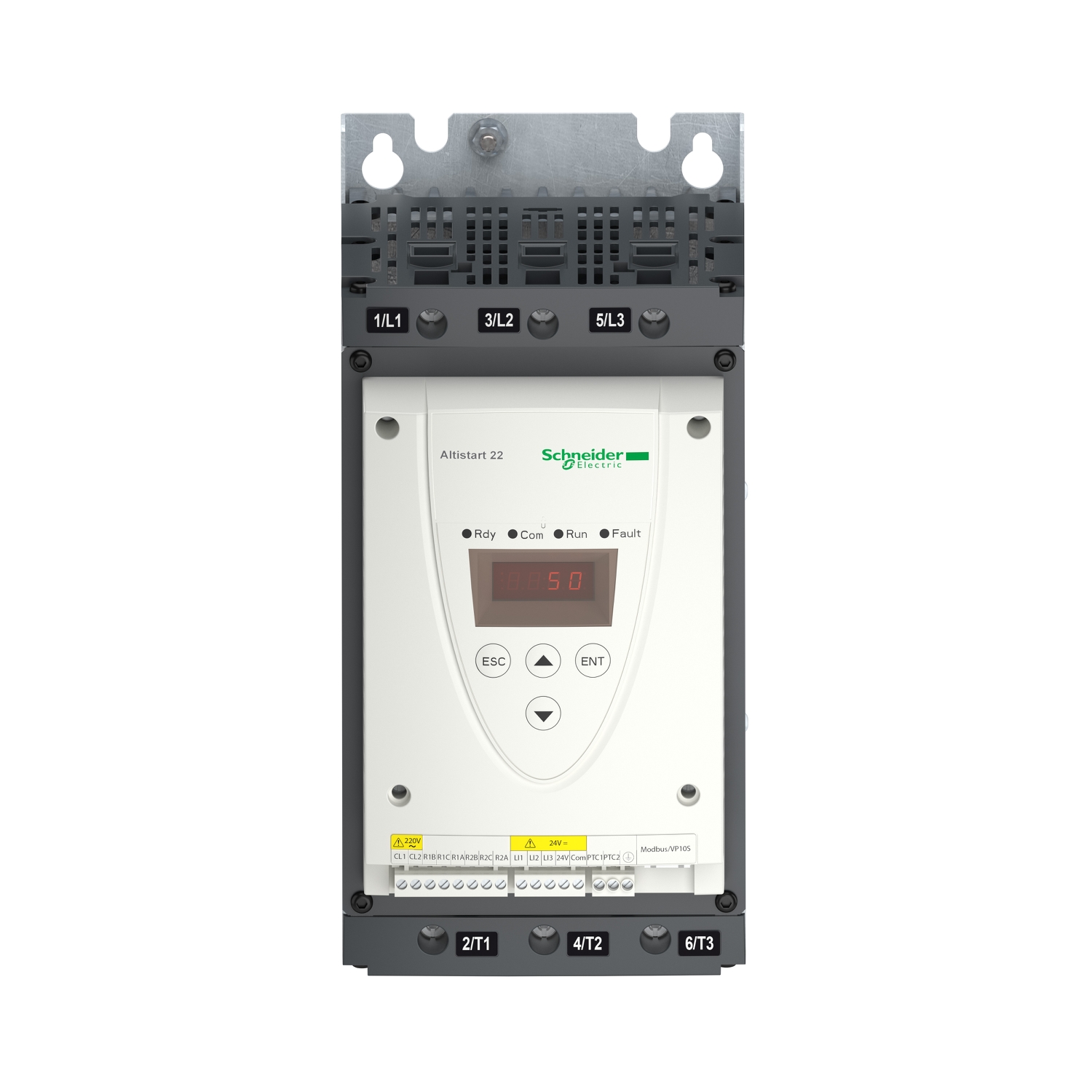

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 75A, a rated power from 20HP to 60HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Products specifications

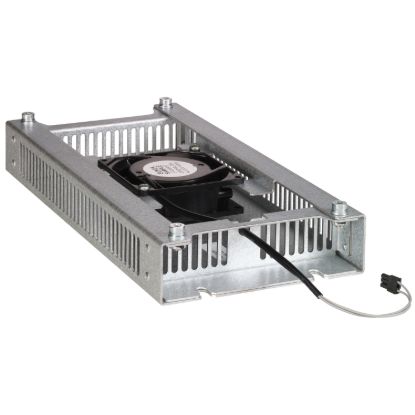

| Attribute name | Attribute value |
|---|---|
| Main | |
| Factory setting current | 65 A |
| IP degree of protection | IP20 |
| Power dissipation in W | 63 W for standard applications |
| Range of product | Altistart 22 |
| Motor power hp | 60 hp 575 V, 50 hp 460 V, 25 hp 230 V, 20 hp 208 V |
| [Us] rated supply voltage | 208...600 V - 15...10 % |
| Product specific application | pumps and fans |
| Utilisation category | AC-53A |
| Type of start | start with torque control (current limited to 3.5 In) |
| IcL starter rating | 75 A for connection in the motor supply line for standard applications |
| Network number of phases | 3 phases |
| Component name | ATS22 |
| Product or component type | soft starter |
| Product destination | asynchronous motors |
| Complementary | |
| Protection type | thermal protection: starter, thermal protection: motor, phase failure: line |
| Operating position | vertical +/- 10 degree |
| Assembly style | with heat sink |
| Type of cooling | forced convection |
| Physical interface | RS485 multidrop |
| Discrete input type | (LI1, LI2, LI3) logic, 5 mA 20 kOhm |
| Supply voltage limits | 177-660 V |
| Control circuit consumption | 20 W |
| Function available | internal bypass |
| Connector type | 1 RJ45 |
| Output current | 0.4...1 Icl adjustable |
| Marking | CE |
| Discrete input voltage | 110 V <= 121 V |
| Height | 295 mm |
| Supply frequency | 50...60 Hz - 10...10 % |
| Discrete input logic | positive logic LI1, LI2, LI3 at State 0: < 20 V and <= 15 mA at State 1: > 79 V, <= 2 mA |
| Depth | 207 mm |
| Transmission rate | 4800, 9600 or 19200 bps |
| Width | 145 mm |
| PTC probe input | 750 Ohm |
| Discrete input number | 3 |
| Communication port protocol | Modbus |
| Discrete output number | 2 |
| Communication data link | serial |
| Installed device | 31 |
| Net weight | 12 kg |
| Maximum switching current | 2 A 30 V DC inductive 7 ms relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 5 A 30 V DC resistive 1 relay outputs, 5 A 250 V AC resistive 1 relay outputs |
| Discrete output type | relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| [Uc] control circuit voltage | 110 V - 15...10 % 50/60 Hz |
| Minimum switching current | 100 mA at 12 V DC (relay outputs) |
| Network frequency | 45...66 Hz |
| Device connection | in the motor supply line |
| Environment | |
| Relative humidity | 0-95 % without condensation or dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | level 2 conforming to IEC 60664-1 |
| Noise level | 45 dB |
| Ambient air temperature for operation | 40-60 °C (with current derating 2.2 % per °C), -10-40 °C (without derating) |
| Electromagnetic compatibility | voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions level A conforming to IEC 60947-4-2 |
| Operating altitude | > 1000...< 2000 m with current derating of 2.2 % per additional 100 m, <= 1000 m without derating |
| Vibration resistance | 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 60947-4-2 |
| Product certifications | GOST, CSA, UL, CCC, C-Tick |
