| Attribute name | Attribute value |
|---|---|
| Main | |
| Synchronous motor control profile | permanent magnet motor, synchronous reluctance motor |

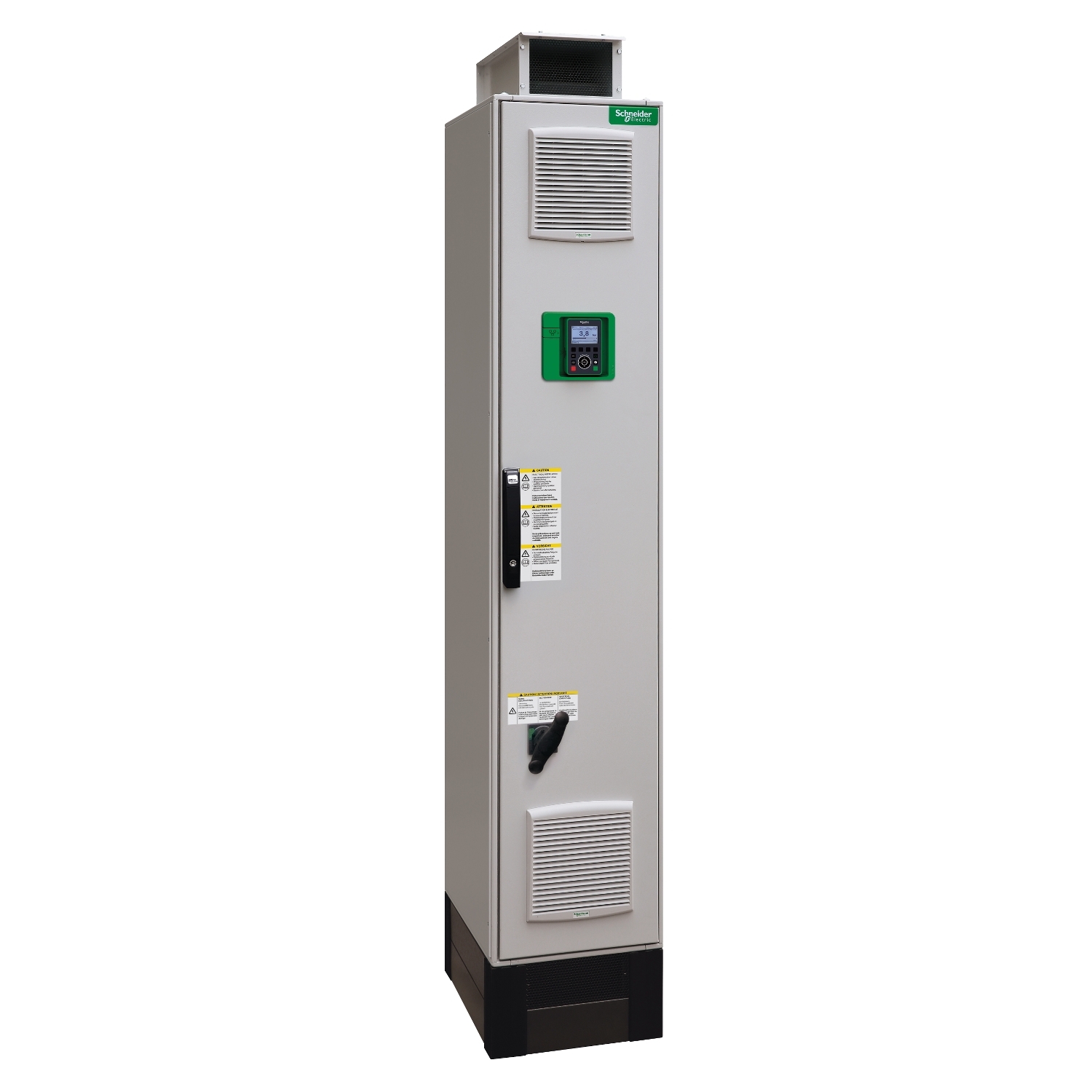

| Device short name | ATV650 |
| Nominal switching frequency | 2.5 kHz |
| Continuous output current | 250 A at 2.5 kHz for heavy duty, 302 A at 2.5 kHz for normal duty |
| Type of cooling | forced convection |
| Discrete input logic | 16 preset speeds |
| [Us] rated supply voltage | 380...440 V - 15...10 %, 380...440 V |
| Motor power kW | 132 kW (heavy duty), 160 kW (normal duty) |
| IP degree of protection | IP54 conforming to IEC 61800-5-1, IP54 conforming to IEC 60529 |
| Speed drive output frequency | 0.1-500 Hz |
| Range of product | Altivar Process ATV600 |
| Option card | slot A: communication module, Profibus DP V1, communication module, Ethernet Powerlink, communication module, BACnet MS/TP, slot A: communication module, Ethernet IP/Modbus TCP/MD-Link, slot A/slot B: output relay extension module, slot A/slot B: digital and analog I/O extension module, slot A: communication module, CANopen screw terminals, slot A: communication module, CANopen SUB-D 9, slot A: communication module, CANopen daisy chain RJ45, slot A: communication module, Modbus TCP/EtherNet/IP, slot A: communication module, DeviceNet, slot A: communication module, PROFINET |
| Supply frequency | 50...60 Hz - 5...5 % |
| Safety function | STO (safe torque off) SIL 3 |
| Product specific application | process and utilities |
| Communication port protocol | Modbus serial, Modbus TCP |
| Switching frequency | 2.5...8 kHz with derating factor, 2...8 kHz adjustable |
| Apparent power | 160 kVA at 440 V (heavy duty), 191 kVA at 440 V (normal duty) |
| Product or component type | variable speed drive |
| Variant | with disconnect switch |
| Asynchronous motor control profile | variable torque standard, optimized torque mode |
| EMC filter | integrated with 150 m conforming to IEC 61800-3 category C3 |
| Line current | 244 A at 400 V (normal duty), 291 A at 380 V (heavy duty), 210 A at 380 V (normal duty), 251 A at 400 V (heavy duty) |
| Product destination | synchronous motors, asynchronous motors |
| Prospective line Isc | 50 kA |
| Complementary | |
| Maximum deflection under vibratory load (during storage) | 1.5 mm at 2...13 Hz |
| Ambient air transport temperature | -25-70 °C |
| With safety function Safely Limited Speed (SLS) | False |
| Number of HW interfaces other | 0 |
| Supply | external supply for digital inputs: 24 V DC (19-30 V), <1.25 mA, protection type: overload and short-circuit protection, internal supply for digital inputs and STO: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection |
| Number of HW interfaces serial TTY | 0 |
| Protection type | thermal protection: motor, break on the control circuit: drive, overspeed: drive, line supply phase loss: drive, line supply undervoltage: drive, line supply overvoltage: drive, overvoltages on the DC bus: drive, motor phase break: drive, short-circuit protection: drive, overload of output voltage: drive, overcurrent between output phases and earth: drive, overheating: drive, safe torque off: drive, thermal protection: drive, motor phase break: motor, safe torque off: motor |
| Discrete input type | DI7, DI8 programmable as pulse input: 0-30 kHz, 24 V DC (<= 30 V) |
| Maximum acceleration under shock load (during storage) | 40 m/s² at 11 ms |
| Braking to standstill | by DC injection |
| Capacity of DC link | 9400.0 µF |
| Supporting protocol for SUCONET | False |
| Power loss static current independent | 73.0 W |
| Quantity per set | 1 |
| Output voltage | <= power supply voltage |
| Brake chopper integrated | False |
| With safety function Safe programmable logic | False |
| Isolation | between power and control terminals |
| Number of inputs, bidirectional, not potential-free | 0 |
| Number of inputs, potential-free | 0 |
| Supporting protocol for EtherNet/IP | True |
| Enclosure mounting | floor-standing |
| Supporting protocol for DeviceNet | False |
| Refresh time | relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| Minimum switching current | relay output R1, R2, R3: 5 mA at 24 V DC |
| Physical interface | 2-wire RS 485, Ethernet |
| Analogue output number | 2 |
| Permitted relative humidity (during transport) | class 2K5 according to EN 60721-3 |
| Operating element present | True |
| Mounting mode | floor-standing |
| Supporting protocol for PROFINET IO | True |
| Motor starter type | variable speed drive |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty), 1.5 x In during 60 s (heavy duty) |
| Supporting protocol for Data-Highway | False |
| Input compatibility | DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2, STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2, DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 |
| Number of HW interfaces serial RS232 | 0 |
| Connector type | RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP, RJ45 (on the remote graphic terminal) for Modbus serial |
| Maximum acceleration under vibratory load (during storage) | 6 m/s² at 13...200 Hz |
| Accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output |
| Number of HW interfaces serial RS485 | 1 |
| Maximum acceleration under vibrational stress (during operation) | 6 m/s² at 13...200 Hz |
| Supporting protocol for PROFINET CBA | True |
| Base load current at low overload | 302.0 A |
| Supporting protocol for PROFIBUS | True |
| Supporting protocol for ASI | False |
| Data format | 8 bits, configurable odd, even or no parity |
| Number of HW interfaces USB | 0 |
| Environmental class (during transport) | class 2S1 according to EN 60721-3-2, class 2C3 according to EN 60721-3-2 |
| With safety function Safe torque off (STO) | True |
| Relay output number | 3 |
| Supporting protocol for SERCOS | False |
| With safety function Safe Speed Monitor (SSM) | False |
| Supporting protocol for SafetyBUS P | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Transmission frame | RTU |
| Base load current at high overload | 250.0 A |
| Maximum output voltage | 440.0 V |
| Maximum acceleration under shock impact (during operation) | 40 m/s² at 11 ms |
| Acceleration and deceleration ramps | linear adjustable separately from 0.01...9999 s |
| Height | 2350 mm |
| Maximum acceleration under shock load (during transport) | 40 m/s² at 11 ms |
| Maximum acceleration under vibratory load (during transport) | 6 m/s² at 13...200 Hz |
| With safety function Safe brake management (SBC/SBT) | False |
| Number of HW interfaces serial RS422 | 0 |
| Supporting protocol for TCP/IP | True |
| Optical interface present | False |
| Maximum output frequency | 500 kHz |
| Electrical connection | control: removable screw terminals 0.5...1.5 mm², motor: M12 bar - 2 cables 3 x 50 mm² minimum per phase (heavy duty), motor: M12 bar - 1 cables 3 x 120 mm² minimum per phase (heavy duty), line side: M12 bar - 1 cables 3 x 185 mm² minimum per phase (heavy duty), motor: M12 bar - 2 cables 3 x 70 mm² minimum per phase (normal duty), motor: M12 bar - 1 cables 3 x 150 mm² minimum per phase (normal duty), line side: M12 bar - 1 cables 3 x 185 mm² minimum per phase (normal duty), motor: M12 bar - 2 cables 3 x 185 mm² maximum per phase (heavy duty), line side: M12 bar - 2 cables 3 x 120 mm² maximum per phase (heavy duty), line side: M12 bar - 1 cables 3 x 185 mm² maximum per phase (heavy duty), line side: M12 bar - 2 cables 3 x 70 mm² minimum per phase (heavy duty), motor: M12 bar - 2 cables 3 x 185 mm² maximum per phase (normal duty), line side: M12 bar - 2 cables 3 x 120 mm² maximum per phase (normal duty), line side: M12 bar - 1 cables 3 x 185 mm² maximum per phase (normal duty), line side: M12 bar - 2 cables 3 x 70 mm² minimum per phase (normal duty) |
| Supporting protocol for other bus systems | False |
| Supporting protocol for Foundation Fieldbus | False |
| Sampling duration | 2 ms +/- 0.5 ms (DI1...DI4) - discrete input, 10 ms +/- 1 ms (AO1) - analog output, 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms (DI5, DI6) - discrete input |
| Environmental class (during operation) | class 3S3 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3 |
| Environmental class (during storage) | class 1S2 according to EN 60721-3-1, class 1C3 according to EN 60721-3-1 |
| Computer port | True |
| Discrete and process manufacturing | building - HVAC compressor centrifugal, water and waste water mixer, water and waste water conveyor, water and waste water fan, water and waste water compressor centrifugal, water and waste water screw compressor, water and waste water lobe compressor, water and waste water screw pump, water and waste water electro submersible pump (ESP), water and waste water positive displacement pump, water and waste water centrifuge pump, oil and gas compressor for refinery, oil and gas jet fuel pump, oil and gas water injection pump, oil and gas electro submersible pump (ESP), food and beverage processing atomization, food and beverage processing fan, food and beverage processing pump, building - HVAC screw compressor, water and waste water other application, oil and gas fan, mining mineral and metal pump, mining mineral and metal fan, food and beverage processing other application |
| Application in industrial area permitted | True |
| Supporting protocol for PROFIsafe | False |
| Number of output phases | 3 |
| Analogue input type | AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits, AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits |
| Depth | 669 mm |
| Supporting protocol for KNX | False |
| Transmission rate | 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 10, 100 Mbits |
| Width | 400 mm |
| Number of input phases | 3 |
| Design of frequency changer | U converter |
| With safety function Safe Stop 1 (SS1) | False |
| With sft fct Safe Stop 2 (SS2) | False |
| Housing material | sheet steel |
| Supporting protocol for LON | False |
| Supporting protocol for BACnet | False |
| Specific application | utility |
| Number of addresses | 1-247 for Modbus serial |
| Linearity error | AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AO1, AO2: +/- 0.2 % for analog output |
| Number of HW interfaces parallel | 0 |
| Local signalling | 3 LEDs for local diagnostic, 1 LED (red) for presence of voltage, 4 LEDs (dual colour) for communication module status, 3 LEDs (dual colour) for embedded communication status |
| Power loss per device current dependent | 3818.0 W |
| Nominal output current | 302.0 A |
| Discrete input number | 8 |
| Permitted relative humidity (during operation) | class 3K5 according to EN 60721-3 |
| With safety function Safe Operating Stop (SOS) | False |
| Method of access | slave Modbus TCP |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Position (SP) | False |
| Supporting protocol for DeviceNet Safety | False |
| Discrete output number | 0 |
| Supporting protocol for MODBUS | True |
| Motor slip compensation | adjustable, automatic whatever the load, not available in permanent magnet motor law |
| Analogue input number | 3 |
| Application in domestic and commercial area permitted | False |
| Supporting protocol for CAN | True |
| Maximum transient current | 375 A during 60 s (heavy duty), 332 A during 60 s (normal duty) |
| Permitted relative humidity (during storage) | class 1K5 according to EN 60721-3 |
| 1 phase low current possible | False |
| Relay output type | configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, configurable relay logic R3: sequence relay NO electrical durability 100000 cycles, configurable relay logic R2: sequence relay NO electrical durability 100000 cycles |
| Frequency resolution | display unit: 0.1 Hz, analog input: 0.012/50 Hz |
| Type of polarization | no impedance |
| With safety function Safe Direction (SDI) | False |
| Net weight | 330 kg |
| Network number of phases | 3 phases |
| Power range | 110-220 kW at 380-440 V 3 phases, 110-220 kW at 480-500 V 3 phases |
| EMC limit value (complied) | True |
| Nominal output power | 160.0 kW |
| Relative symmetric mains voltage tolerance | 10 % |
| IP degree of protection | IP54 |
| Relative symmetric network frequency tolerance | 5 % |
| Maximum deflection under vibratory load (during transport) | 1.5 mm at 2...13 Hz |
| Supporting protocol for INTERBUS-Safety | False |
| Supporting protocol for INTERBUS | False |
| Exchange mode | half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| 4 quadrant operation possible | False |
| Maximum switching current | relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 250 V AC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 30 V DC |
| Number of HW interfaces industrial Ethernet | 1 |
| Discrete output type | relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA |
| Number of HW interfaces PROFINET | 0 |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Analogue output type | software-configurable current DQ-, DQ+: 100 mA, software-configurable current DQ-, DQ+: 30 V DC, software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits, software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Discrete input logic | negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1), positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) |
| Network frequency | 50...60 Hz |
| Environment | |
| Maximum THDI | <48 % full load conforming to IEC 61000-3-12 |
| Operating position | vertical +/- 10 degree |
| Relative humidity | 5-95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 conforming to IEC 61800-5-1, 3 |
| Noise level | 69 dB, 69 dB conforming to 86/188/EEC |
| Marking | CE |
| Volume of cooling air | 720 m3/h |
| Ambient air temperature for operation | -15-40 °C (without derating), 40-50 °C (with derating factor), 0-50 °C |
| Electromagnetic compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 |
| Standards | UL 508C, IEC 13849-1, IEC 61508, IEC 60721-3, IEC 61000-3-12, IEC 61800-5-1, environment 2 category C3 IEC 61800-3, IEC 61800-3, IEC 61800-2, IEC 60204-1 |
| Overvoltage category | III |
| Operating altitude | <= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m |
| Regulation loop | adjustable PID regulator |
| Vibration resistance | 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
| Power dissipation in W | 3120 W, switching frequency 2.5 kHz (normal duty), 2520 W, switching frequency 2.5 kHz (heavy duty) |
| Product certifications | C-Tick, EAC, ATEX |
| Maximum input current | 291.0 A |
