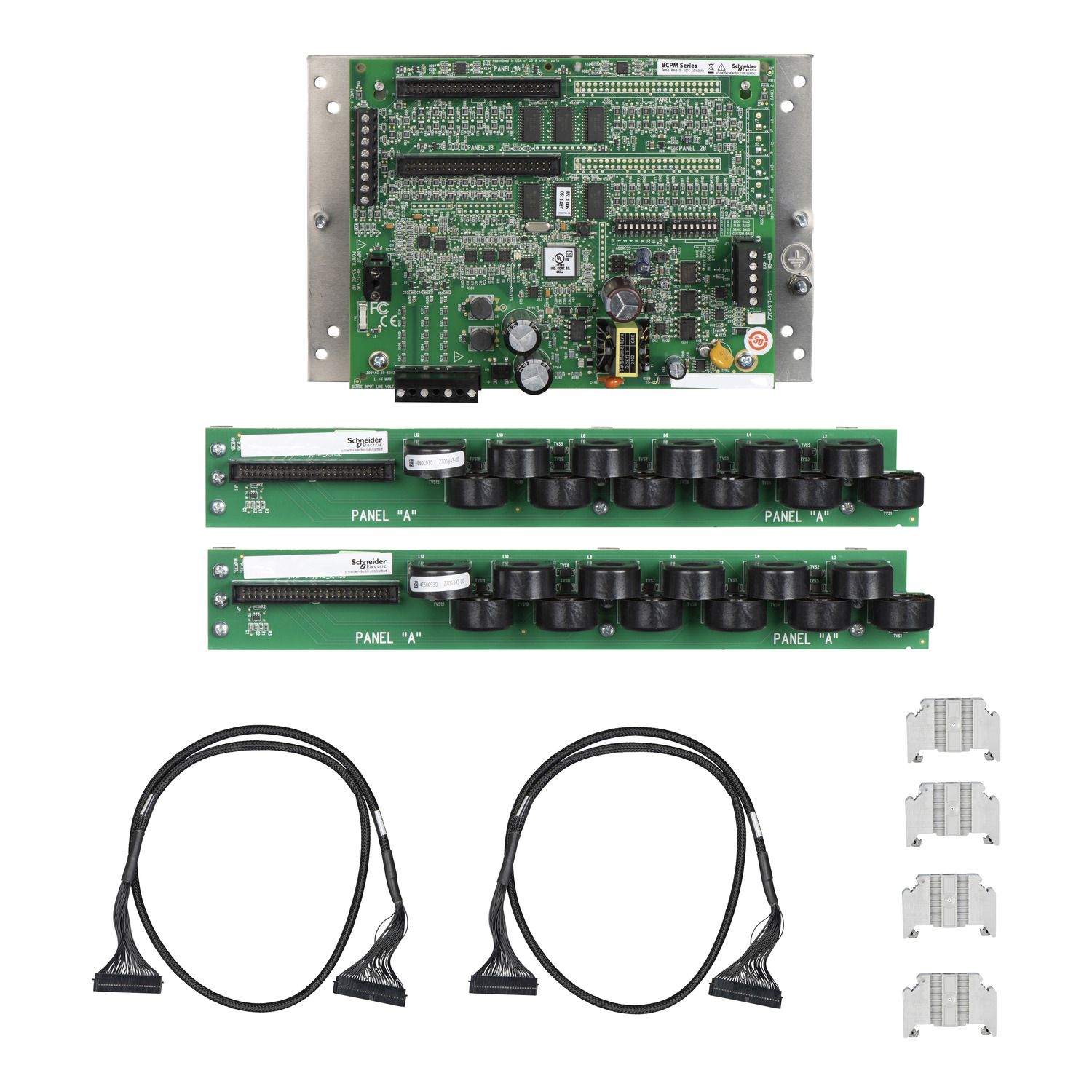

This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for use in new build and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (100A solid core current transformers) on all branch channels. The BCPM monitors both the 84 branch circuits and mains values, incoming power and energy. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. Include 4 21-CTs board strips with 18mm spacing between each CT connectors, for 84 circuits. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | BCPMA |
| Device application | sub billing |
| [Us] rated supply voltage | 90...277 V AC 50/60 Hz +/- 1 % |
| Energy management | sub billing and cost allocation |
| Range | PowerLogic |
| Product name | PowerLogic BCPM |
| Market segment | healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard |
| Product or component type | multi-circuit energy meter |
| Power monitoring | basic instrumentation |
| Type of measurement | active energy, power factor, active power, frequency, current, voltage |
| Variant | advanced |
| Range of product | PowerLogic |
| Power quality analysis | voltage sag and swell detection |
| Network frequency | 50 Hz, 60 Hz |
| Complementary | |
| Analogue input type | solid core CT 100 A84 x |
| Update time | 1.8 s |
| Measurement accuracy | voltage 1 % 90…277 V, mains current 3 % 2…100 %, mains current 3 % 1…100 %, branch current 1 % 2…100 A, branch current 2 % 0.25…2 A |
| Provided equipment | 4 x cables, 84 x current transformer |
| Number of inputs | 0 |
| Communication of data | high-high current alarm, under voltage alarm, low current alarm, over voltage alarm, low-low current alarm, high current alarm |
| Communication port protocol | Modbus RTU |
| Number of outputs | 0 |
| Sampling rate | 256 samples/cycle |
| Measurement voltage | 150-480 V phase to phase, 90-277 V phase to neutral |
| Connection pitch | 18 mm |
| Communication port support | RS485 |
| Environment | |
| Operating altitude | 3000 m |
| Width | 288 mm |
| Relative humidity | 0-95 % at 0-60 °C |
| Ambient air temperature for storage | -40-70 °C |
| Mounting mode | panel-mounted |
| Net weight | 1.5 kg |
| Product certifications | UL |
| Mounting support | enclosure, panel |
| Standards | EN 61010, IEC 61036, UL 508, ANSI C12.1 |
| Height | 146 mm |
