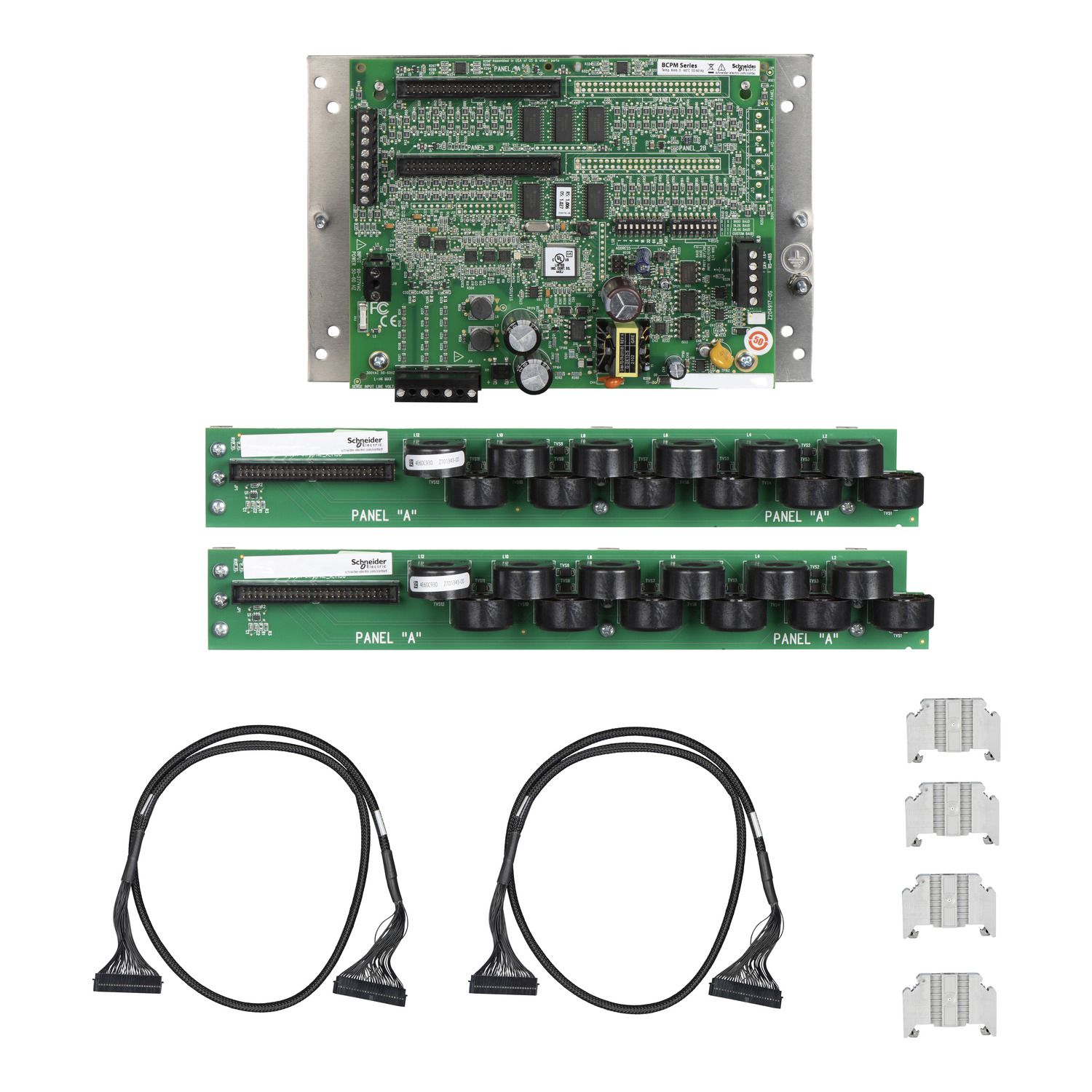

This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (including 50A, 100A or 200A split-core current transformers) on all branch channels. The BCPM monitors both the 84 branch circuits and mains values, incoming power and energy. All to provide information on the complete Power Distribution Unit. Adapter boards with terminals for split-core CTs can be mounted using DIN-rail, Snaptrack or on a common mounting plate with the main board Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with serial connection for either Modbus RTU or BACnet MS/TP, and an Ethernet connection for Modbus TCP, BACnet IP and SNMP. The meter need to be powered by a 100V AC to 277V AC supply source. Include 50A branch CTs with 2 meters leads and 1.8 meters round ribbon cables, for 84 split-core current transformers. The device dimensions are 353mm in width, 253mm in height, 71mm in depth and weight 1.5 kilograms.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | BCPMSCE |
| Device application | sub billing |
| [Us] rated supply voltage | 90...277 V AC 50/60 Hz +/- 1 % |
| Range | PowerLogic |
| Market segment | healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard |
| Power monitoring | basic instrumentation |
| Type of measurement | active energy, power factor, active power, frequency, current, voltage |
| Range of product | PowerLogic |
| Power quality analysis | voltage sag and swell detection |
| Energy management | sub billing and cost allocation |
| Product name | PowerLogic BCPMSC |
| Product or component type | multi-circuit energy meter |
| Variant | advanced + ethernet |
| Network frequency | 50 Hz, 60 Hz |
| Complementary | |
| Update time | 1.8 s |
| Measurement accuracy | voltage 1 % 90…277 V, mains current 3 % 2…100 %, mains current 3 % 1…100 %, branch current 1 % 2…100 A, branch current 2 % 0.25…2 A |
| Communication of data | under voltage alarm, high current alarm, high-high current alarm, low current alarm, over voltage alarm, low-low current alarm |
| Communication port protocol | SNMP v2, Modbus TCP, BACnet MS/TP, BACnet IP, Modbus RTU |
| Communication port support | ETHERNET, RS485 |
| Analogue input type | split core CT 0.333 V84 x |
| Provided equipment | 4 x adapter board, 4 x cables, 84 x current transformer |
| Number of inputs | 0 |
| Number of outputs | 0 |
| Sampling rate | 256 samples/cycle |
| Measurement voltage | 150-480 V phase to phase, 90-277 V phase to neutral |
| Environment | |
| Relative humidity | 0-95 % at 0-60 °C |
| Ambient air temperature for storage | -40-70 °C |
| Mounting mode | fixed |
| Product certifications | UL |
| Height | 307 mm |
| Operating altitude | 3000 m |
| Depth | 71 mm |
| Width | 253 mm |
| Net weight | 1.5 kg |
| Mounting support | chassis |
| Standards | EN 61010, ANSI C12.1, IEC 61036, UL 508 |
