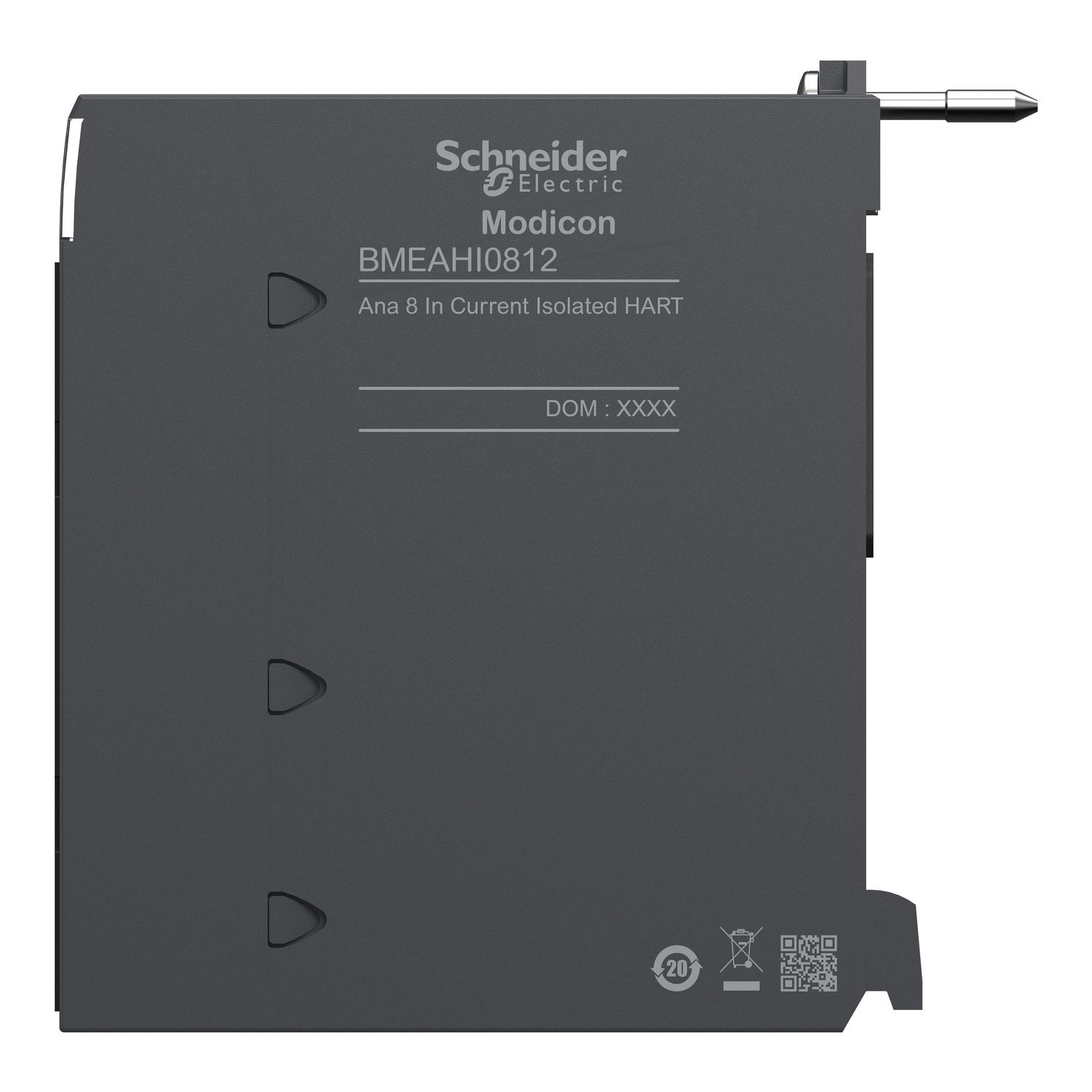

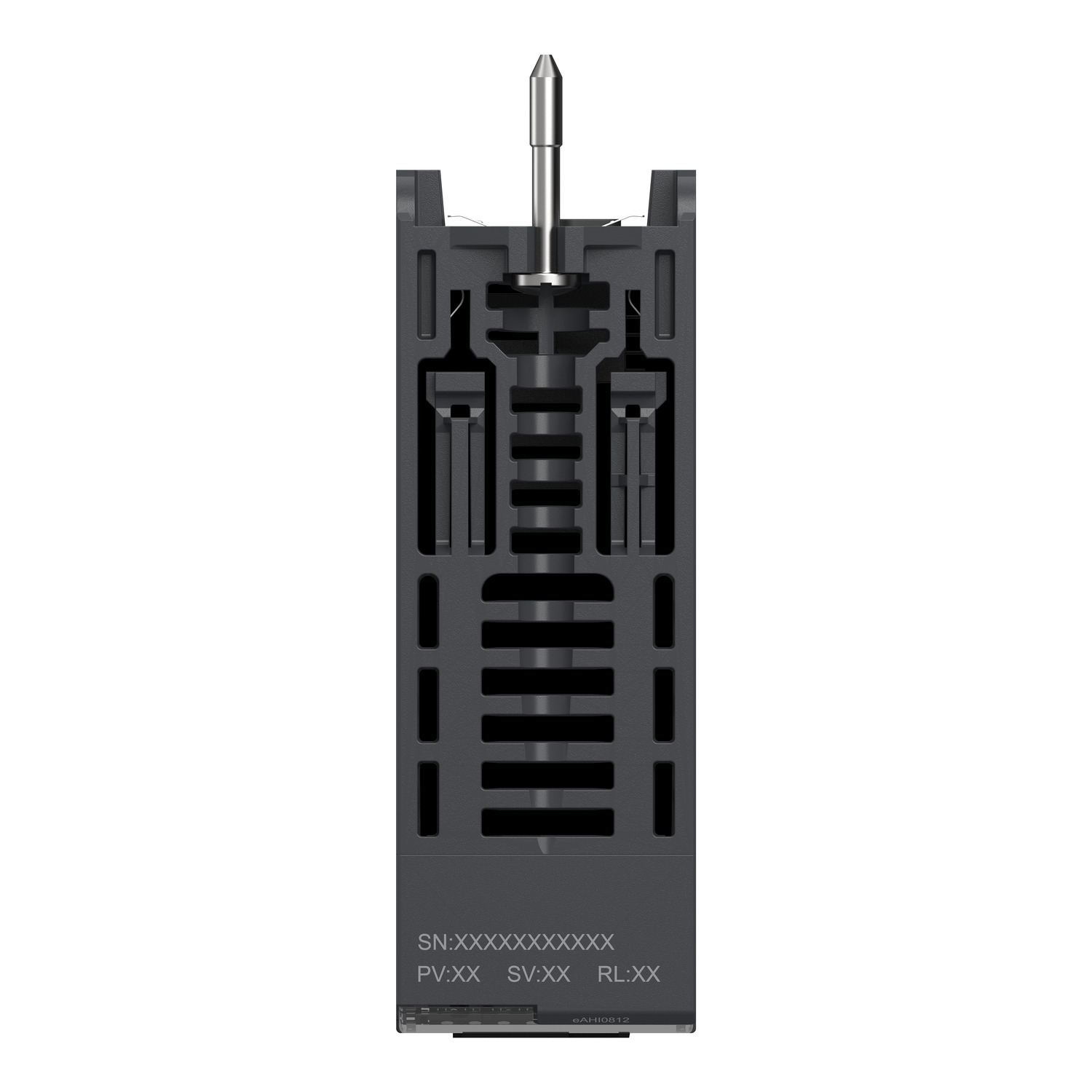

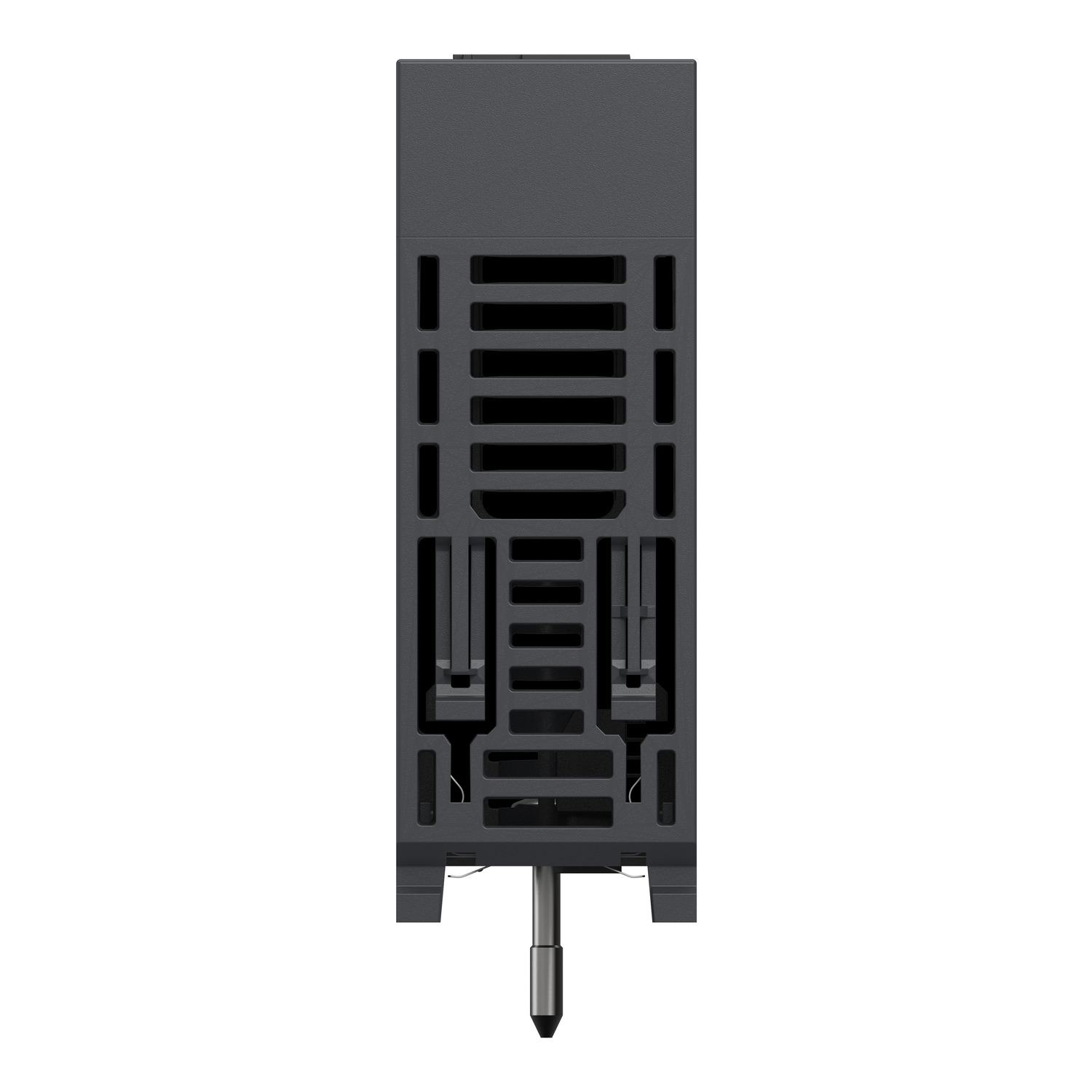

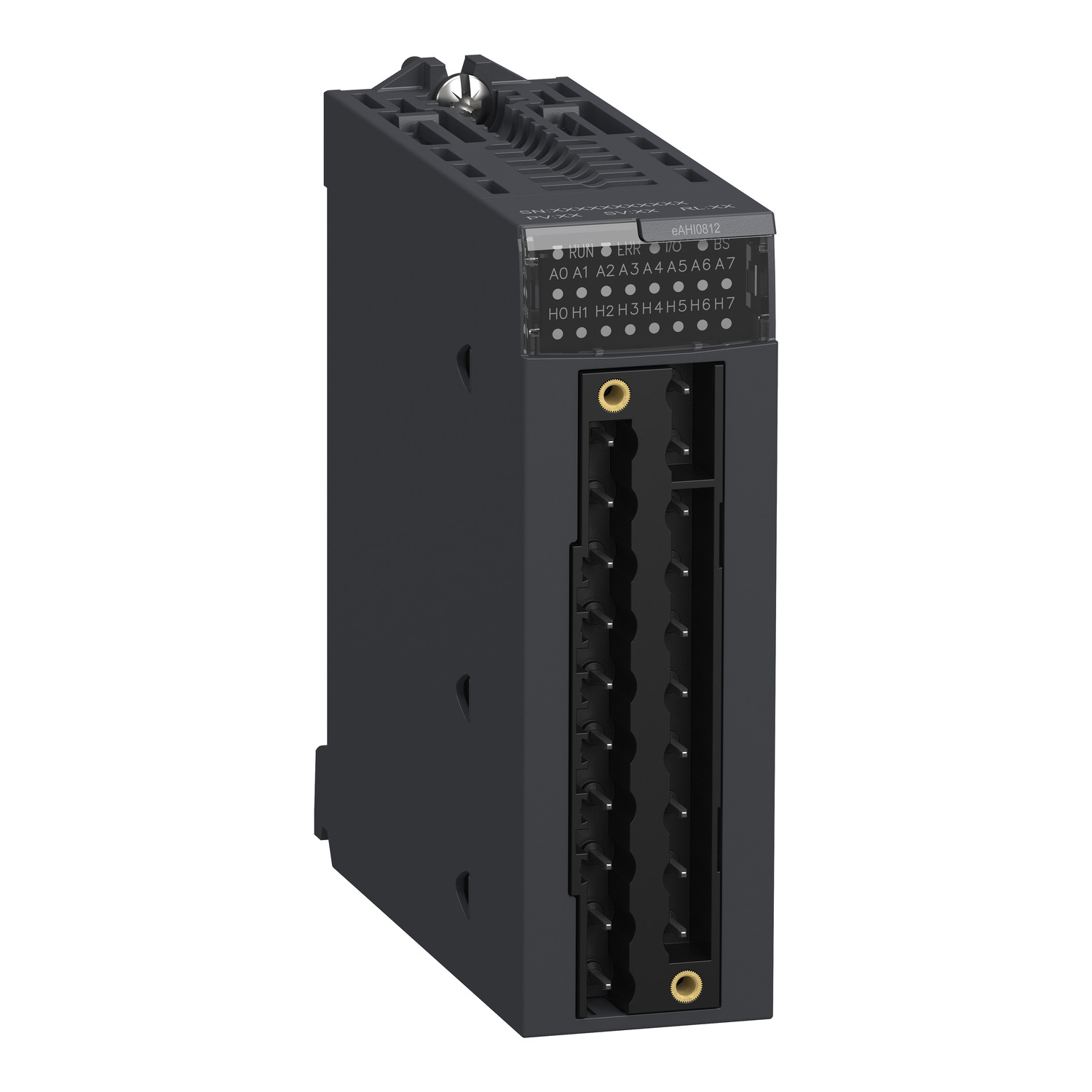

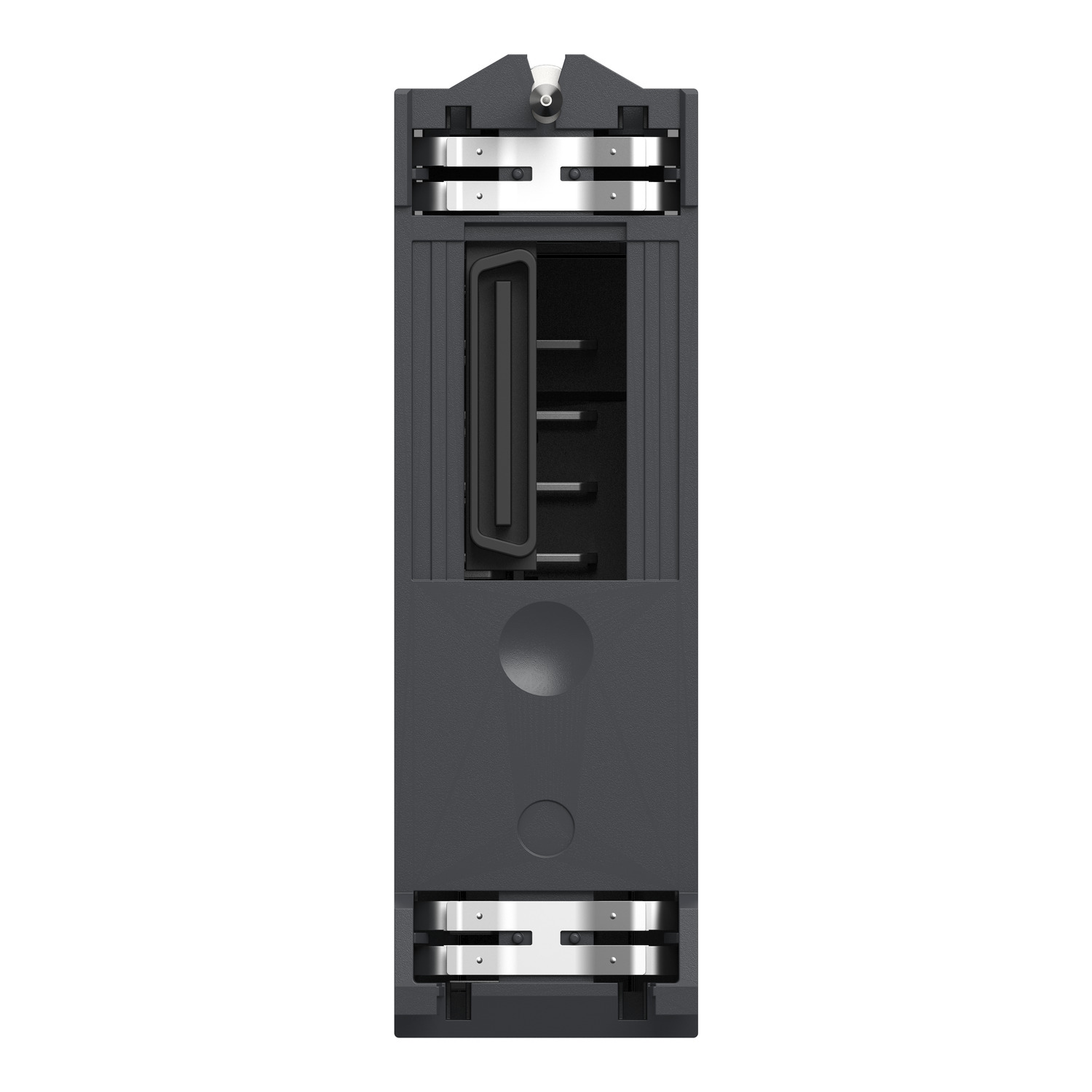

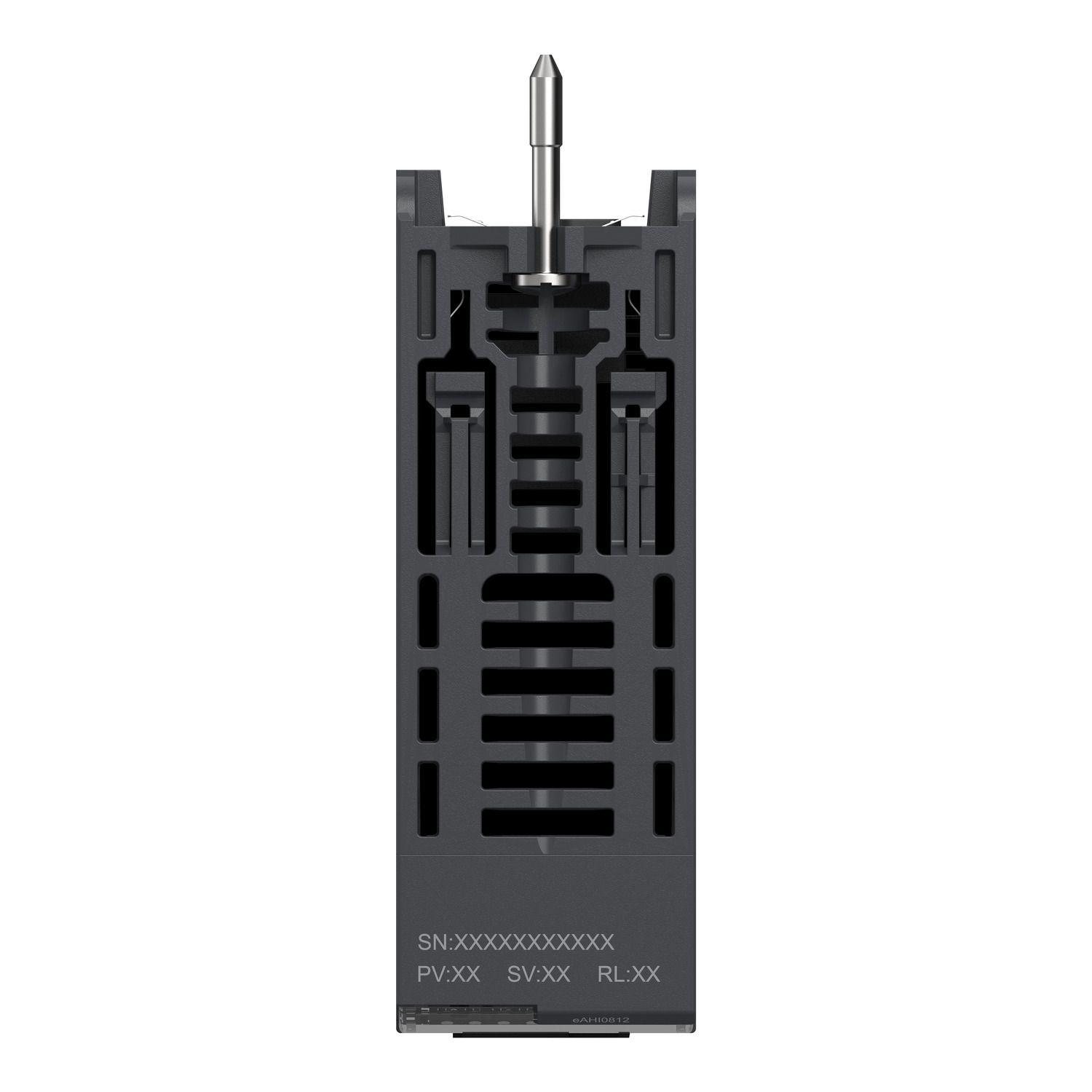

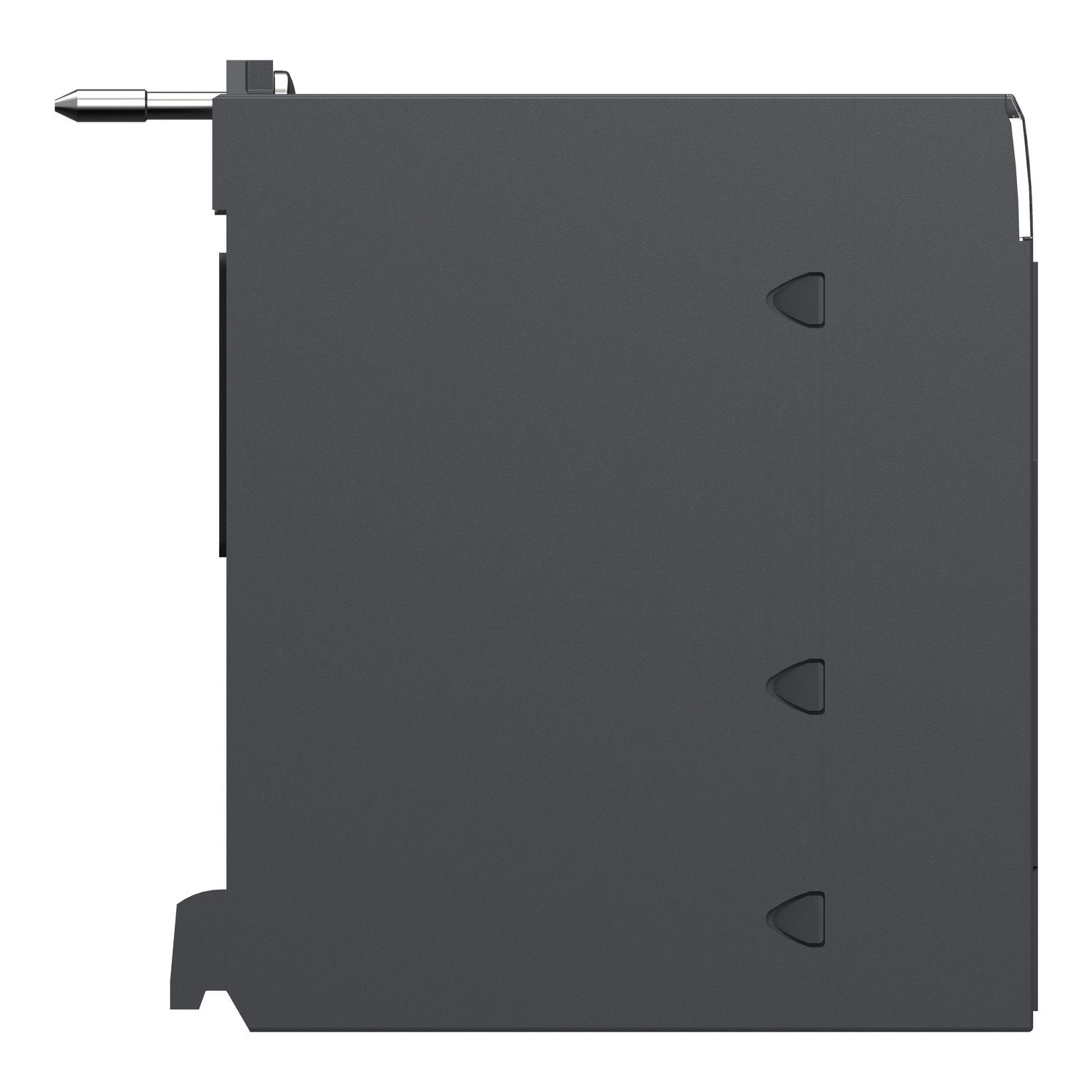

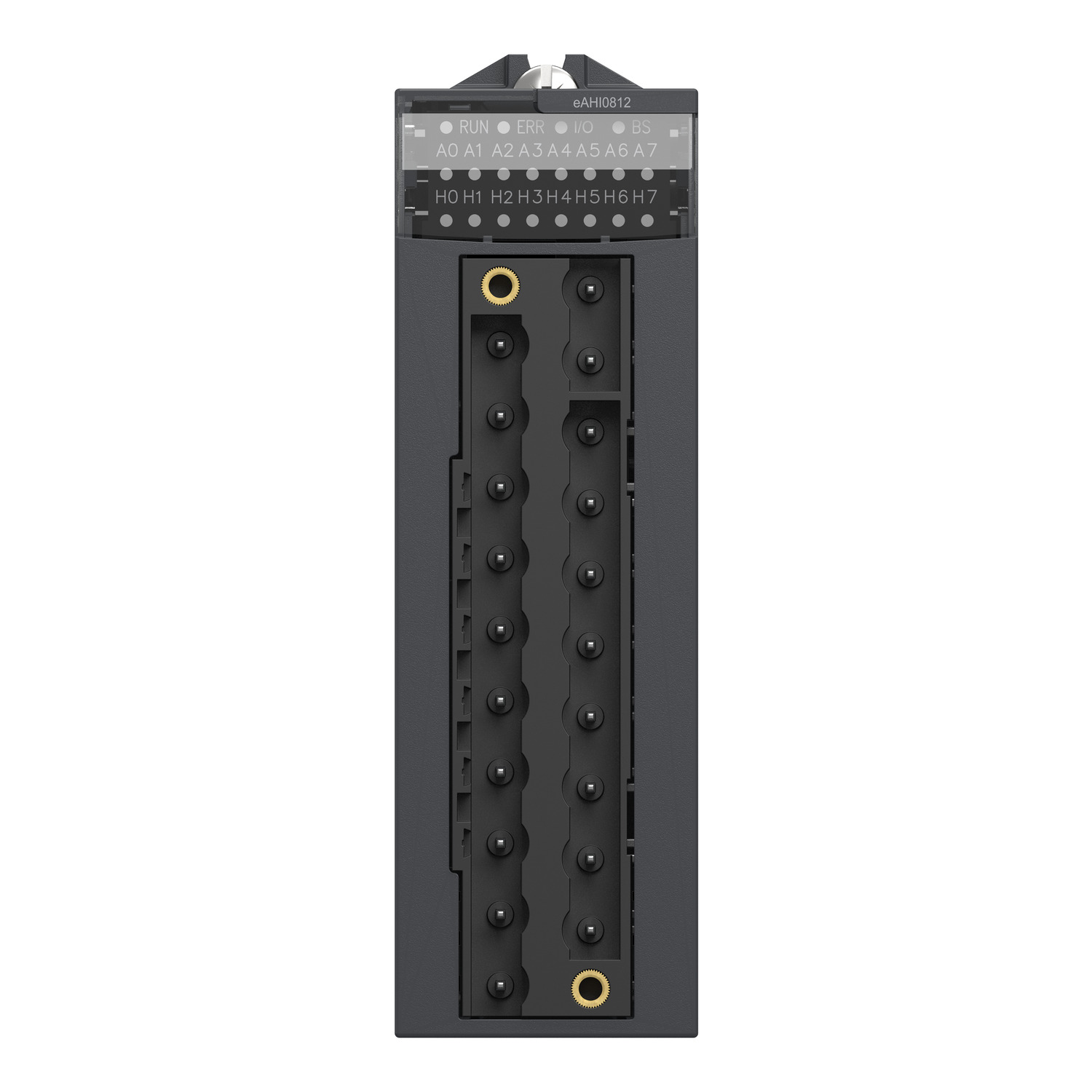

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a current of 4mA to 20mA input type with I/O mapping function. This product is robust, high quality and based on the latest innovative technology. It is furnished with Telefast and 20-way terminal block for electrical connection. It weighs 0.233kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with BMEP58xxx processor, BMXFTB20xxx terminal block, ABE7CPA31, BMEXBPxxx backplane, ABE7CPA02, ABE7CPA03, BMECRA31210 head module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | analog input module |
| Range of product | Modicon X80 |
| Complementary | |
| Checks | broken wire detection |
| Analogue input type | current 4...20 mA |

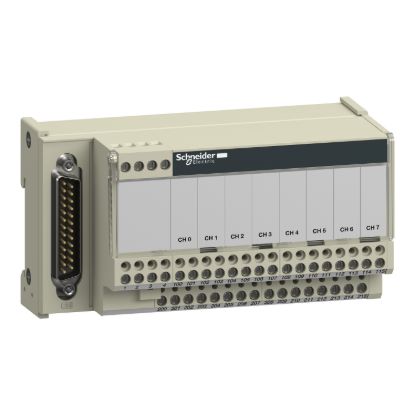

| Product compatibility | head module BMECRA31210, ABE7CPA03, ABE7CPA02, BMEXBP... backplane, ABE7CPA31, BMXFTB20... terminal block, BMEP58... processor |
| Application specific I/O | HART |
| Function available | I/O mapping |
| Isolation voltage | 1400 V DC for 60 s between channels and bus, 1400 V DC for 60 s between channels and ground, 1000 V DC for 60 s between channels |
| Analogue input number | 8 |
| Input output isolation | isolated |
| Topology | point-to-point |
| Electrical connection | Telefast, 20 ways terminal block |
| Input impedance | 250 Ohm internally protective resistor (3.6 to 50 Ohm) |
| Net weight | 0.233 kg |
| Analogue input resolution | 15 bits + sign |
| Temperature drift | 50 ppm/°C |
| Measurement error | <= 0.3 % of full scale 0...60 °C, 0.15 % of full scale 25 °C |
| Environment | |
| IP degree of protection | IP20 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | UL, Merchant Navy, EAC, CSA, RCM, CE |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Ambient air temperature for operation | 0-60 °C |
