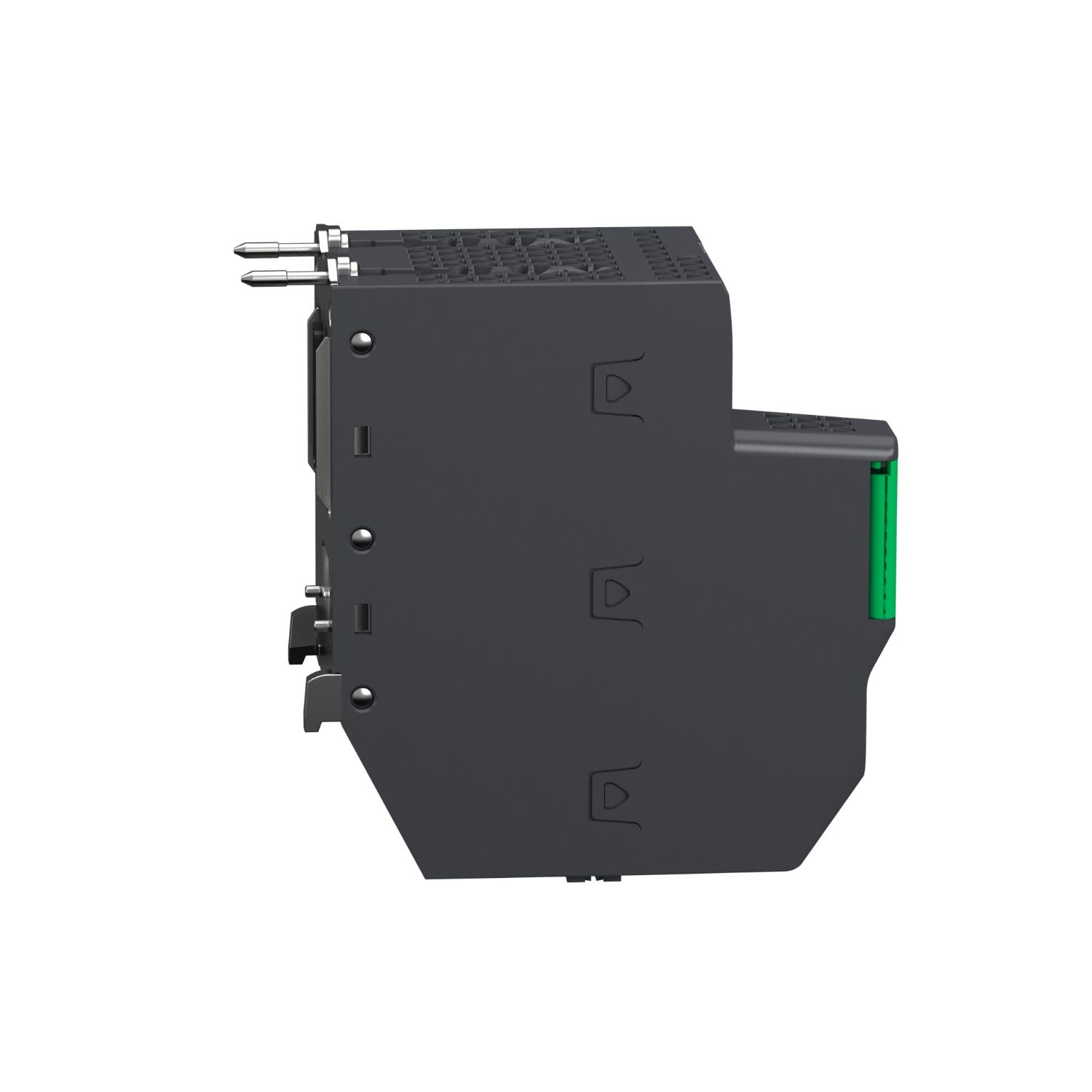

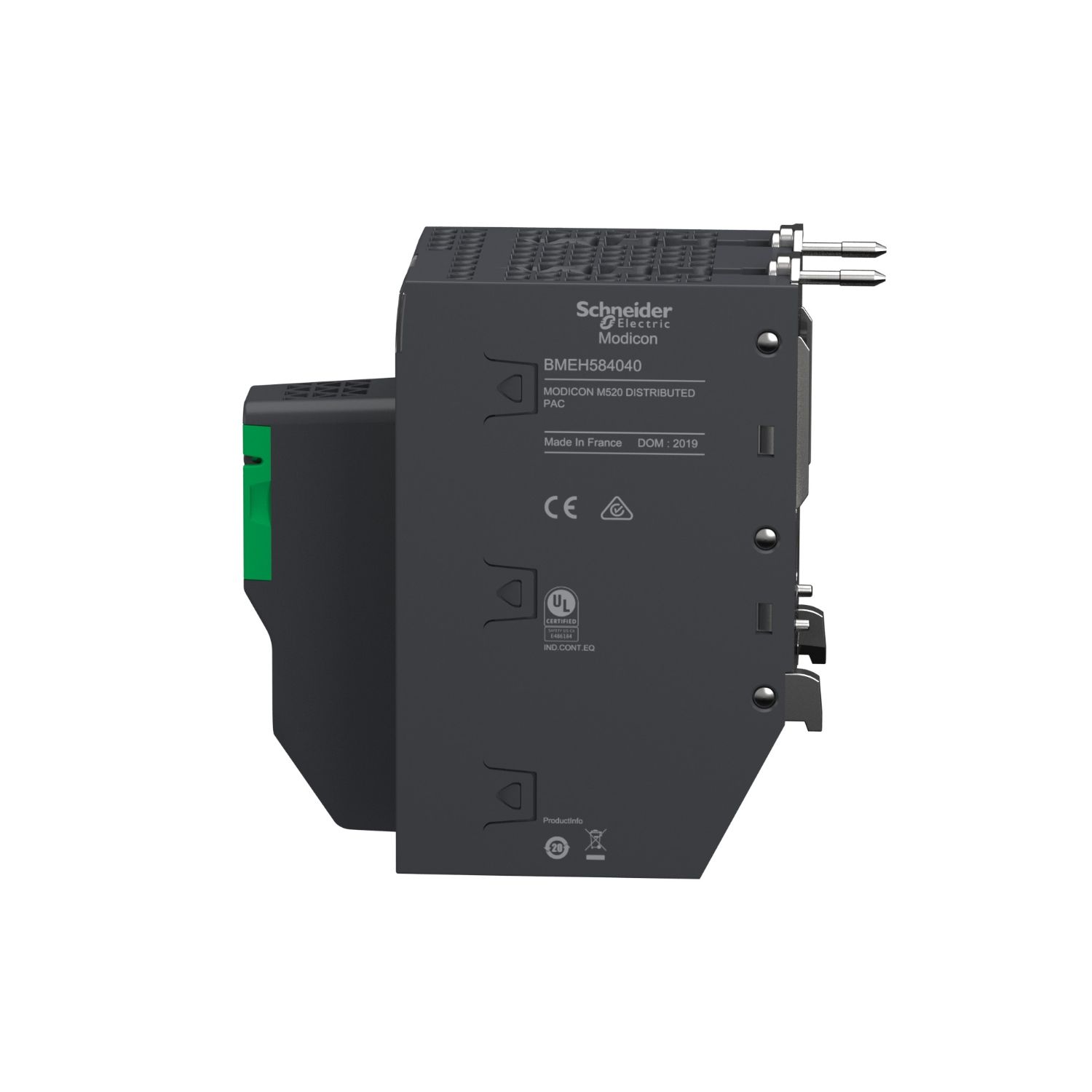

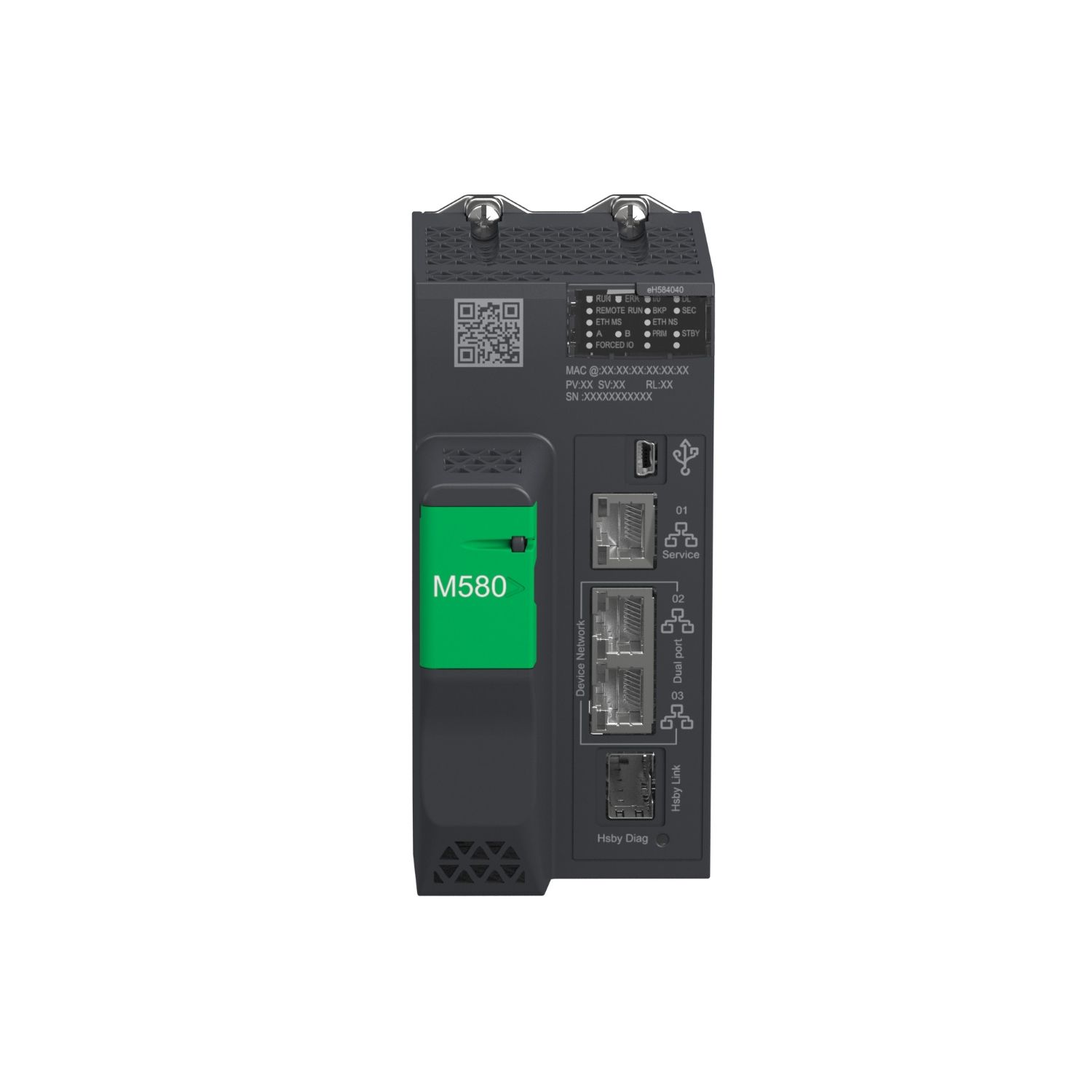

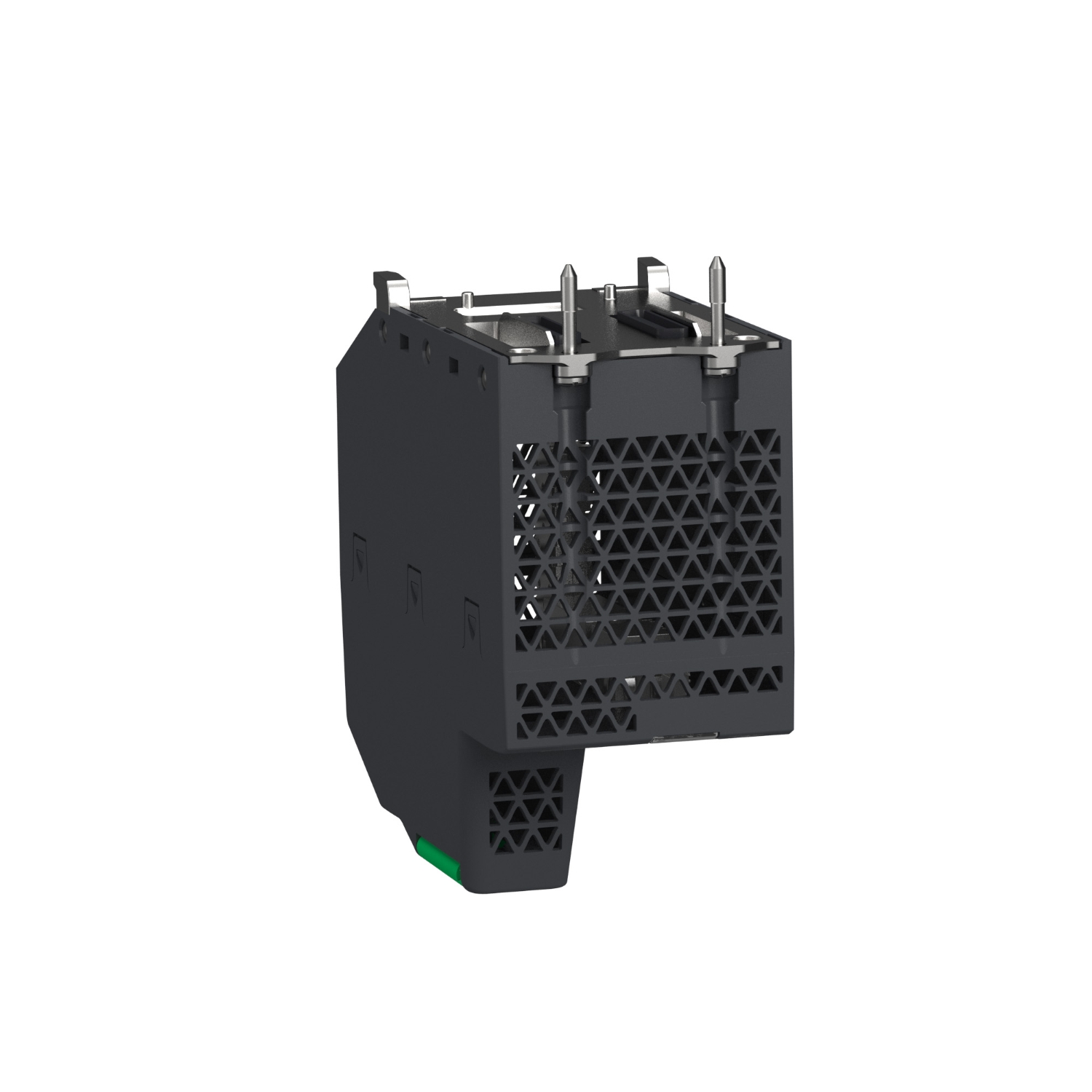

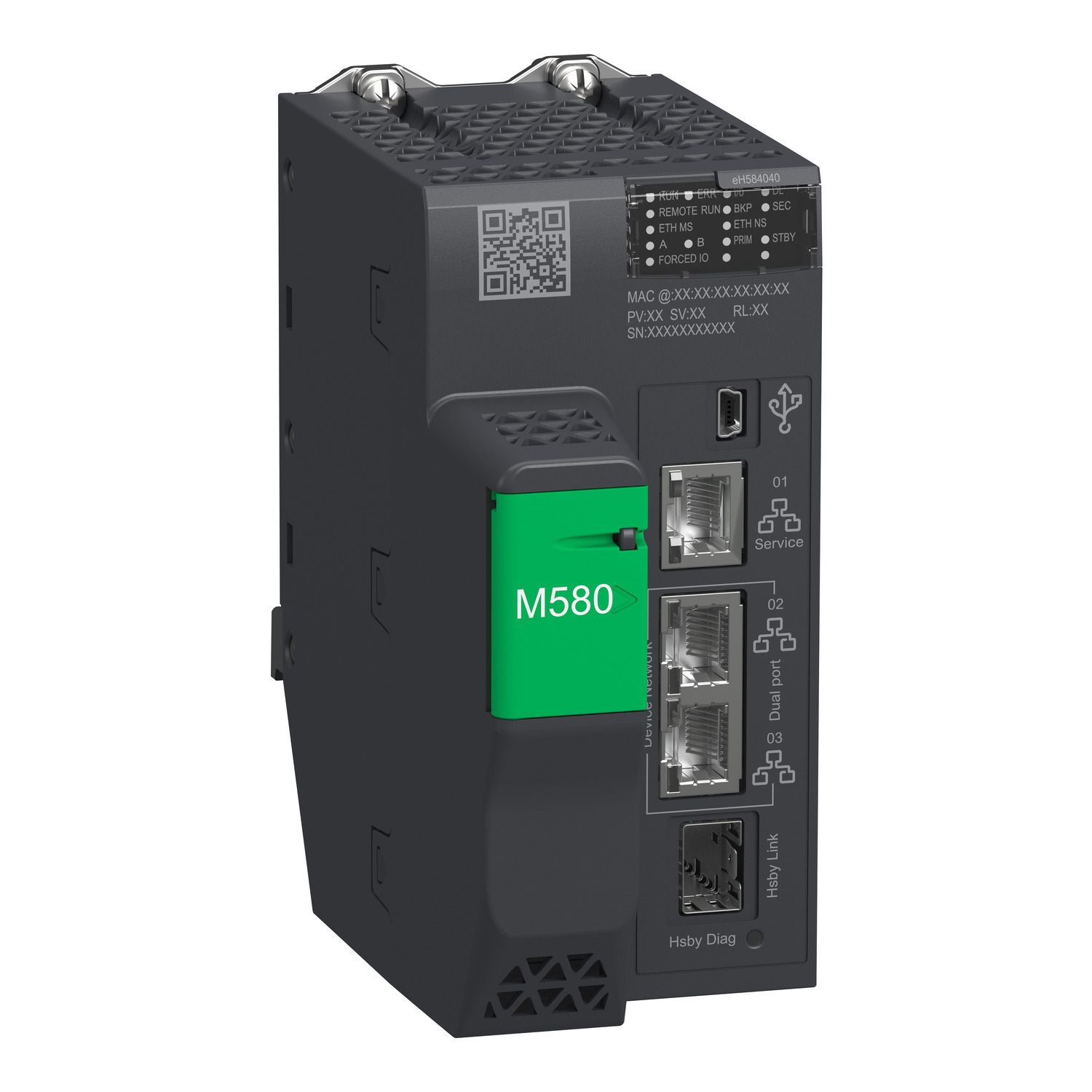

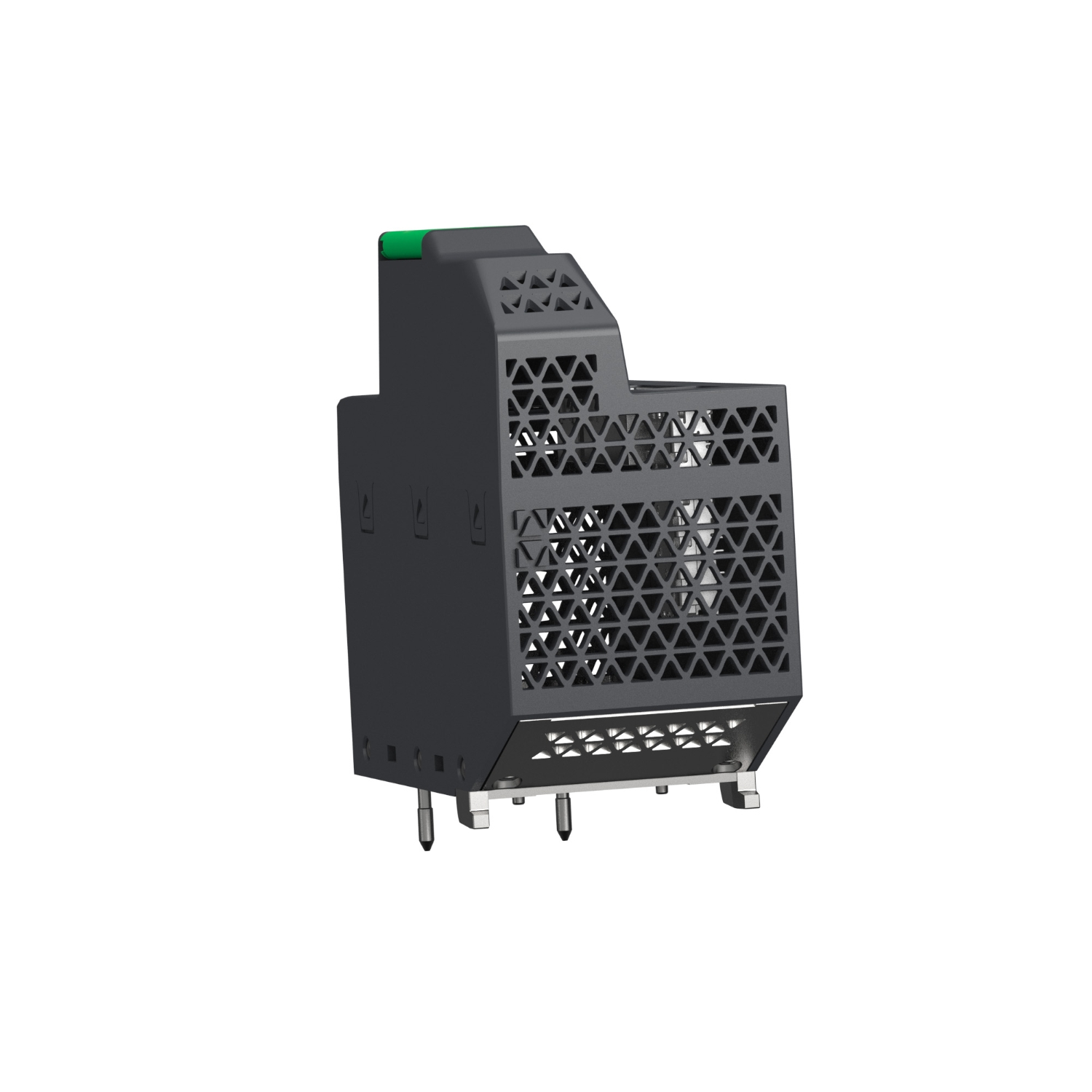

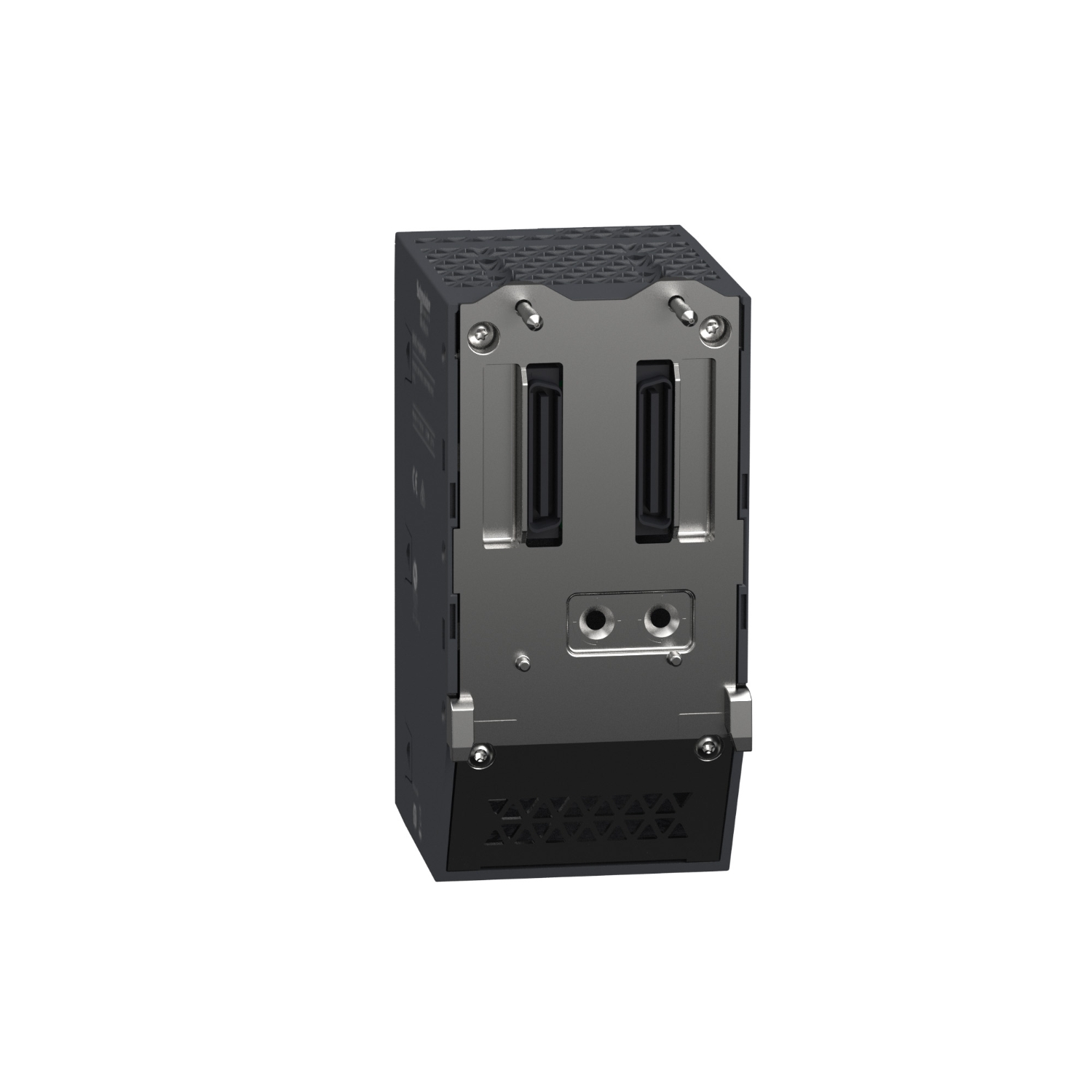

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 295mA at 24V DC. It supports 16384 discrete, 4096 analogue local I/O channels and 128 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 16MB for program, 2048kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M580 |
| Product or component type | redundant processor module |
| Complementary | |
| Memory description | integrated RAM, 2048 kB for data, integrated RAM, 16 MB for program, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage |
| Control channels | programmable loops |
| Number of instructions per ms | 40 Kinst/ms 100 % Boolean, 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| Application specific I/O | counter, accurate time stamping, motion control, serial link, SSI encoder, HART |
| Number of remote I/O station | 16 - 2 rack(s) per X80 and Quantum drops |
| Application structure | 1 periodic fast task, 1 cyclic/periodic master task |
| Marking | CE |
| Number of racks | 1 |
| Communication service | DIO scanner, RIO scanner |
| Number of distributed equipment | 64 |
| MTBF reliability | 650000 H |
| Checks | process control |
| Cybersecurity | security log, secure communiction (HTTPS), port hardening, password protection, firmware signature, embedded firewall, audit trail, transport layer security, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified |
| Integrated connection type | 1 Ethernet for HSBY port, USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port |
| Current consumption | 360 mA at 24 V DC |
| Communication module processor capacity | 4 Ethernet communication module, 8 AS-Interface module |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Status LED | 1 LED (green) Hot standby link status (Hsby Diag), 1 LED (green) I/O values overrided by user (FORCED IO), 1 LED (green) processor acting as Standby (STBY), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor ID set to B (B), 1 LED (green) processor ID set to A (A), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN) |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Net weight | 0.849 kg |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Supply | internal power supply via rack |
