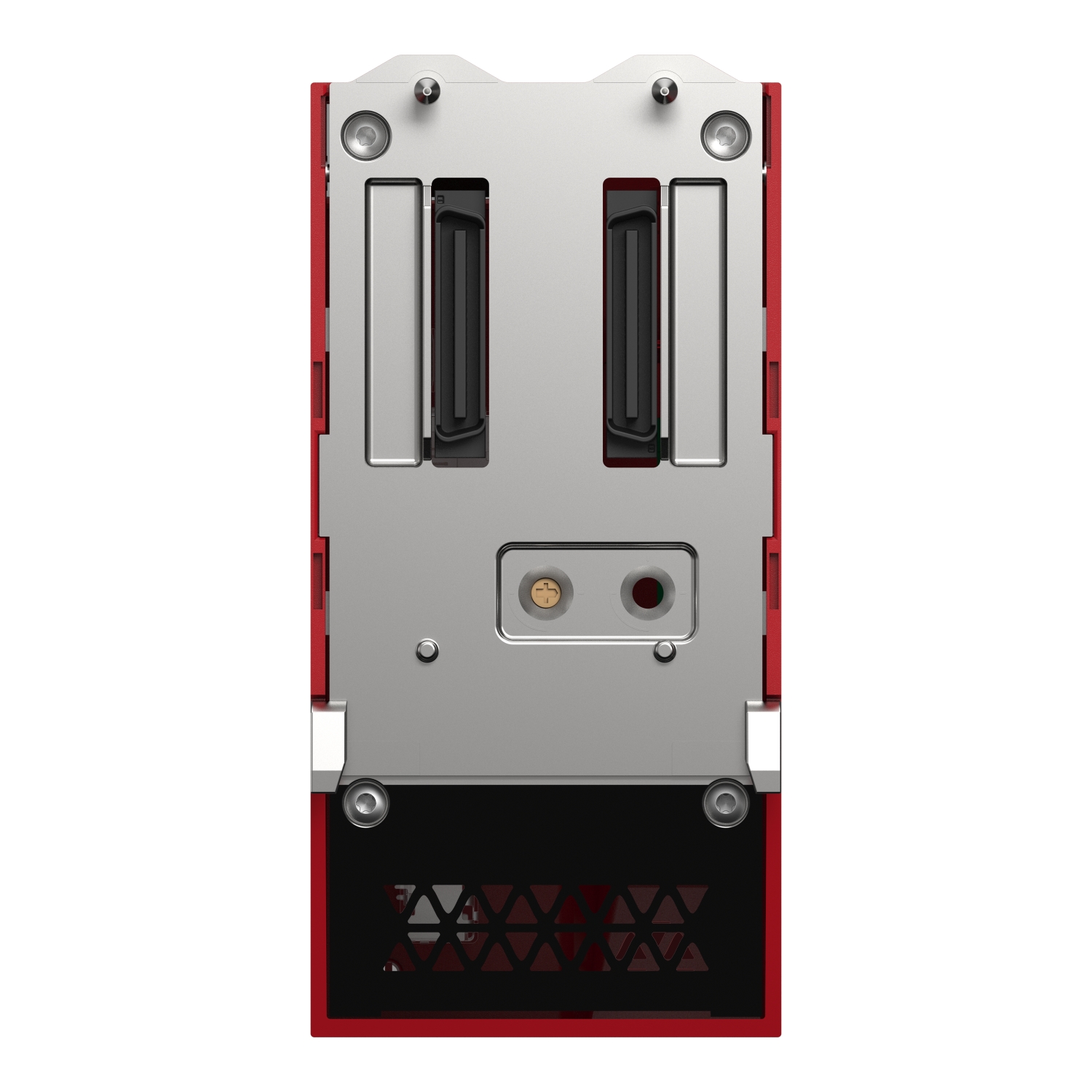

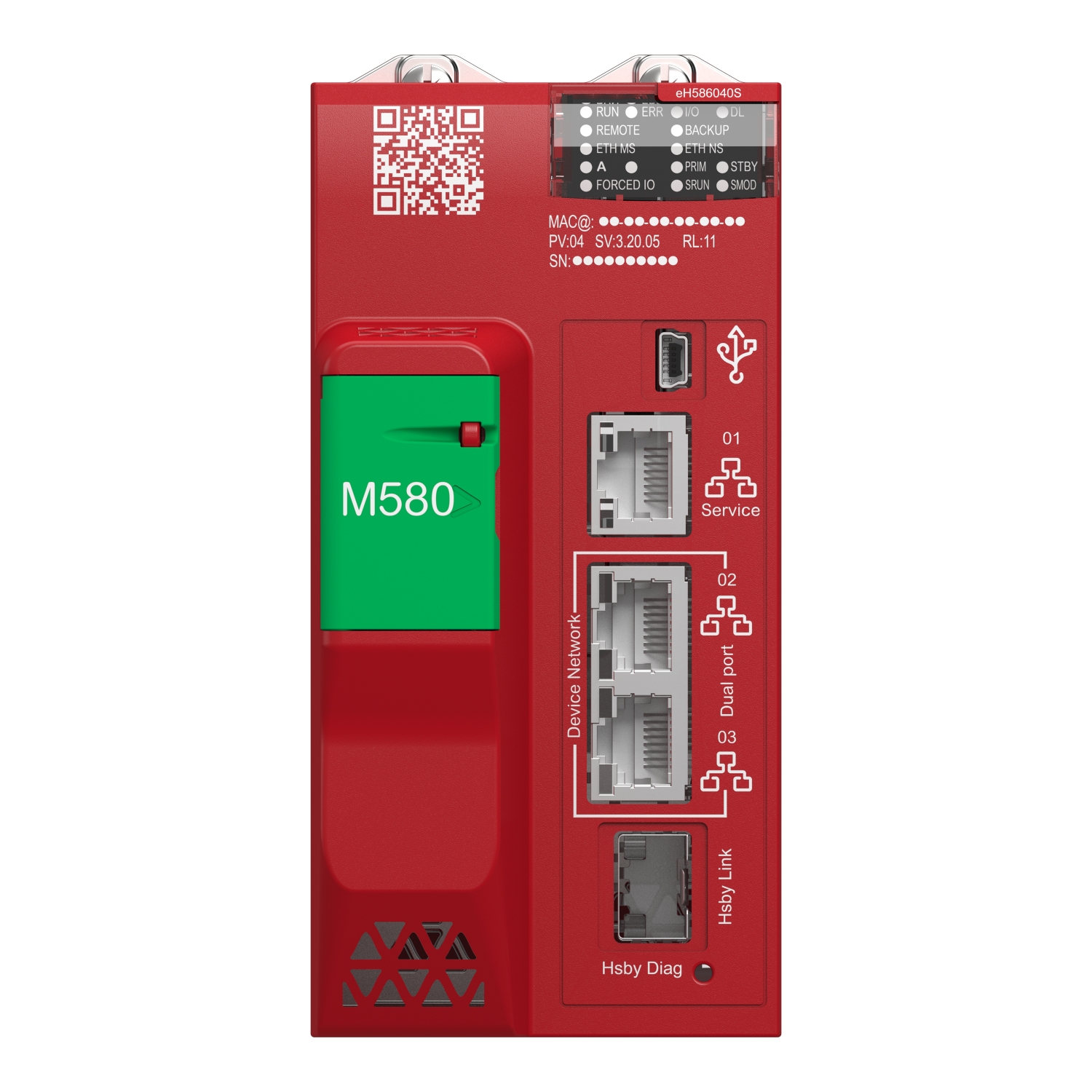

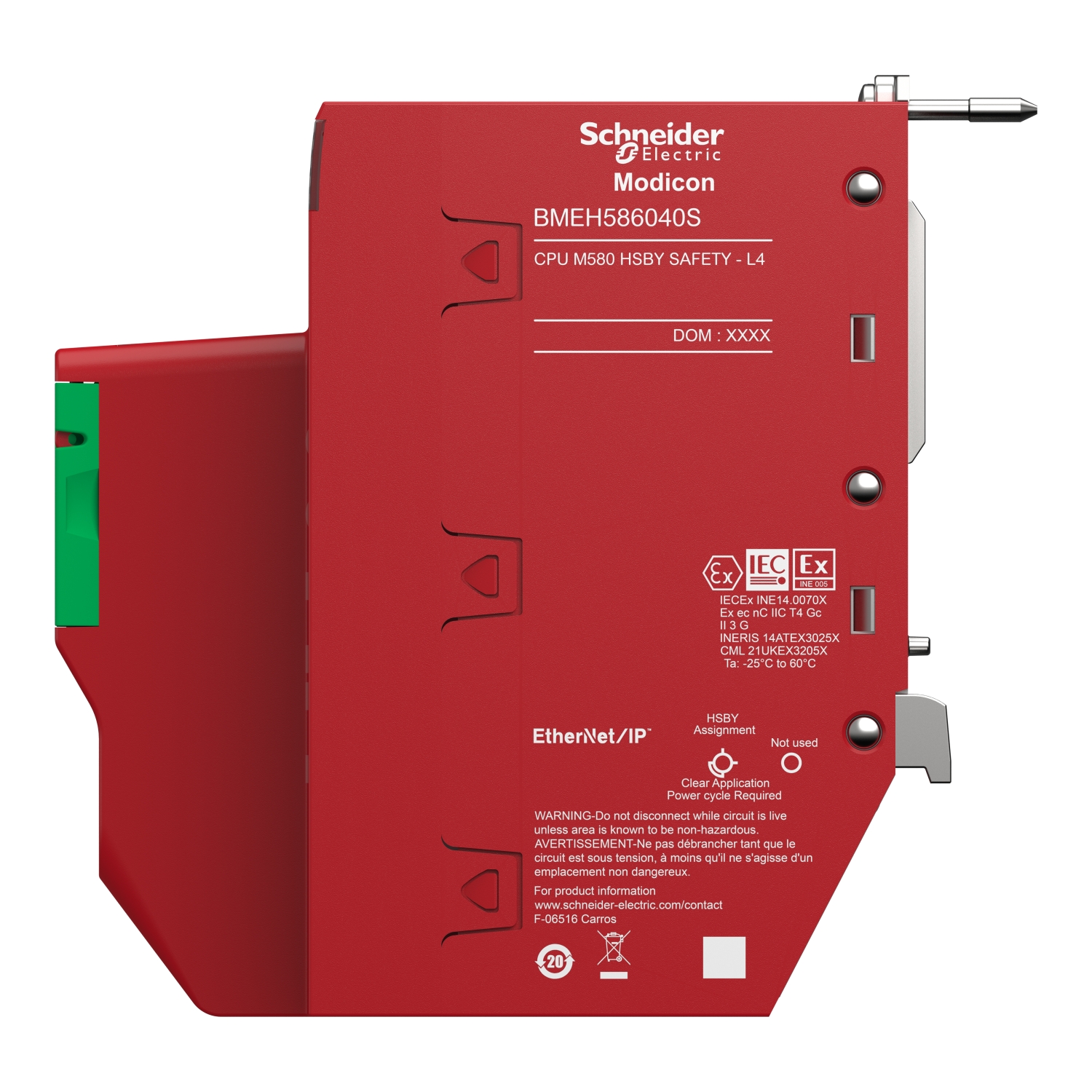

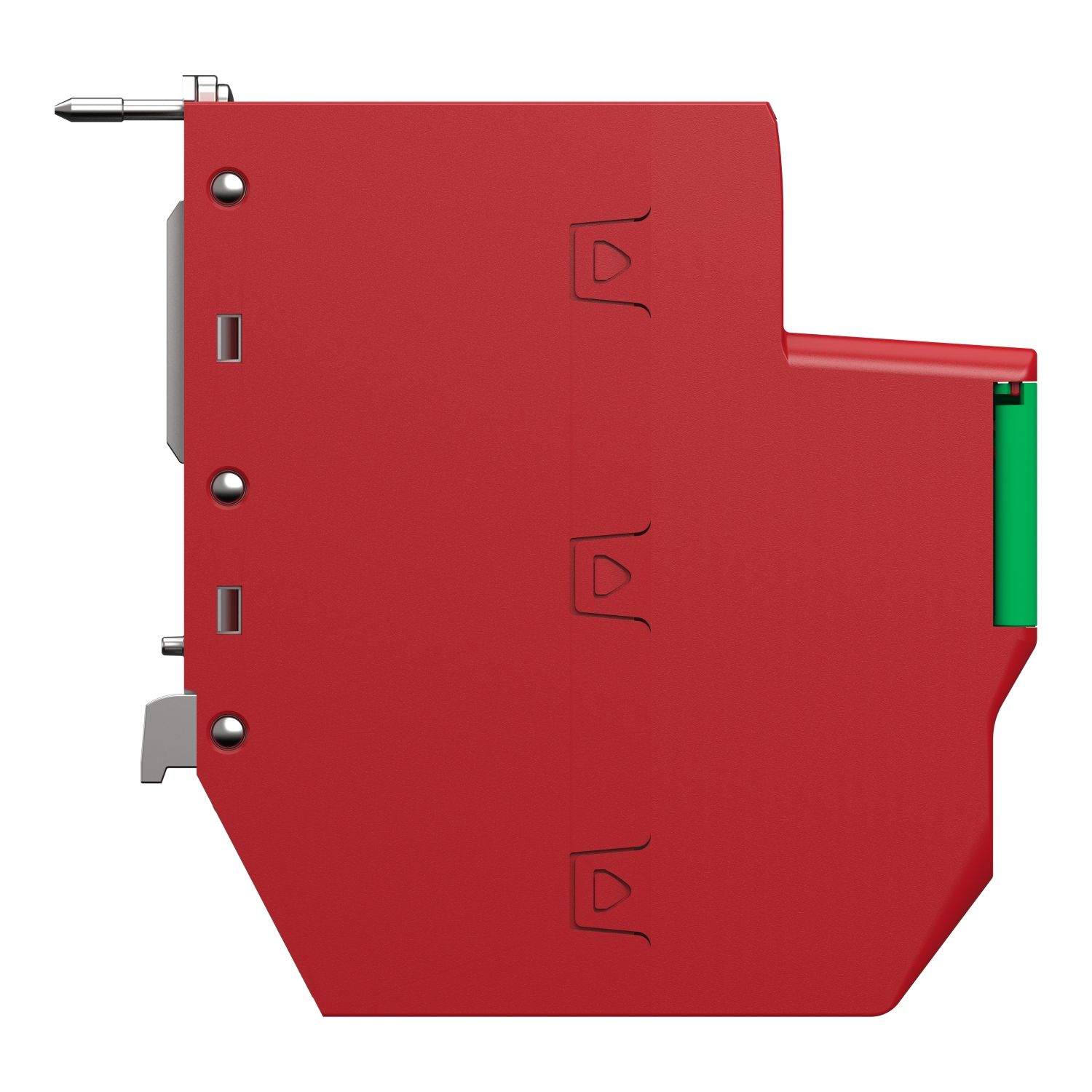

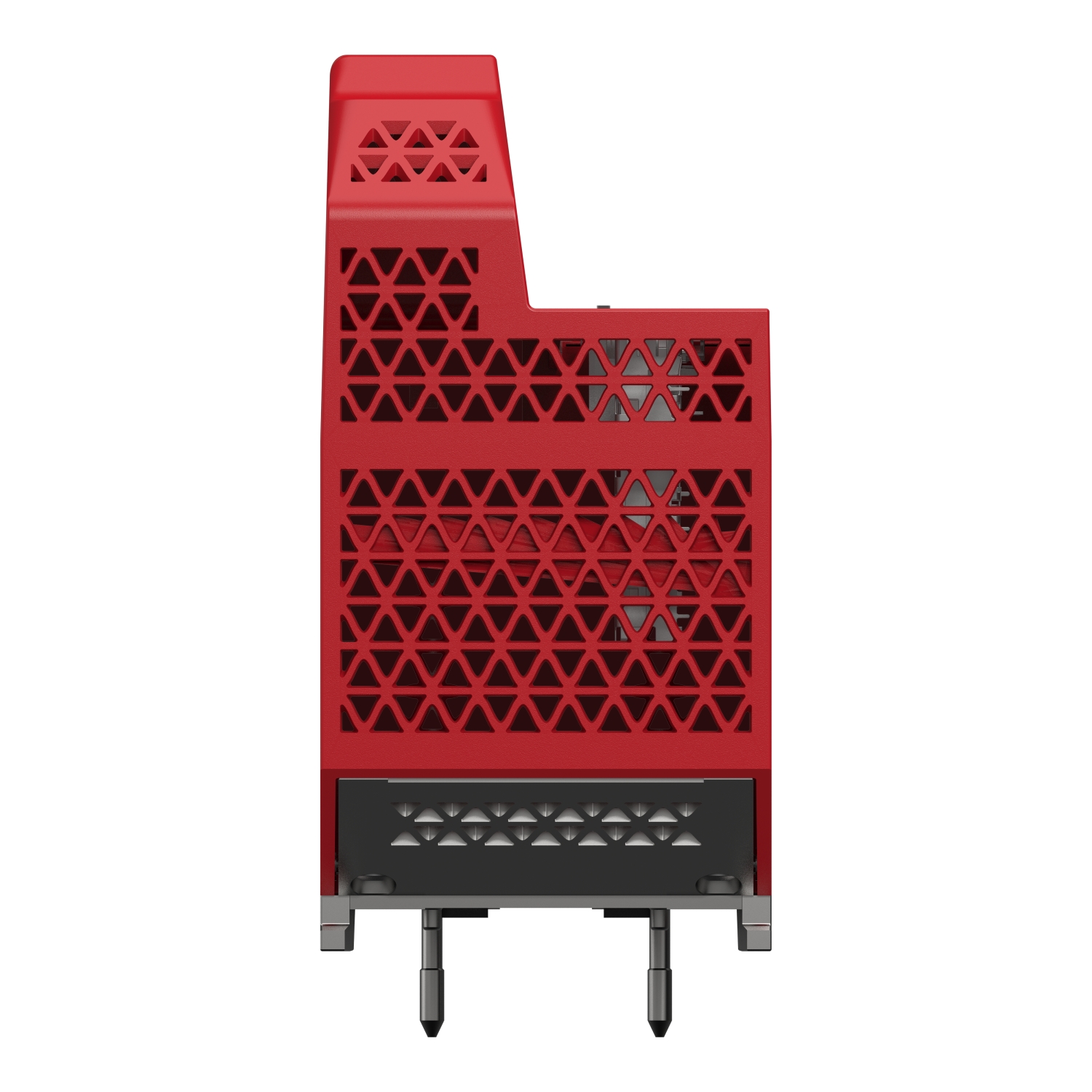

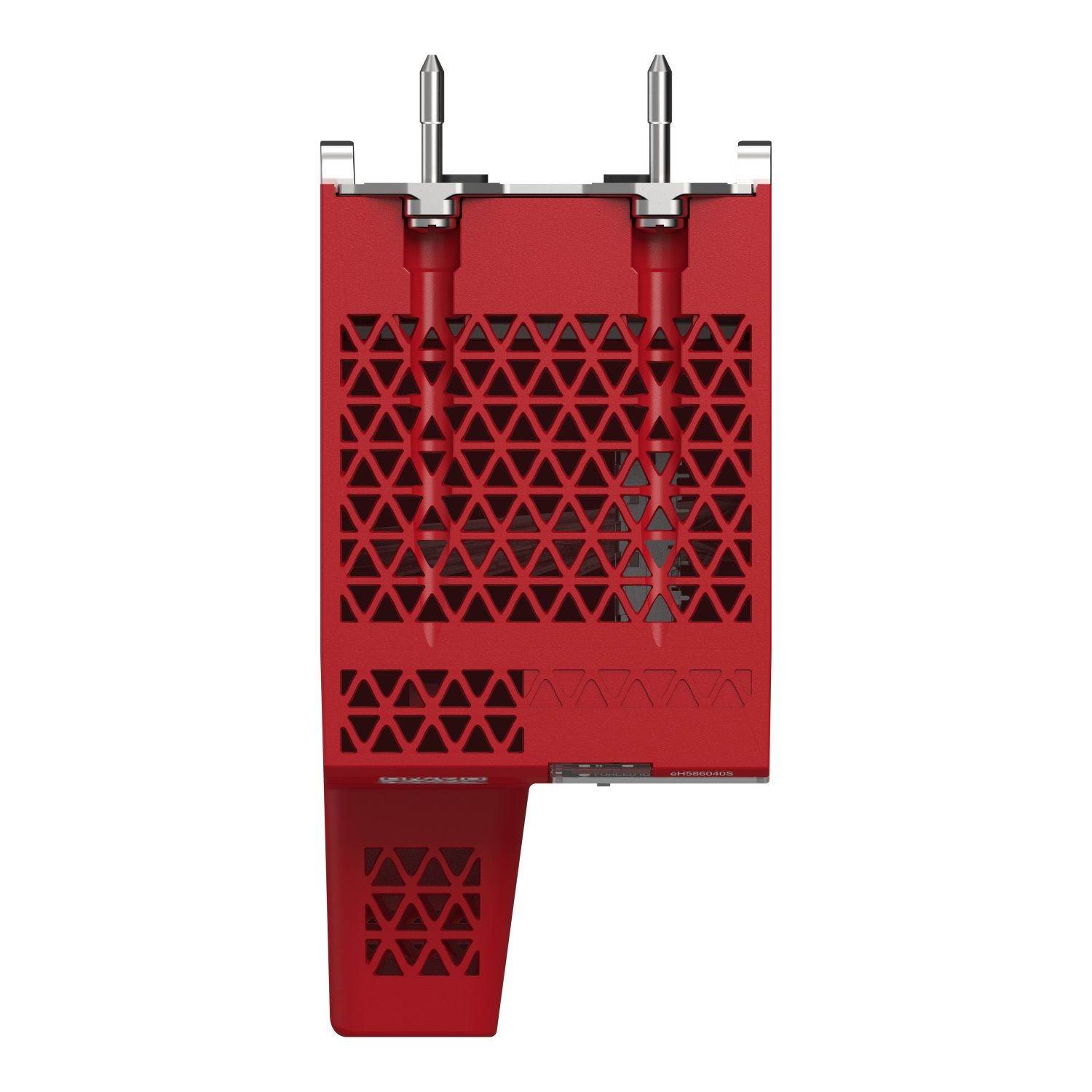

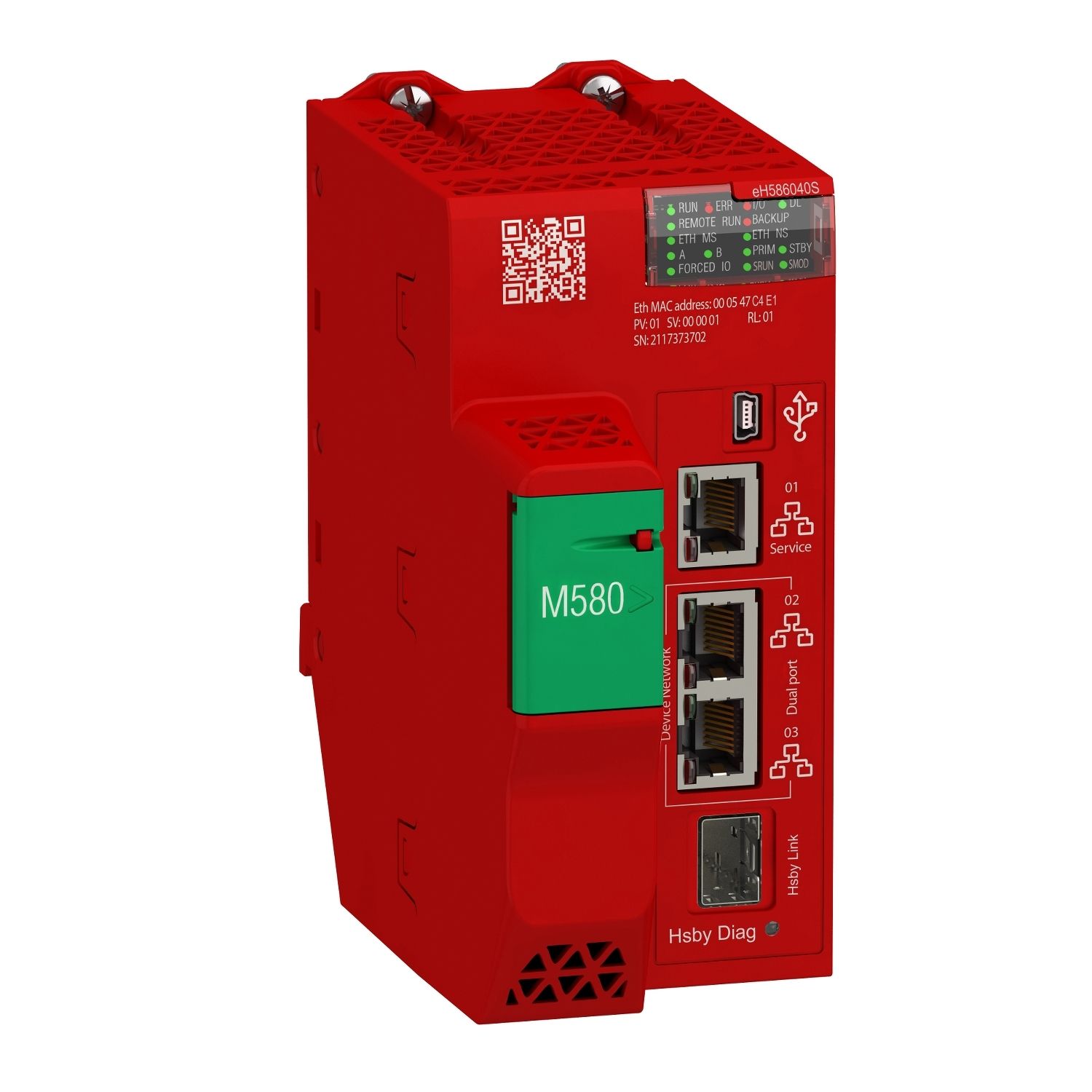

This redundant Safety processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This product offers a maximum of 31 remote rack configuration with up to 31744 discrete I/O channels and 7936 analog I/O channels. This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F. This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console. It has an integrated RAM of 64MB for program, 10kb for system memory, expandable flash of 4GB for data storage and 16MB for program Safety and 1024kb for data Safety. This product is IP20 rated and offers 633244 hours of MTBF. The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This processor is compatible with Modicon X80 and Quantum Modules and with RJ45 (490NAC0100) and FO singlemode (490NAC0201) connectors. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M580 |
| Impregnation material | conformal coated |
| Product or component type | redundant processor module |
| Complementary | |
| Memory description | integrated RAM, 1024 kB for data safety, integrated RAM, 16 MB for program safety, integrated RAM, 64 MB for program and data, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage |
| Control channels | programmable loops |
| Number of instructions per ms | 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 60 Kinst/ms 100 % Boolean |
| Application specific I/O | HART, serial link, accurate time stamping, SSI encoder, motion control, counter |
| Number of remote I/O station | 31 - 2 rack(s) per X80 and Quantum drops |
| Application structure | 1 periodic safe task, 1 periodic fast task, 1 master task |
| Marking | CE |
| Number of racks | 1 |
| Communication service | RIO scanner, DIO scanner |
| Number of distributed equipment | 61 |
| MTBF reliability | 650000 H |
| Checks | safety control, process control |
| Cybersecurity | security log, port hardening, password protection, firmware signature, embedded firewall, audit trail, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified |
| Integrated connection type | 1 Ethernet for HSBY port, USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port |
| Current consumption | 360 mA at 24 V DC |
| Communication module processor capacity | 16.0 AS-Interface module, 4.0 Ethernet communication module |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/34/EU - ATEX directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility |
| Product certifications | TÜV, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | IEC 62234-5, IEC 62234-4, IEC 62236-3-2, IEC 60571, EN 45545-2, EN 50121-5, EN 50121-4, EN 50121-3-2, EN 50155, IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2 |
| Status LED | 1 LED (green) Hot standby link status (Hsby Diag), 1 LED (green) processor in maintenance mode (SMOD), 1 LED (green) processor in safety mode (SRUN), 1 LED (red) I/O values overrided by user (FORCED IO), 1 LED (green) processor acting as Standby (STBY), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor ID set to B (B), 1 LED (green) processor ID set to A (A), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN) |
| Ambient air temperature for operation | -25-60 °C |
| Safety level | SIL 4 conforming to EN 50129, SIL 4 conforming to EN 50128, SIL 4 conforming to EN 50126, SILCL 3 conforming to ISO 13849-1 category 4, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61511, SIL 3 conforming to IEC 61508 |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Net weight | 0.849 kg |
| Vibration resistance | 3 gn |
| Environmental characteristic | fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04, hazardous location class I division 2 |
| Shock resistance | 15 gn |
| Supply | internal power supply via rack |
