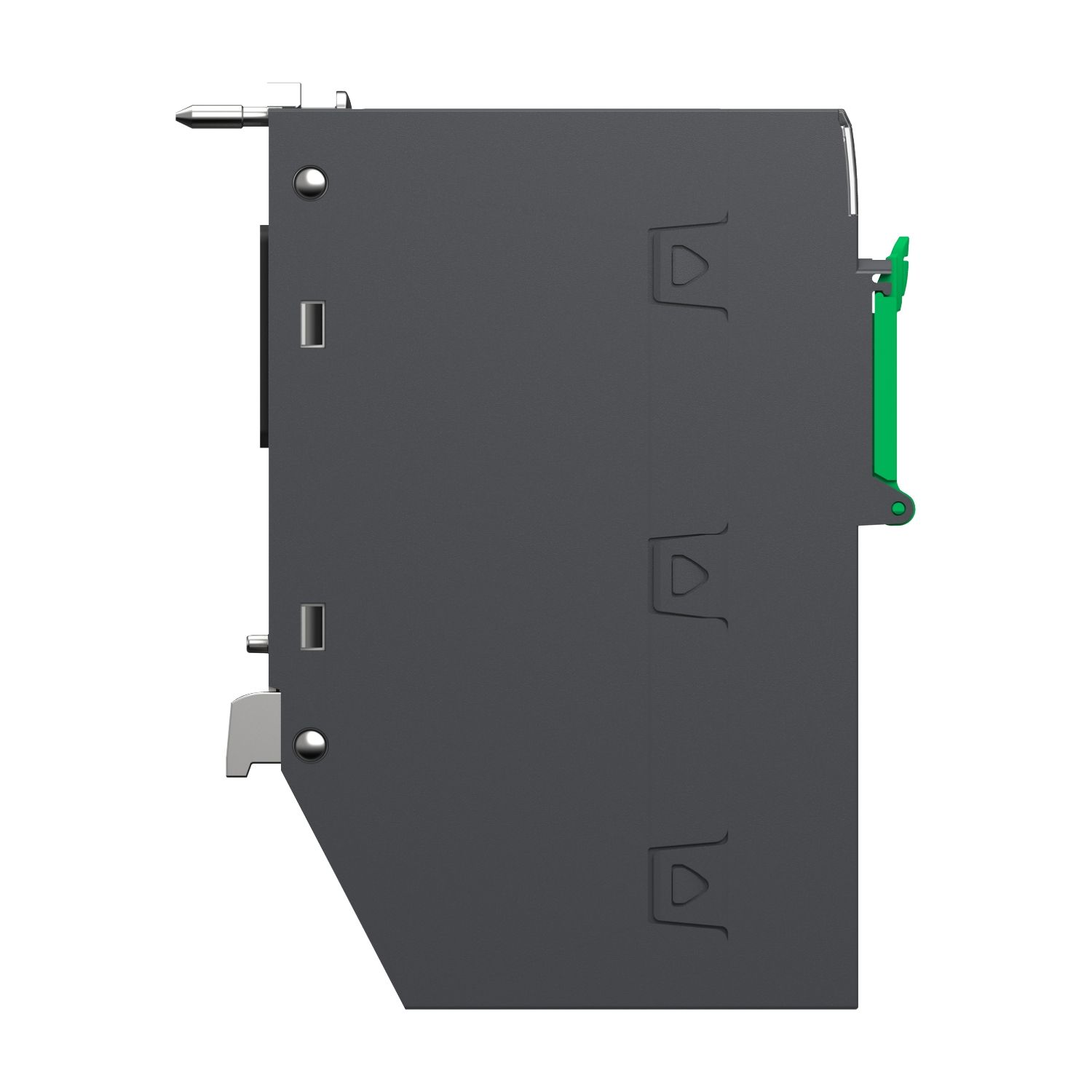

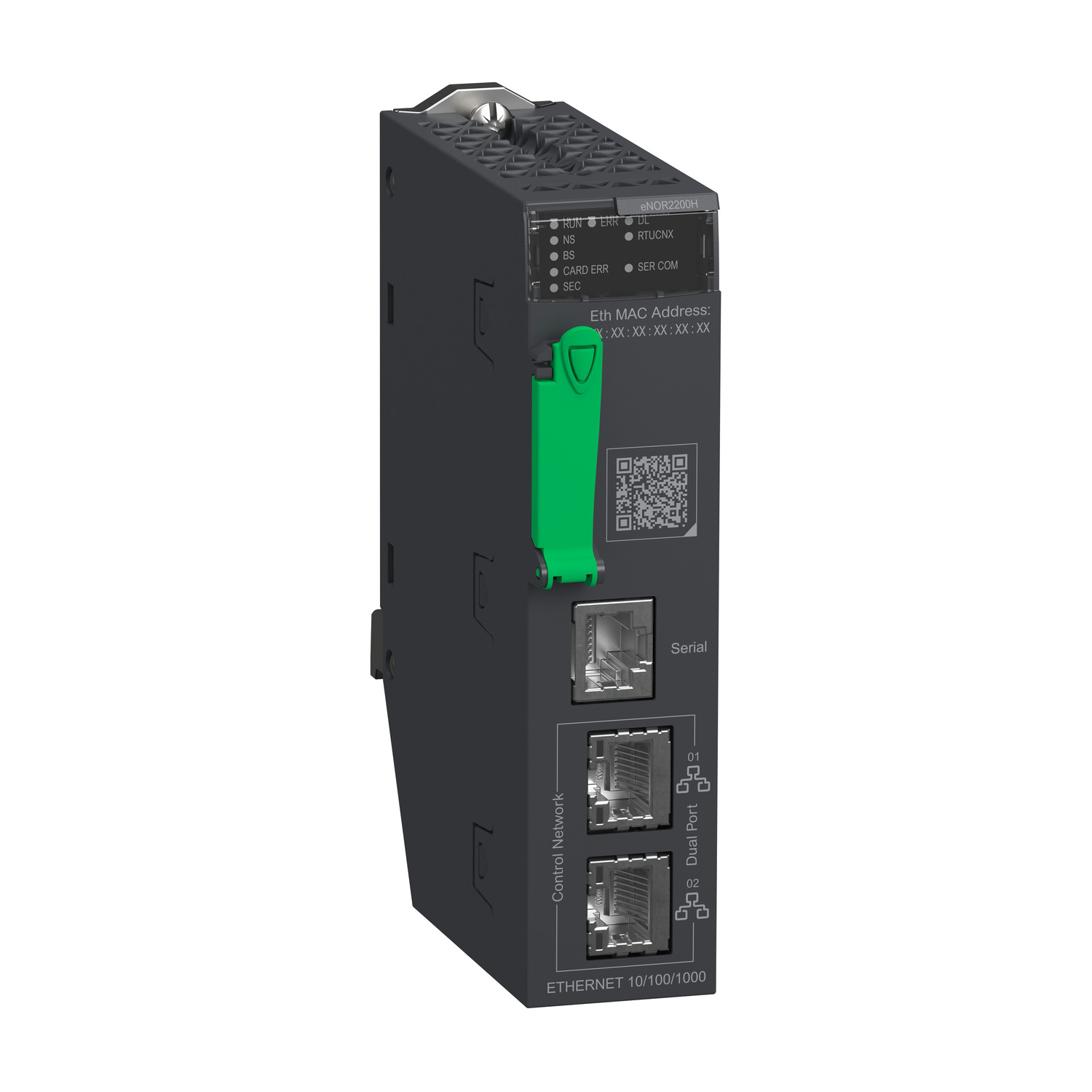

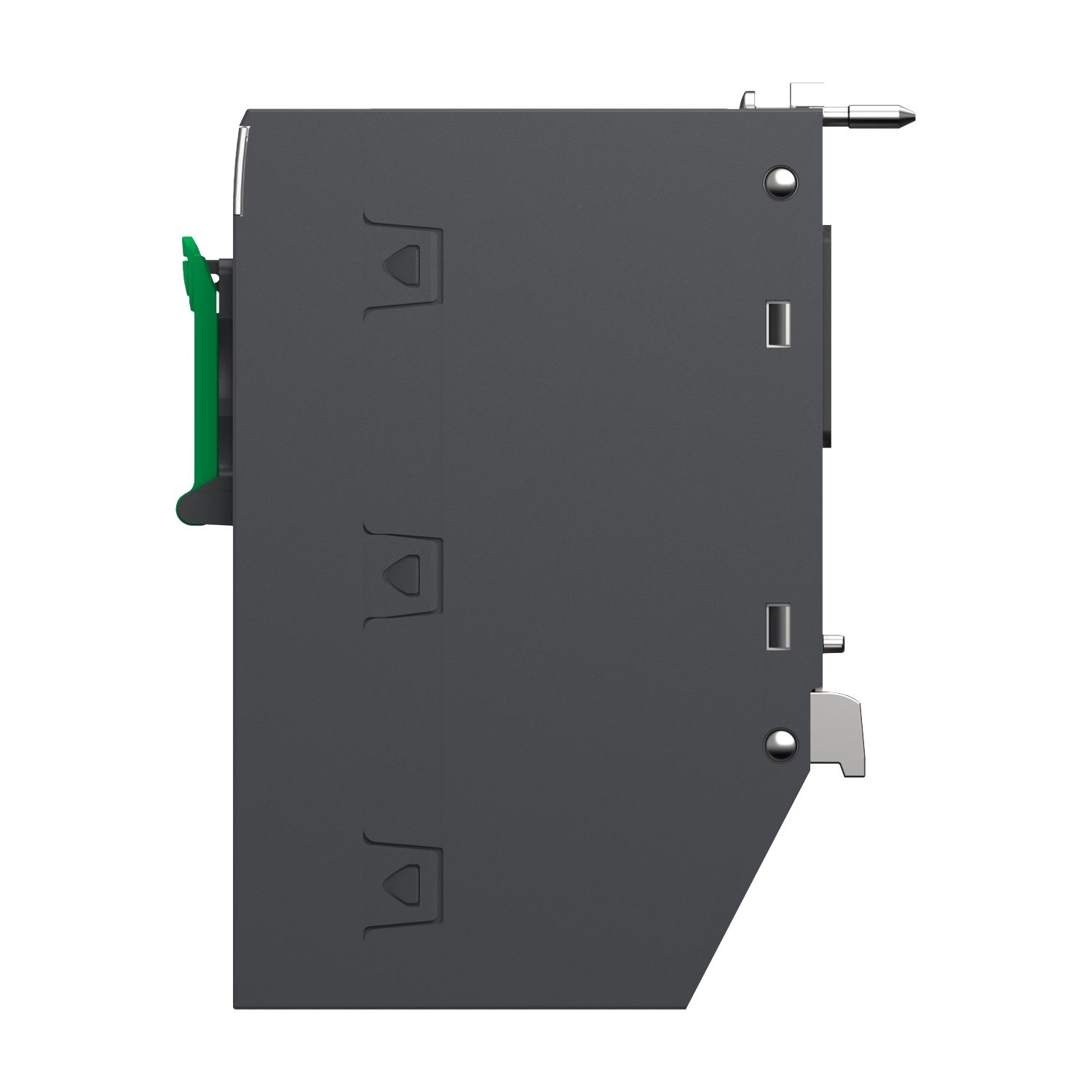

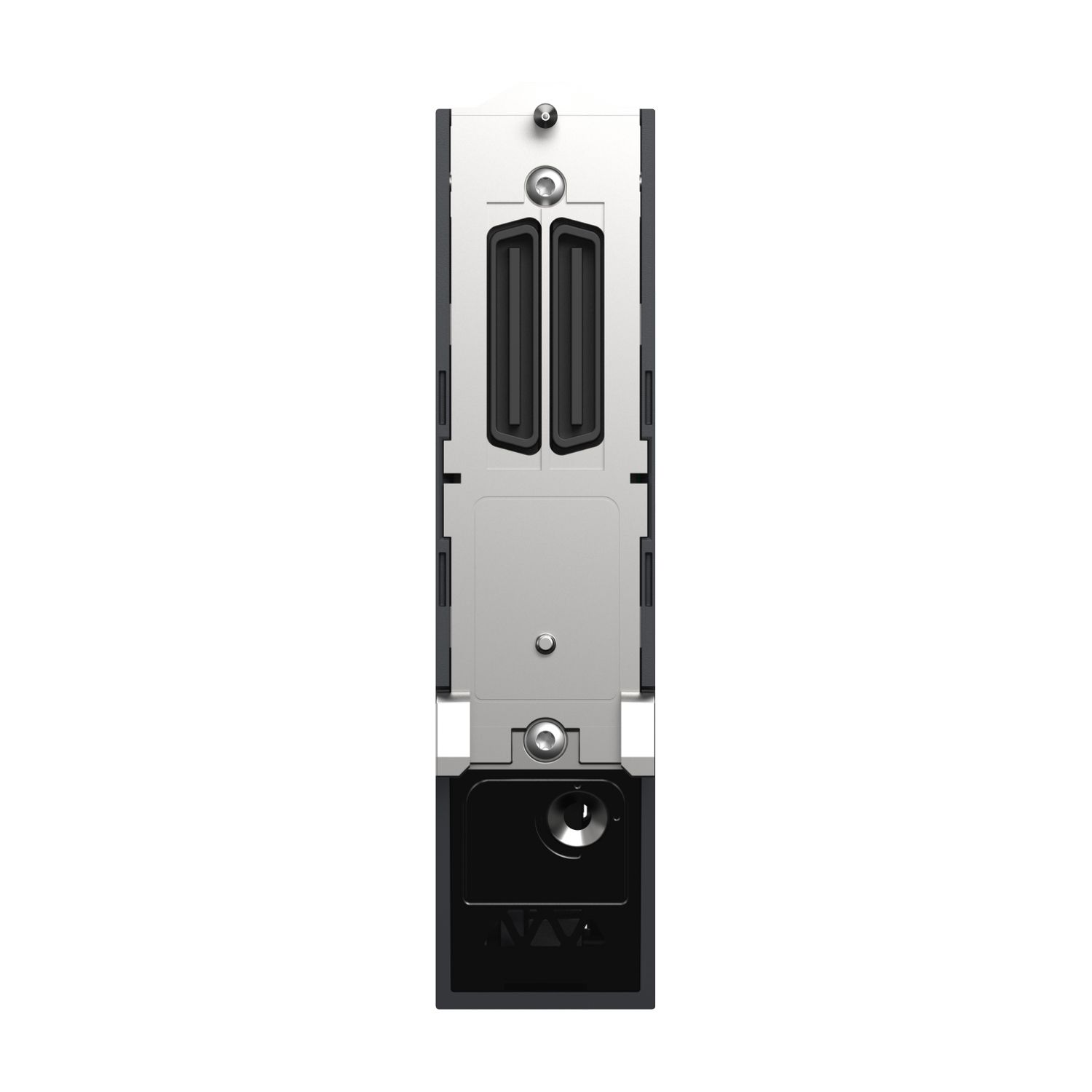

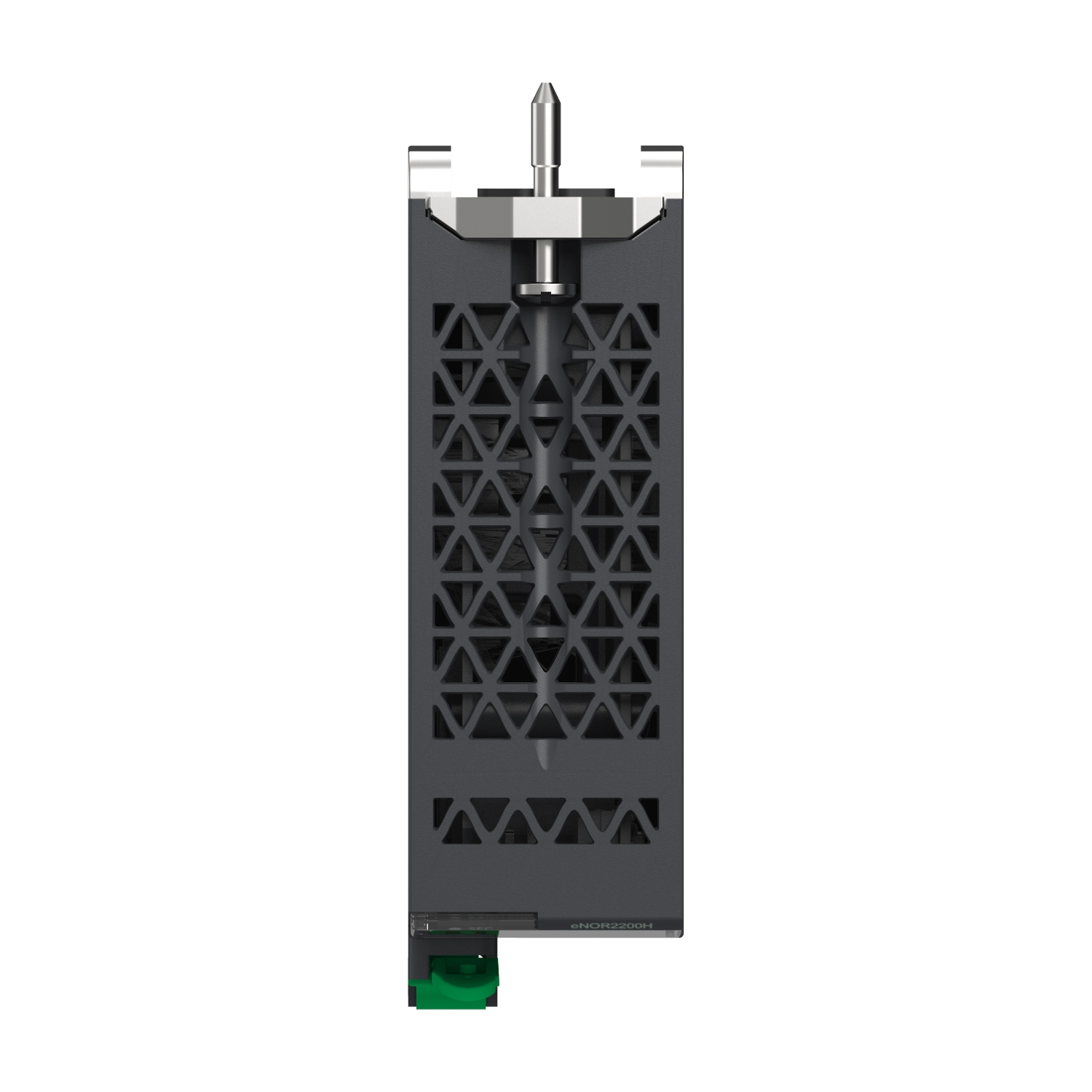

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. It features enhanced cybersecurity. It complies with M580 Hot Standby system. It supports up to 64 devices when module acts as Client/Master. It weighs 0.345kg. It provides enhanced cybersecurity. It complies with DNP3 NET IEC60870-5-104 RTU protocol. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | BMEXBP... - Ethernet + X-bus rack |
| Range of product | Modicon M580 |
| Product or component type | communication module |
| Complementary | |
| Memory description | support flash SD memory card (BMXRMS004GPF) 4 GB |
| Protective treatment | conformal coating |
| Height | 131 mm |
| Shock resistance | 30 gn |
| Cybersecurity | certificate based authentication, SNMP logging, transport layer security for RTU protocols, Syslog protocol support, Achilles certified, secure communiction (HTTPS), system hardening, role-based access control |
| Width | 32 mm |
| Integrated connection type | 2 Ethernet, connector type: RJ45, transmission rate: 10/100/1000 Mbit/s, transmission mode: double shielded twisted pair, 1 RS485, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 1 twisted shielded pair, 1 RS232, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 8 wires |
| Communication service | DNP3 NET multiple session, IEC60870-5-104 channel redundancy, data logging service, transparent events routing from remote servers to SCADA, automatic events backup on power loss, time stamped events management, SNMP agent, SNTP client, FDR client, web server (HTTPS), HTML5, Modbus TCP messaging, IEC 60870-5-104 server/client, IEC 60870-5-101 server/client, DNP3 NET client SAv2/SAv5 with pre-shared key, DNP3 NET server SAv2/SAv5 with pre-shared key |
| Net weight | 0.41 kg |
| Current consumption | 137 mA at 24 V DC |
| Length | 86 mm |
| Dielectric strength | 1500 V DC for 1 min, between Serial port and bus/earth |
| Supply | internal power supply via rack |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Product certifications | UKCA, UKCA type 1, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | IEC 60079-0, IEC 61850-3, location G, IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2 |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | 2000 m...5000 m with derating factor, 0...2000 m |

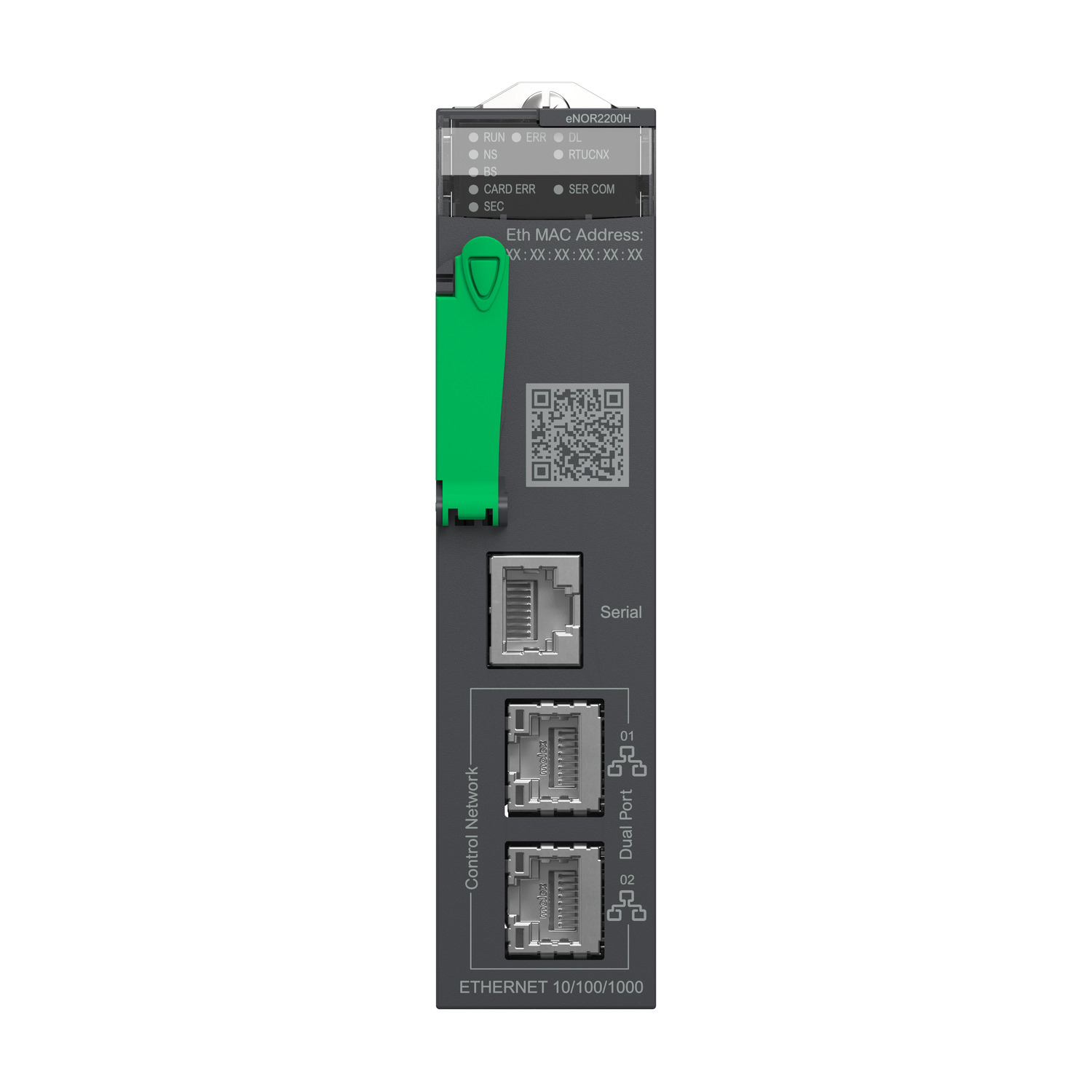

| Local signalling | 1 LED (green/red) for status of backplane ethernet (BS), 1 LED (green) for RTU connection status (RTUCNX), 1 LED (green/red) for status of control ethernet (NS), 1 LED (green) for processor running (RUN), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for download in progress (DL), 1 LED (yellow) for serial communication (SER COM), 1 LED (green/red) for cyber security (SEC) |
| Environmental characteristic | hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04 |
Only registered users can write reviews
Related products

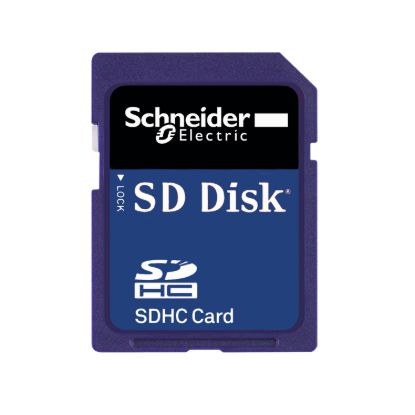

memory card, Modicon M580, SD flash, 4GB, for processor
