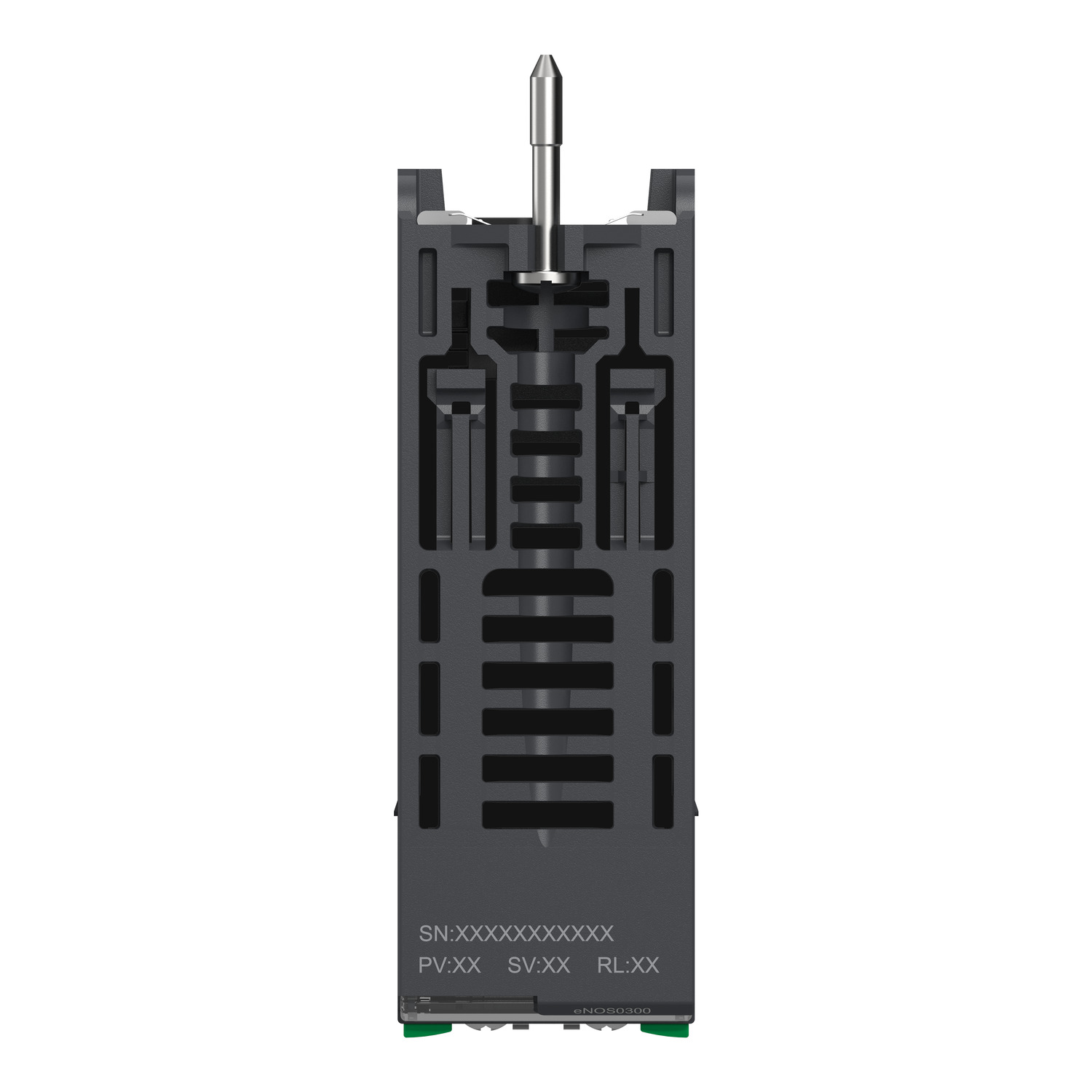

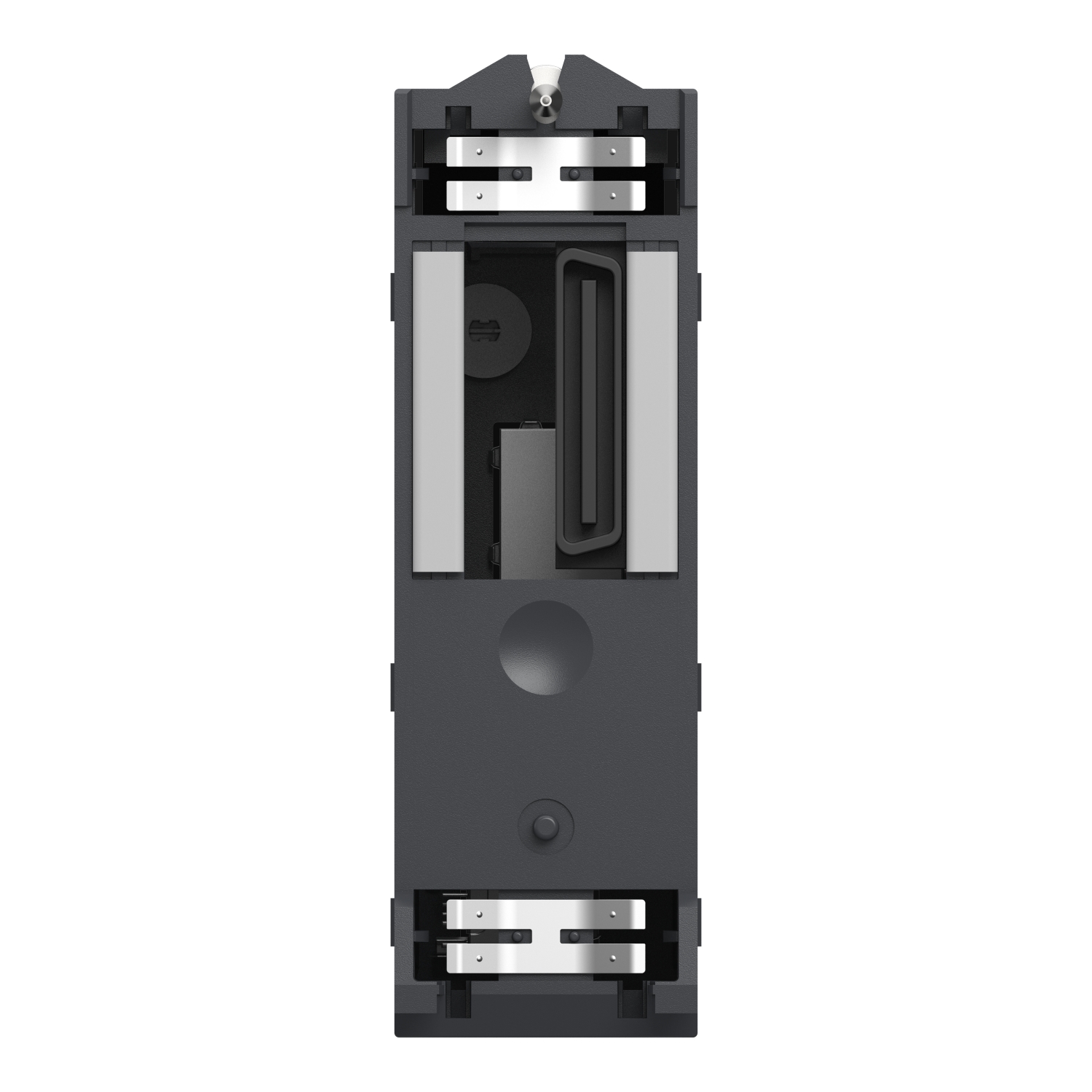

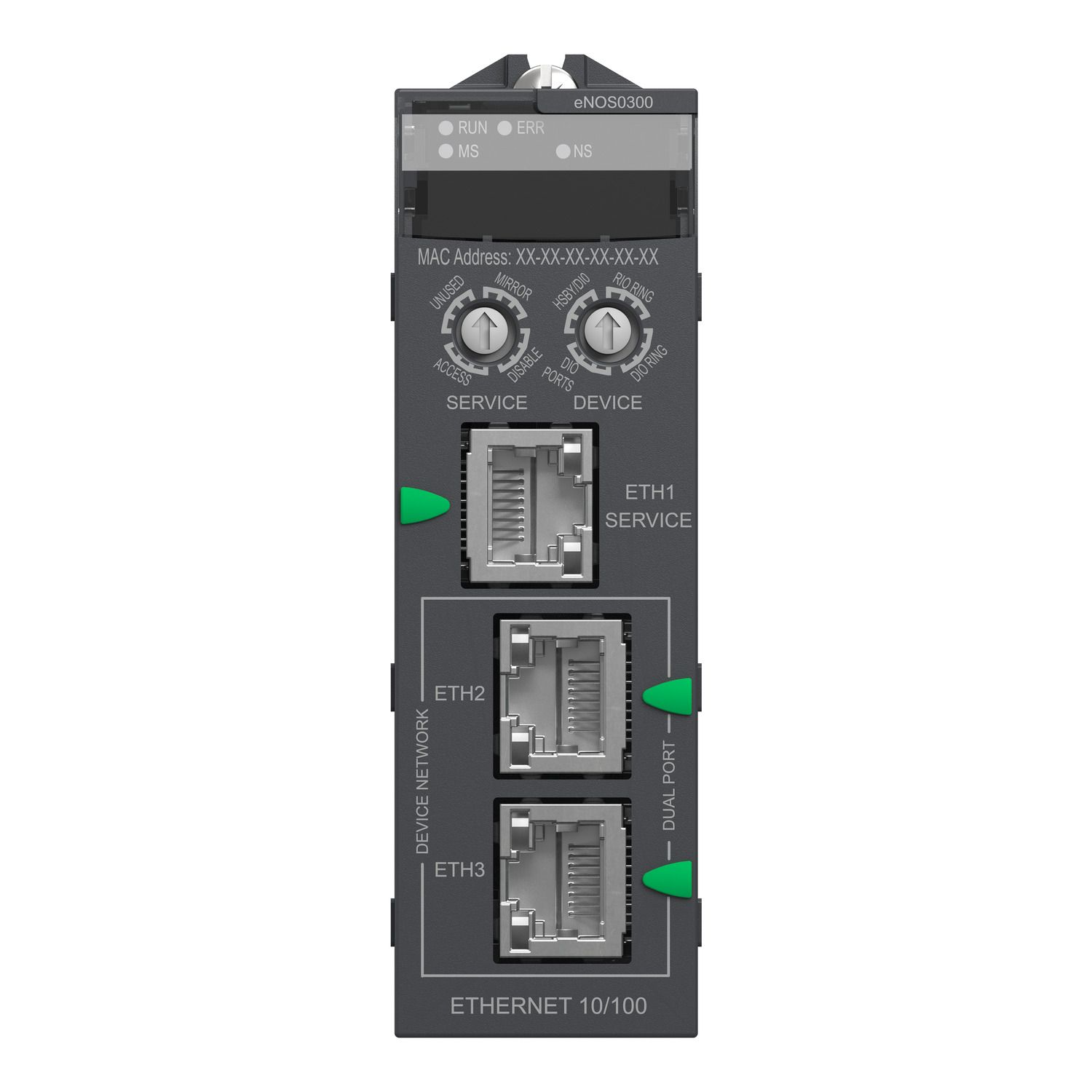

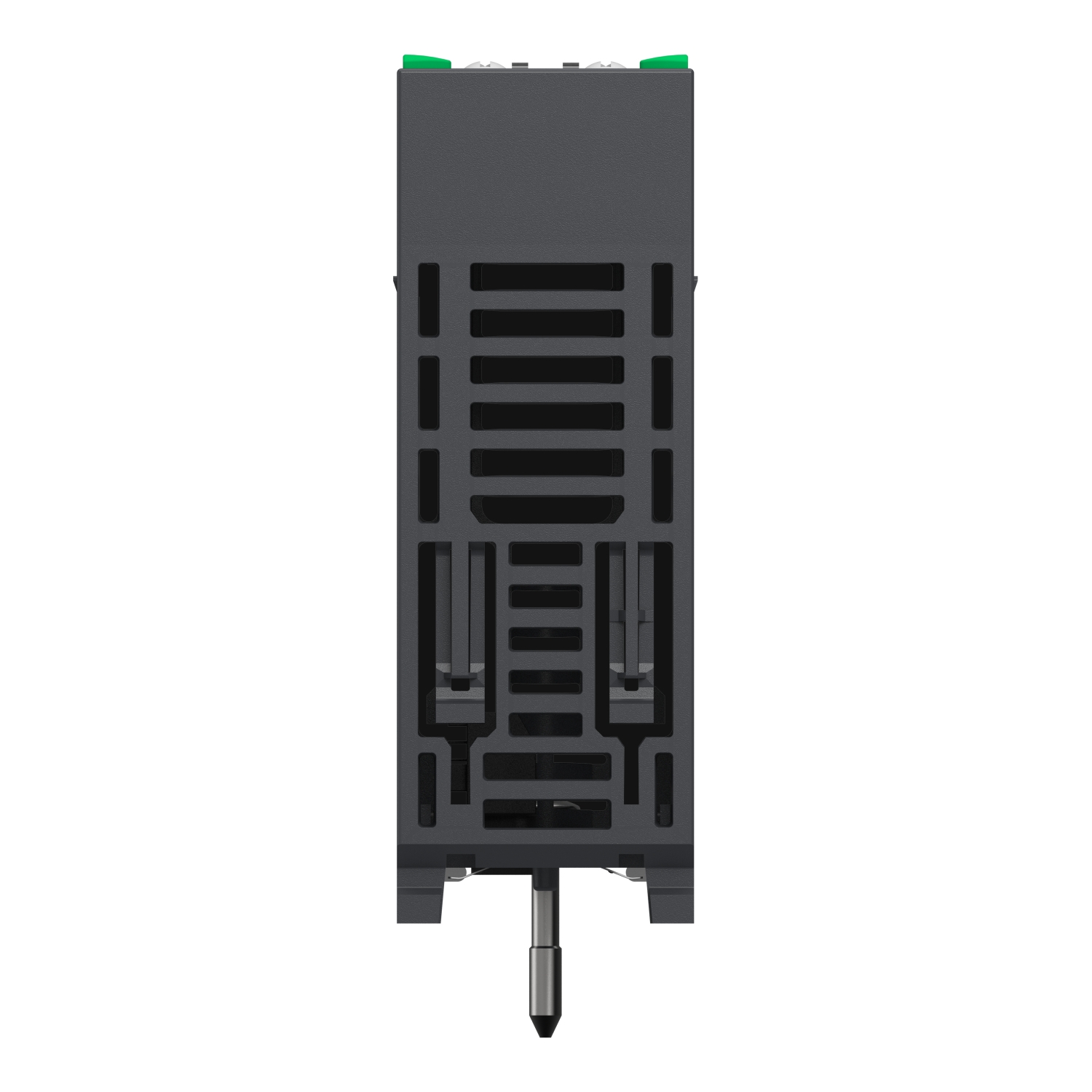

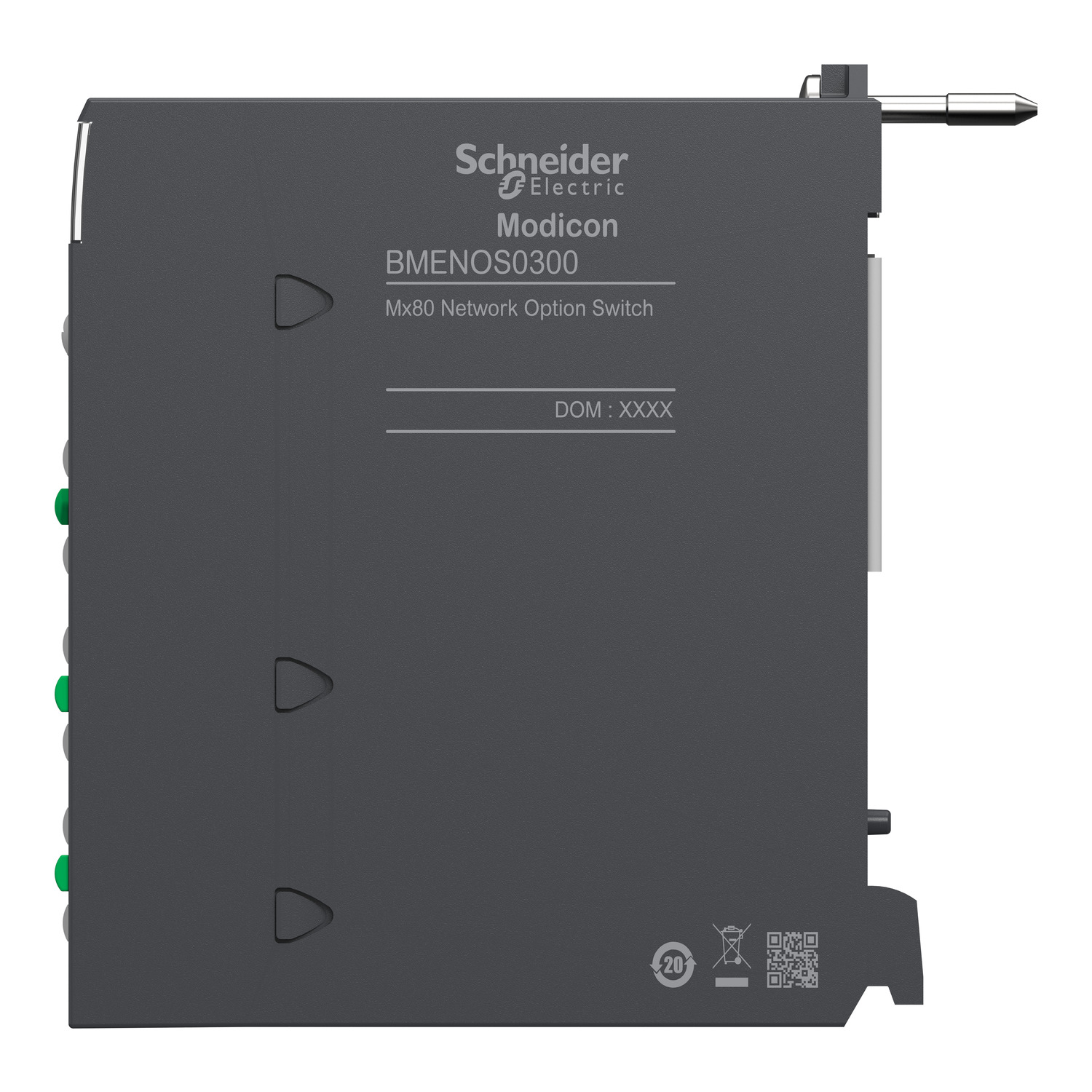

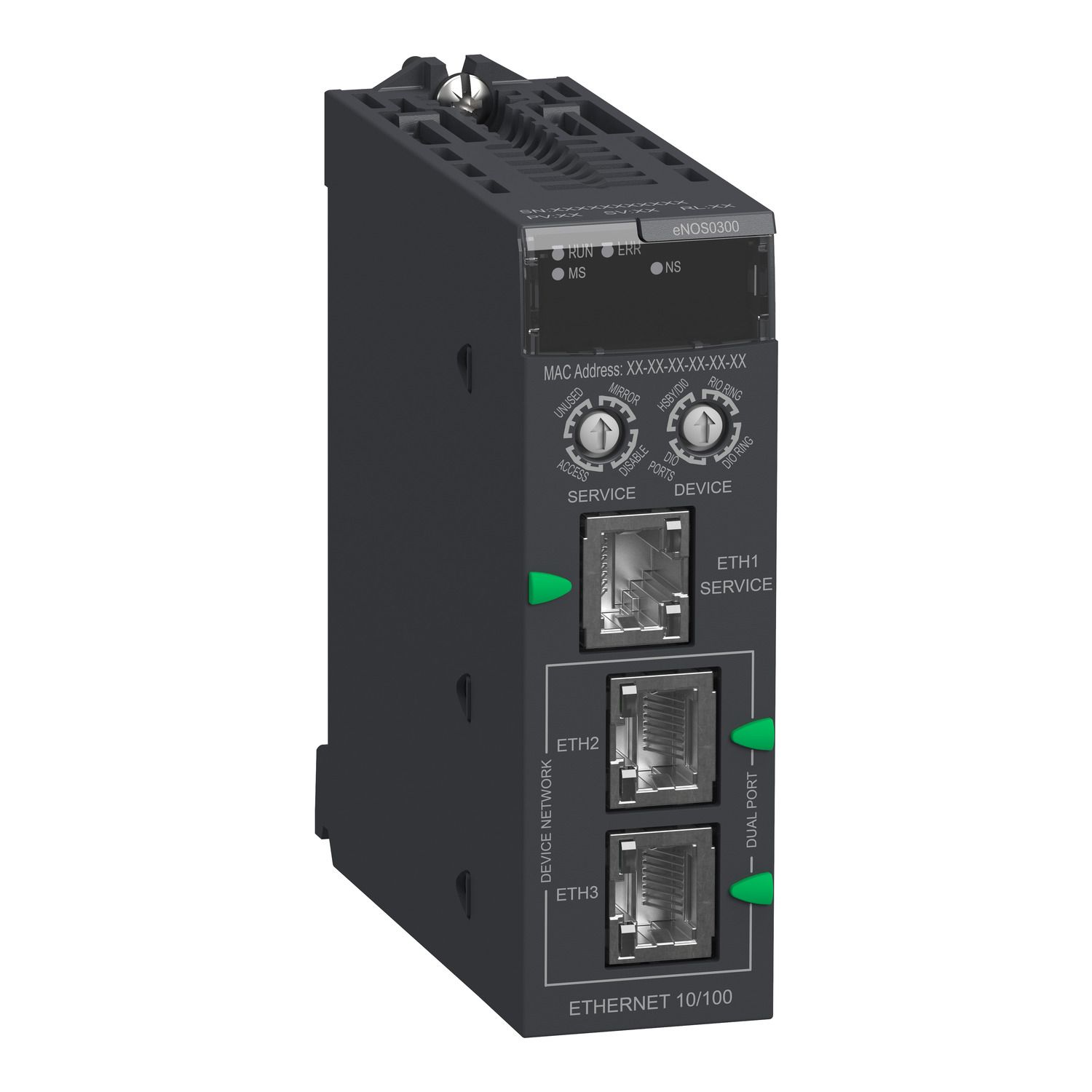

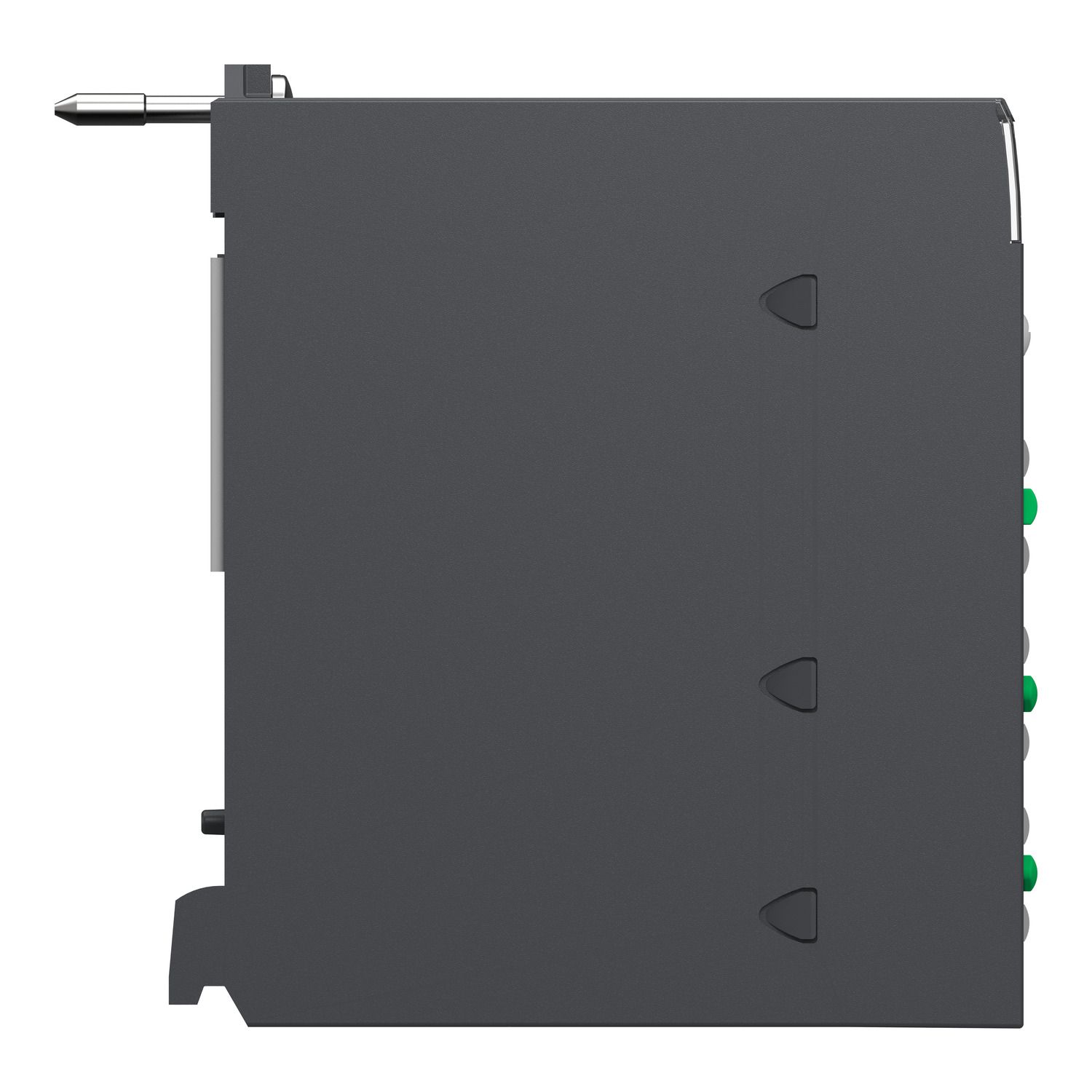

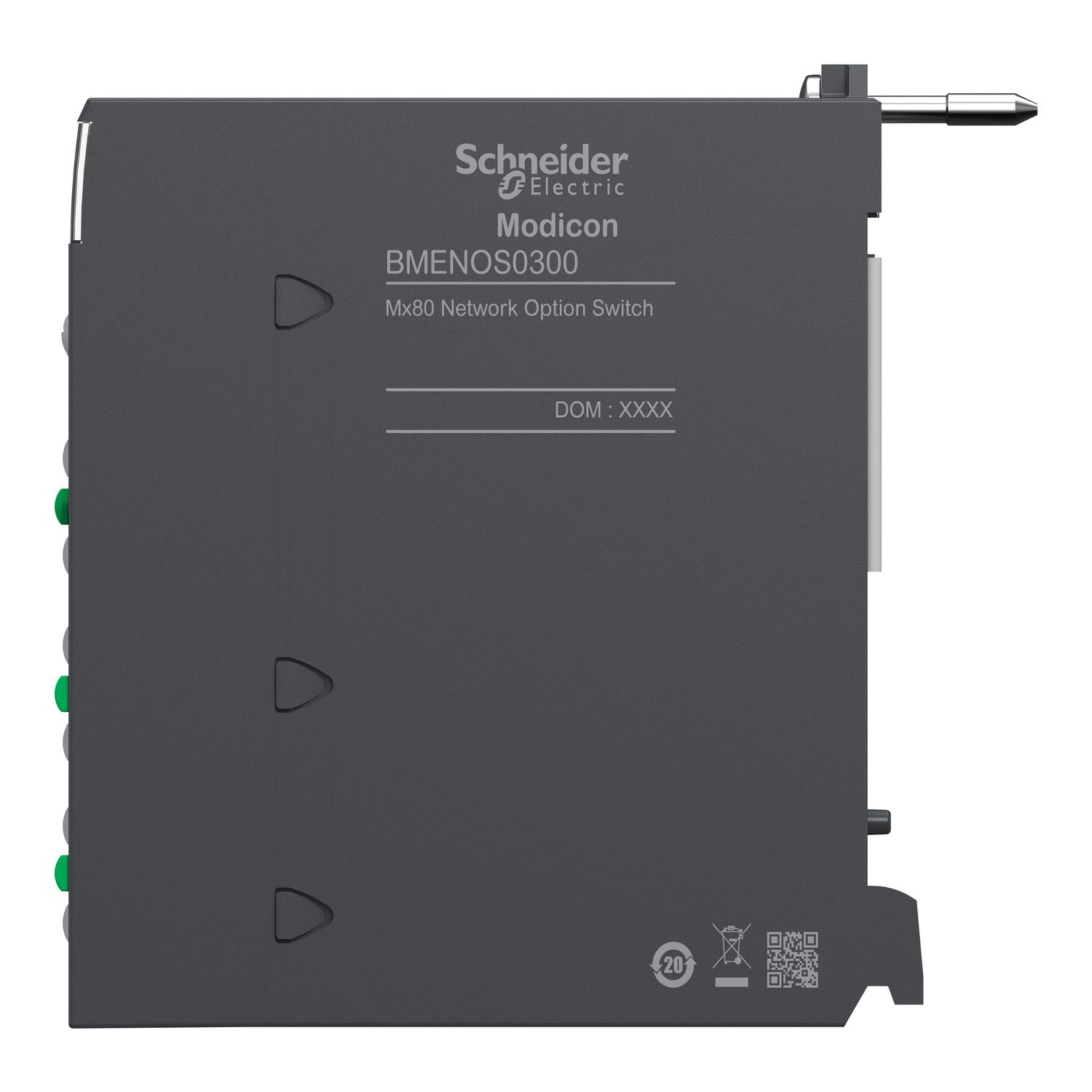

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This network option switch has 3 ports. It is a network option switch with a rated supply voltage of 24V and a power consumption of 4.5W. This product is robust, high quality and based on the latest innovative technology. Integrated connections are EtherNet/IP for device network and service port. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, ABS, BV, GL, EAC, LR, DNV, RINA. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This switch module is compatible with BMEXBP backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | BMEXBP... backplane |
| Product or component type | switch module |
| Range of product | Modicon X80 |
| Complementary | |
| [Us] rated supply voltage | 24 V for back plane |
| Module format | standard |
| Local signalling | 1 LED (green/red) for network communication status (Net Status), 1 LED (green/red) for module status (Mod Status), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN) |
| Integrated connection type | Ethernet/IP for service port, Ethernet/IP for device network |
| Number of port | 3 |
| Communication port protocol | EtherNet/IP |
| Power consumption in W | 4.5 W at 185 mA 60 °C, 3.3 W at 135 mA 25 °C |
| Environment | |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 |
| Maximum altitude transport | 3000 m |
| Overvoltage category | II |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Marking | CE |
| Ambient air temperature for operation | 0-60 °C |
