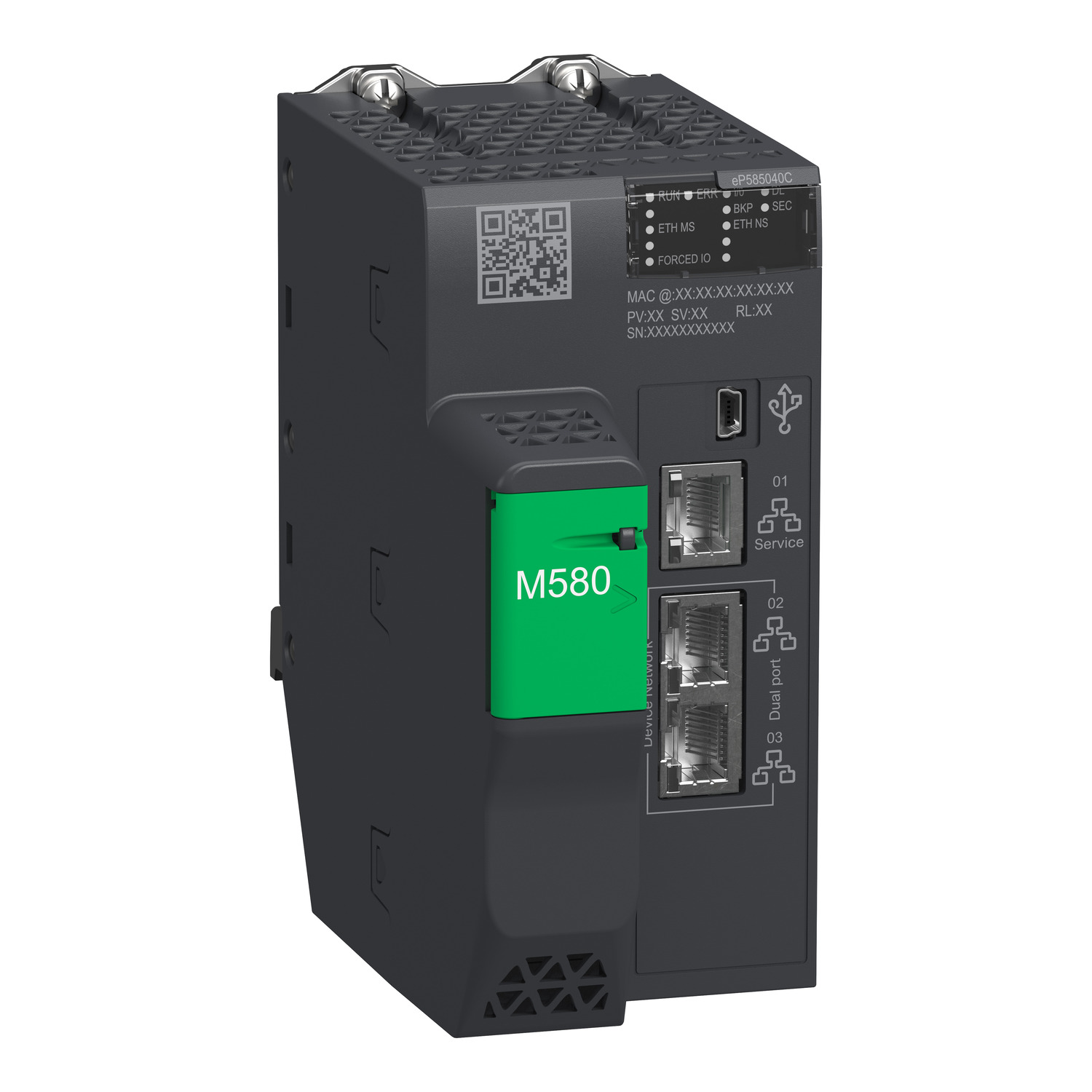

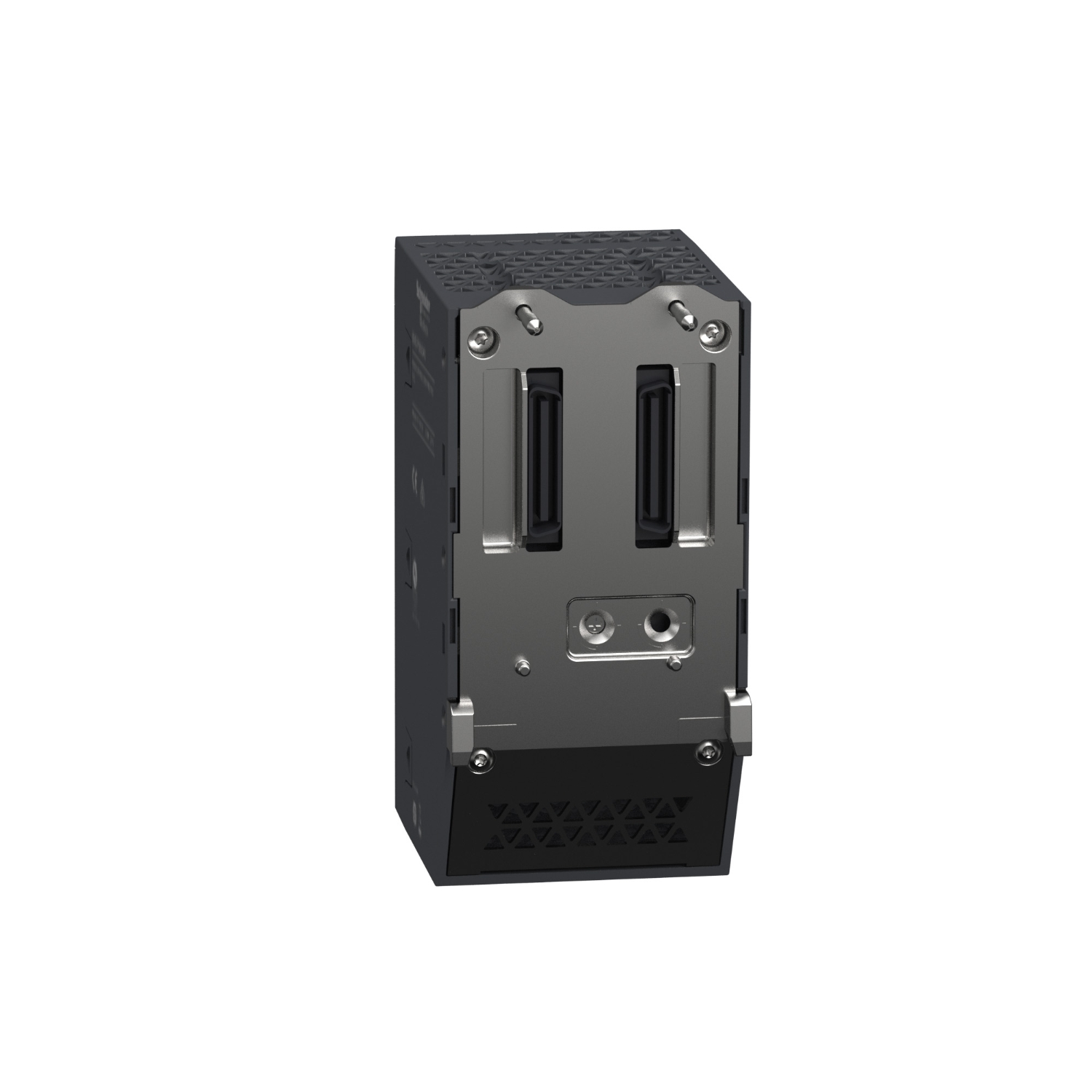

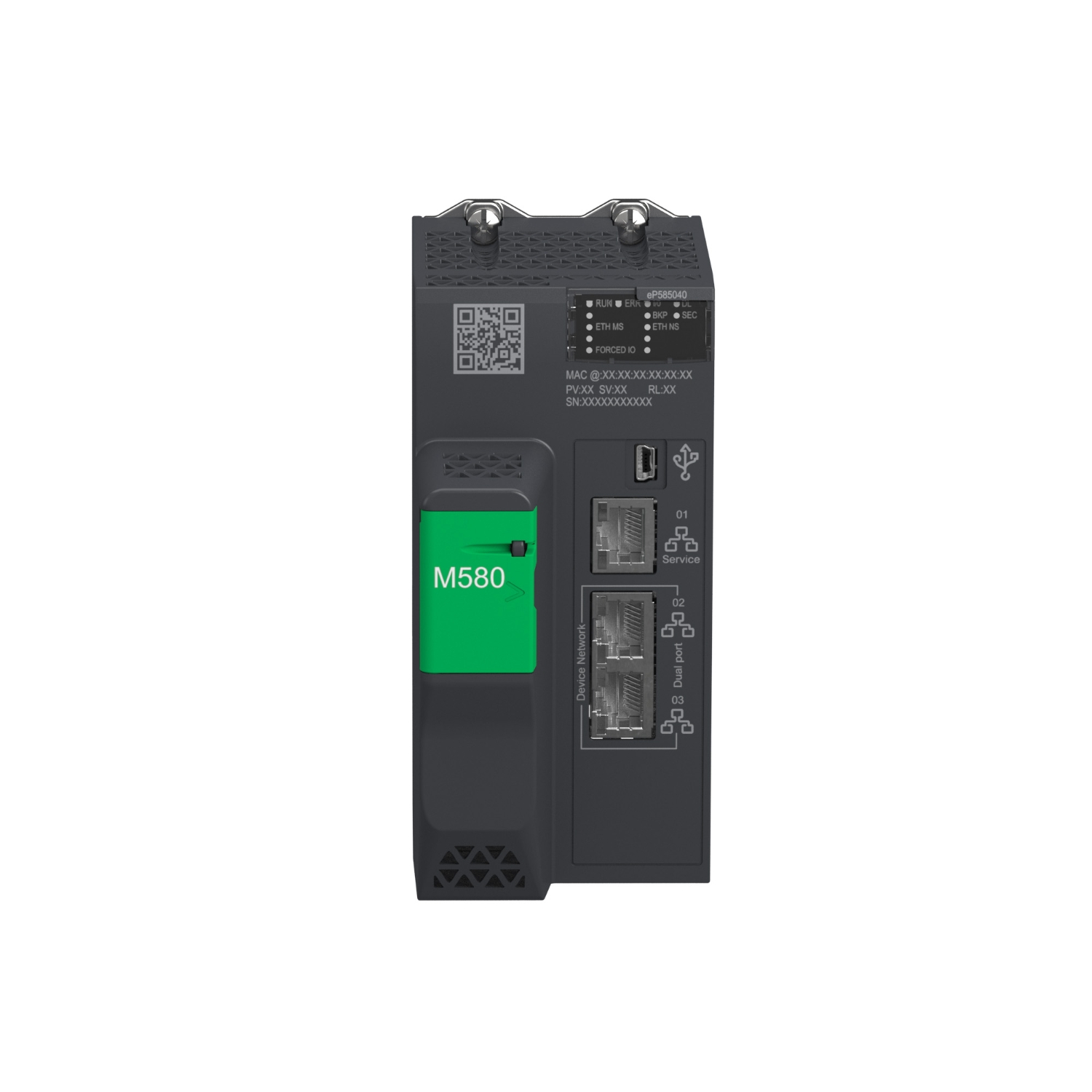

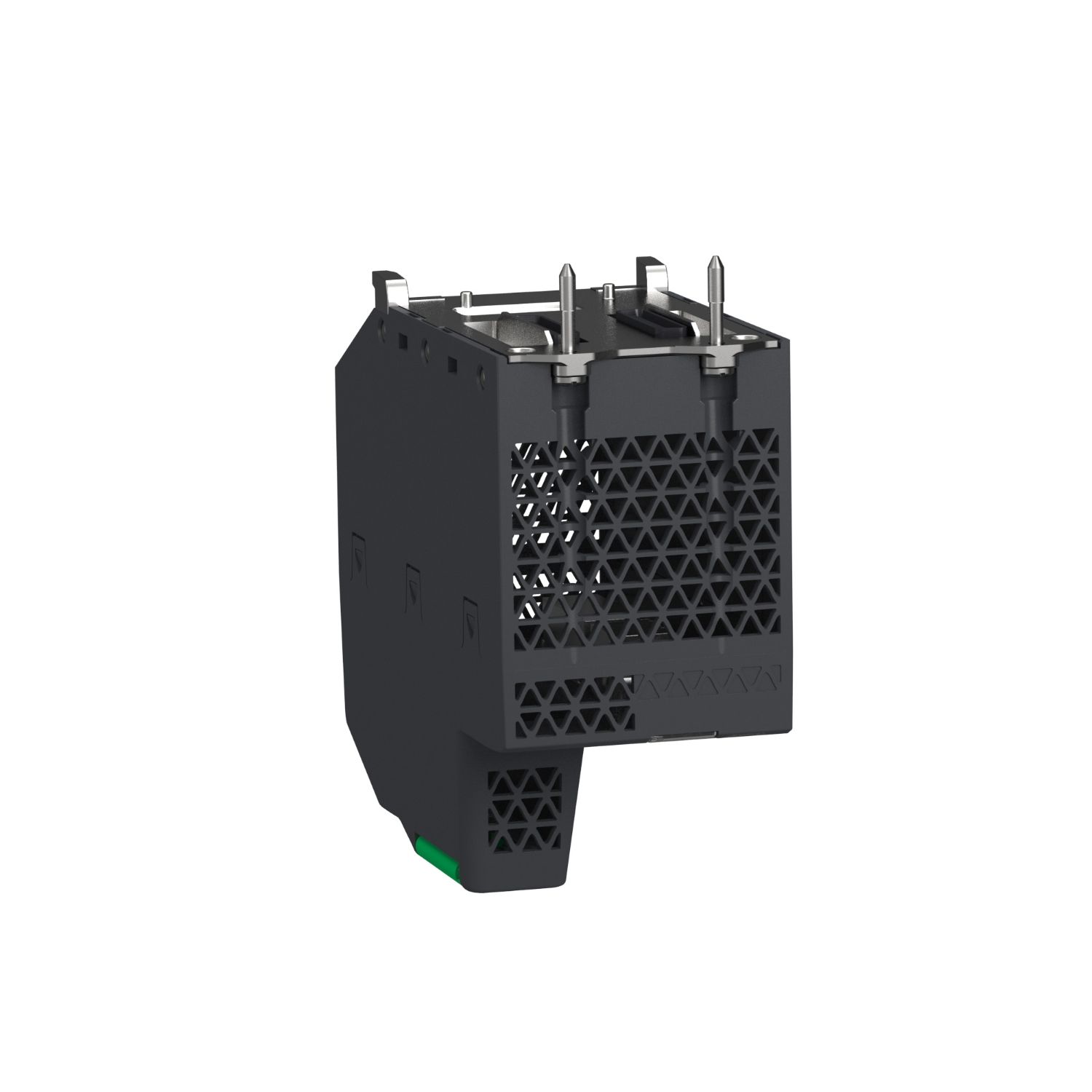

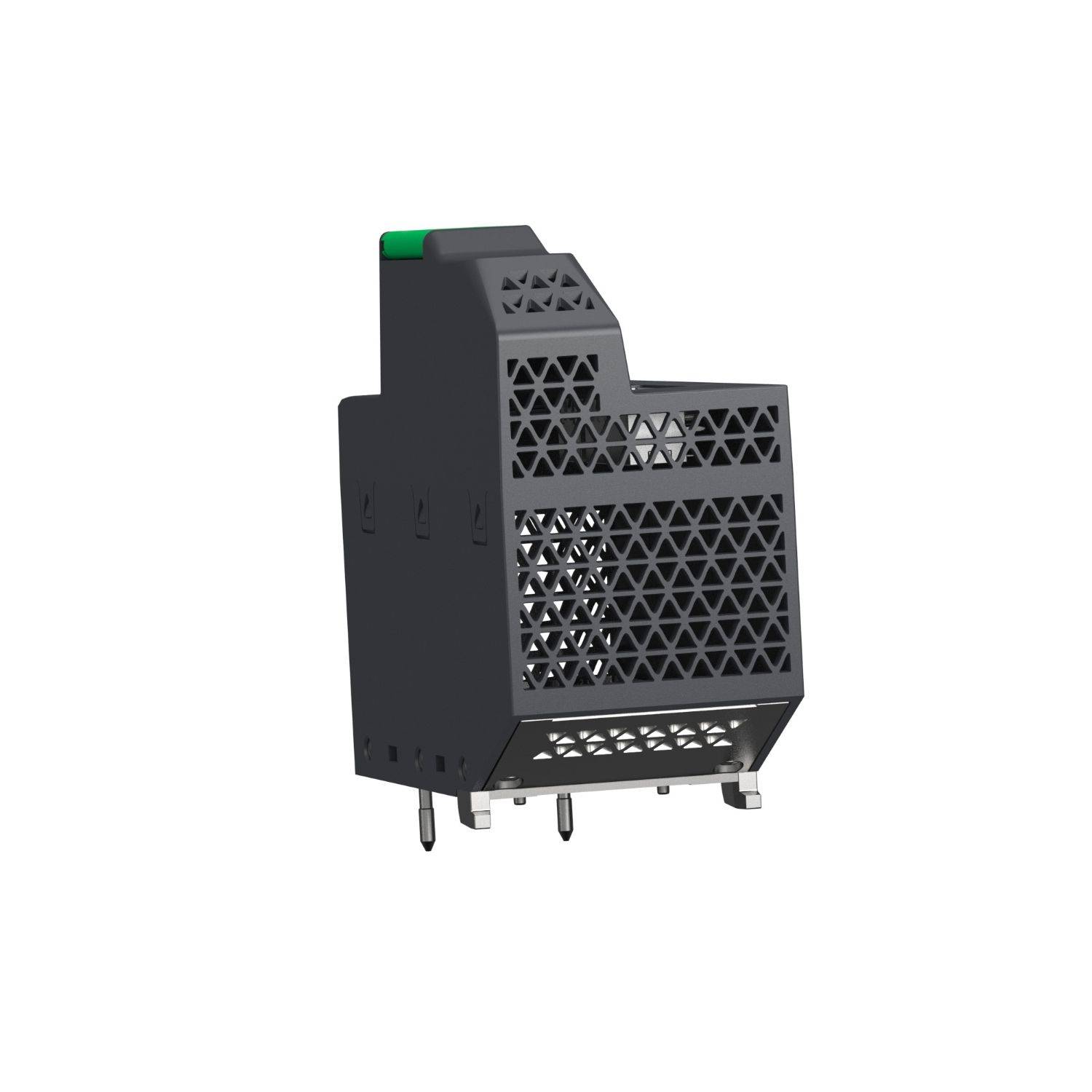

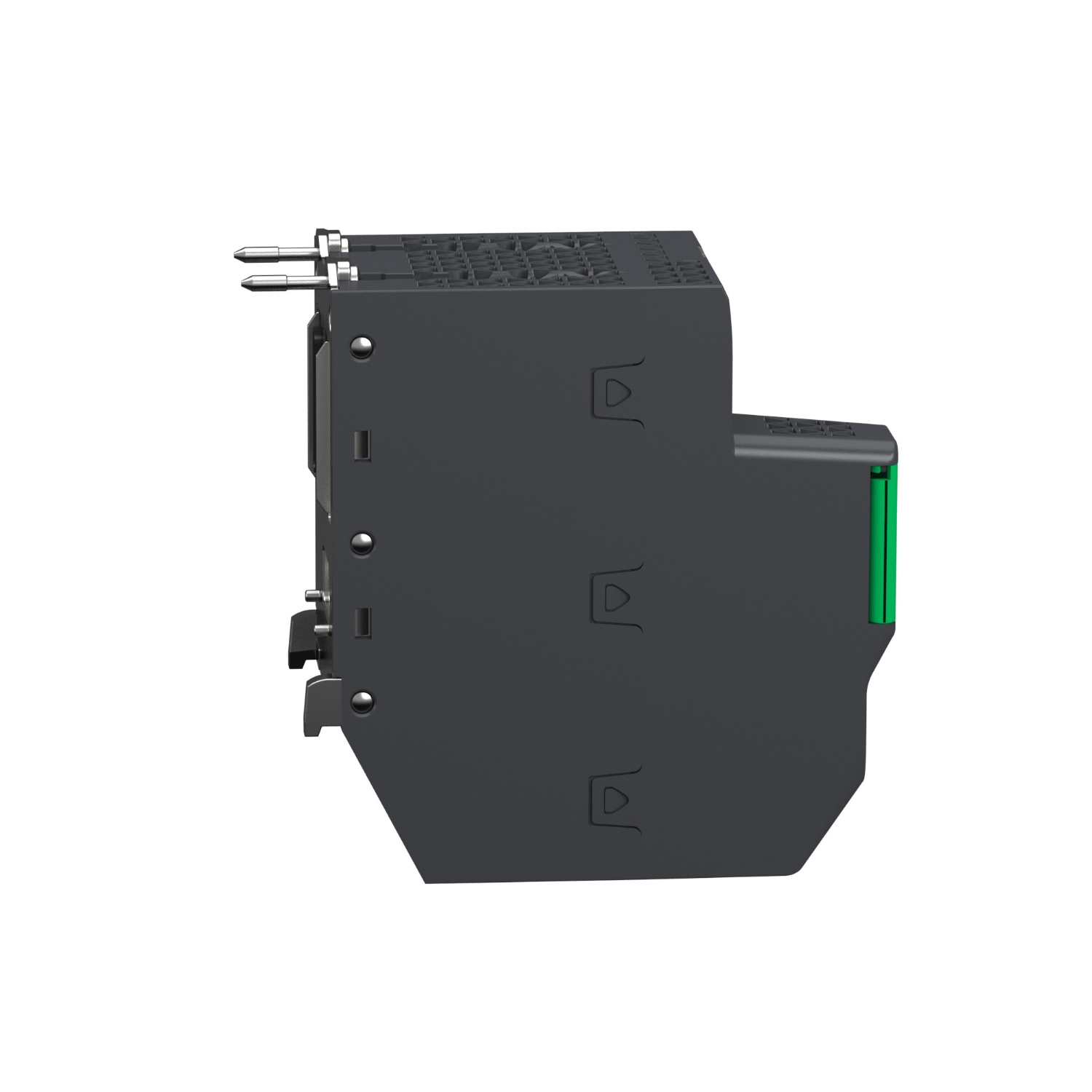

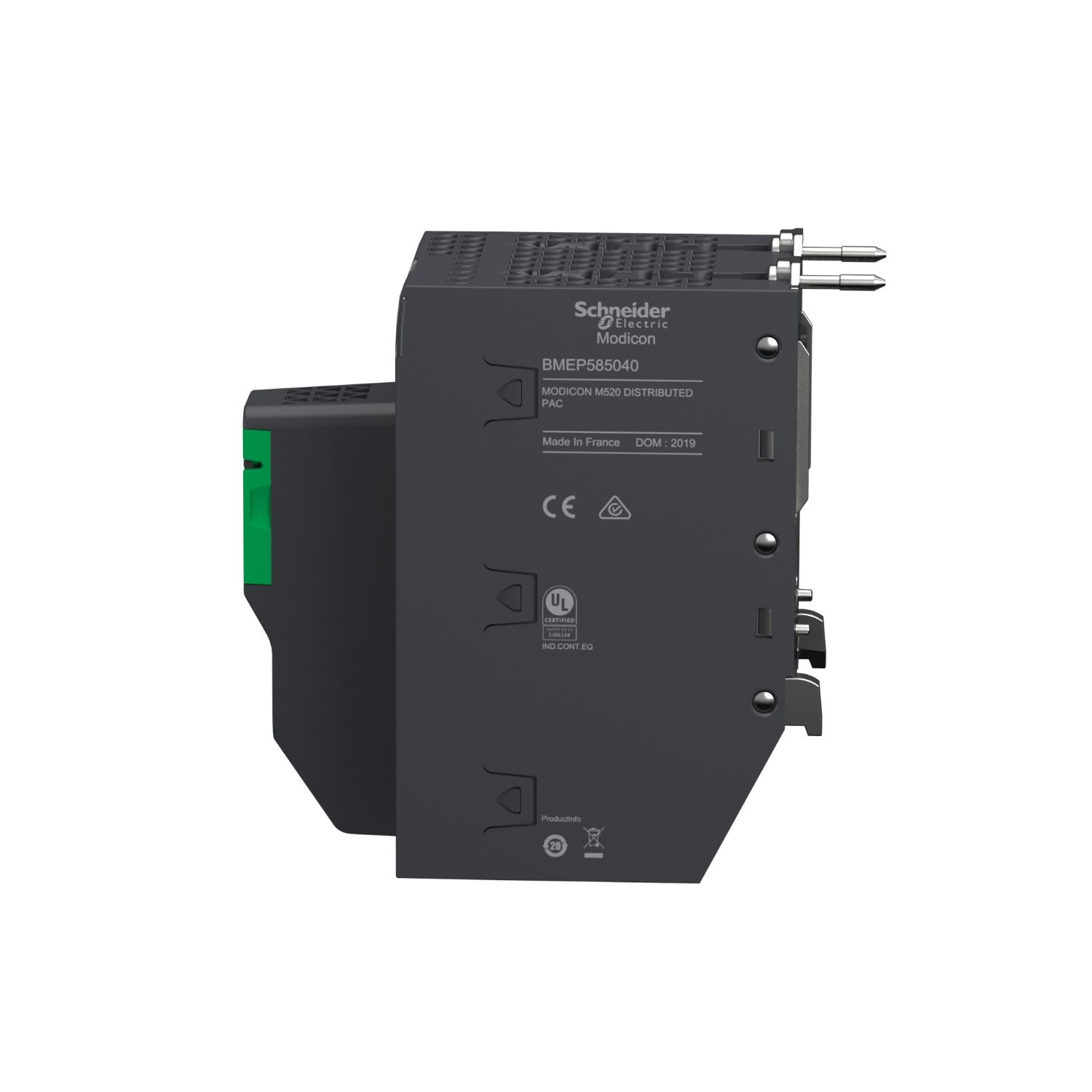

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 180 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 5120 discrete, 1280 analogue local I/O channels and 64 distributed equipment. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 31 - 2 racks per remote drop for I/O station. It has an integrated RAM of 24MB for program, 4096kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M580 |
| Impregnation material | conformal coated |
| Product or component type | processor module |
| Complementary | |
| Number of application specific channel | 180 |
| Memory description | integrated RAM, 4096 kB for data, integrated RAM, 24 MB for program, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage |
| Control channels | programmable loops |
| Analogue I/O processor capacity | 1280 I/O |
| Number of instructions per ms | 60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean |
| Application specific I/O | counter, SSI encoder, HART, serial link, motion control, accurate time stamping |
| Number of remote I/O station | 31 - 2 rack(s) per remote drop |
| Application structure | 1 cyclic/periodic master task, 128 event tasks, 2 auxiliary tasks, 1 periodic fast task |
| Marking | CE |
| Number of racks | 8 |
| Communication service | DIO scanner, RIO scanner |
| Number of distributed equipment | 64 |
| MTBF reliability | 775000 H |
| Checks | process control |
| Discrete I/O processor capacity | 5120 I/O |
| Integrated connection type | USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port |
| Current consumption | 300 mA at 24 V DC |
| Communication module processor capacity | 6 Ethernet communication module, 8 AS-Interface module |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Status LED | 1 LED (green) I/O values overrided by user (FORCED IO), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN) |
| Ambient air temperature for operation | -25-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Net weight | 0.849 kg |
| Vibration resistance | 3 gn |
| Environmental characteristic | hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04 |
| Shock resistance | 30 gn |
| Supply | internal power supply via rack |
