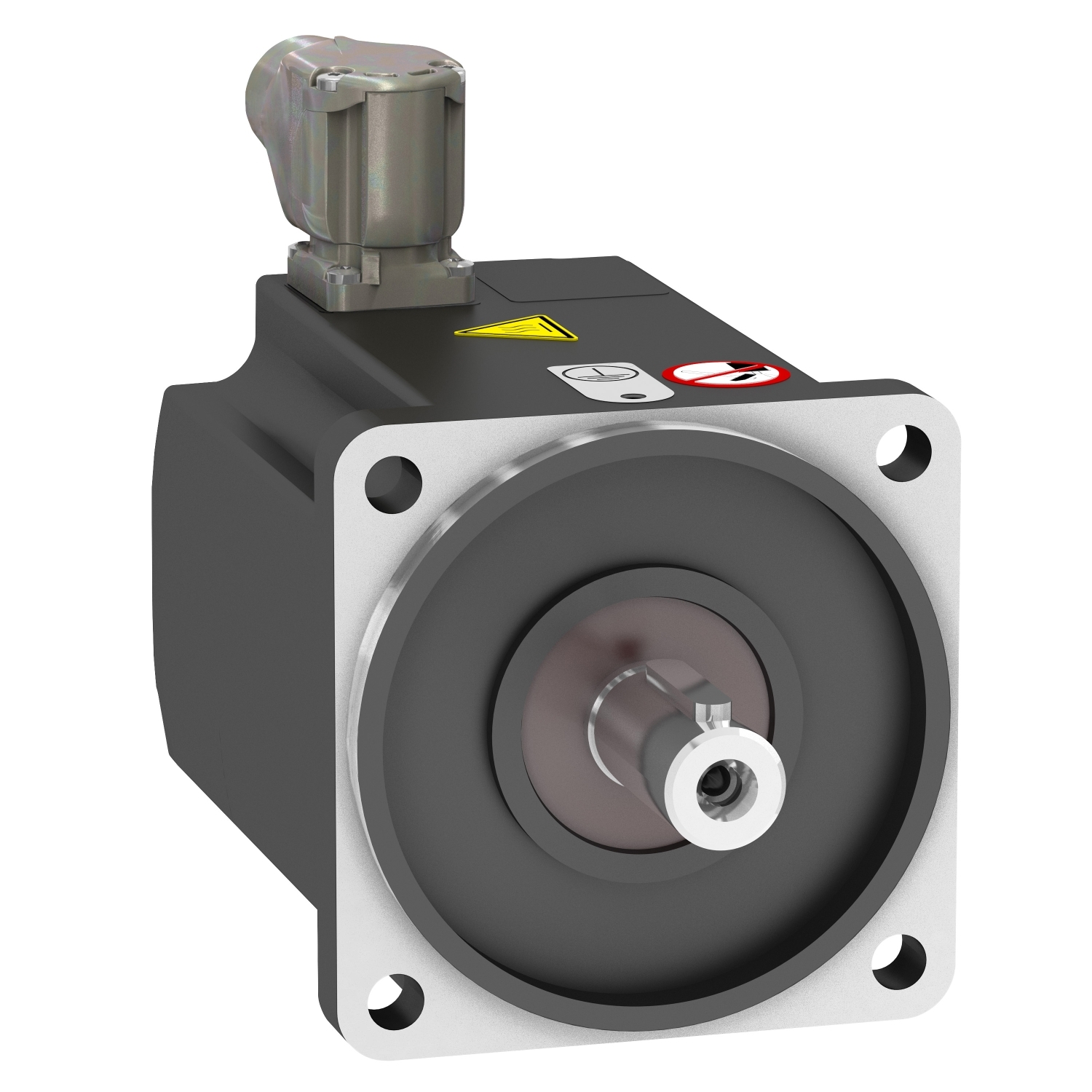

This AC synchronous motor is an option for variable speed drives of Altivar range. It is compatible with with 200/400 VAC supply voltage drives. This motor has a medium moment of inertia. It is designed with a 100mm flange and 2 stacks. Its nominal power is 1.5kW and run at 1500/3000 rpm. It features a 90° angular connector. It weighs 4.92 kg, and its dimensions are 212.1 mm (6.32 in) in length, 139.5 mm in height, and 100 mm in width. It conforms to the UL standard. The AC motor is compatible with ATV32HU15N4 and ATV320U15N4 drives and its IP67 kit. The allowed mounting positions are IM B5, IM V1, and IM V3.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | BMP |
| Nominal torque | 4.77 N.m with drive ATV320 at 1.5 kW 400 V three phase, 4.77 N.m with drive ATV32 at 1.5 kW 400 V three phase |
| Electrical connection | rotatable right-angled connector |
| Nominal speed | 3000 rpm with drive ATV320 at 1.5 kW 400 V three phase, 3000 rpm with drive ATV32 at 1.5 kW 400 V three phase |
| Shaft end | keyed |
| IP degree of protection | IP67 with IP67 kit, IP65 standard |
| Nominal output power | 1500 W with drive ATV320 at 1.5 kW 400 V three phase, 1500 W with drive ATV32 at 1.5 kW 400 V three phase |
| Product or component type | synchronous motor |
| Holding brake | without |
| Mounting support | international standard flange |
| Maximum mechanical speed | 3600 rpm |

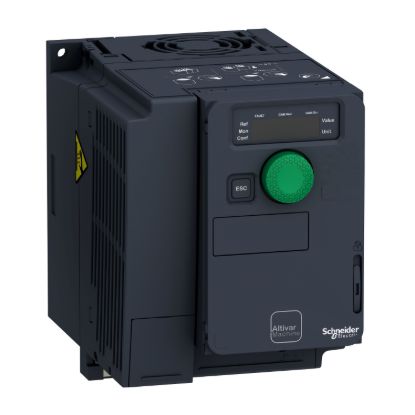

| Product compatibility | variable speed drive ATV320 at 1.5 kW 380...500 V three phase, variable speed drive ATV32 at 1.5 kW 400 V three phase |
| Complementary | |
| Torque constant | 1.56 N.m/A at 40 °C |
| Nominal operating frequency | 250 Hz with drive ATV320 at 1.5 kW 400 V three phase, 250 Hz with drive ATV32 at 1.5 kW 400 V three phase |
| Range compatibility | Altivar 32, Altivar Machine ATV320 |
| Stator resistance | 1.75 Ohm at 40 °C |
| Maximum operating frequency | 300 Hz with drive ATV320 at 1.5 kW 400 V three phase, 300 Hz with drive ATV32 at 1.5 kW 400 V three phase |
| Type of cooling | natural convection |
| Mounting holes diameter | 9 mm |
| Minimum operating frequency | 25 Hz with drive ATV320 at 1.5 kW 400 V three phase, 25 Hz with drive ATV32 at 1.5 kW 400 V three phase |
| Shaft diameter | 19 mm |
| Key width | 6 mm |
| Number of mounting holes | 4 |
| [Us] rated supply voltage | 480 V |
| Motor flange size | 100 mm |
| Stator inductance | 6.64 mH for d-axis winding at 40 °C, 7.65 mH for q-axis winding at 40 °C |
| Centring collar diameter | 95 mm |
| Net weight | 4.92 kg |
| Maximum current Irms | 6.2 A with drive ATV320 at 1.5 kW 400 V three phase, 6.2 A with drive ATV32 at 1.5 kW 400 V three phase |
| Length | 160.6 mm |
| Network number of phases | three phase |
| Shaft length | 40 mm |
| Centring collar depth | 3.5 mm |
| Maximum axial force Fa | 0.2 x Fr |
| Number of motor poles | 5 |
| Rotor inertia | 6.28 kg.cm² |
| Number of motor stacks | 2 |
| Maximum radial force Fr | 620 N at 4000 rpm, 690 N at 3000 rpm, 790 N at 2000 rpm, 990 N at 1000 rpm |
| Circle diameter of the mounting holes | 115-115 mm |
