Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | BMP |
| Nominal torque | 14.01 N.m with drive ATV320 at 2.2 kW 400 V three phase, 14.01 N.m with drive ATV32 at 2.2 kW 400 V three phase |
| Electrical connection | rotatable right-angled connector |
| Nominal speed | 1500 rpm with drive ATV320 at 2.2 kW 400 V three phase, 1500 rpm with drive ATV32 at 2.2 kW 400 V three phase |
| Shaft end | keyed |
| IP degree of protection | IP67 with IP67 kit, IP65 standard |
| Nominal output power | 2200 W with drive ATV320 at 2.2 kW 400 V three phase, 2200 W with drive ATV32 at 2.2 kW 400 V three phase |

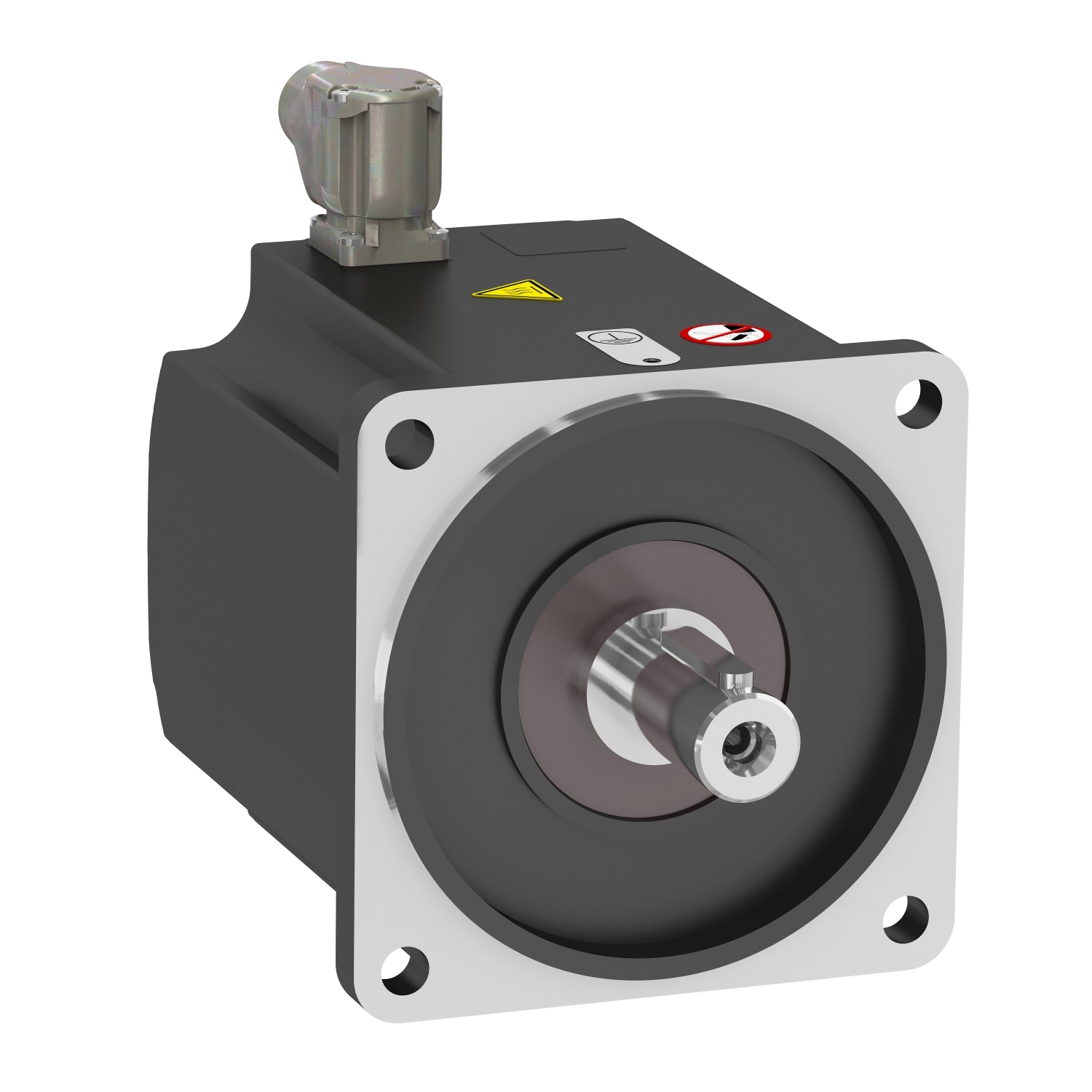

| Product or component type | synchronous motor |
| Holding brake | without |
| Mounting support | international standard flange |
| Maximum mechanical speed | 3600 rpm |
| Product compatibility | variable speed drive ATV320 at 2.2 kW 380...500 V three phase, variable speed drive ATV32 at 2.2 kW 400 V three phase |
| Complementary | |
| Torque constant | 2.9 N.m/A at 40 °C |
| Nominal operating frequency | 125 Hz with drive ATV320 at 2.2 kW 400 V three phase, 125 Hz with drive ATV32 at 2.2 kW 400 V three phase |
| Range compatibility | Altivar 32, Altivar Machine ATV320 |
| Stator resistance | 1.24 Ohm at 40 °C |
| Maximum operating frequency | 300 Hz with drive ATV320 at 2.2 kW 400 V three phase, 300 Hz with drive ATV32 at 2.2 kW 400 V three phase |
| Type of cooling | natural convection |
| Mounting holes diameter | 11 mm |
| Minimum operating frequency | 13 Hz with drive ATV320 at 2.2 kW 400 V three phase, 13 Hz with drive ATV32 at 2.2 kW 400 V three phase |
| Shaft diameter | 24 mm |
| Key width | 8 mm |
| Number of mounting holes | 4 |
| [Us] rated supply voltage | 480 V |
| Motor flange size | 140 mm |
| Stator inductance | 13.86 mH for d-axis winding at 40 °C, 15.52 mH for q-axis winding at 40 °C |
| Centring collar diameter | 130 mm |
| Net weight | 12 kg |
| Maximum current Irms | 8.3 A with drive ATV320 at 2.2 kW 400 V three phase, 8.3 A with drive ATV32 at 2.2 kW 400 V three phase |
| Length | 192 mm |
| Network number of phases | three phase |
| Shaft length | 50 mm |
| Centring collar depth | 3.5 mm |
| Maximum axial force Fa | 0.2 x Fr |
| Number of motor poles | 5 |
| Rotor inertia | 32 kg.cm² |
| Number of motor stacks | 2 |
| Maximum radial force Fr | 1550 N at 3000 rpm, 1780 N at 2000 rpm, 2240 N at 1000 rpm |
| Circle diameter of the mounting holes | 165-165 mm |
