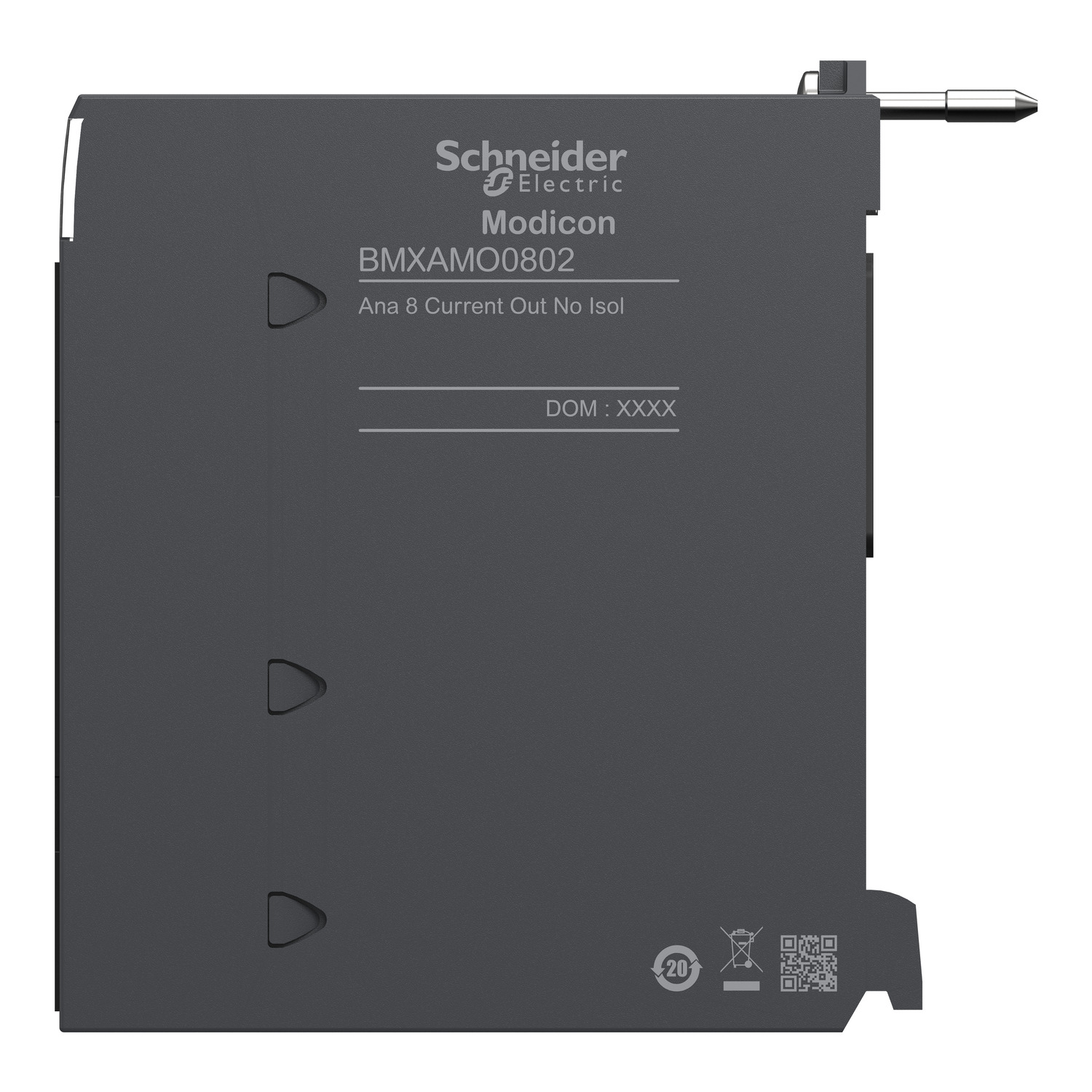

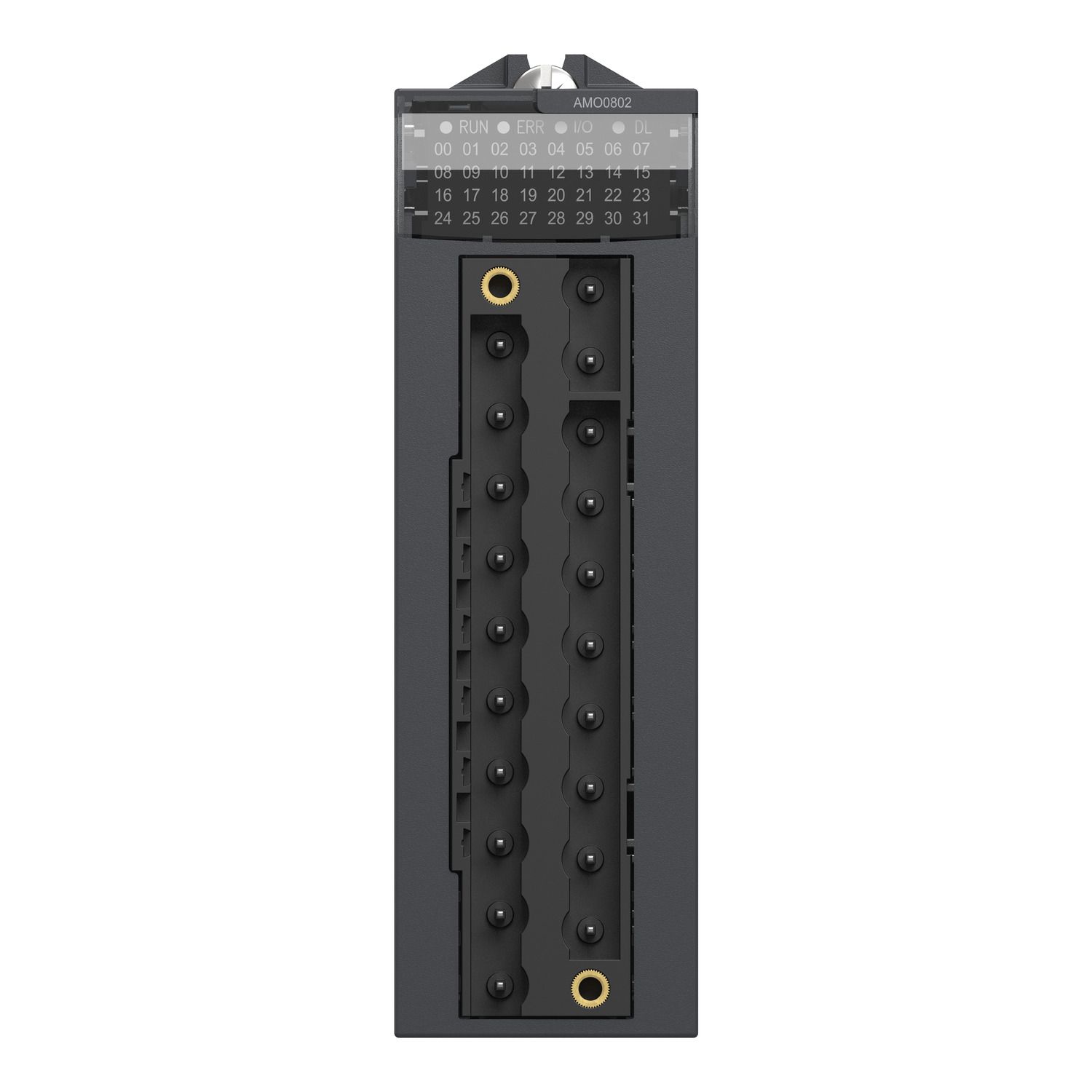

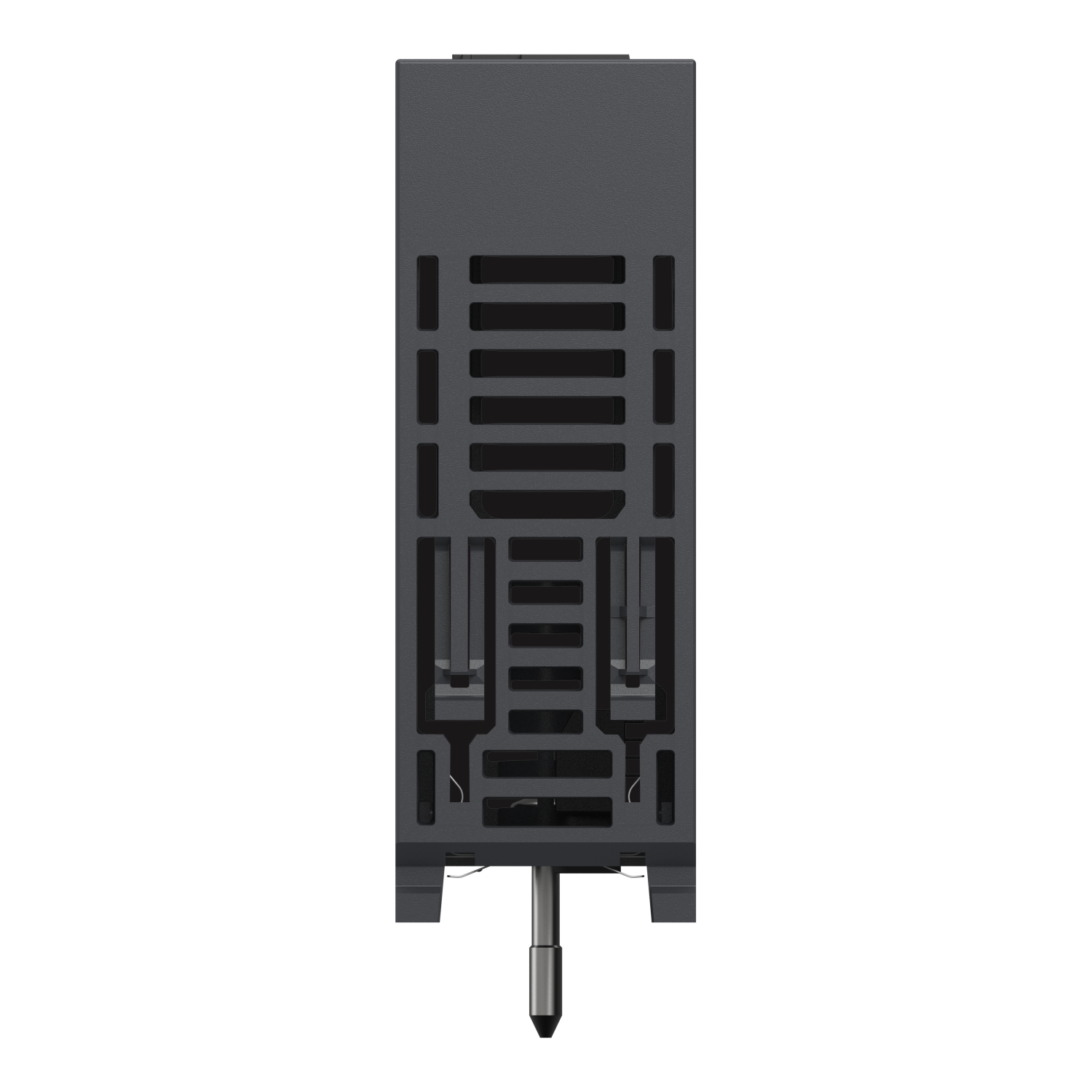

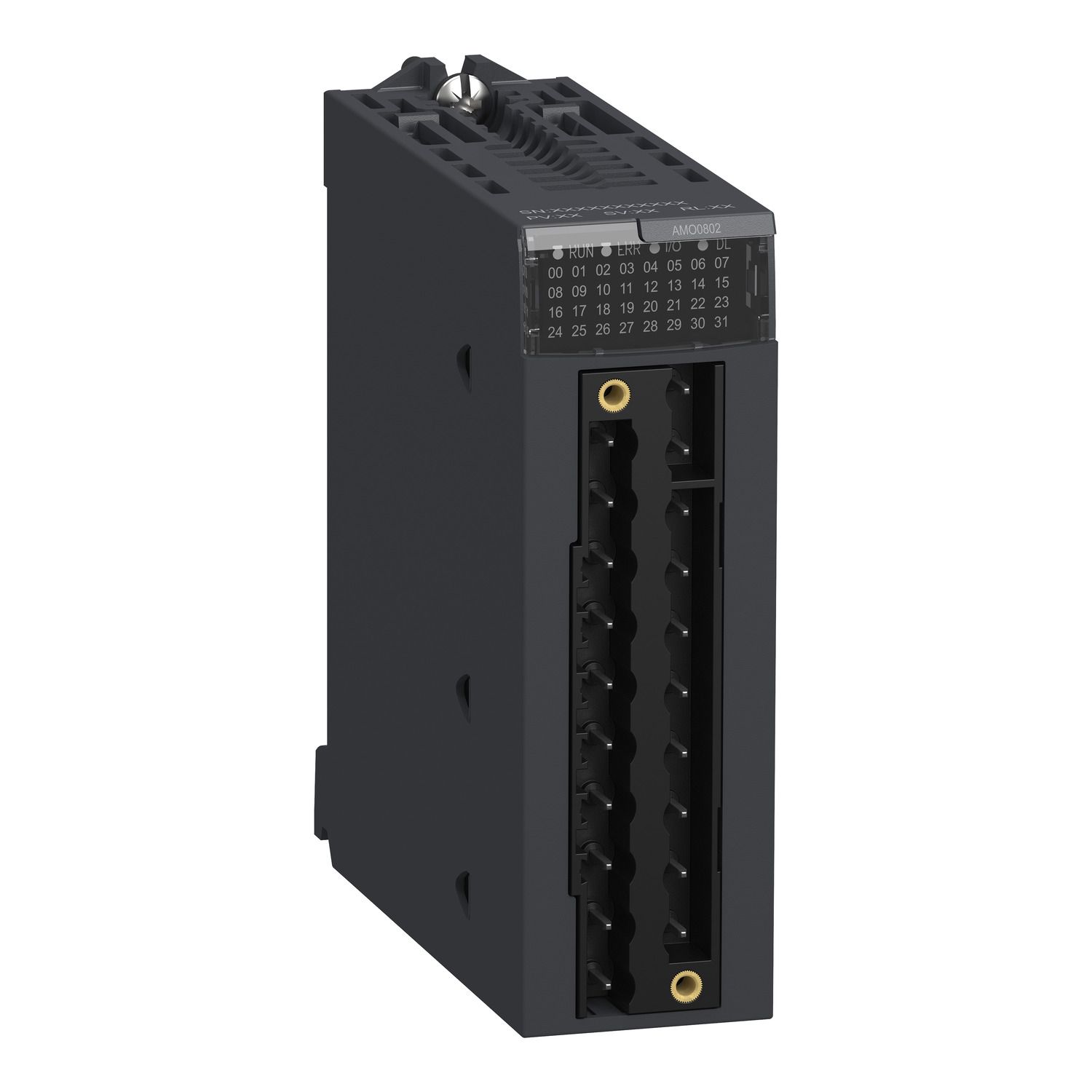

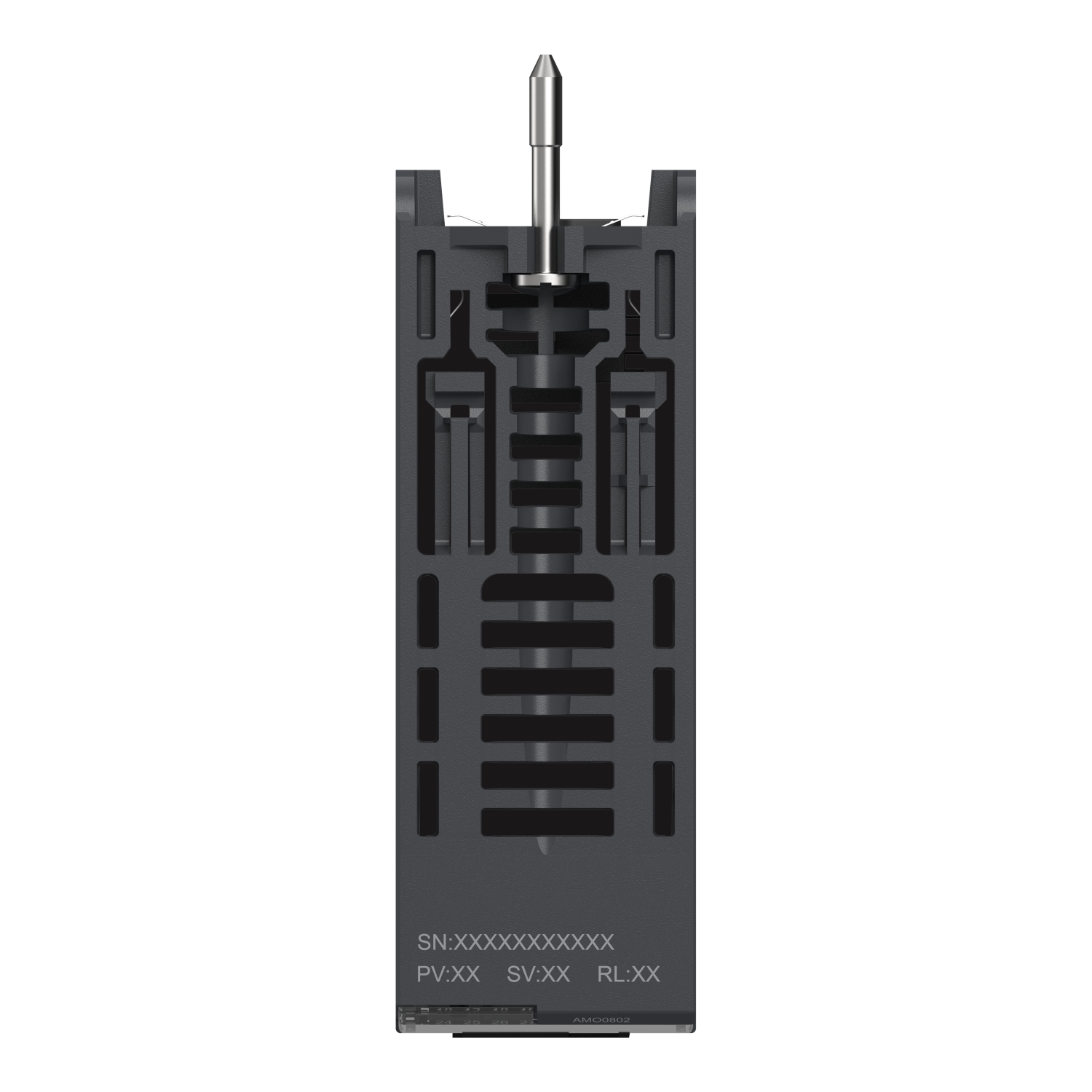

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input output isolation | non isolated |
| Electrical connection | 20 ways 1 connector |
| Product or component type | analog output module |
| Range of product | Modicon X80 |
| Complementary | |
| Conversion time | <= 4 ms |
| Analogue output resolution | 16 bits |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Detection type | short circuit 0...20 mA, open circuit 4...20 mA |
| Load impedance ohmic | <= 350 Ohm 4...20 mA, <= 350 Ohm 0...20 mA |
| Power consumption in W | 0.48 W 3.3 V DC maximum, 0.35 W 3.3 V DC typical, 3.9 W 24 V DC maximum, 3.6 W 24 V DC typical |
| Analogue output number | 8 |
| Isolation voltage | 1400 V DC between channels and bus, 1400 V DC between channels and ground |
| Net weight | 0.15 kg |
| Minimum crosstalk attenuation | 80 dB |
| Analogue input resolution | 16 bits |
| Current consumption | 135 mA at 24 V DC, 150 mA at 3.3 V DC |
| Supply | internal power supply via rack |
| Output level | high level |
| Common mode rejection | 80 dB |
| Analogue output type | current: 4...20 mA, current: 0...20 mA |
| Temperature drift | 45 ppm/°C 4...20 mA, 45 ppm/°C 0...20 mA |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Maximum conversion value | 0...21 mA 4...20 mA, 0...21 mA 0...20 mA |
| Measurement error | 0.1 % of full scale 25 °C, <= 0.25 % of full scale 0...60 °C |
| Fallback mode | predefined, configurable |
| MTBF reliability | 1500000 H |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | UL, Merchant Navy, EAC, CSA, RCM, CE |
