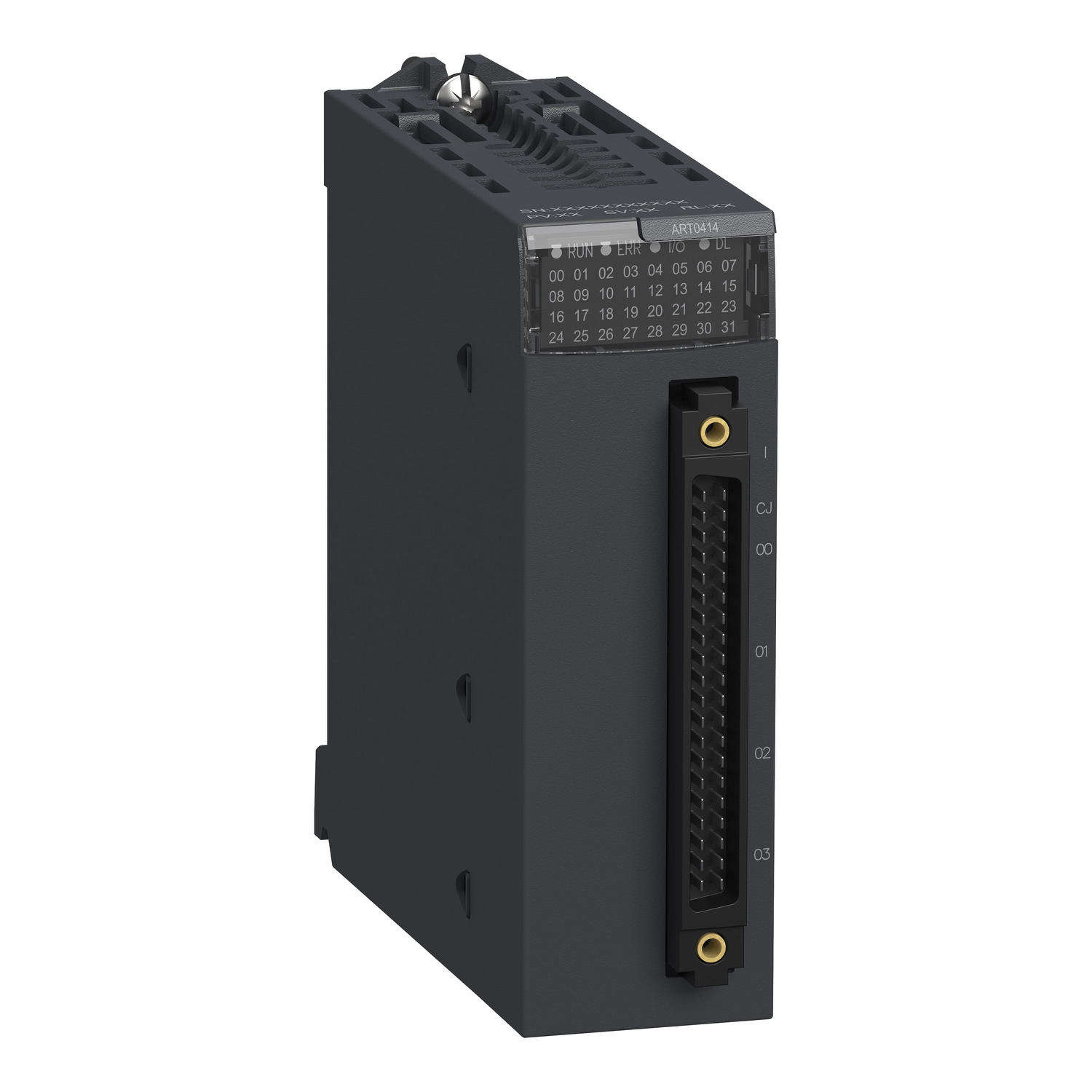

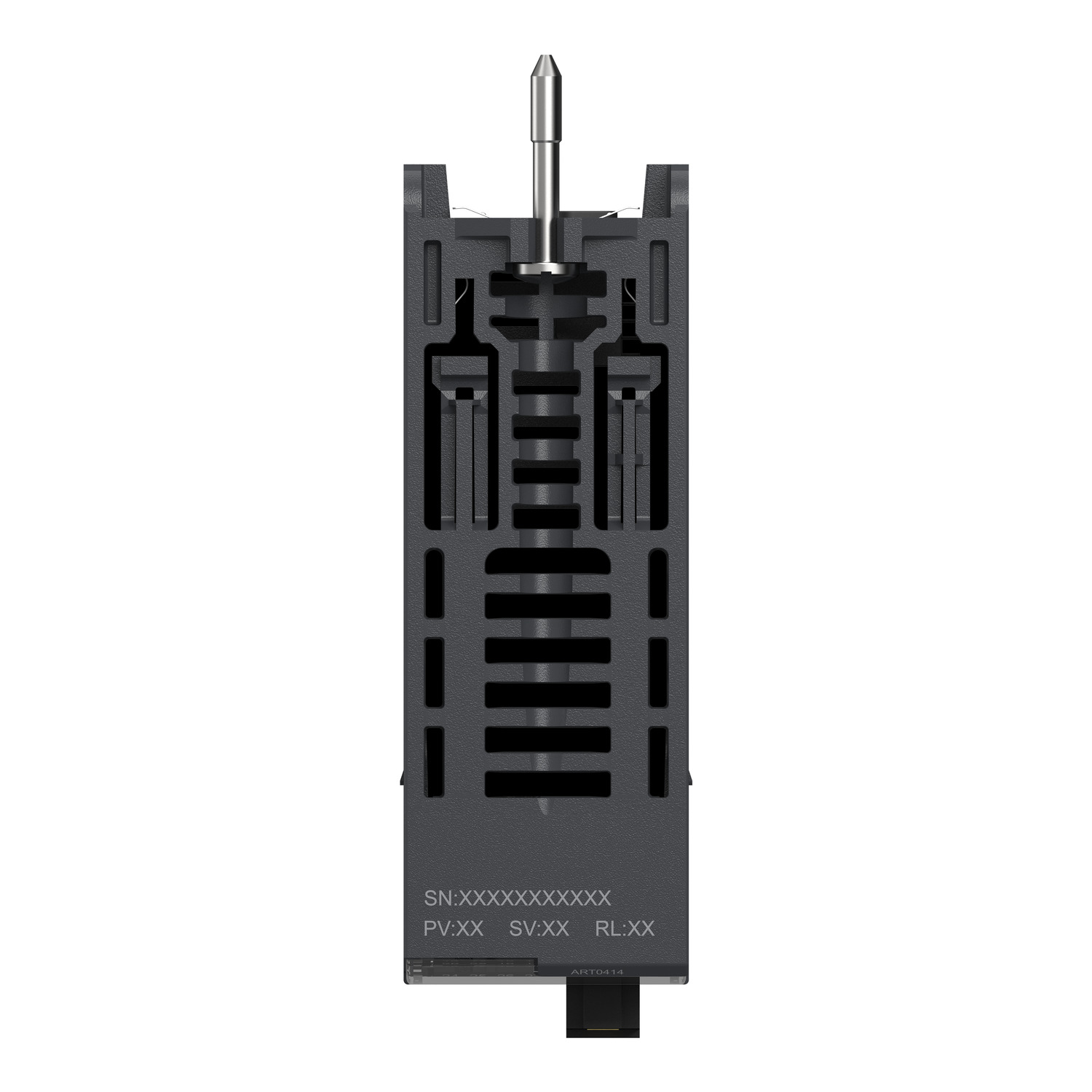

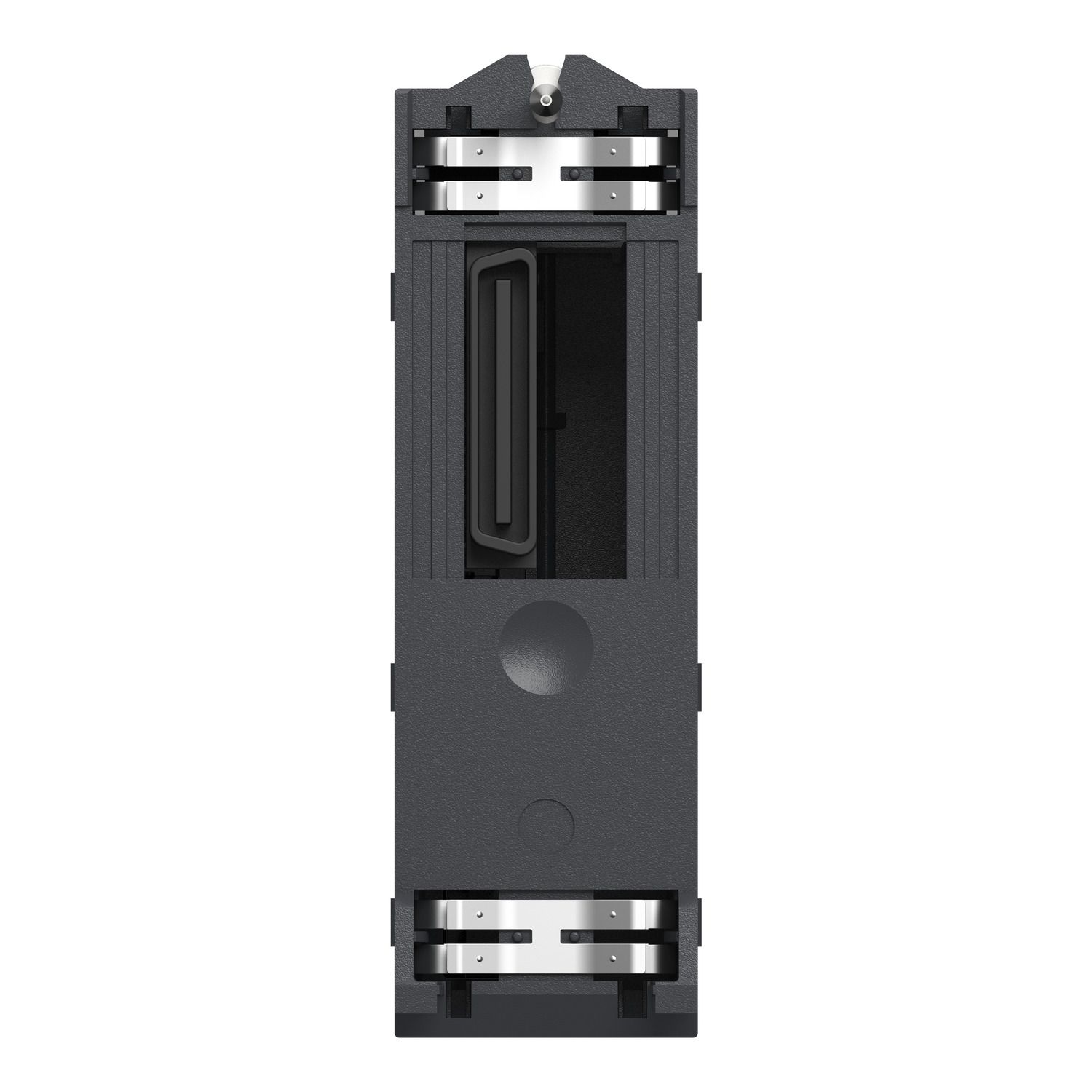

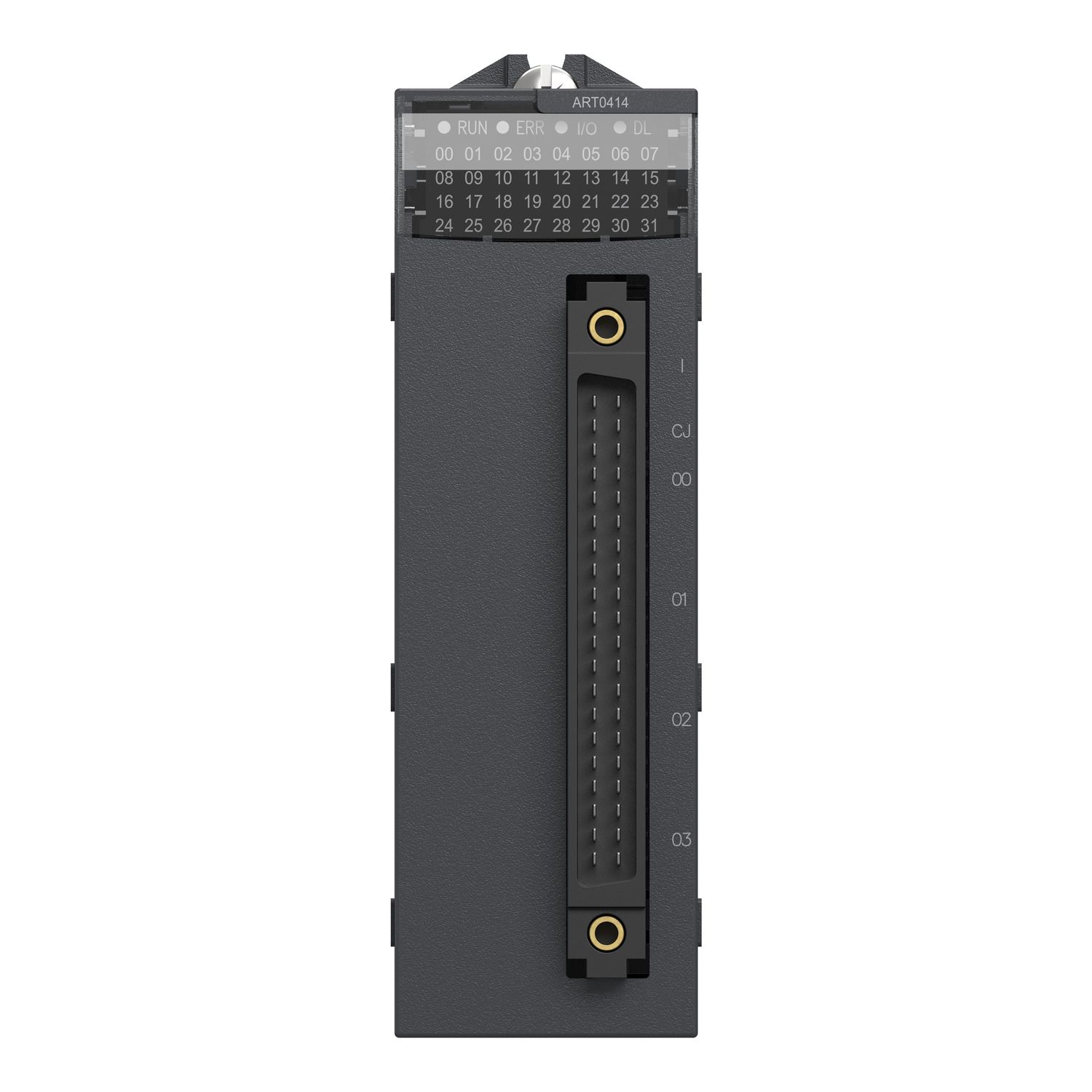

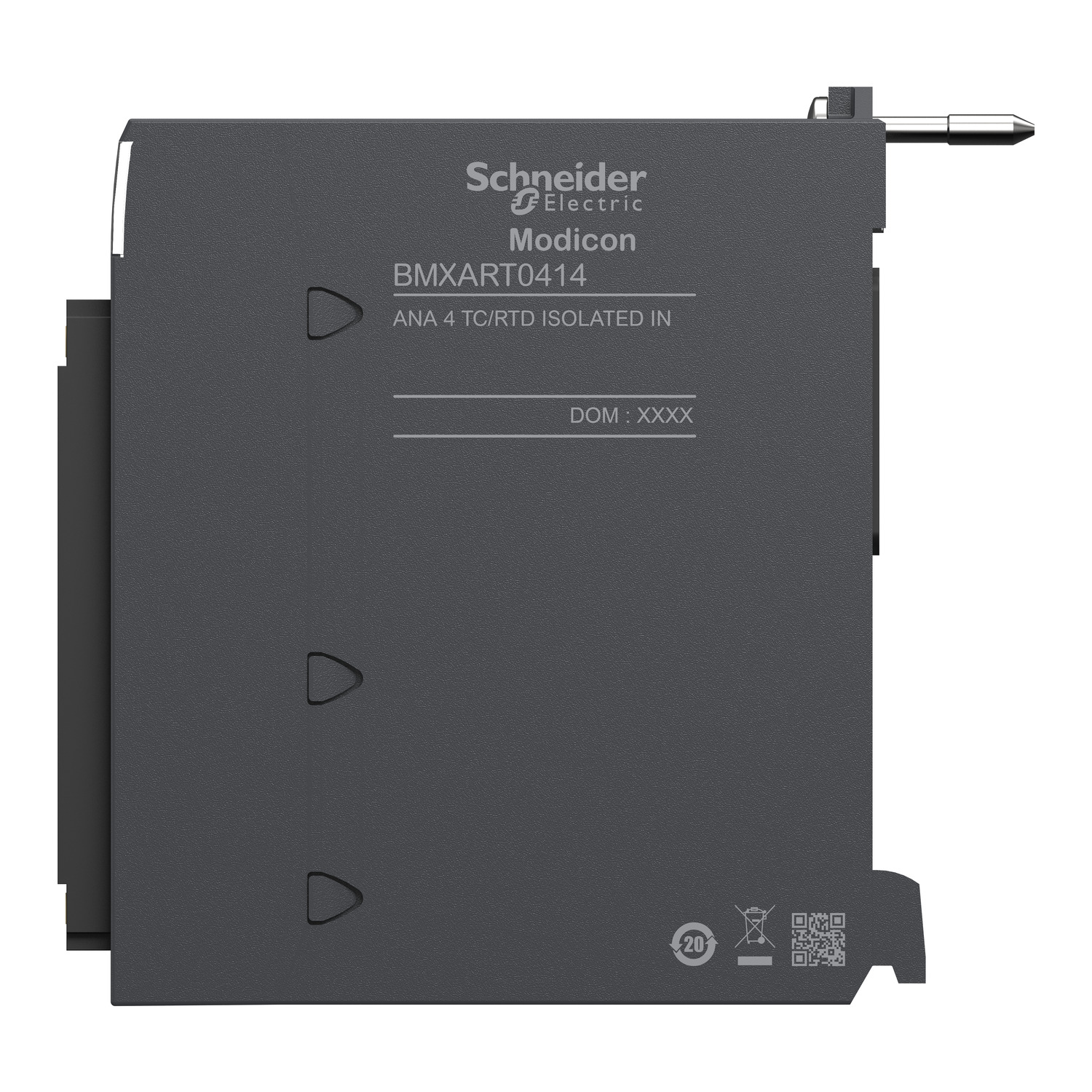

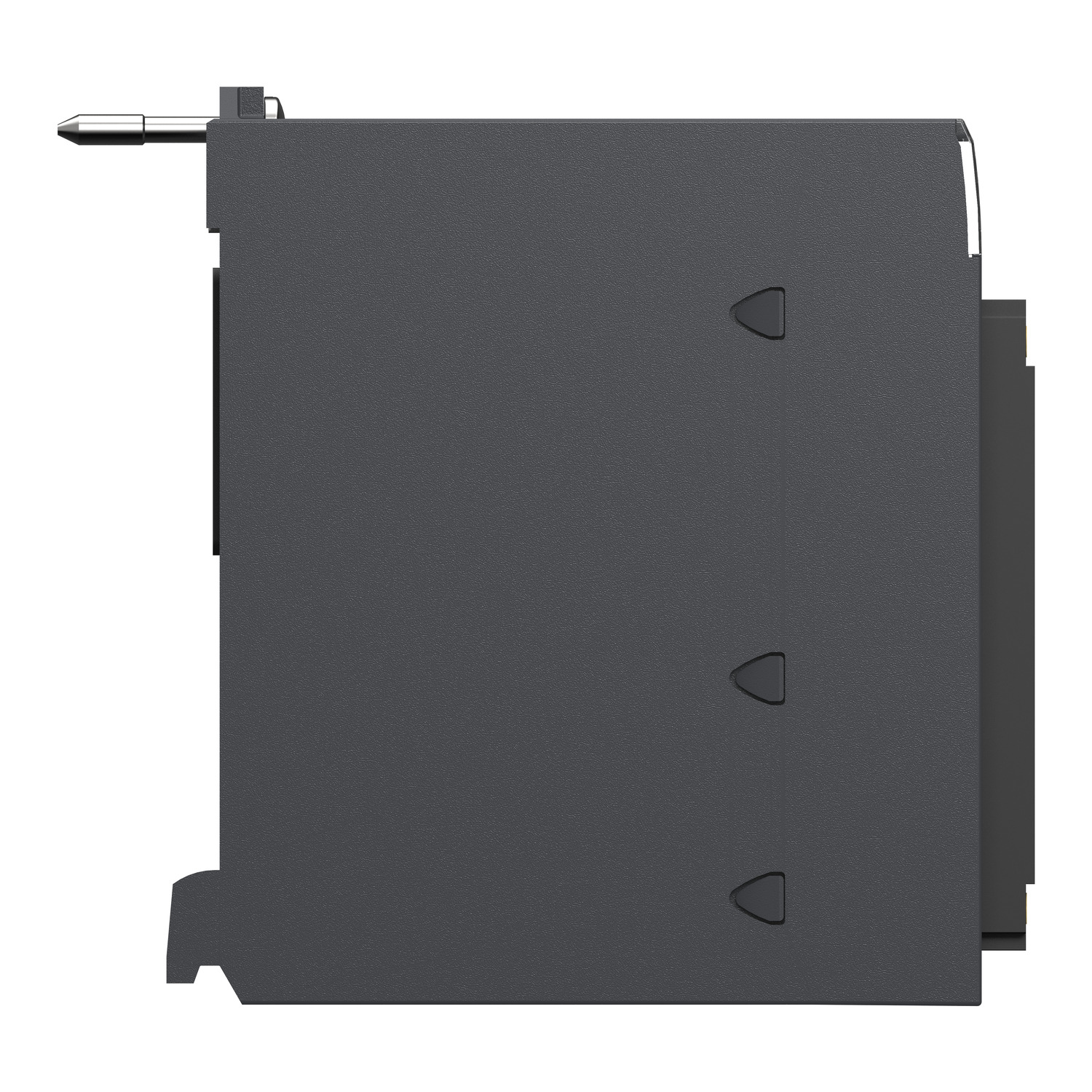

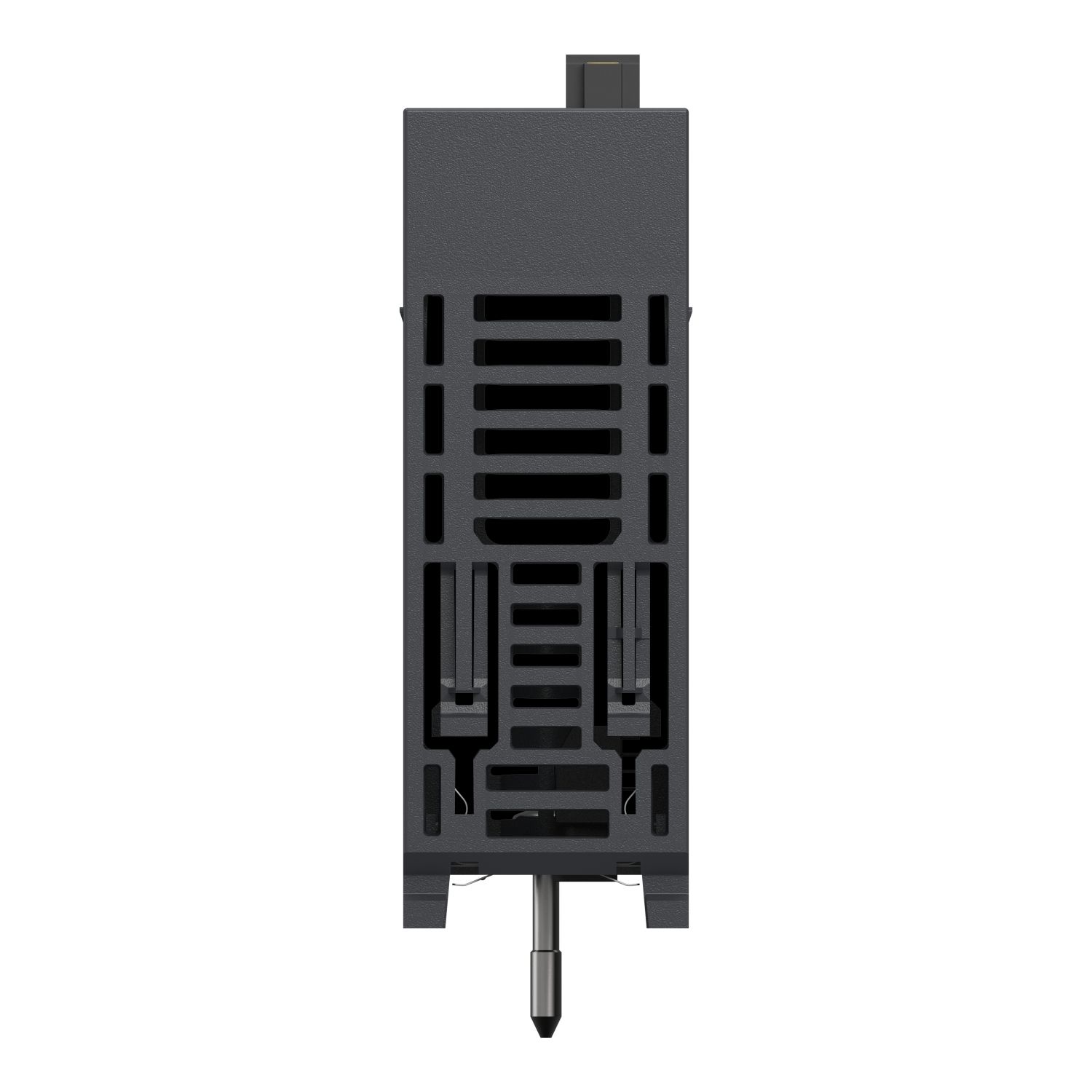

This analog input module is part of the Modicon X80 modules. It has 4 isolated low level inputs (15 bits + sign). It offers, voltage, thermocouple, temperature probe or resistor inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | thermocouple -50...+1769 °C thermocouple S, thermocouple -50...+1769 °C thermocouple R, thermocouple -270...+400 °C thermocouple T, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+1000 °C thermocouple E, thermocouple -200...+900 °C thermocouple L, thermocouple -200...+760 °C thermocouple J, thermocouple -200...+600 °C thermocouple U, thermocouple +270...+1300 °C thermocouple N, thermocouple +130...+1820 °C thermocouple B, temperature probe -60...+180 °C Ni 1000, temperature probe -60...+180 °C Ni 100, temperature probe -200...+850 °C Pt 1000 conforming to IEC, temperature probe -200...+850 °C Pt 100 conforming to IEC, temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS, temperature probe -100...+450 °C Pt 100 conforming to UL/JIS, temperature probe -100...+260 °C Cu 10, resistor 4000 Ohm 4 wires, resistor 4000 Ohm 3 wires, resistor 4000 Ohm 2 wires, resistor 400 Ohm 4 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 2 wires, voltage +/- 80 mV, voltage +/- 640 mV, voltage +/- 40 mV, voltage +/- 320 mV, voltage +/- 160 mV, voltage +/- 1.28 V |
| Analogue input number | 4 |
| Input output isolation | isolated |
| Electrical connection | 40 ways 1 connector |
| Input level | low level |
| Product or component type | analog input module |
| Range of product | Modicon X80 |
| Complementary | |
| Permitted overload on inputs | +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 1.28 V |
| Measurement resolution | 80/2exp14 mV +/- 80 mV, 640/2exp14 mV +/- 640 mV, 125 mOhm 4000 Ohm, 12.5 mOhm 400 Ohm, 40/2exp14 mV +/- 40 mV, 320/2exp14 mV +/- 320 mV, 160/2exp14 mV +/- 160 mV, 1280/2exp14 mV +/- 1.28 V, 0.1 °C thermocouple U, 0.1 °C thermocouple T, 0.1 °C thermocouple S, 0.1 °C thermocouple R, 0.1 °C thermocouple N, 0.1 °C thermocouple L, 0.1 °C thermocouple K, 0.1 °C thermocouple J, 0.1 °C thermocouple E, 0.1 °C thermocouple B, 0.1 °C Pt 1000, 0.1 °C Pt 100, 0.1 °C Ni 1000, 0.1 °C Ni 100, 0.1 °C Cu 10 |
| Analog/digital conversion | sigma delta 16 bits |
| Common mode rejection | 120 dB 50/60 Hz |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Maximum wiring resistance | 500 Ohm 4 wires Pt 1000, 500 Ohm 4 wires Ni 1000, 50 Ohm 4 wires Pt 100, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Cu 10, 200 Ohm 3 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 2 wires Ni 1000, 20 Ohm 3 wires Pt 100, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Cu 10, 20 Ohm 2 wires Pt 100, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Cu 10 |
| Detection type | open circuit thermocouple U, open circuit thermocouple T, open circuit thermocouple S, open circuit thermocouple R, open circuit thermocouple N, open circuit thermocouple L, open circuit thermocouple K, open circuit thermocouple J, open circuit thermocouple E, open circuit thermocouple B, open circuit Pt 1000, open circuit Pt 100, open circuit Ni 1000, open circuit Ni 100, open circuit Cu 10 |
| Nominal read cycle time | 200 ms with thermocouple, 400 ms with temperature probe |
| Differential mode rejection | 60 dB 50/60 Hz |
| Isolation voltage | 750 V DC between channels and ground, 750 V DC between channels, 1400 V DC between channels and bus |
| Net weight | 0.135 kg |
| Analogue input resolution | 15 bits + sign |
| Current consumption | 40 mA at 24 V DC, 150 mA at 3.3 V DC |
| Cold junction compensation | external by Pt100 probe |
| Recalibration | internal |
| Temperature drift | 30 ppm/°C Pt 1000, 30 ppm/°C Pt 100, 30 ppm/°C Ni 100, 30 ppm/°C Cu 10, 30 ppm/°C +/- 80 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 1.28 V, 25 ppm/°C thermocouple U, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple B, 25 ppm/°C Ni 1000, 25 ppm/°C 4000 Ohm, 25 ppm/°C 400 Ohm |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Type of filter | first order digital filtering |
| Maximum conversion value | +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 1.28 V, +/- 100 % 4000 Ohm, +/- 100 % 400 Ohm |
| Measurement error | 0.12 % of full scale 4000 Ohm 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 1.28 V 25 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 0.7 °C Ni 1000 25 °C |
| MTBF reliability | 1400000 H |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Standards | EN 61010-2-201, EN 61000-6-2, EN 61000-6-4, EN 61131-2 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | CE, CSA, Merchant Navy, UL, RCM, EAC |
