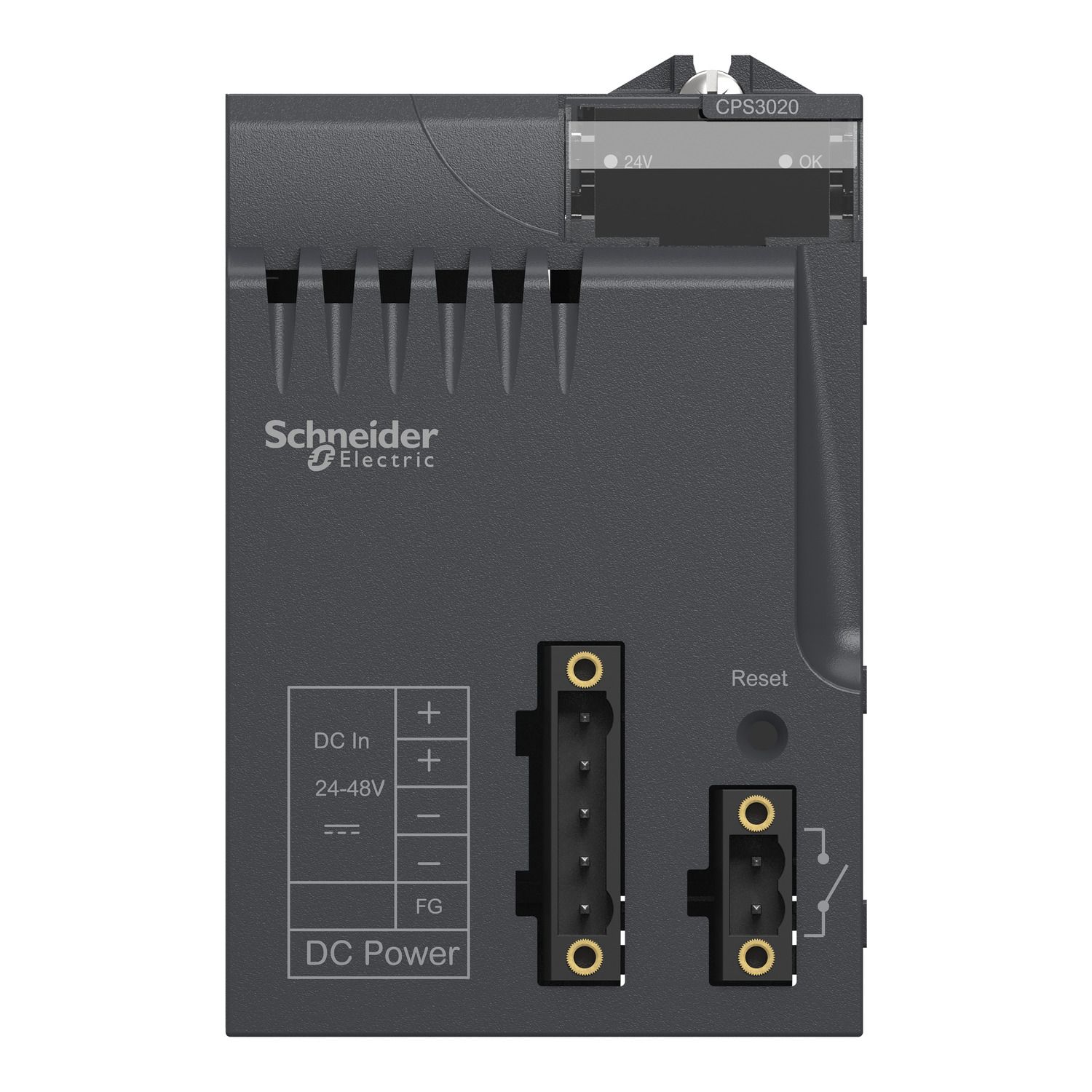

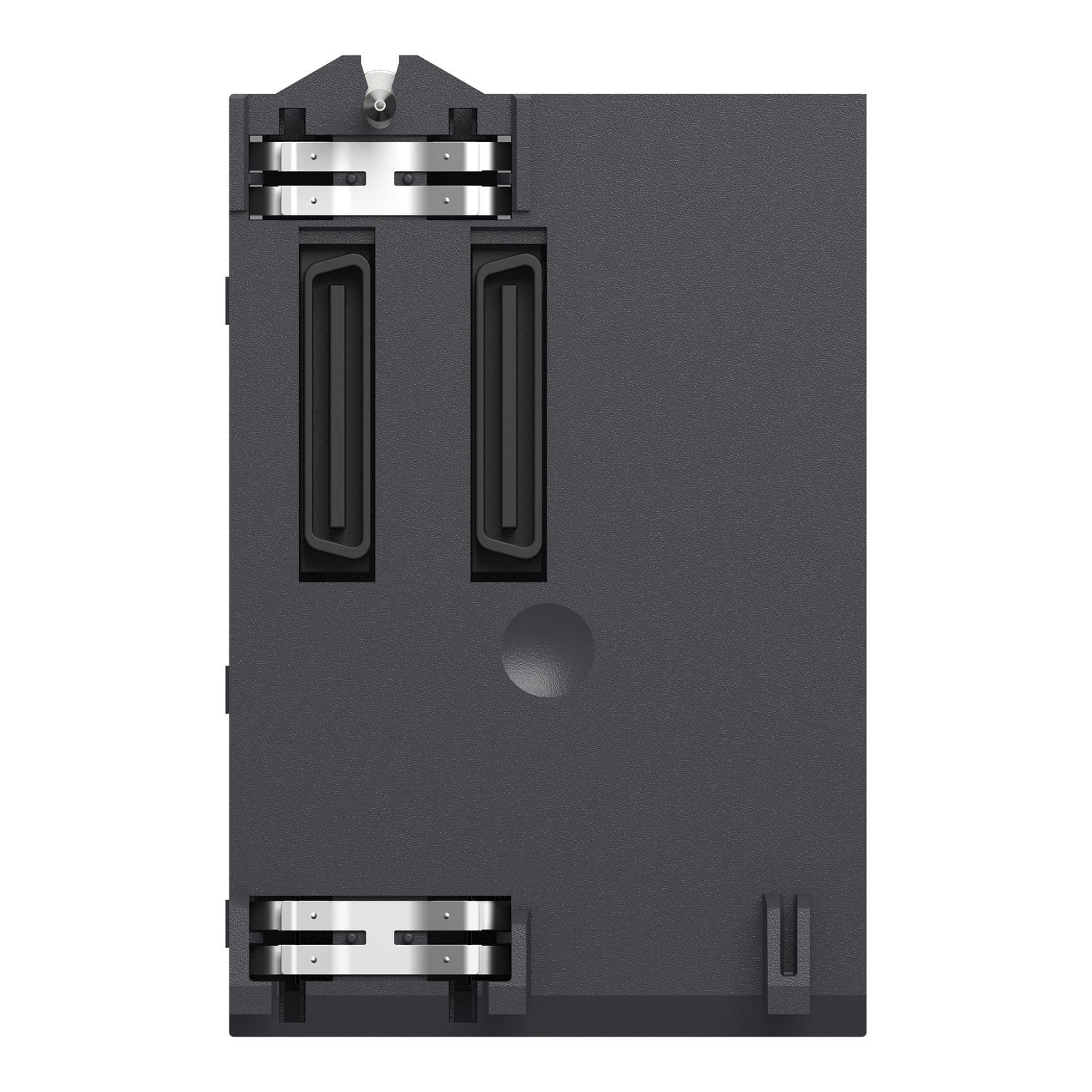

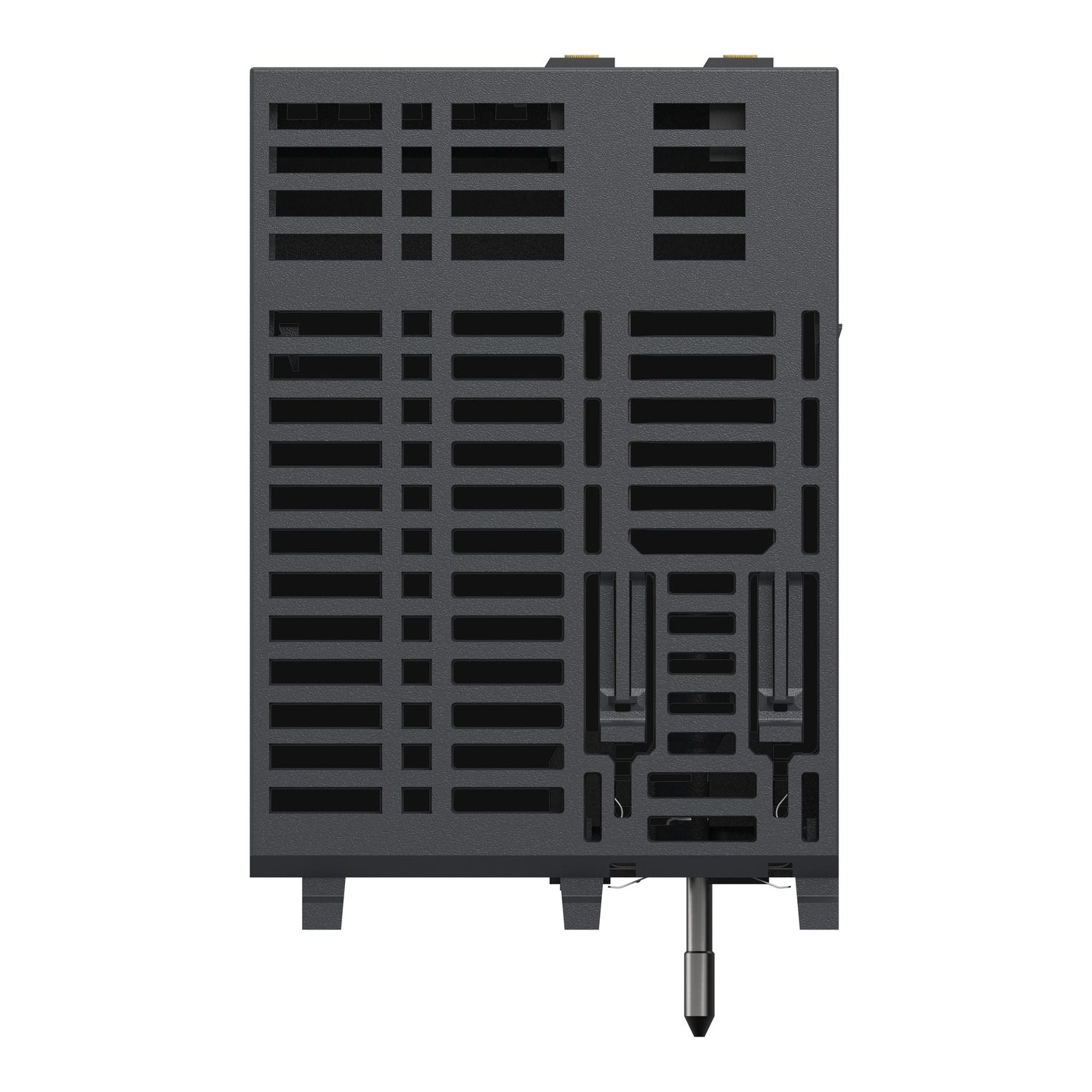

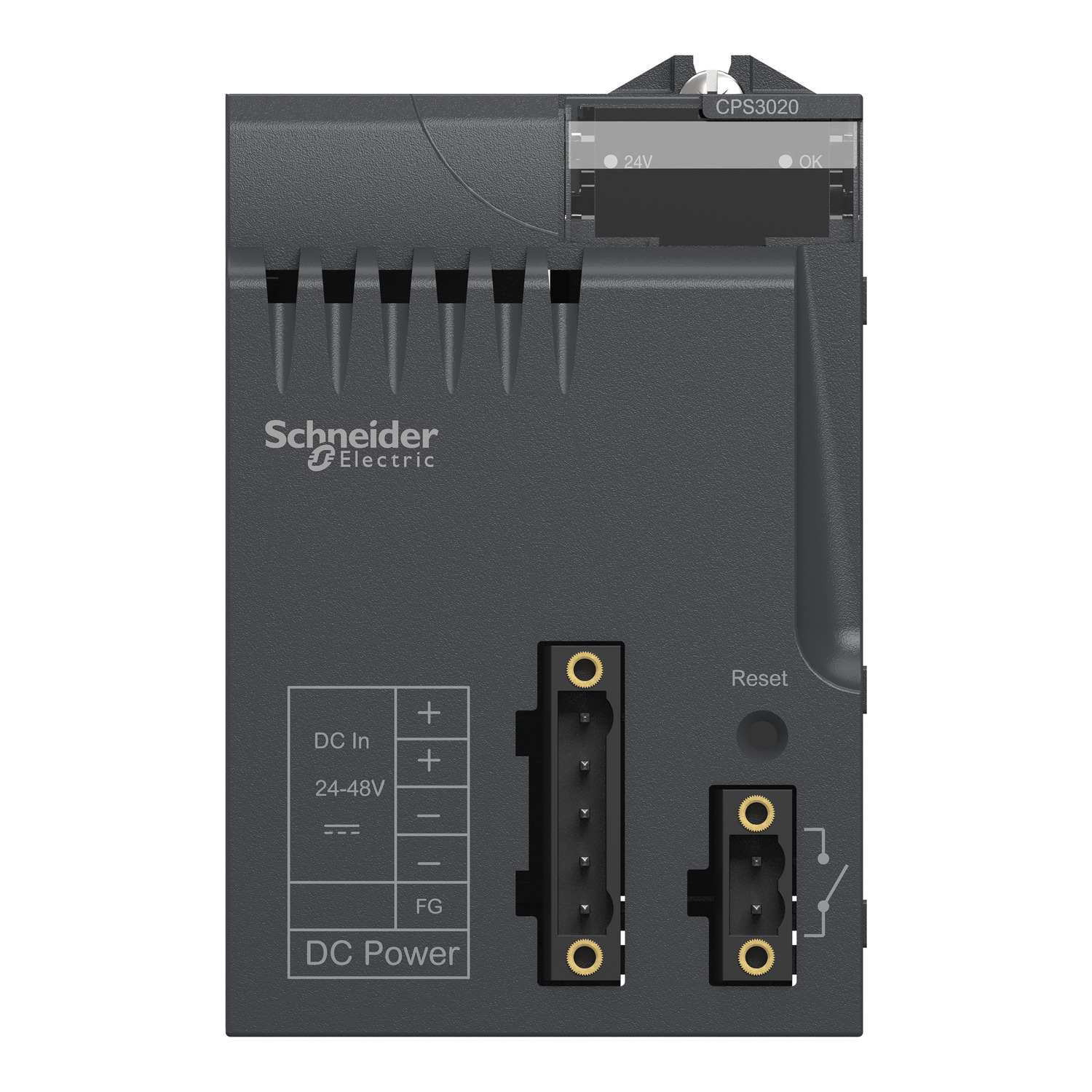

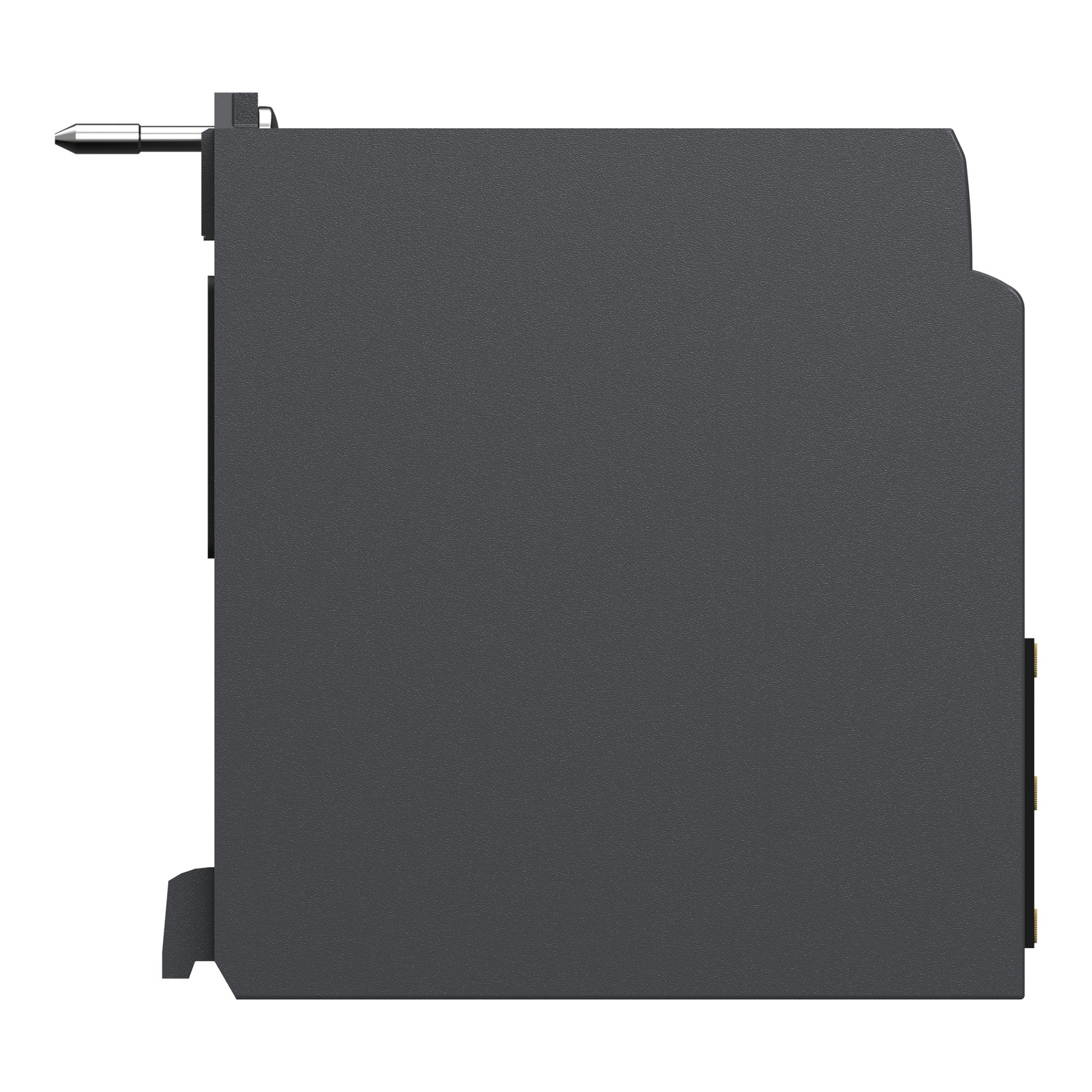

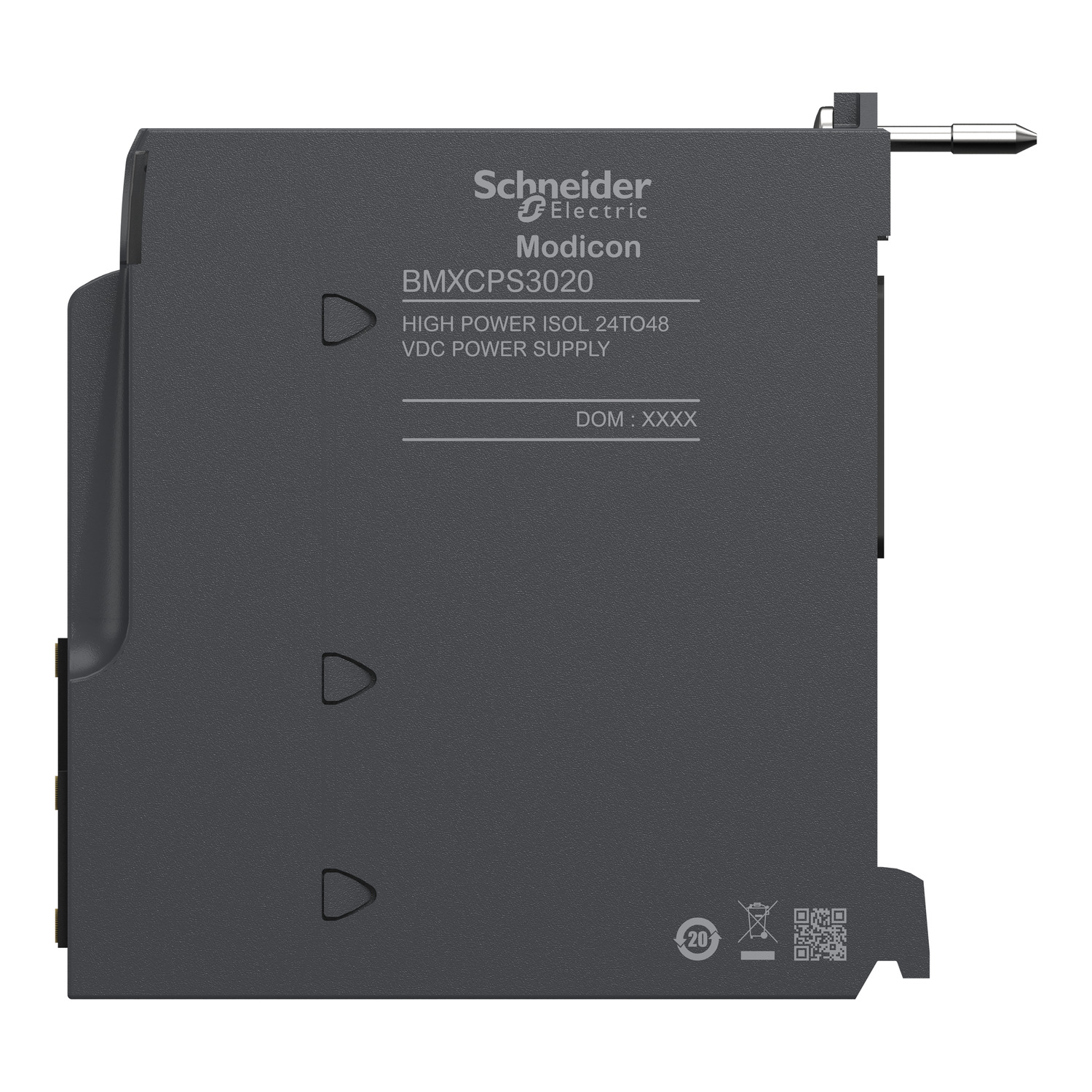

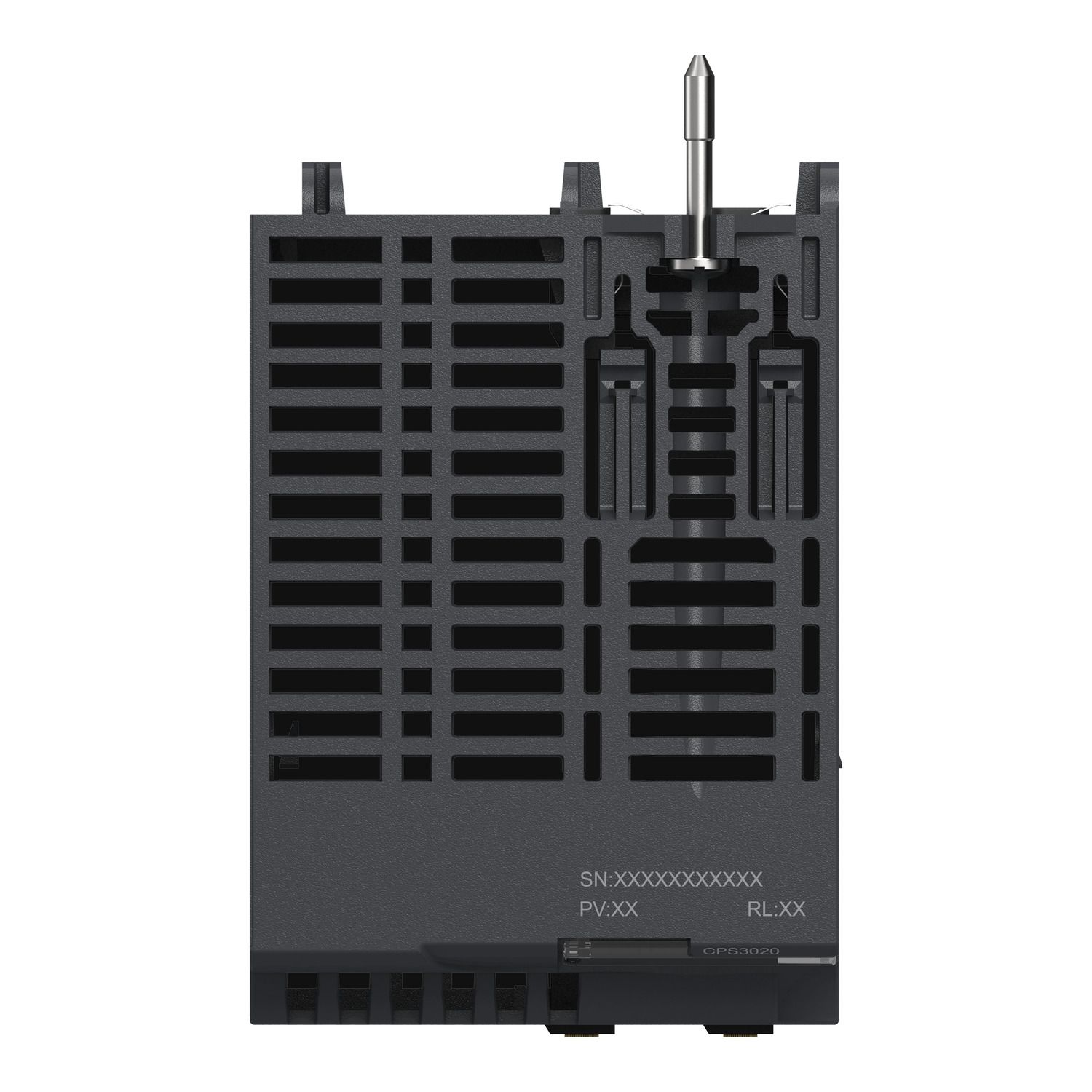

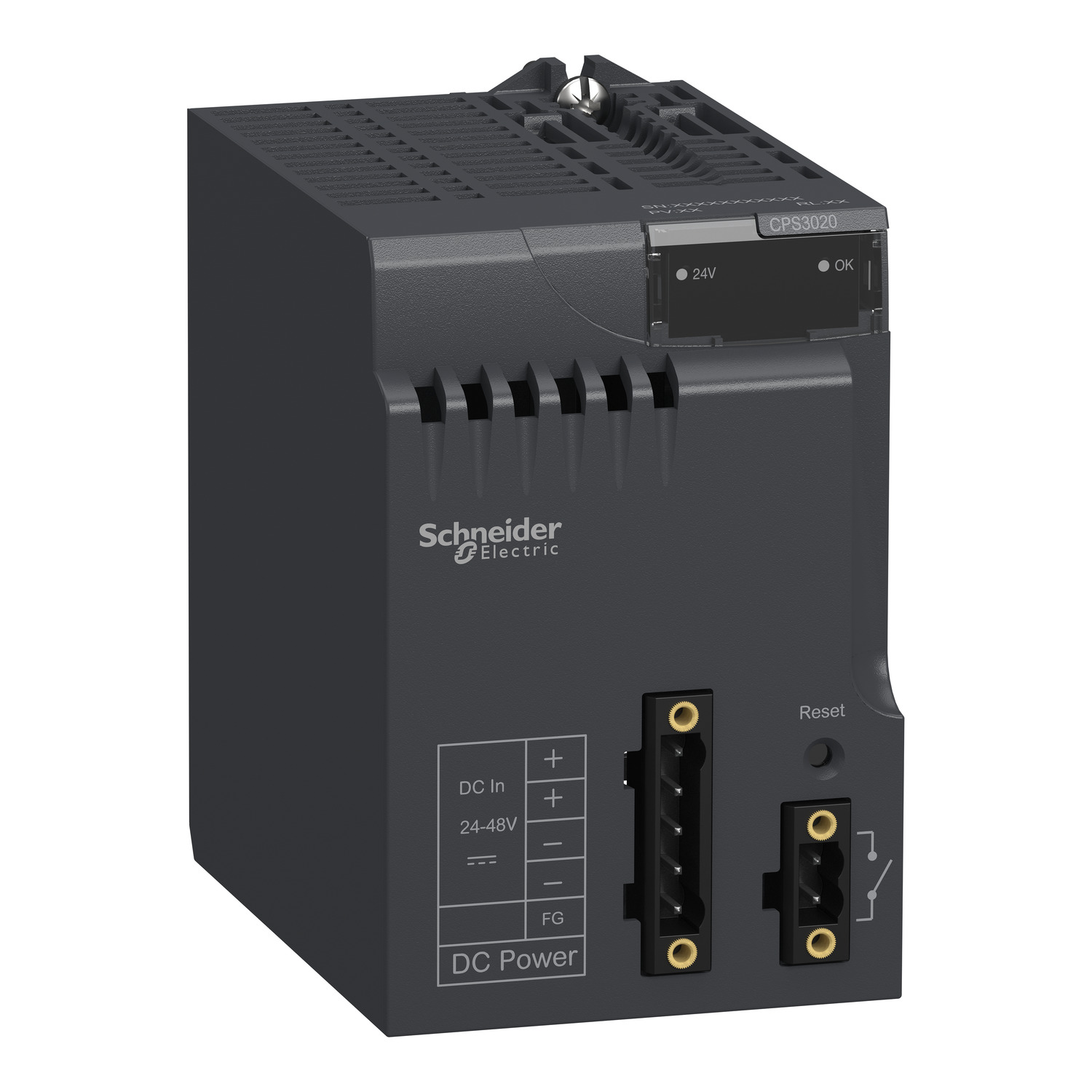

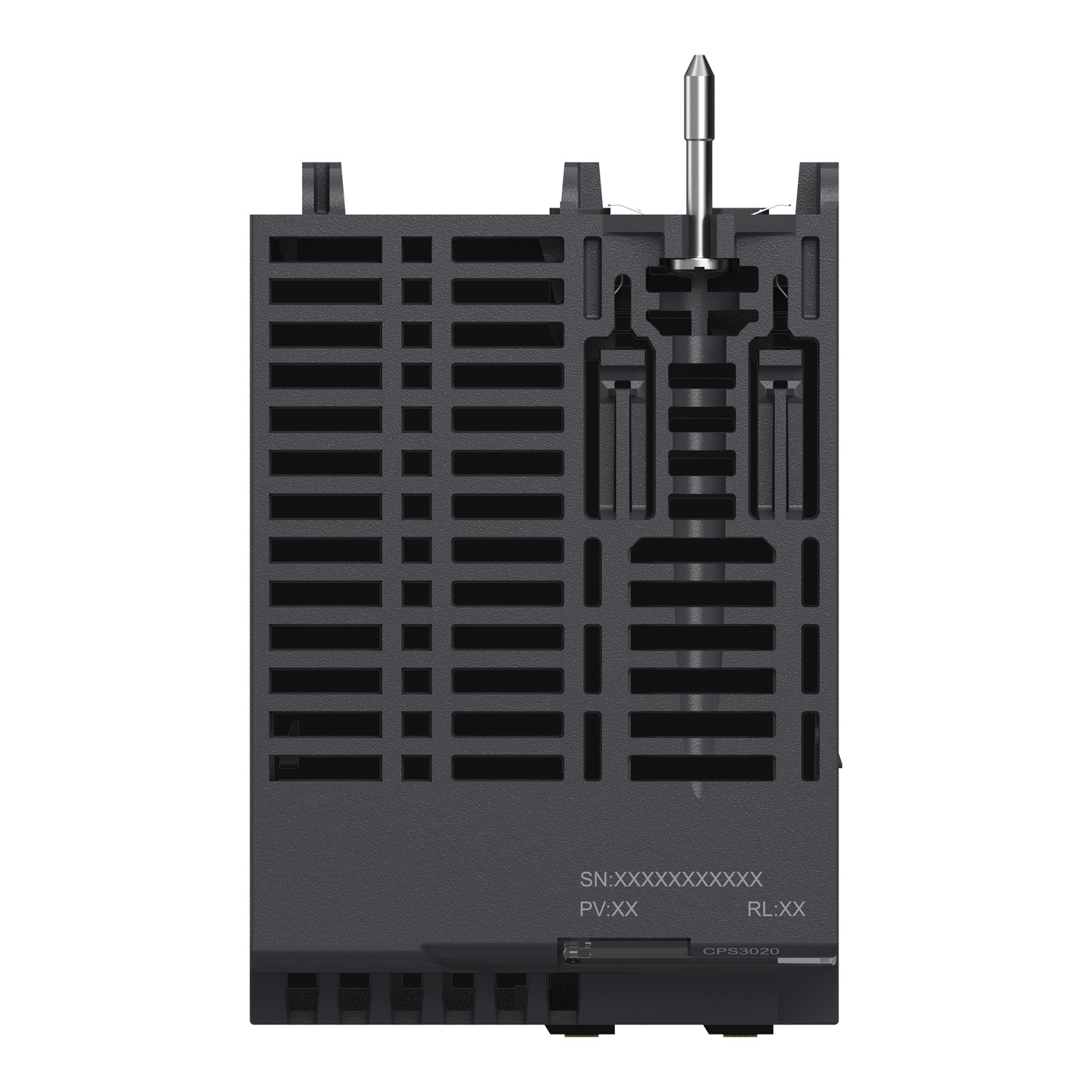

This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | not compatible with BMEXBP..02 |
| Supply circuit type | DC |
| Secondary power | 31.2 W 24 V DC I/O module power supply and processor, 15 W 3.3 V DC I/O module logic power supply |
| Product or component type | power supply module |
| Range of product | Modicon X80 |
| Primary voltage | 24...48 V isolated |
| Complementary | |
| Protection type | short-circuit protection for secondary circuit, 24 V sensor power supply, overvoltage protection for secondary circuit, 24 V sensor power supply, overload protection for secondary circuit, 24 V sensor power supply, internal fuse not accessible for primary circuit |
| Inrush current | 60 A 48 V, 30 A 24 V |
| Electrical connection | 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay |
| Maximum power dissipation in W | 8.5 W |
| Control type | RESET push-button cold restart |
| Net weight | 0.34 kg |
| Insulation resistance | >= 10 MOhm primary/secondary, >= 10 MOhm primary/ground |
| Current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply, 1.3 A 24 V DC I/O module power supply and processor |
| Input current | 1.65 A 24 V, 0.83 A 48 V |
| I²t on activation | 3 A².s 48 V, 1 A².s 24 V |
| Status LED | 1 LED (green) rack voltage OK |
| It on activation | 0.3 A.s 48 V, 0.2 A.s 24 V |
| Primary voltage limit | 18...62.4 V |
| Maximum cable distance between devices | 15 m power supply cable copper 2.5 mm², 10 m power supply cable copper 1.5 mm² |
| MTBF reliability | 4600000 H |
| Environment | |
| Dielectric strength | 1500 V primary/secondary, 1500 V primary/ground |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for operation | 0-60 °C |
