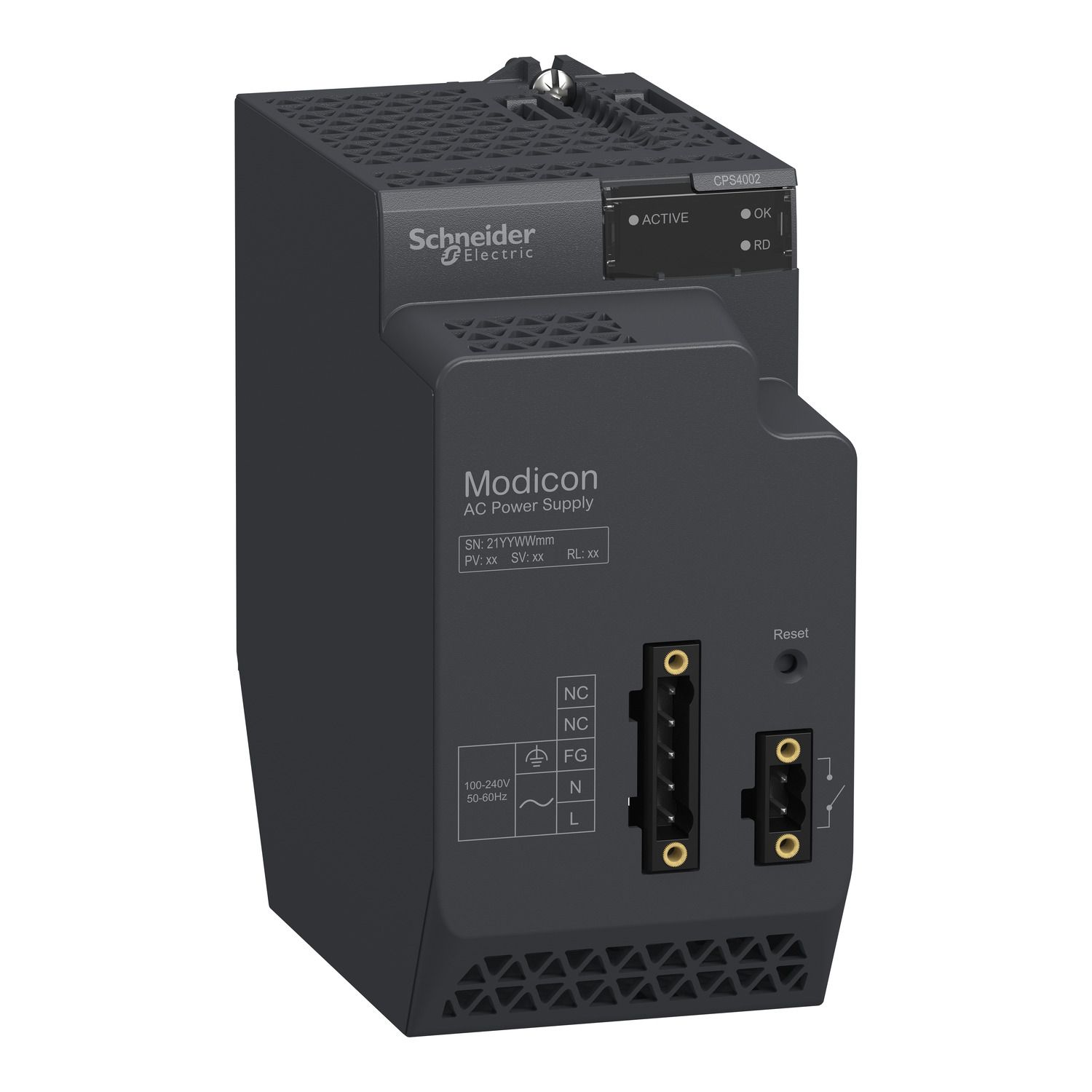

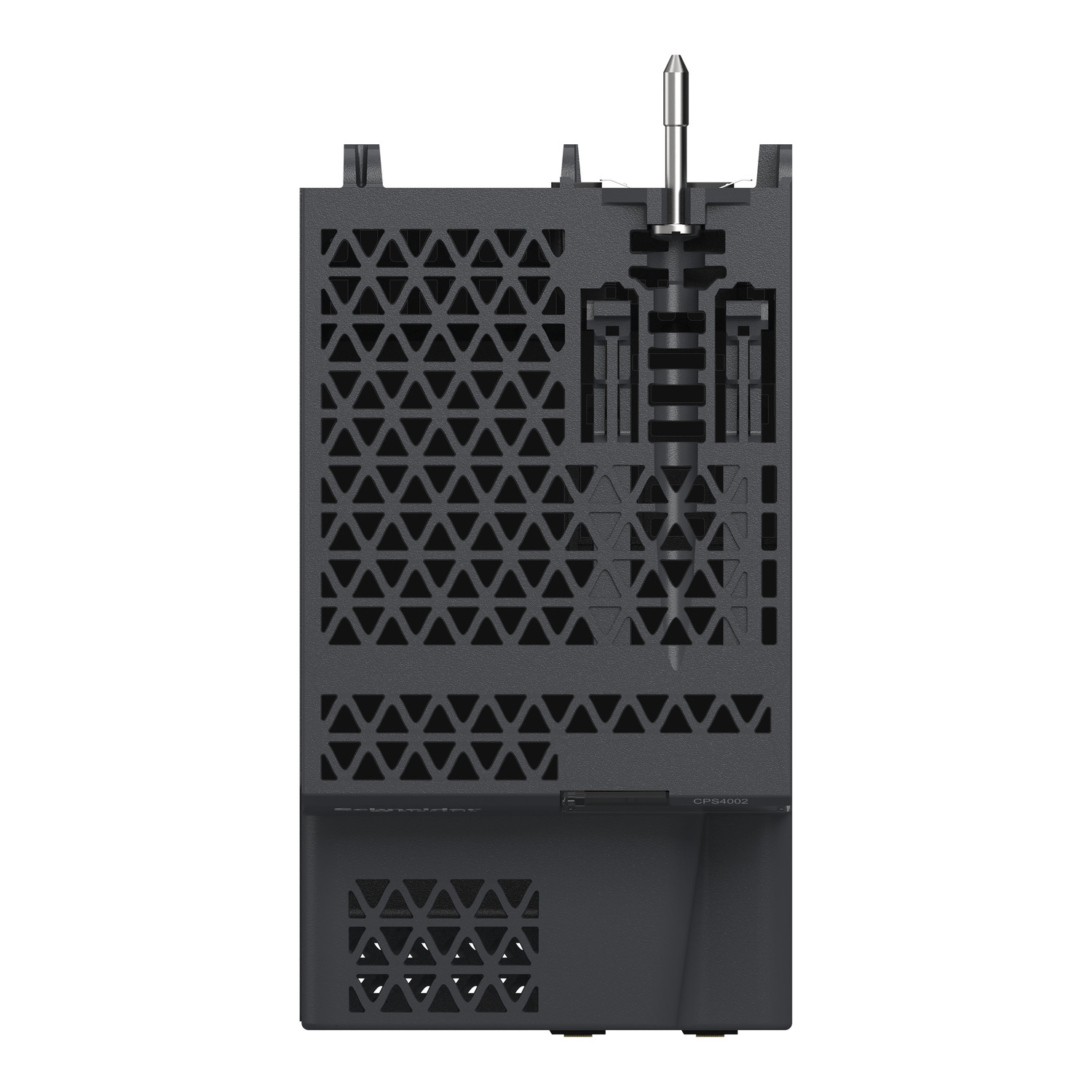

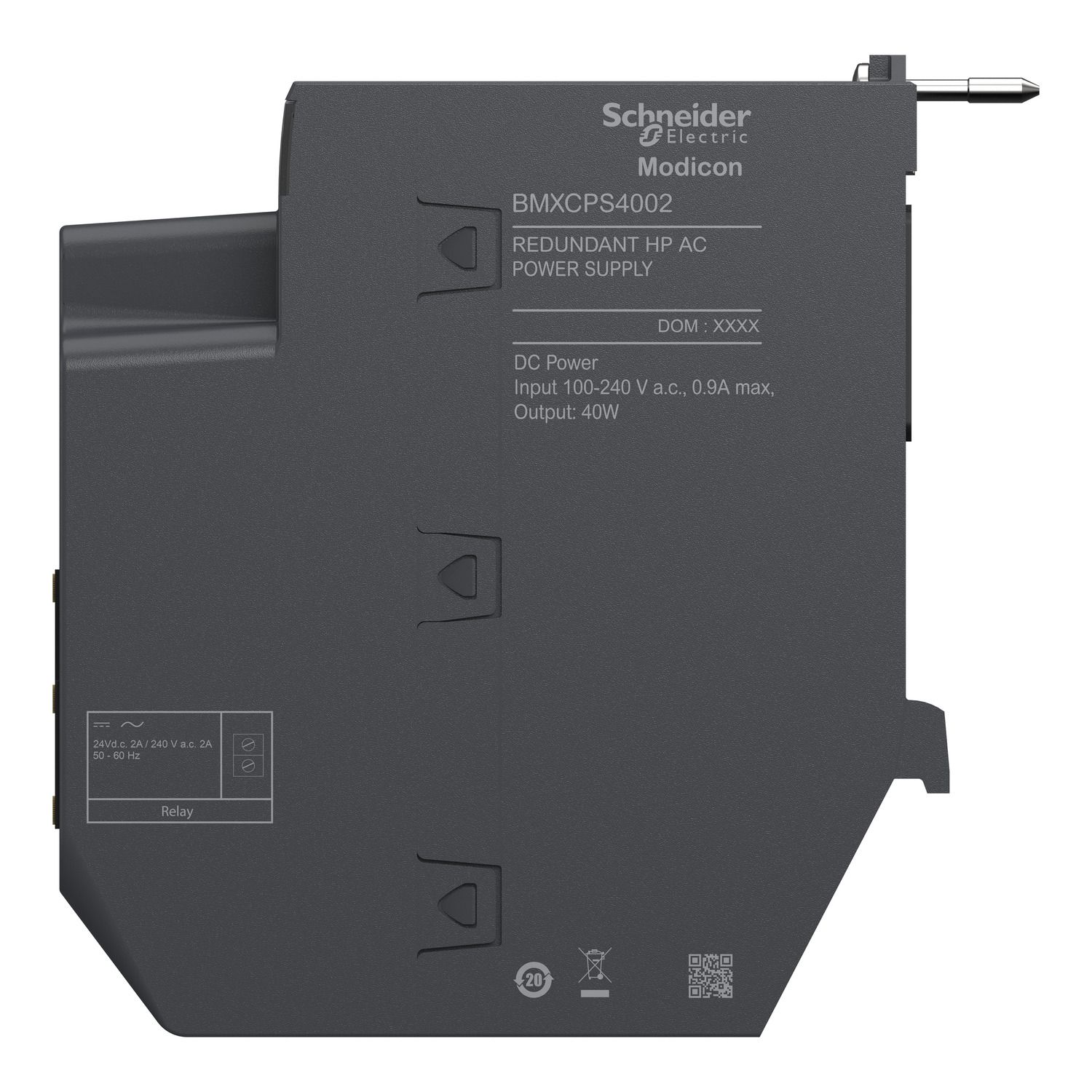

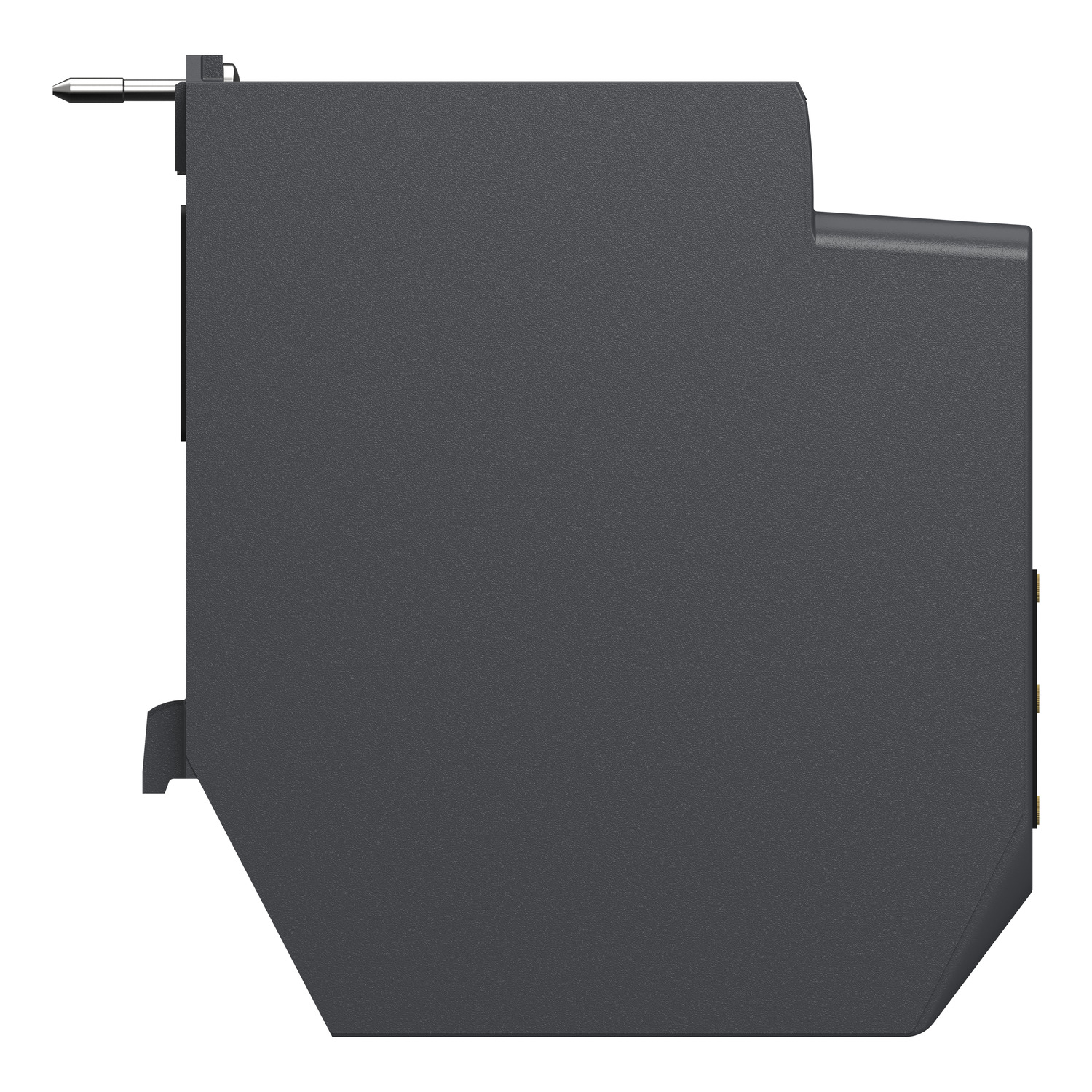

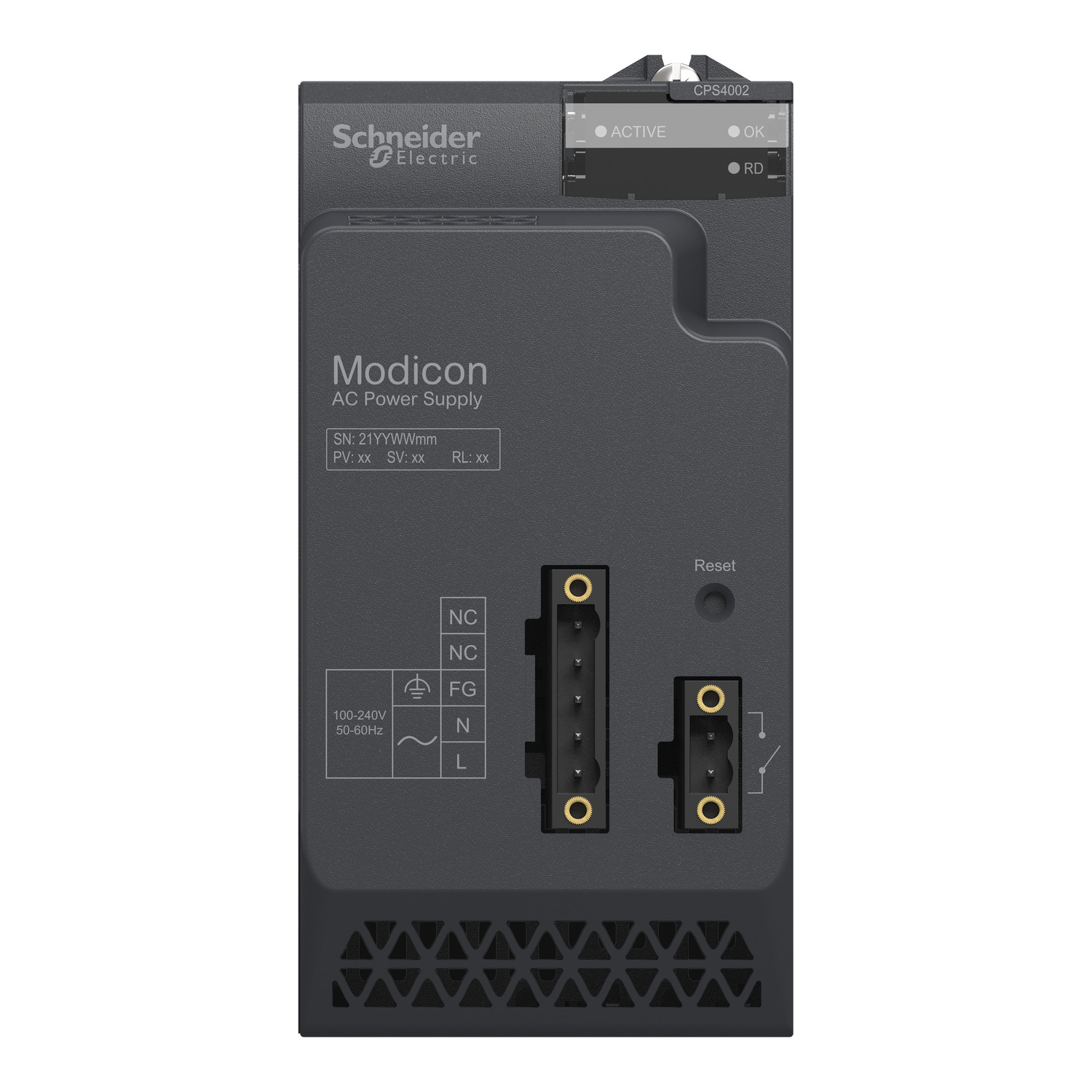

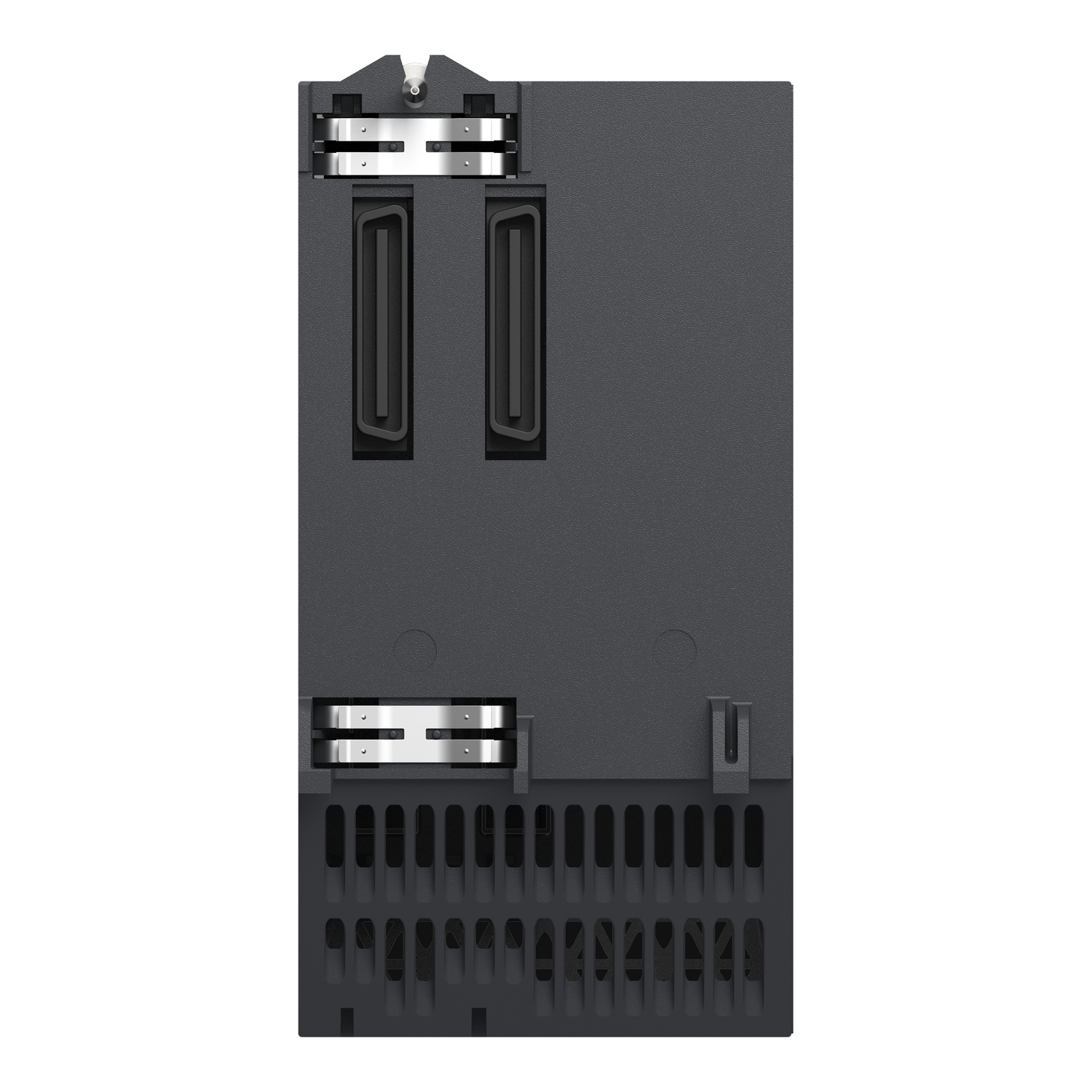

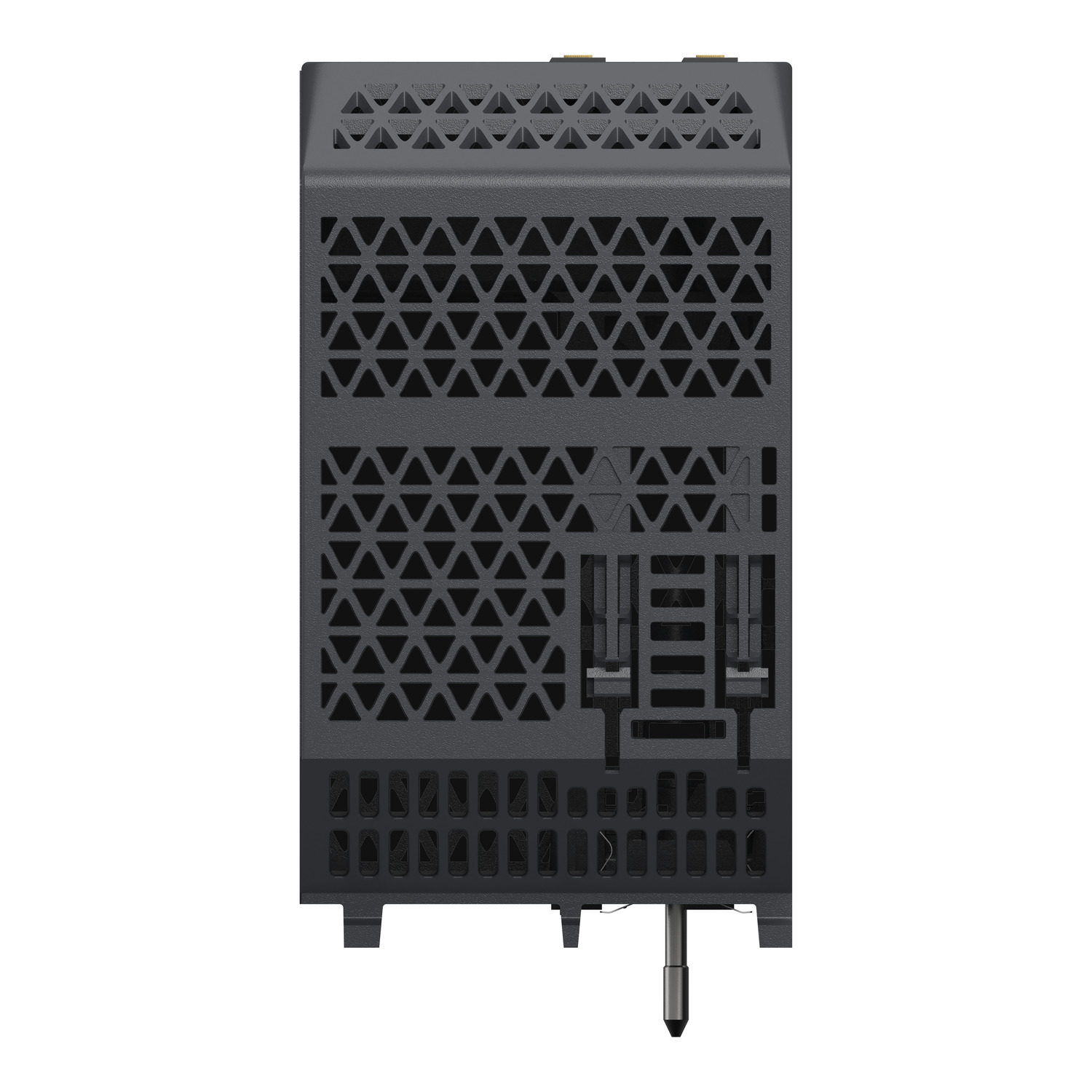

power supply module, Modicon X80, 100 to 240V AC

Manufacturer: Schneider Electric

SKU: BMXCPS4002

GTIN: 3606480927560

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $2,167.00 inc GST

Price: $2,865.86 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Product compatibility	all backplane
Supply circuit type	AC
Secondary power	40 W 24 V DC at 0-60 °C I/O module power supply and processor if 3.3 V not loaded, 18 W 3.3 V DC at 0-60 °C I/O module logic power supply
Function available	remaining lifetime, redundancy information, uptime duration, redundancy test, temperature sensing
Product or component type	power supply module
Range of product	Modicon X80
Primary voltage	100...240 V
Complementary
Protection type	short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current	60 A 240 V, 30 A 120 V
Electrical connection	1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay
Apparent power	0.13 kVA
Maximum power dissipation in W	8.5 W
Control type	RESET push-button cold restart
Net weight	0.51 kg
Network frequency limits	47-63 Hz
Insulation resistance	>= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage	1.67 A 24 V DC I/O module power supply and processor, 5.5 A 3.3 V DC I/O module logic power supply
Input current	1.01 A 115 V, 0.55 A 240 V
I²t on activation	4 A².s 230 V, 1 A².s 115 V
Status LED	1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK)
It on activation	0.15 A.s 230 V, 0.1 A.s 115 V
Primary voltage limit	85...264 V
Network frequency	50/60 Hz
MTBF reliability	792000 H
Environment
Dielectric strength	500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply
IP degree of protection	IP20
Protective treatment	conformal coating Humiseal 1A33, TC
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance	3 gn
Environmental characteristic	3C4 conforming to EN/IEC 60721-3-3, 3C3 conforming to EN/IEC 60721-3-3
Shock resistance	30 gn
Immunity to microbreaks	1 ms
Ambient air temperature for operation	0-60 °C
