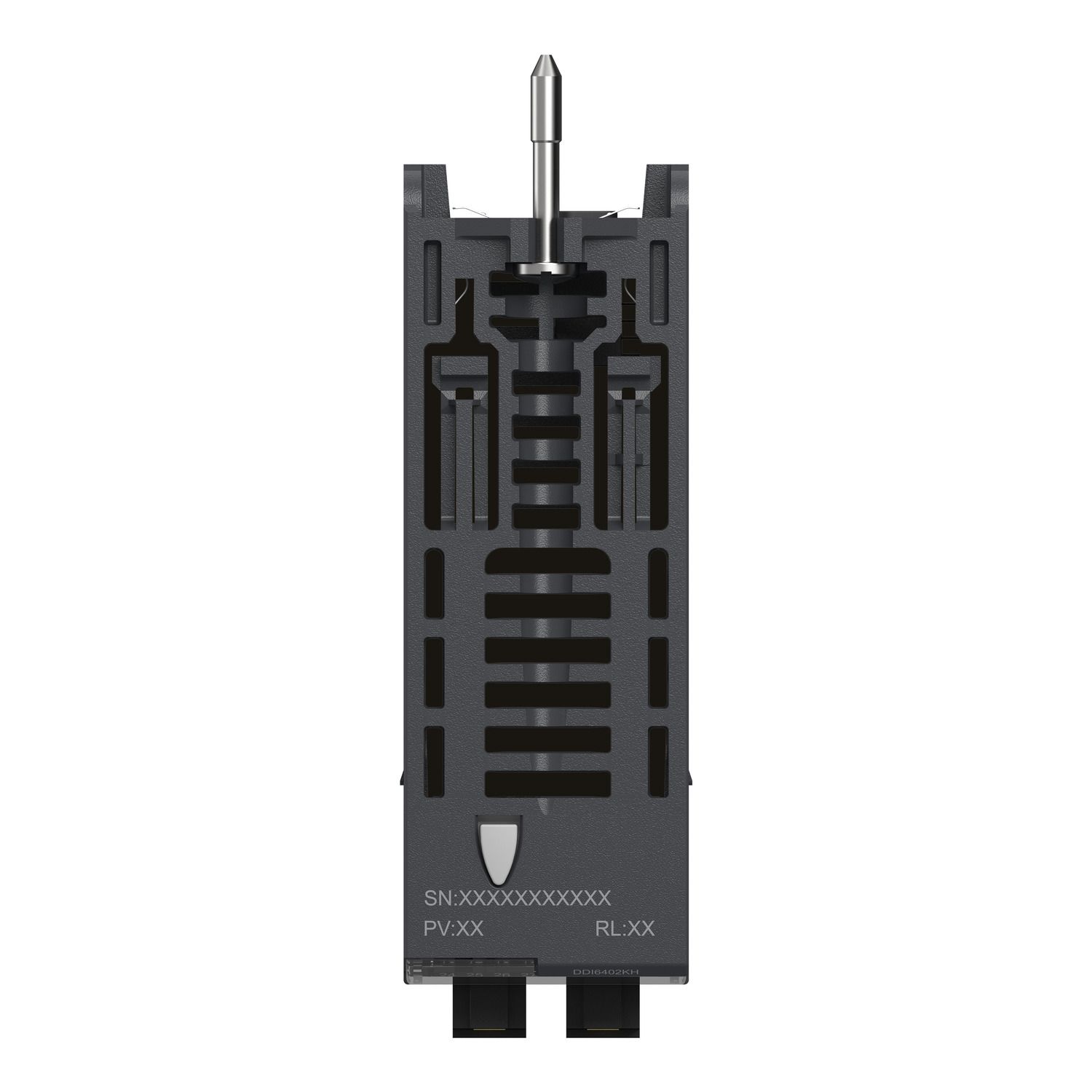

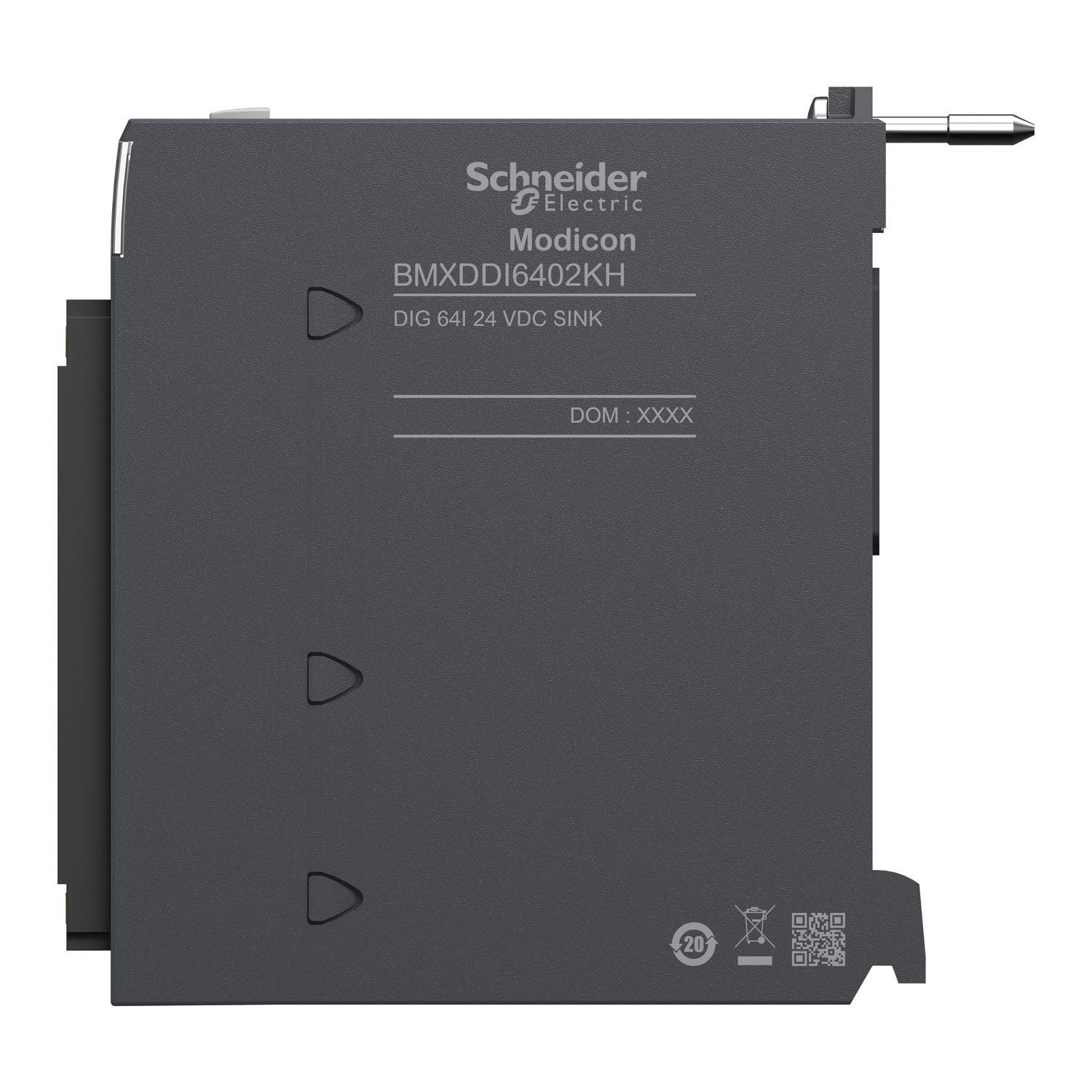

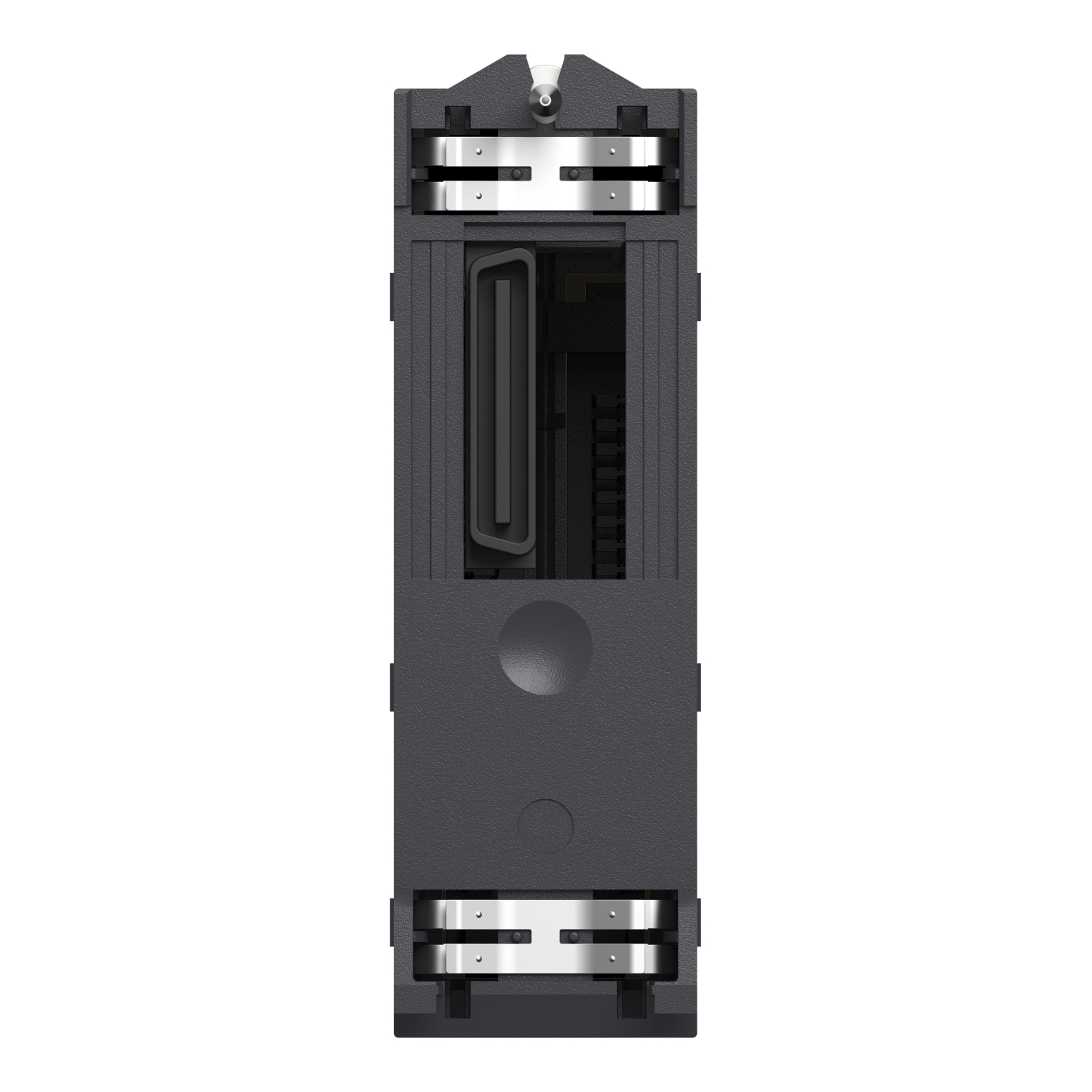

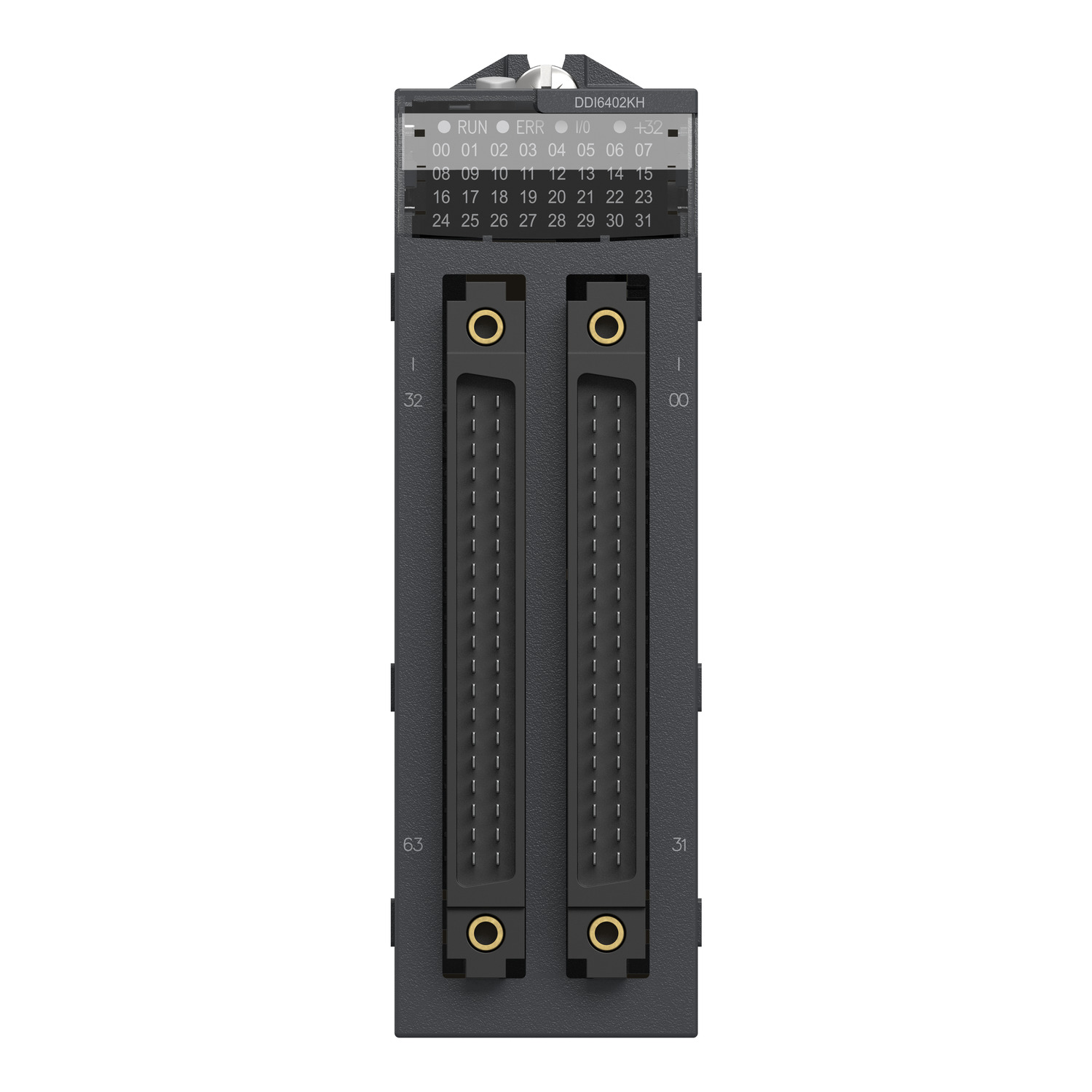

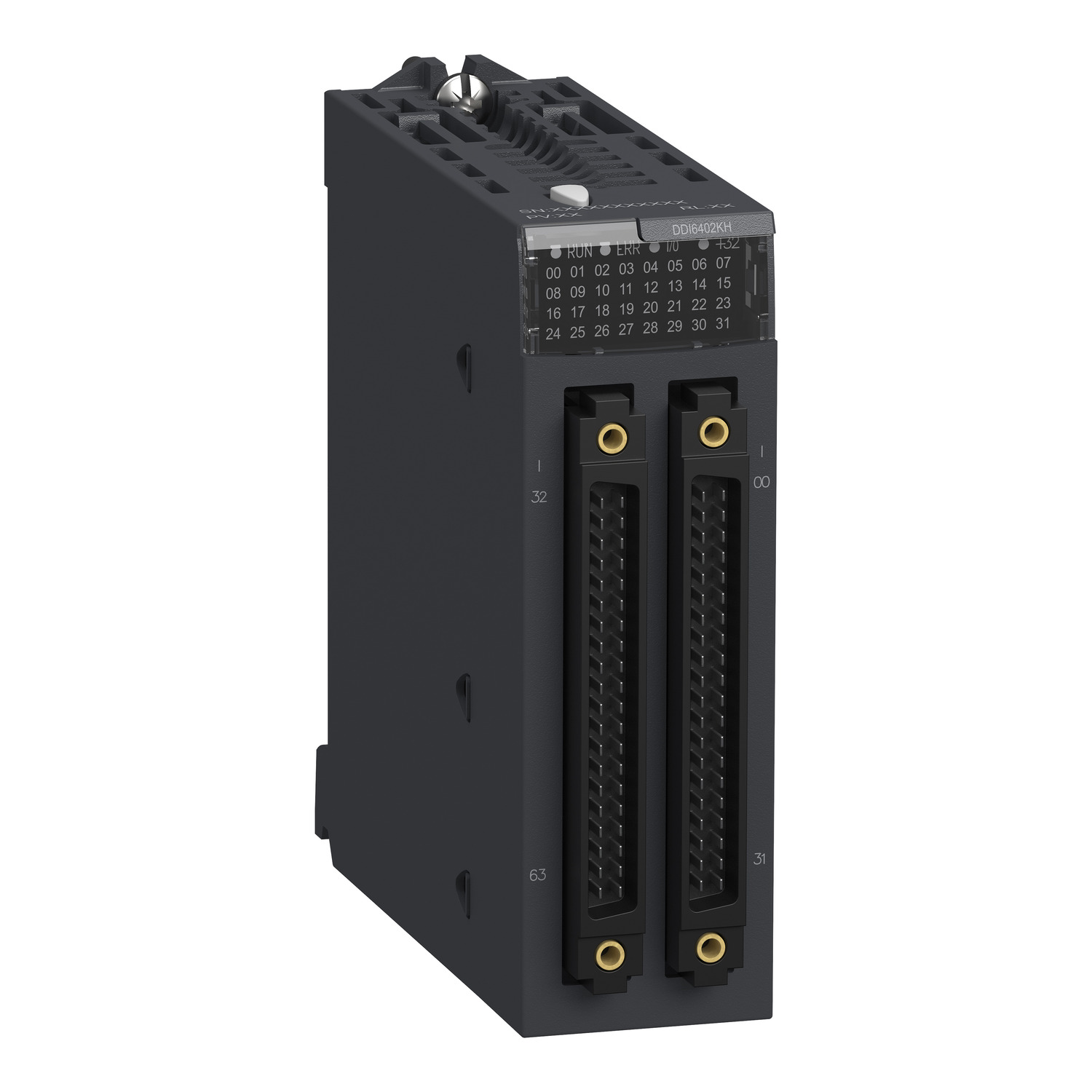

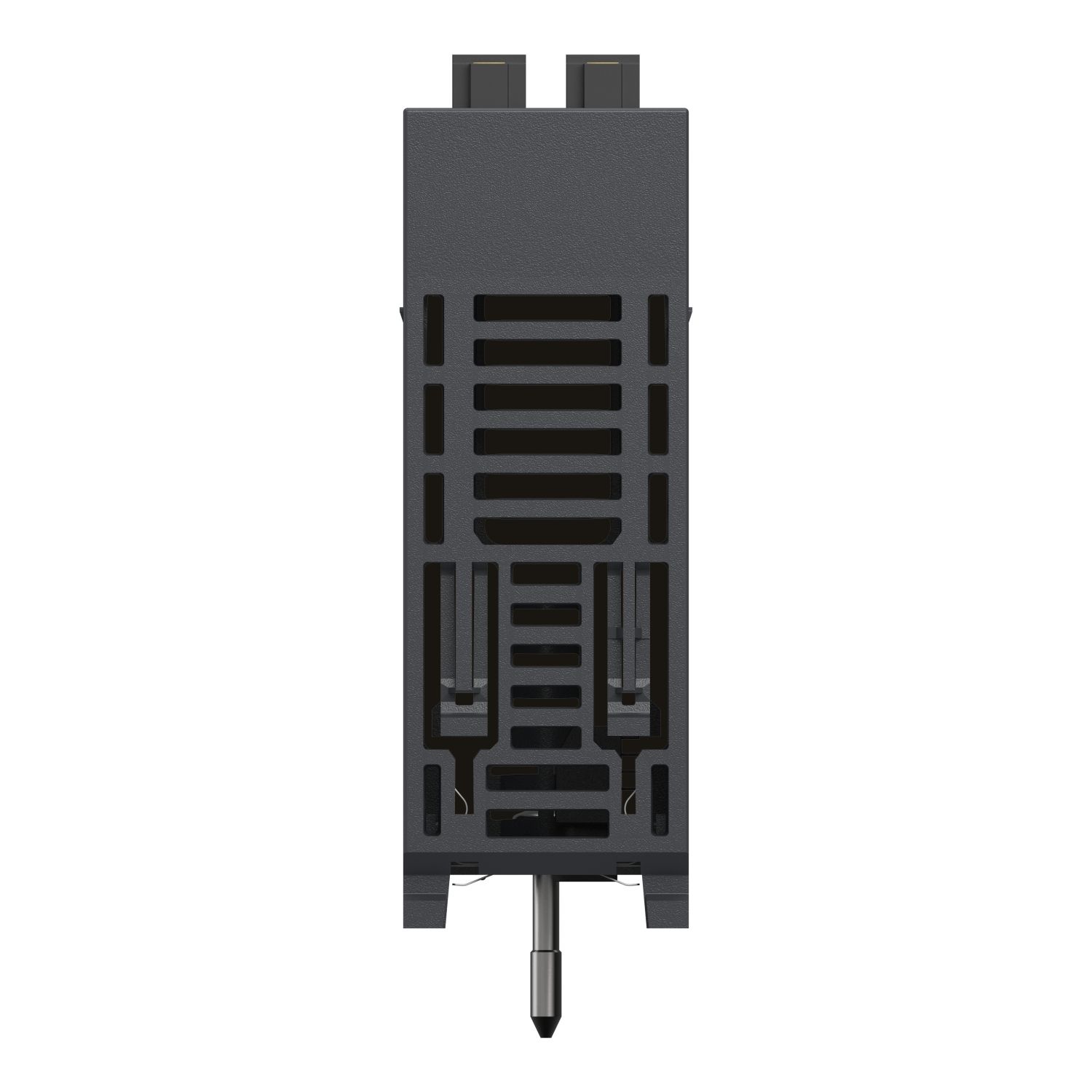

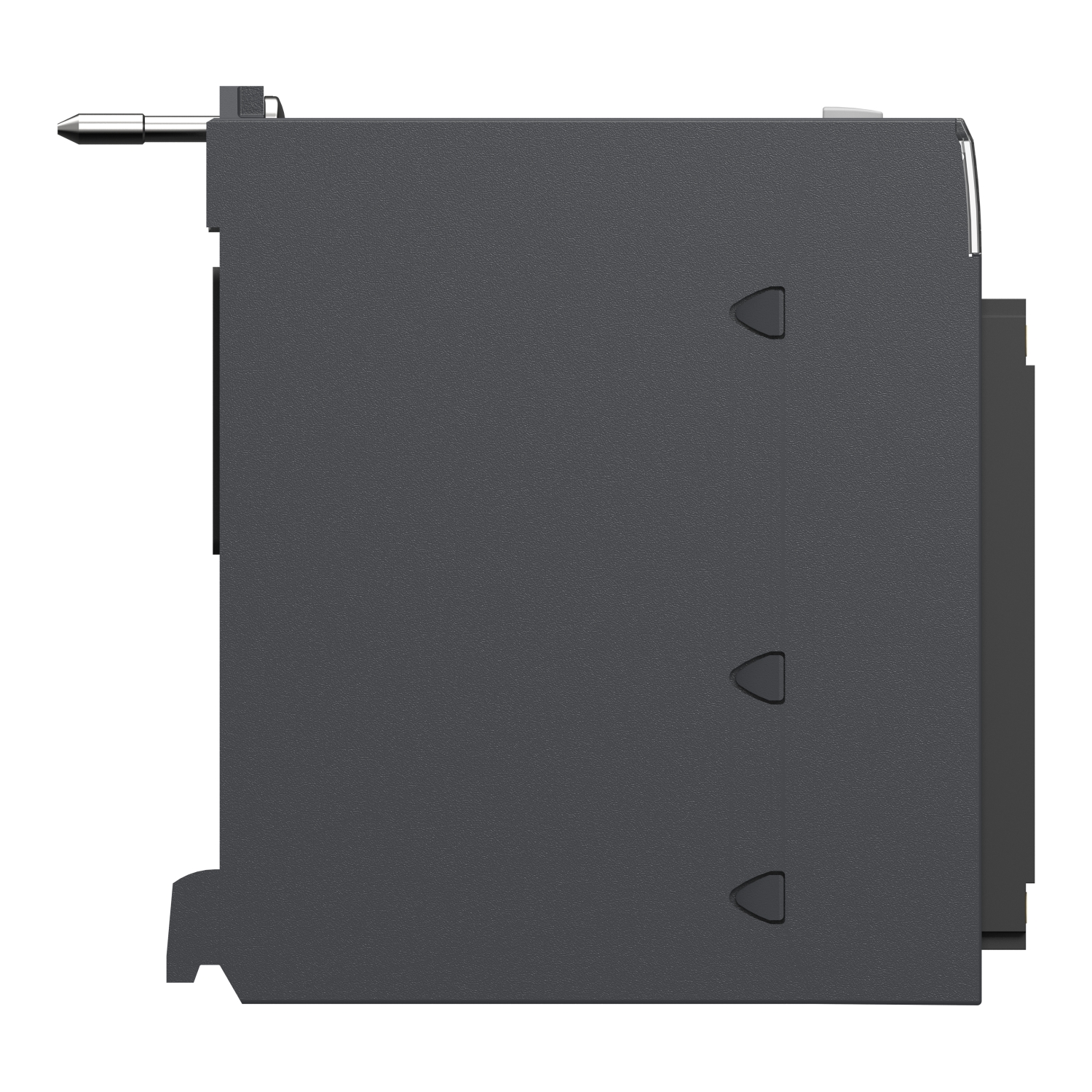

This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 64 input channels and it is supplied with 24V DC (positive). This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 511375 hours of MTBF. This discrete module has a weight of 0.145kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-way connectors. The product must be installed on the rack and fixed with 2 screws.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input current | 0.6 mA |
| Product specific application | for severe environments |
| Discrete input number | 64 |
| Discrete input type | isolated |
| Input type | current sink (logic positive) |
| Product or component type | discrete input module |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Range of product | Modicon X80 |
| Complementary | |
| DC maximum filtering time | 7 ms |
| Input impedance | 40000 Ohm |
| Typical current consumption | 160 mA at 3.3 V DC |
| DC typical filtering time | 4 ms |
| Paralleling of inputs | no |
| Net weight | 0.145 kg |
| Power dissipation in W | 4.3 W |
| Protection type | without reverse polarity protection, 1 external fuse per group of channel0.5 A fast blow |
| Insulation resistance | > 10 MOhm 500 V DC |
| Voltage detection threshold | > 18 V DC sensor OK, < 14 V DC sensor fault |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN), 1 LED (green) +32 channels indicator |
| Voltage range | 19...30 V |
| MTBF reliability | 510000 H |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at -25-70 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | -25-70 °C |
