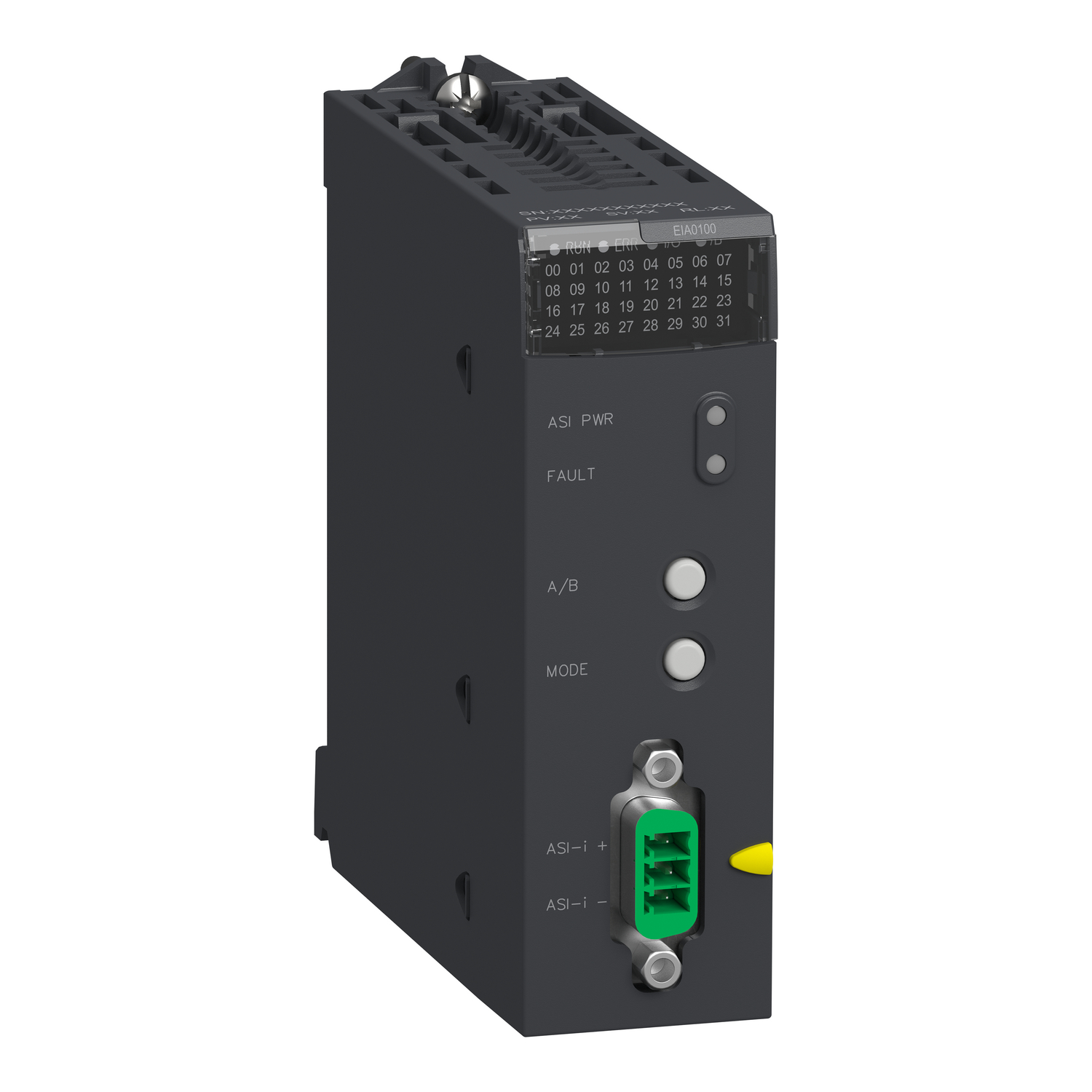

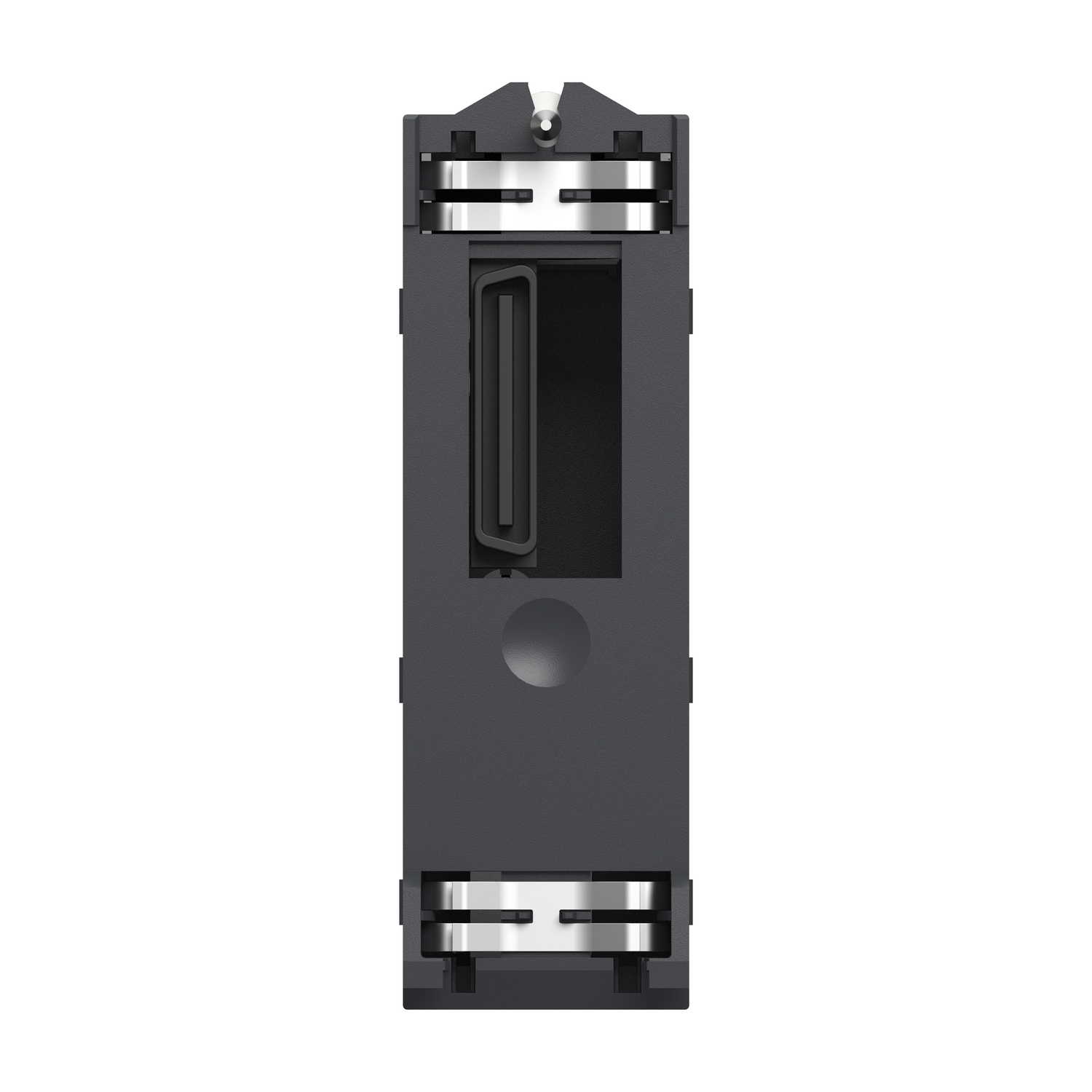

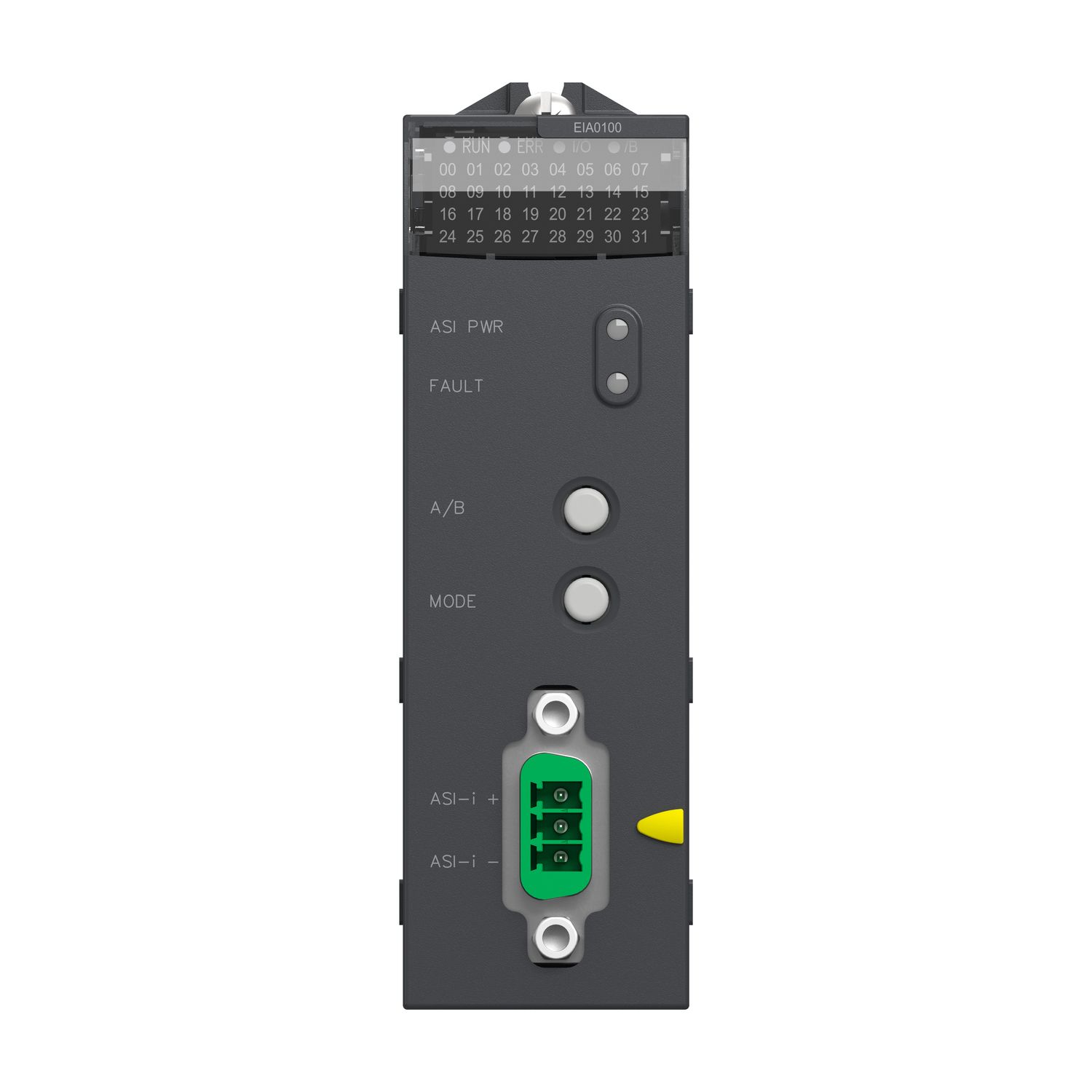

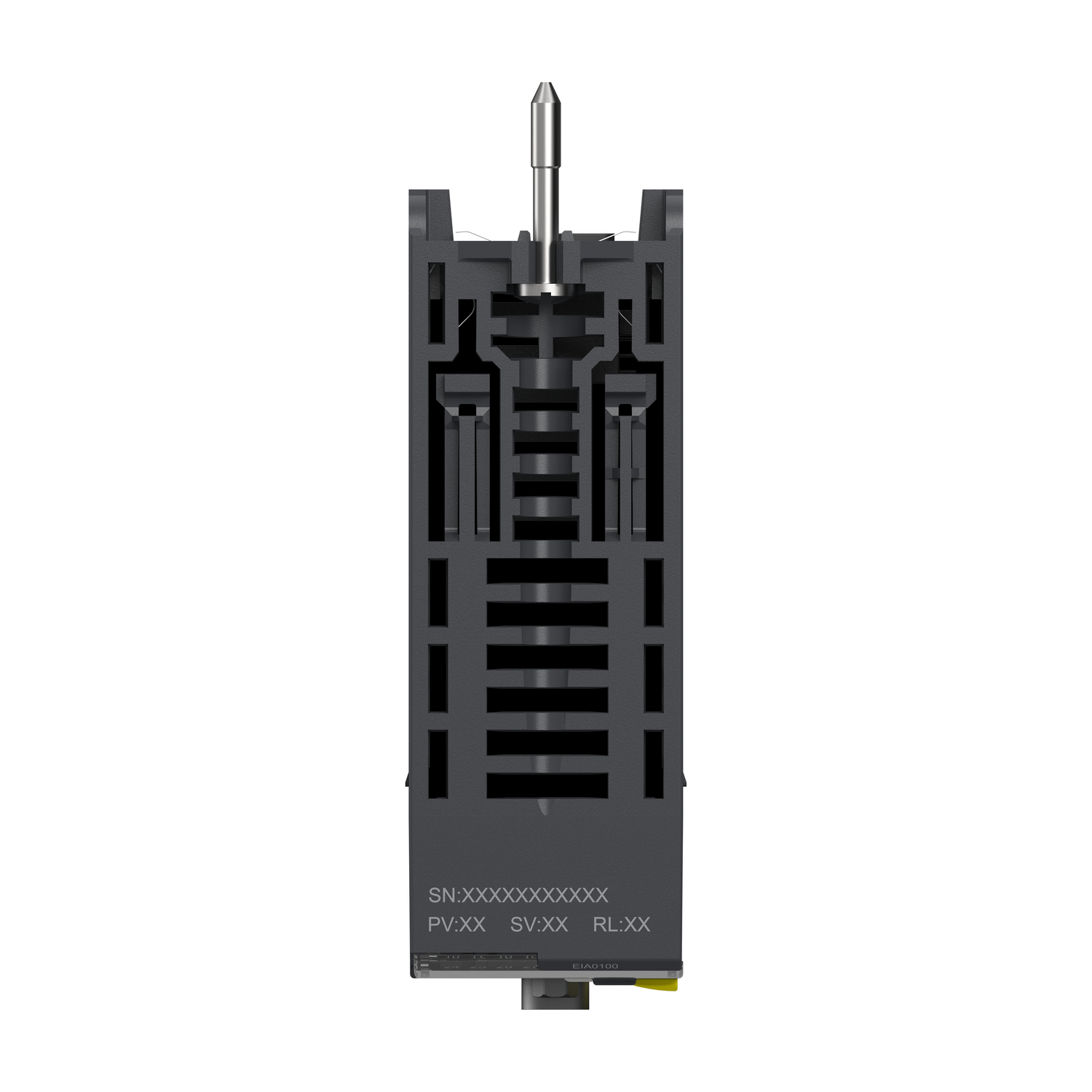

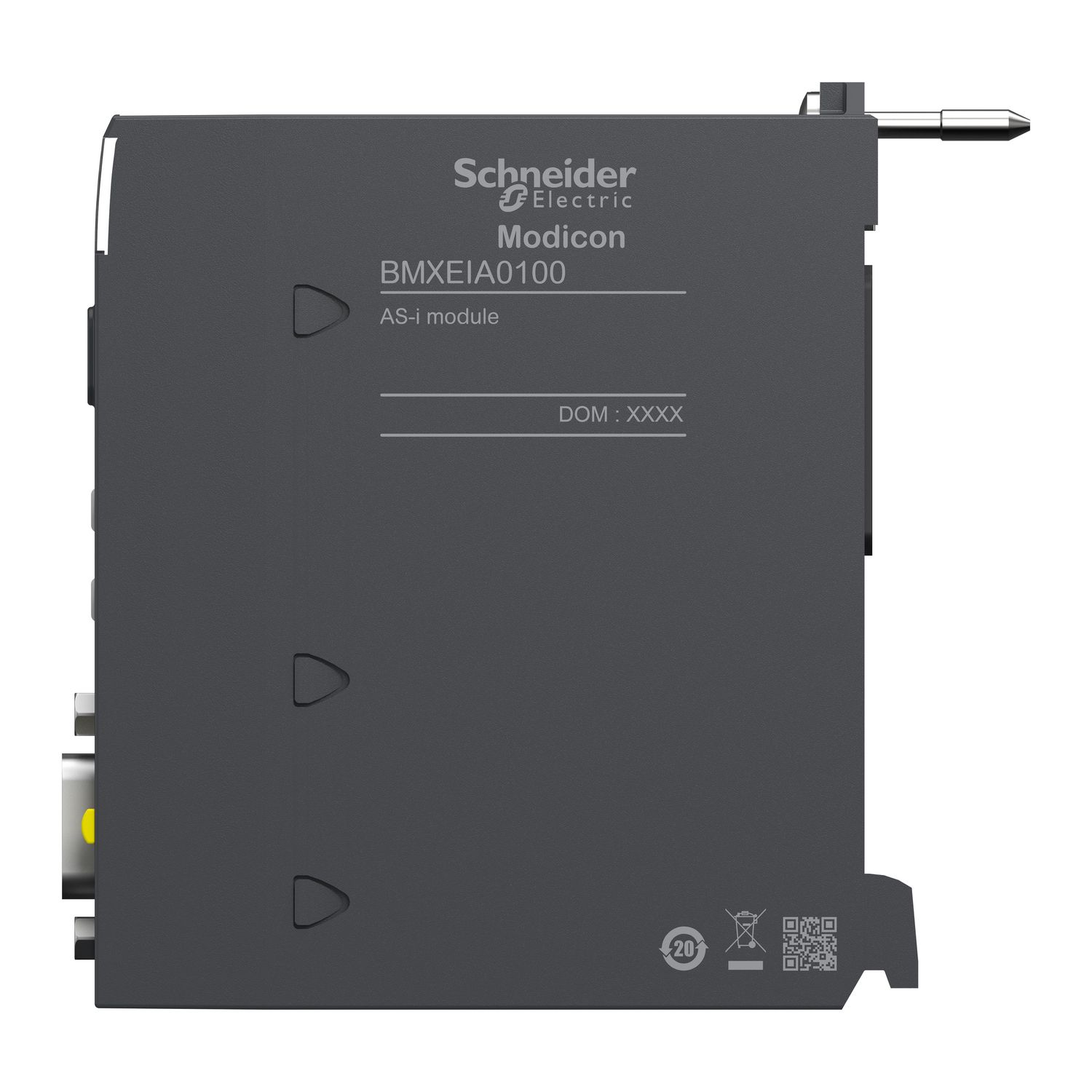

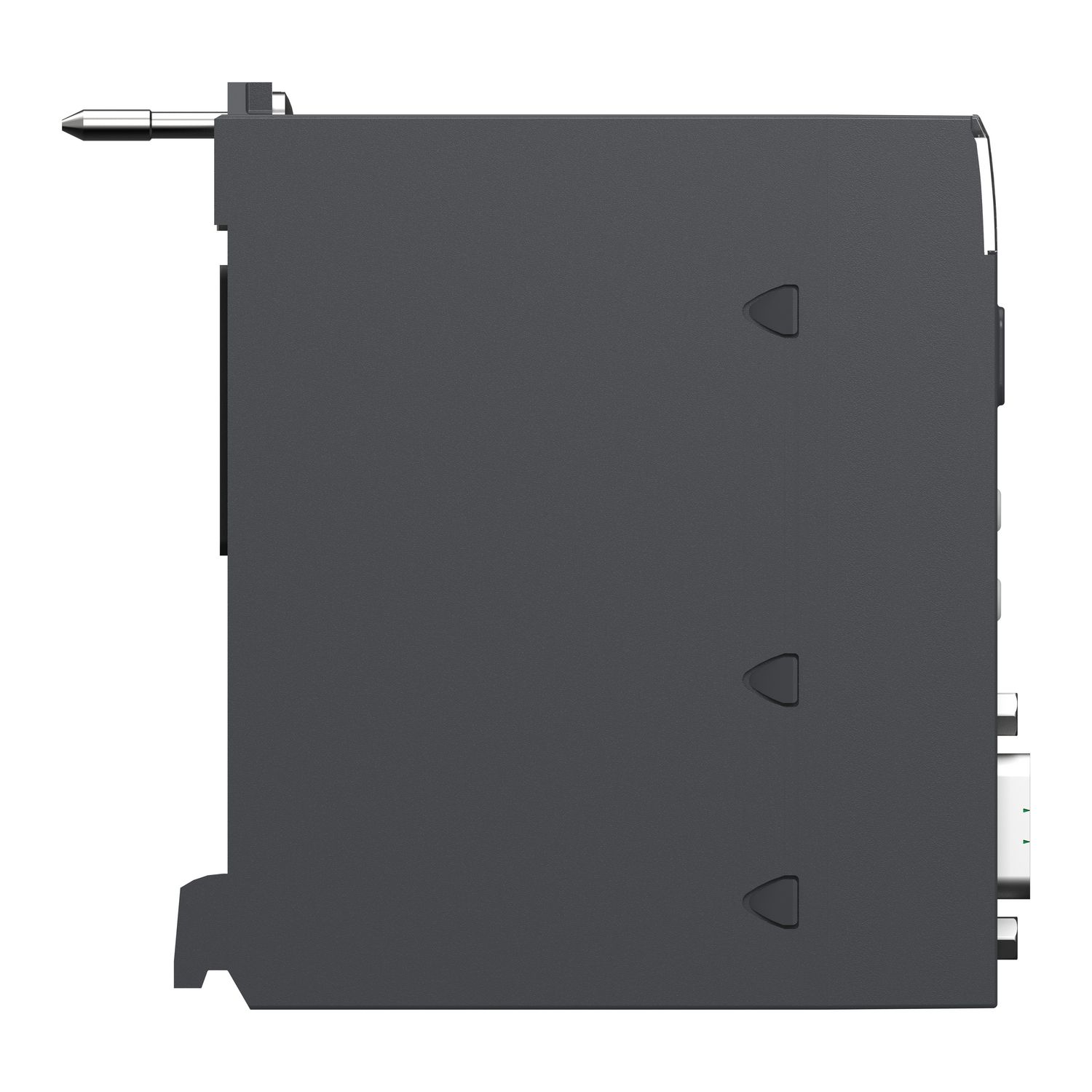

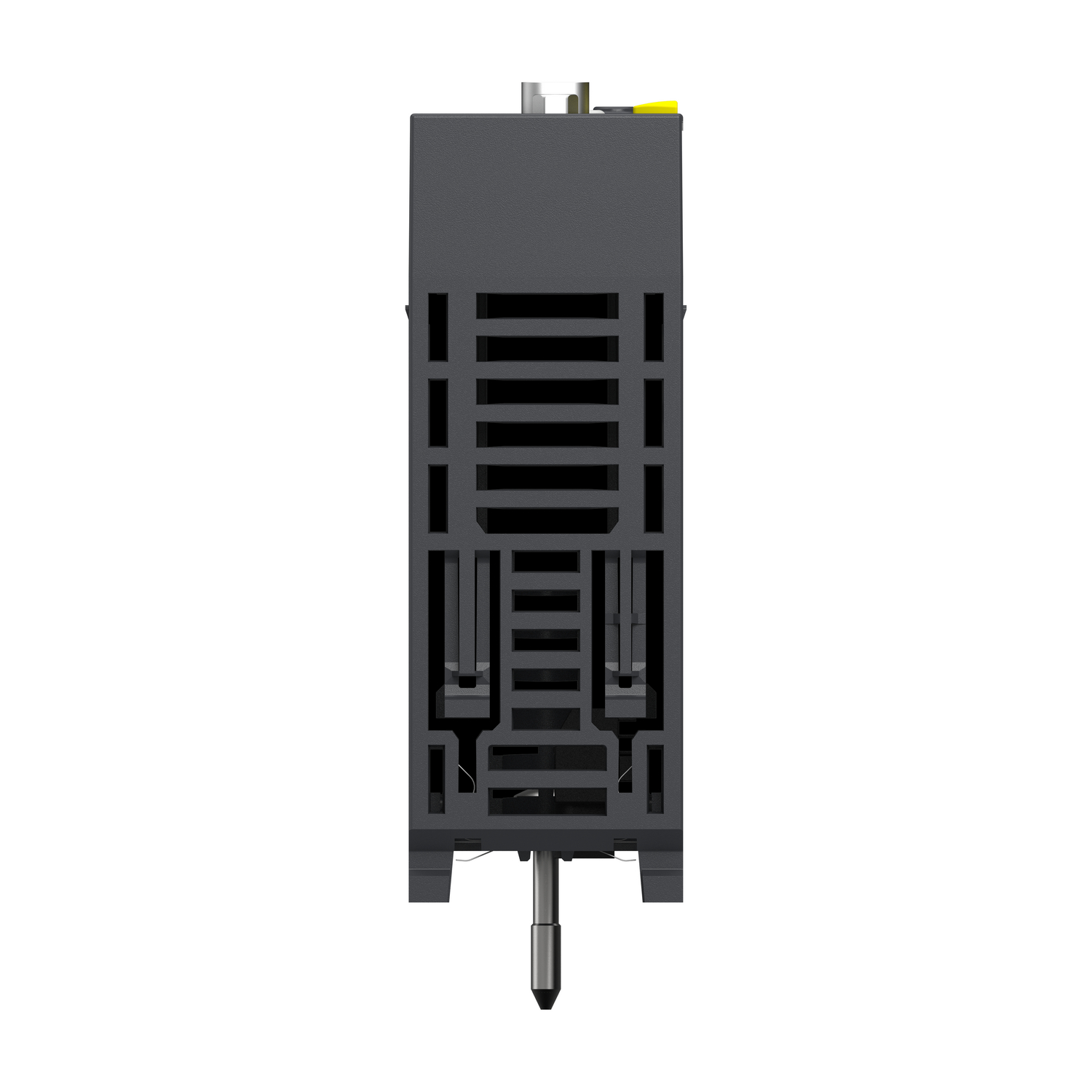

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon X80 |
| Addressing | standard and extended |
| Actuator sensor interface profile [AS-i] | S6.0.X slave profile, S7.A.9 slave profile, S7.A.8 slave profile, S7.A.A slave profile, S7.A.7 slave profile, S7.3 slave profile, M4 master profile |
| Product or component type | master module |
| Complementary | |
| Number of slave | 124 slave(s) for analog inputs and outputs - extended, 496 slave(s) for discrete inputs and outputs - extended, 124 slave(s) for analog inputs and outputs - standard, 124 slave(s) for discrete inputs and outputs - standard |
| Module format | standard |
| Cycle time | 10 ms for 62 , 5 ms for 31 |
| Maximum cable distance between devices | 500 m 2 repeaters and the master at the middle, 300 m 2 repeaters, 200 m line extension, 100 m |
| Local signalling | 1 LED (red) for fault, 1 LED (green) for ASI power, 32 LEDs for diagnostics of the AS-Interface and each slave, 1 LED (red) for I/O module fault (I/O), 1 LED (green) for displays the group of 31 slaves (A/B), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN) |
| Net weight | 0.34 kg |
| Current consumption | 160 mA at 3.3 V DC |
| Electrical connection | 1 male connector SUB-D, 3 pins |
| Environment | |
| IP degree of protection | IP20 |
| Environmental characteristic | hazardous location, hazardous location class I division 2 |
| Ambient air temperature for storage | -40-70 °C |
| Directives | 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Ambient air temperature for operation | 0-60 °C |
