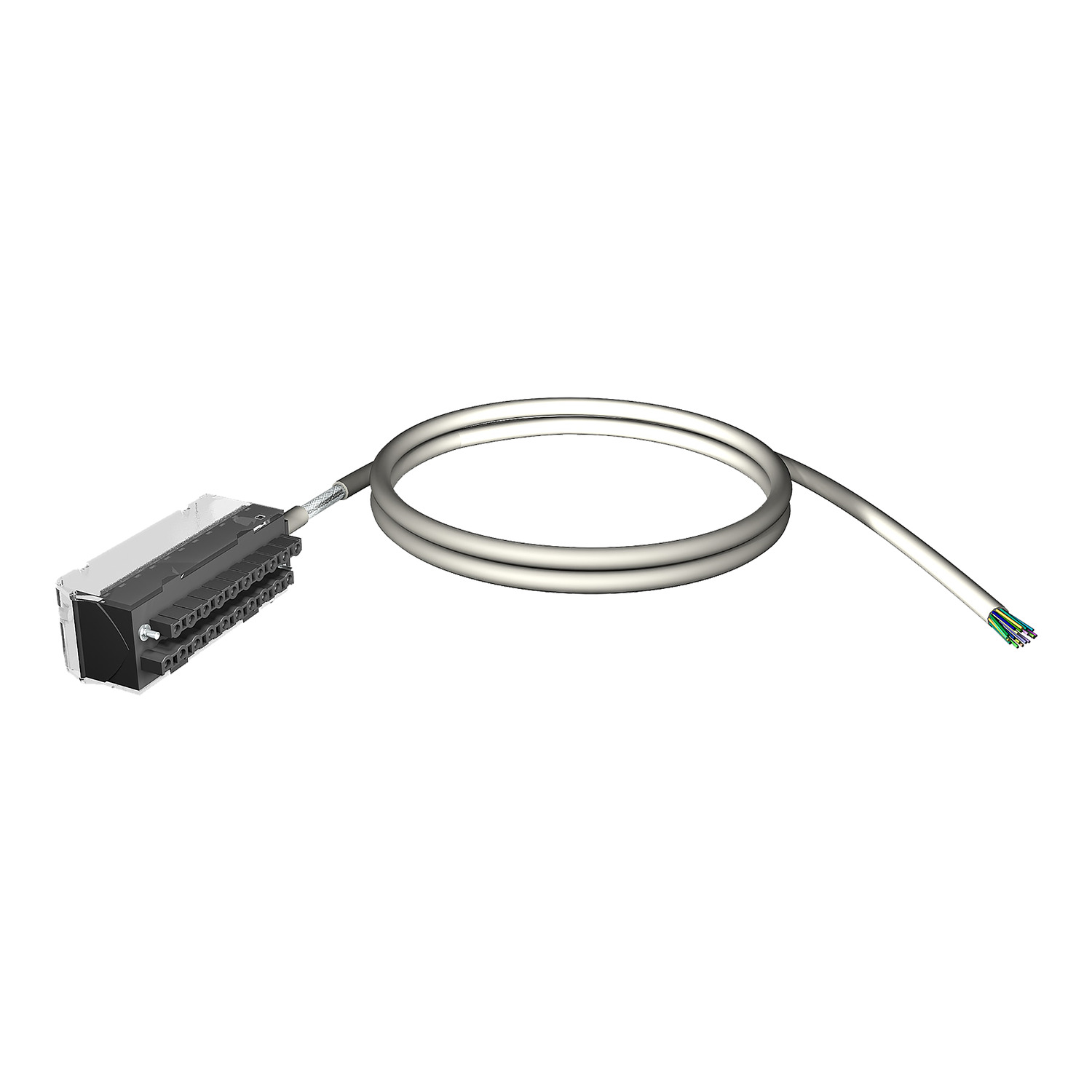

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 16-channel I/O modules with removable terminal block. It enables the connection between the I/O of modules with 20-way removable terminal block and the sensors, preactuators. It is equipped with one 20-way spring-type removable terminal block and one end with color-coded flying leads. It is 3 meters long.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | for I/O module with removable terminal block |
| Accessory / separate part type | preformed cordset |
| Cable length | 3 m |
| Accessory / separate part designation | preformed cordset with one end with flying leads |
| Range of product | Modicon X80 |
| Electrical connection | 1 removable terminal block 20 ways, 1 end with color-coded flying leads conforming to DIN 47100 |
| Number of cables | 1 |
| Complementary | |
| Total number of wires | 20 |
| Net weight | 0.85 kg |
| Wire section | 0.324 mm² |
