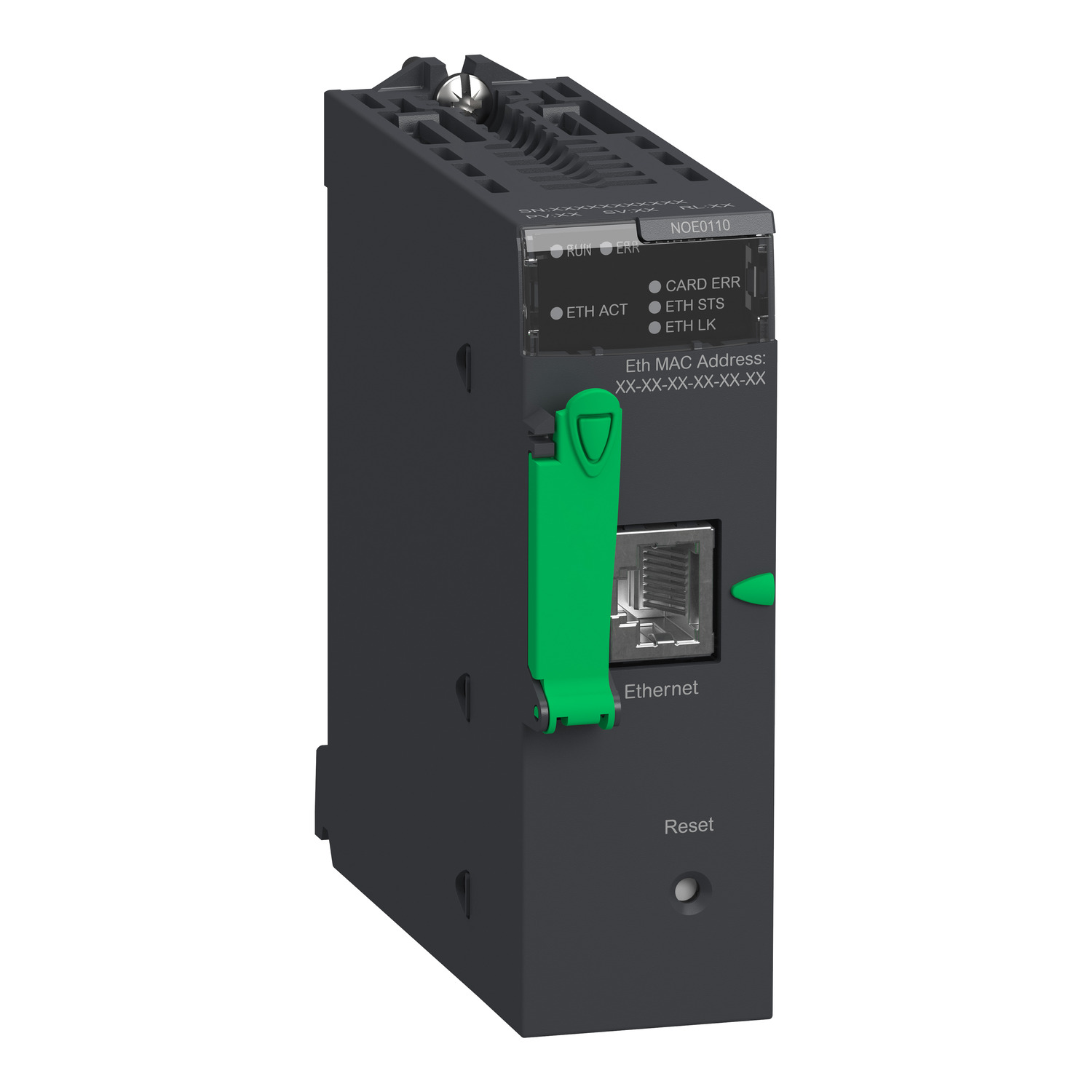

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concept | Transparent Ready |
| Protective treatment | TC |
| Range of product | Modicon M340 automation platform |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Product or component type | Ethernet TCP/IP network module |
| Complementary | |
| Memory usage | application saving: supplied Flash memory card (BMXRWSC016M), activating the standard web server: supplied Flash memory card (BMXRWSC016M), user web page size: internal RAM |
| Memory description | internal RAM 16000 kB, supplied Flash memory card (BMXRWSC016M) |
| Module format | standard |
| Control type | RESET push-button cold restart |
| Marking | CE |
| Port Ethernet | 10BASE-T/100BASE-TX |

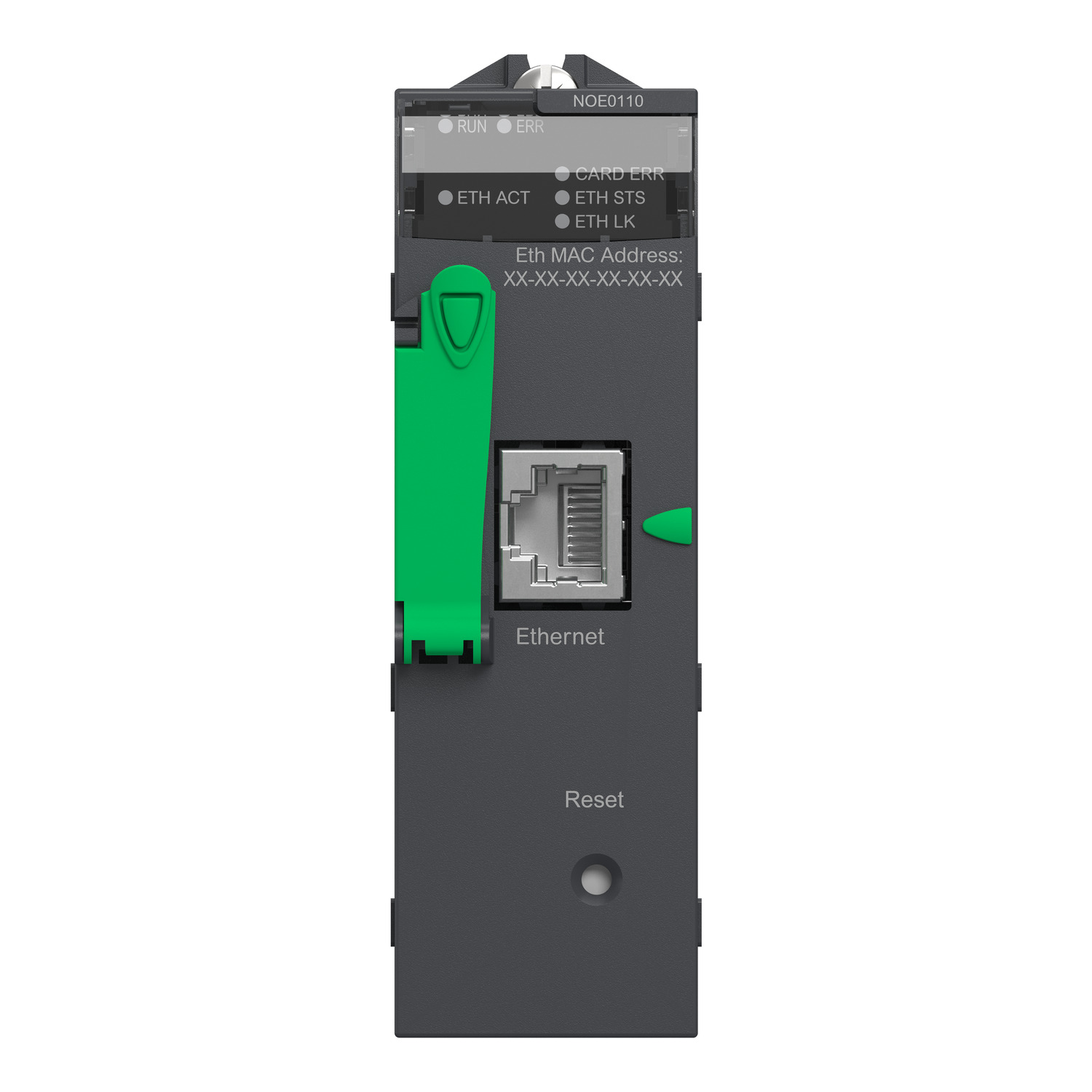

| Local signalling | 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for data rate (ETH 100), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for processor running (RUN), 1 LED (green) for activity on Ethernet network (ETH ACT) |
| Communication service | SOAP XML Web service (server), Data Editor (via PC, pocket PC or PDA terminal), web server configurable, Modbus TCP messaging, I/O scanning, Global Data, SNMP network administrator, Rack Viewer, FDR server, bandwidth management |
| Net weight | 0.2 kg |
| Current consumption | 90 mA at 24 V DC |
| Supply | internal power supply via rack |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 % without condensation |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
