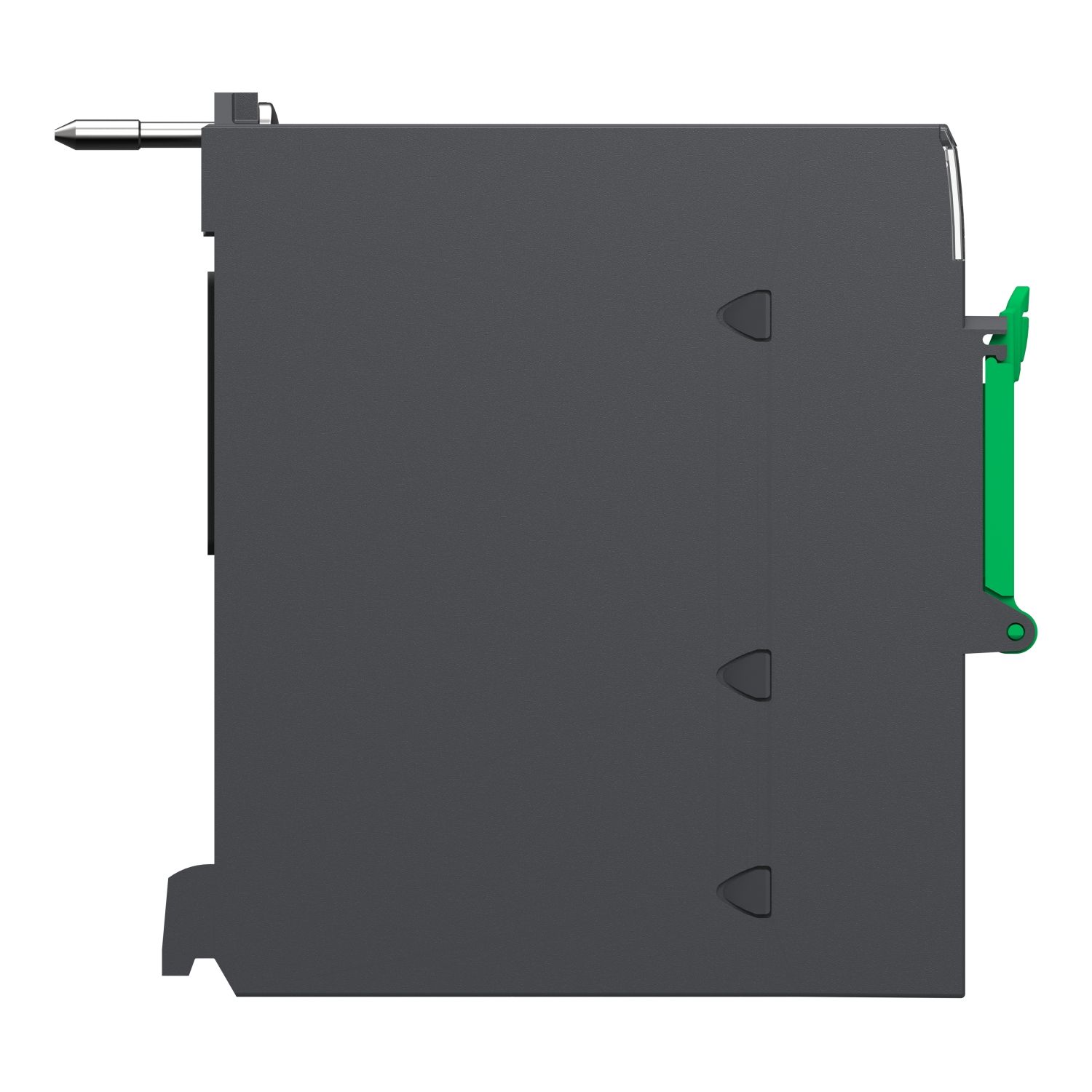

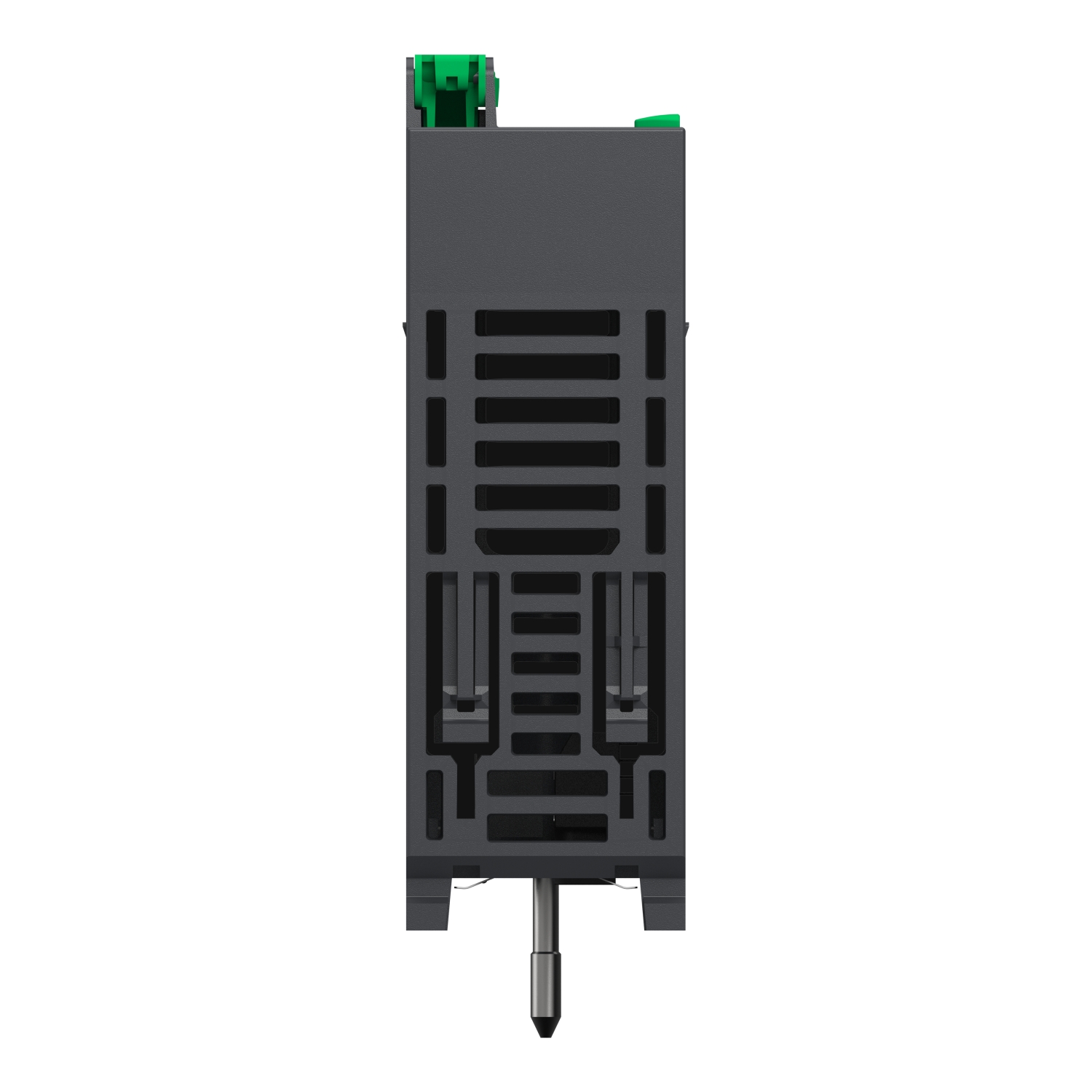

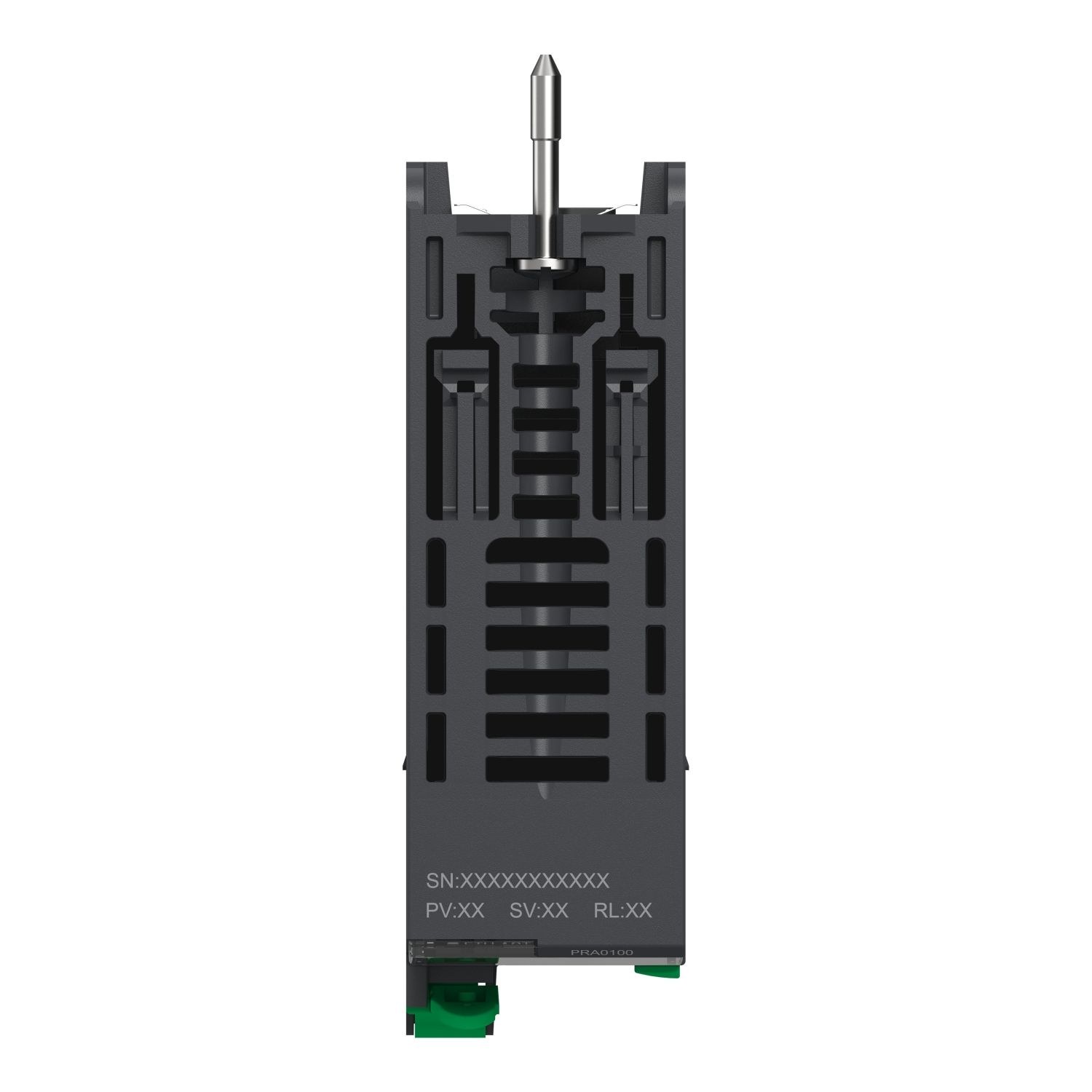

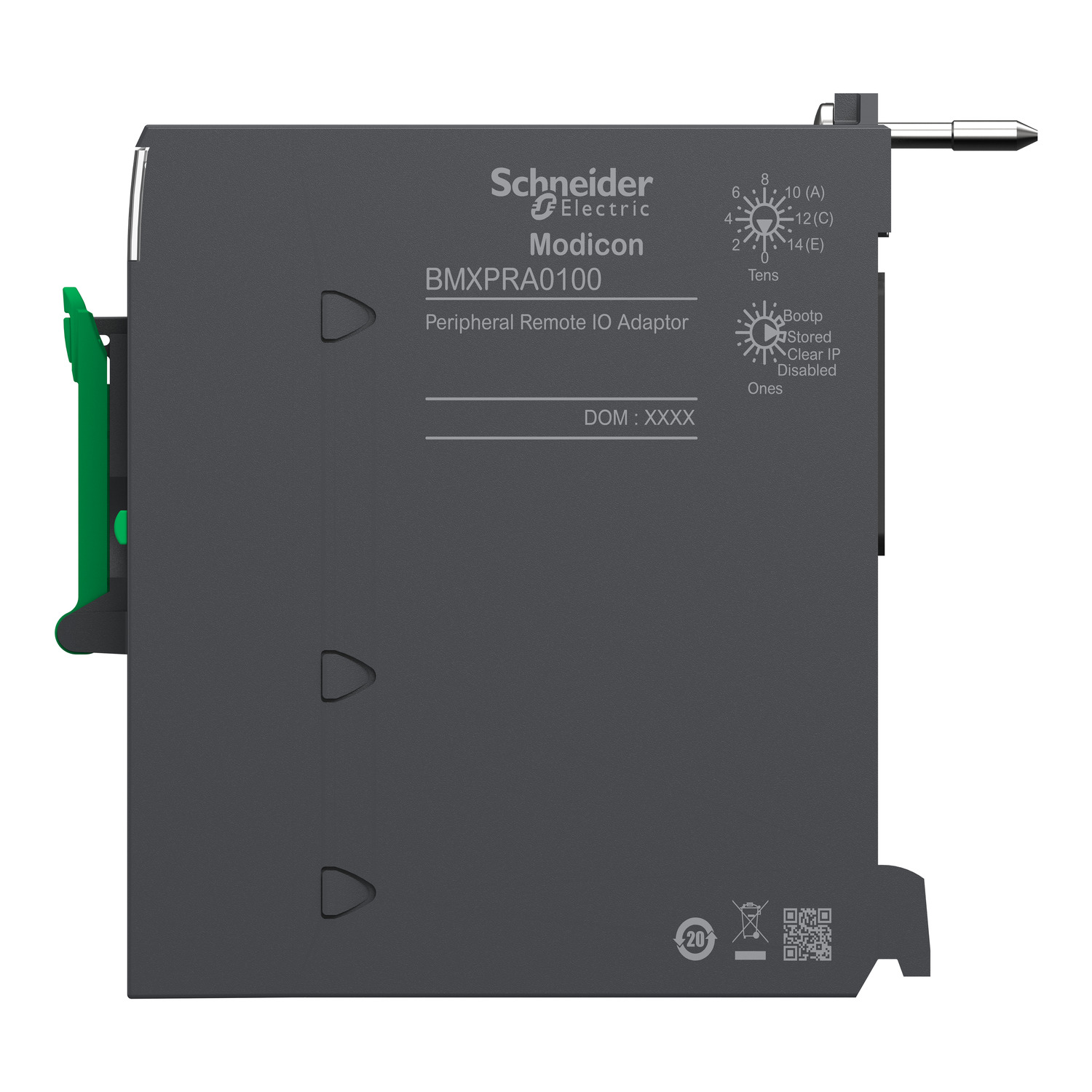

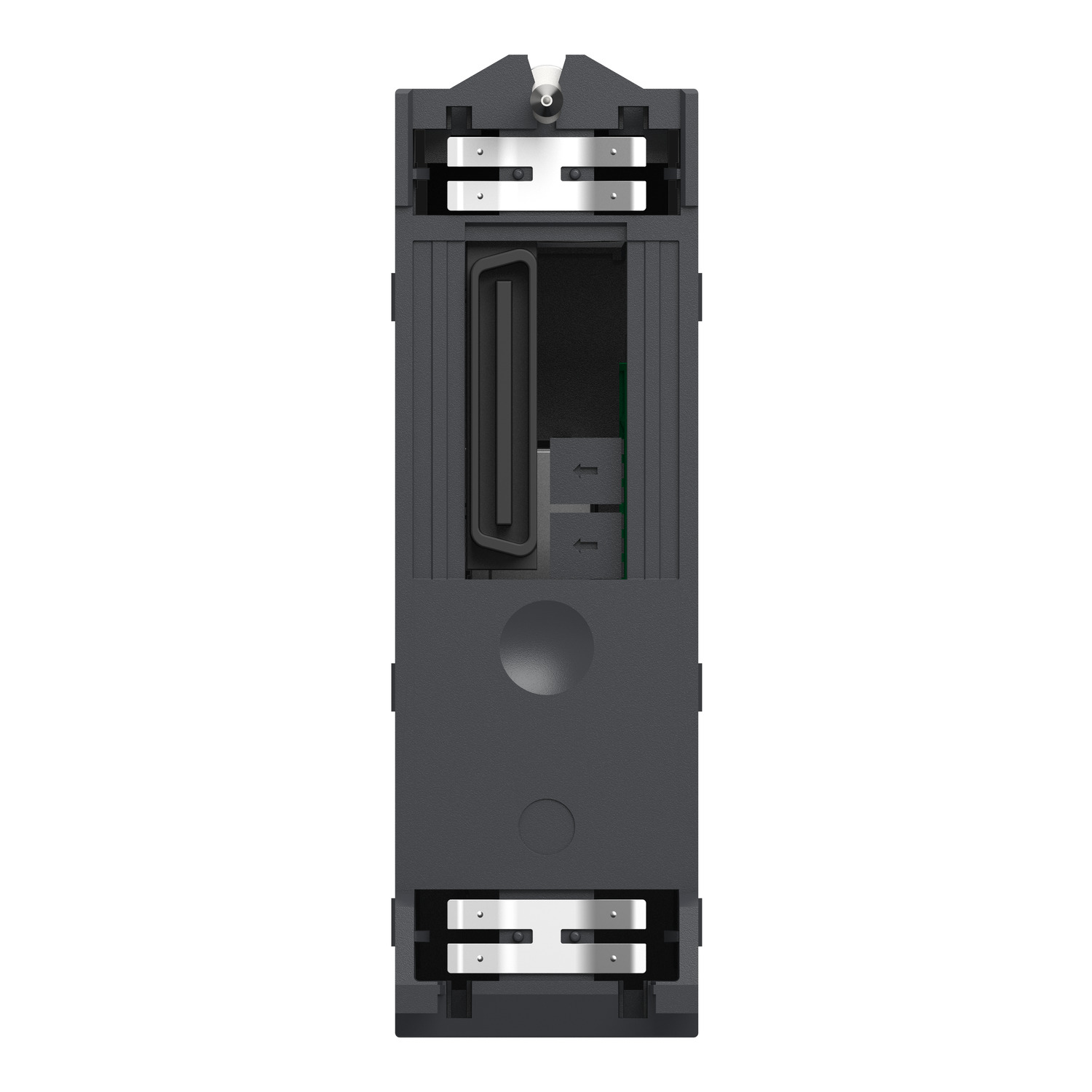

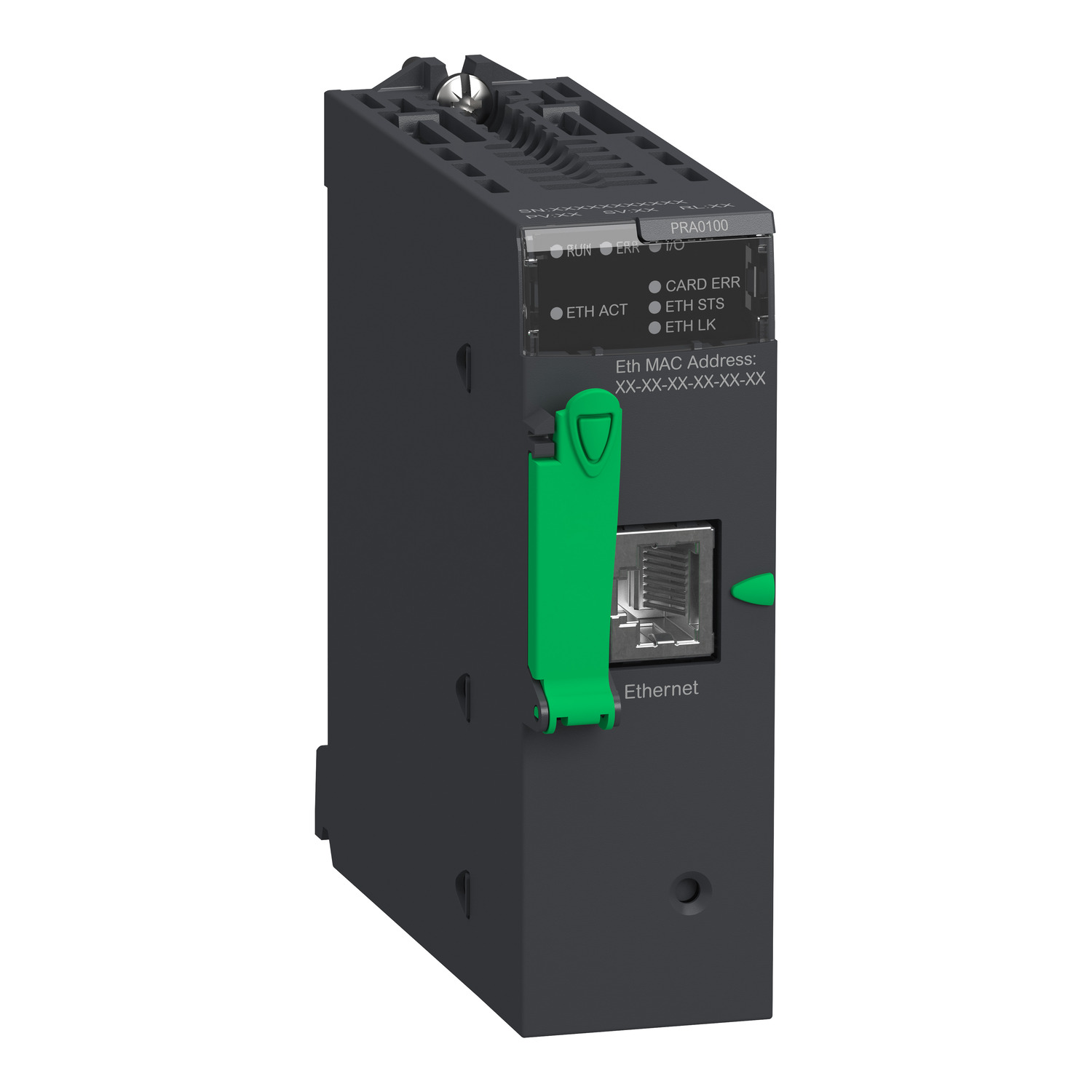

This peripheral remote I/O adaptor module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This adaptor module has 1 port with real time clock. It is an I/O adaptor module with a current consumption of 95mA and a power dissipation of 2.3W. It supports 448kB internal, 96kB removable memory capacity. This product is robust, high quality and based on the latest innovative technology. It is furnished with is EtherNet/IP for device network for integrated connections. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, C-Tick, Merchant Navy, GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with 0 to 1024 discrete I/O module, 0 to 256 analog I/O module and 0 to 2 Ethernet module. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | peripheral remote I/O adaptor |
| Range of product | Modicon X80 |
| Complementary | |
| Maximum altitude transport | 3000 m |
| Module format | standard |
| Realtime clock | with |

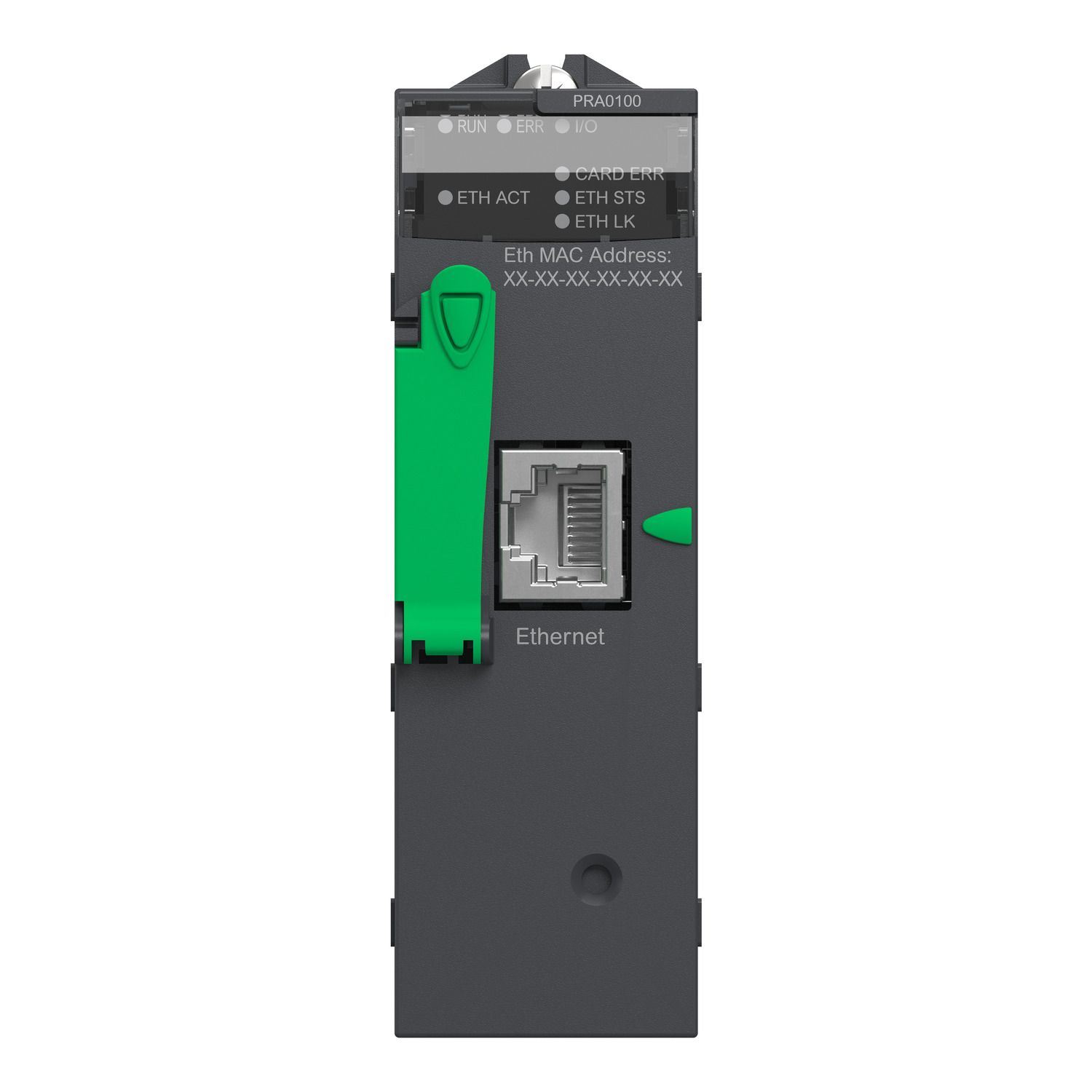

| Local signalling | 1 LED (green) for Ethernet network status (link), 1 LED (green) for Ethernet link diagnostics (STS), 1 LED (red) for memory card fault (CARD ERR), 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (red) for external fault (I/O), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN) |
| Relative humidity | 95-95 % without condensation |
| Power dissipation in W | 2.3 W |
| Integrated connection type | Ethernet/IP for device network |
| Number of port | 1 |
| Communication port protocol | Modbus TCP |
| Average consumption in mA | 95 mA |
| Memory capacity | 96 kB removable, 448 kB internal |
| Application structure | 1 master task |
| Marking | CE |
| Product compatibility | 0-2 Ethernet module, 0-256 analog I/O module, 0-1024 discrete I/O module |
| Environment | |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Environmental characteristic | hazardous location class I division 2 |
| Product certifications | IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Ambient air temperature for operation | -25-70 °C |
