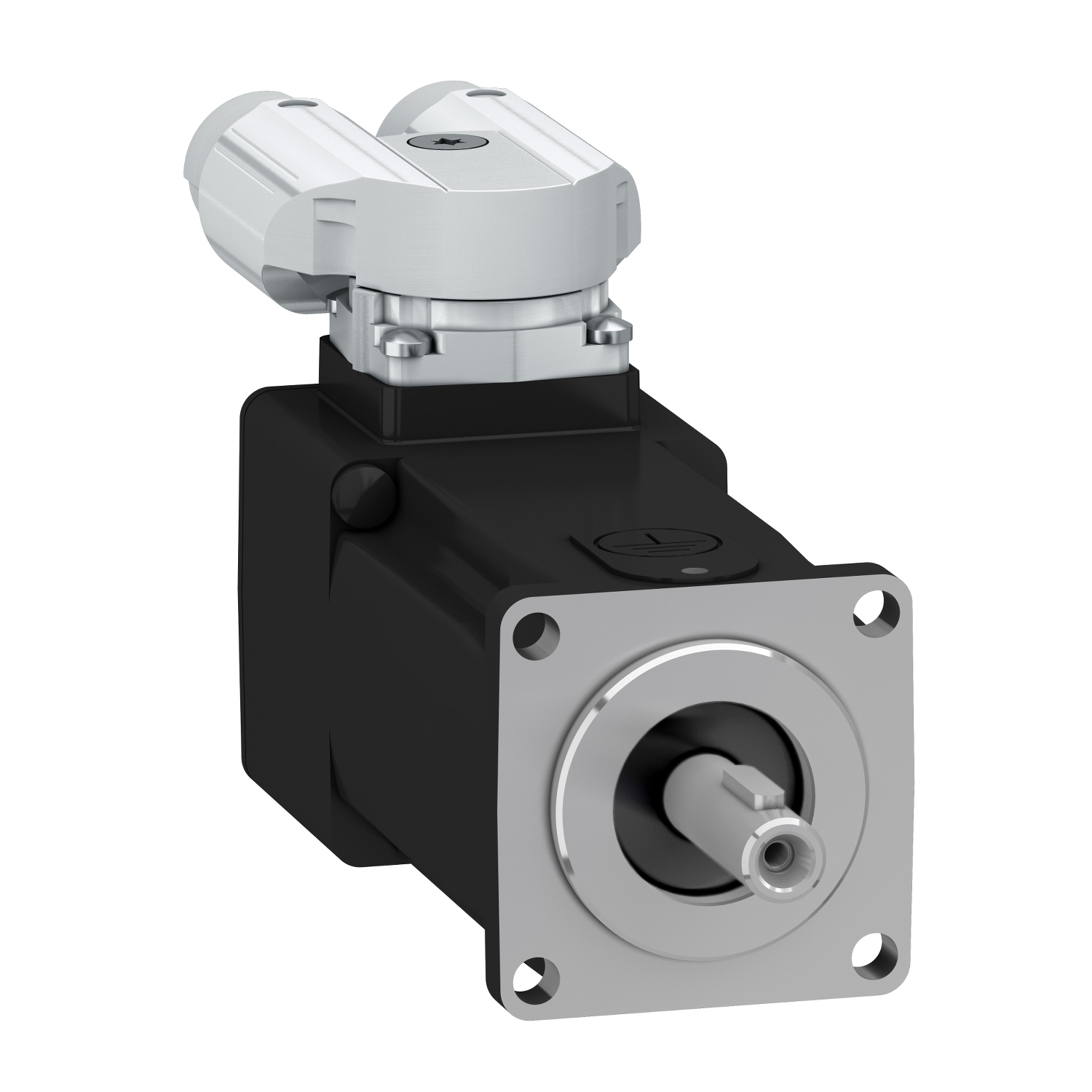

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 9000RPM, a keyed shaft end, without holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 400V, a continuous stall current of 1.5A, a continuous power of 398W, and a continuous stall torque of 0.38Nm. Its degree of protection is IP50 rated. The motor flange size is 40mm, fixed by 4x 4.5mm holes. The circle diameter of the mounting holes is 46mm. It weighs 0.6kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AU60N4, LXM32SU60N4, LXM32MU60N4, LXM32CU60N4, LXM32AU45M2, LXM32SU45M2, LXM32MU45M2, and LXM32CU45M2 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Continuous stall torque | 0.38 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 0.38 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 0.38 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase |
| Device short name | BSH |
| Nominal speed | 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase, 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase, 9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase |
| IP degree of protection | IP50 standard |
| Peak stall torque | 1.37 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 1.37 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 1.37 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase |
| Nominal output power | 152 W for LXM32.U45M2 at 1.5 A, 230 V, single phase, 289 W for LXM32.U60N4 at 1.5 A, 400 V, three phase, 275 W for LXM32.U60N4 at 1.5 A, 480 V, three phase |
| Speed feedback resolution | 32768 points/turn x 4096 turns |
| Maximum mechanical speed | 10000 rpm |
| Nominal torque | 0.364 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase, 0.307 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase, 0.292 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase |
| Electrical connection | rotatable right-angled connectors |
| Shaft end | keyed |
| Product or component type | servo motor |
| Holding brake | without |
| Mounting support | international standard flange |
| Complementary | |
| Temperature copper hot | 120 °C |
| Coefficient 1_2 | 0 N.m/rpm² |
| Coefficient 1_1 | -8.085E-06 N.m/rpm |
| Coefficient 1_4 | 0 N.m/rpm4 |
| Coefficient 1_3 | 0 N.m/rpm3 |
| Coefficient 1_6 | 0 N.m/rpm6 |
| Coefficient 1_5 | 0 N.m/rpm5 |
| Temperature magnet rt | 20 °C |
| Motor voltage drop coefficient | 1 |
| Coefficient 2_1 | 2.11111111111111E-06 N.m/rpm |
| Coefficient 2_0 | 0.030927813371642 N.m |
| Accuracy error [angular] | 0.08 ° |
| Type of cooling | natural convection |
| Number of mounting holes | 4 |
| [Us] rated supply voltage | 400 V |
| Motor flange size | 40 mm |
| Stator inductance | 12.8 mH at 20 °C |
| Centring collar depth | 2.5 mm |
| Back emf constant | 18 V/krpm at 20 °C |
| Saturation coefficient 1 | -0.0070553975786674 |
| Saturation coefficient 3 | 0.00146162640340561 |
| Saturation coefficient 2 | -0.0138447370049605 |
| Switching frequency | 8 kHz |
| Temperature magnet hot | 100 °C |
| Continuous power | 398 W |
| Circle diameter of the mounting holes | 46 mm |
| Maximum permanent current | 1.5 A |
| Torque constant | 0.253 N.m/A at 120 °C |
| Network number of phases | 3, three phase |
| Continuous stall current | 1.5 A |
| Range compatibility | Lexium 32 |
| Stator resistance | 11.6 Ohm at 20 °C |
| Feedback type | multiturn SinCos Hiperface |
| Mounting holes diameter | 4.5 mm |
| Shaft diameter | 8 mm |
| Key width | 12 mm |
| Centring collar diameter | 30 mm |
| Sizing reference | BSH0402P |
| Net weight | 0.6 kg |
| Maximum current Irms | 6 A for LXM32.U45M2 at 230 V, 6 A for LXM32.U60N4 at 400 V, 6 A for LXM32.U60N4 at 480 V |
| Length | 93.4 mm |
| Shaft length | 25 mm |
| Second shaft | without second shaft end |
| Maximum axial force Fa | 0.2 x Fr |
| Number of motor poles | 10 |
| Rotor inertia | 0.0419 kg.cm² |
| Number of motor stacks | 2 |
| Stator electrical time constant | 1.1 ms at 20 °C |
