Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Colour | battleship grey |
| Device presentation | basic element with full cover plate |
| Range | C-Bus |

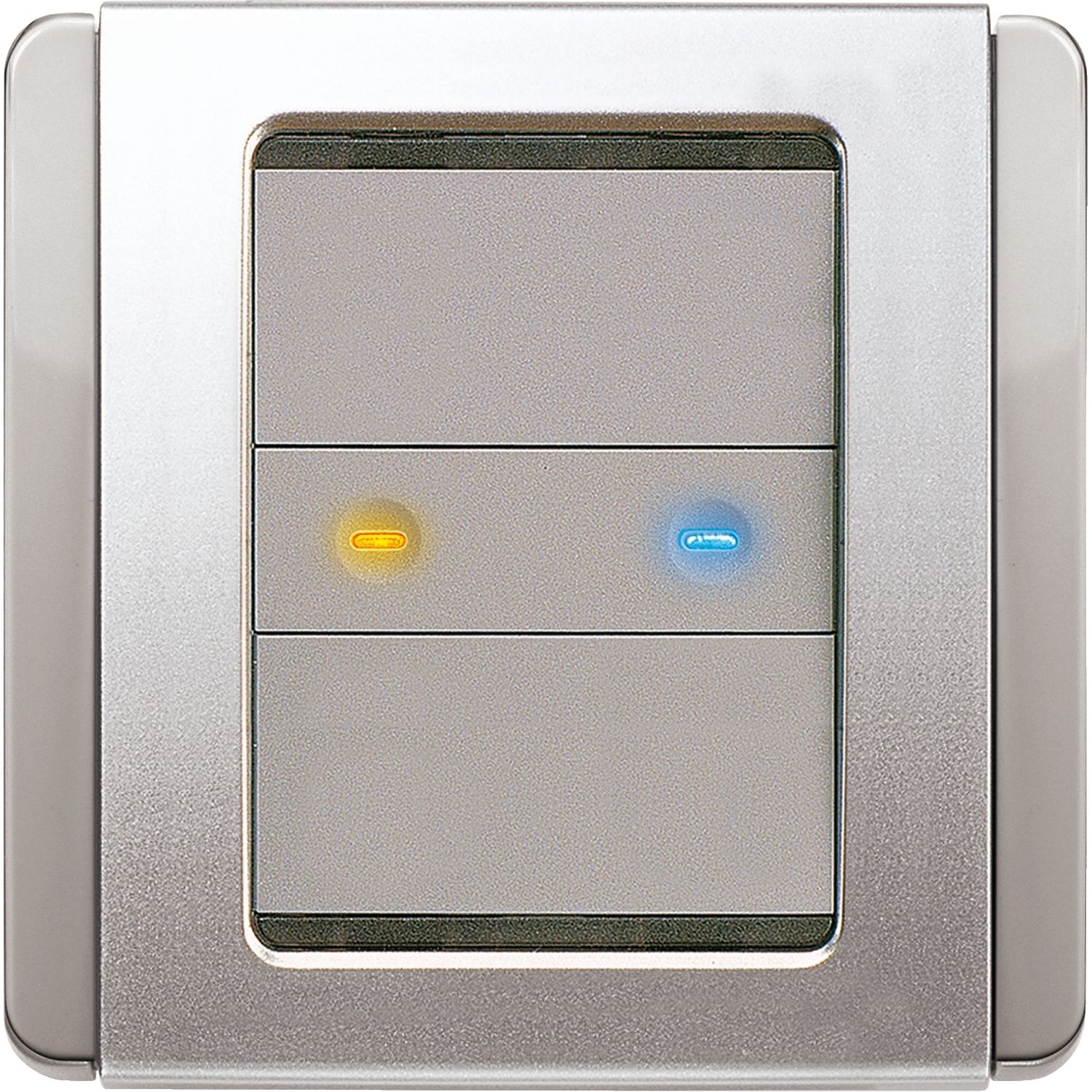

| Product name | C-Bus Neo |
| Product or component type | switch |
| Product brand | Clipsal |
| Complementary | |
| [Ue] rated operational voltage | 15...36 V DC |
| Device composition | receiver |
| Data backed up | non-volatile memory |
| Depth | 22 mm |
| Width | 87 mm |
| Communication network type | C-Bus 50 |
| Switch function | toggle, time switch function, scene control, dimmer |
| [In] rated current | 22 mA |
| Local signalling | LED (blue/orange) for status |
| Sensor type | infrared sensor |
| Resolution | 1 s |
| Time delay range | 1 s...18 h |
| Dimmer control | 255 possible levels |
| Isolation voltage | 3.75 kV from C-Bus to mains |
| Input impedance | 100 kOhm at 1-1 kHz |
| Control type | rocker, remote control |
| Colour code | GB |
| Net weight | 67 g |
| Material | plastic |
| Fixing center | 60.3 mm |
| Starting time | 5 s |
| Mounting support | wall |
| Number of gangs | 2 gangs |
| Connections - terminals | terminal block - 0.2-1.3 mm² (AWG 24...AWG 16) |
| Height | 87 mm |
| Environment | |
| Relative humidity | 0-95 % non-condensing |
| Standards | EN 61000-4-6, EN 61000-4-5, EN 61000-4-3, EN 61000-4-2, EN 61000-3-3, EN 61000-3-2, EN 60699-2-1, EN 55014-1, BS |
| Ambient air temperature for operation | 0-45 °C |
