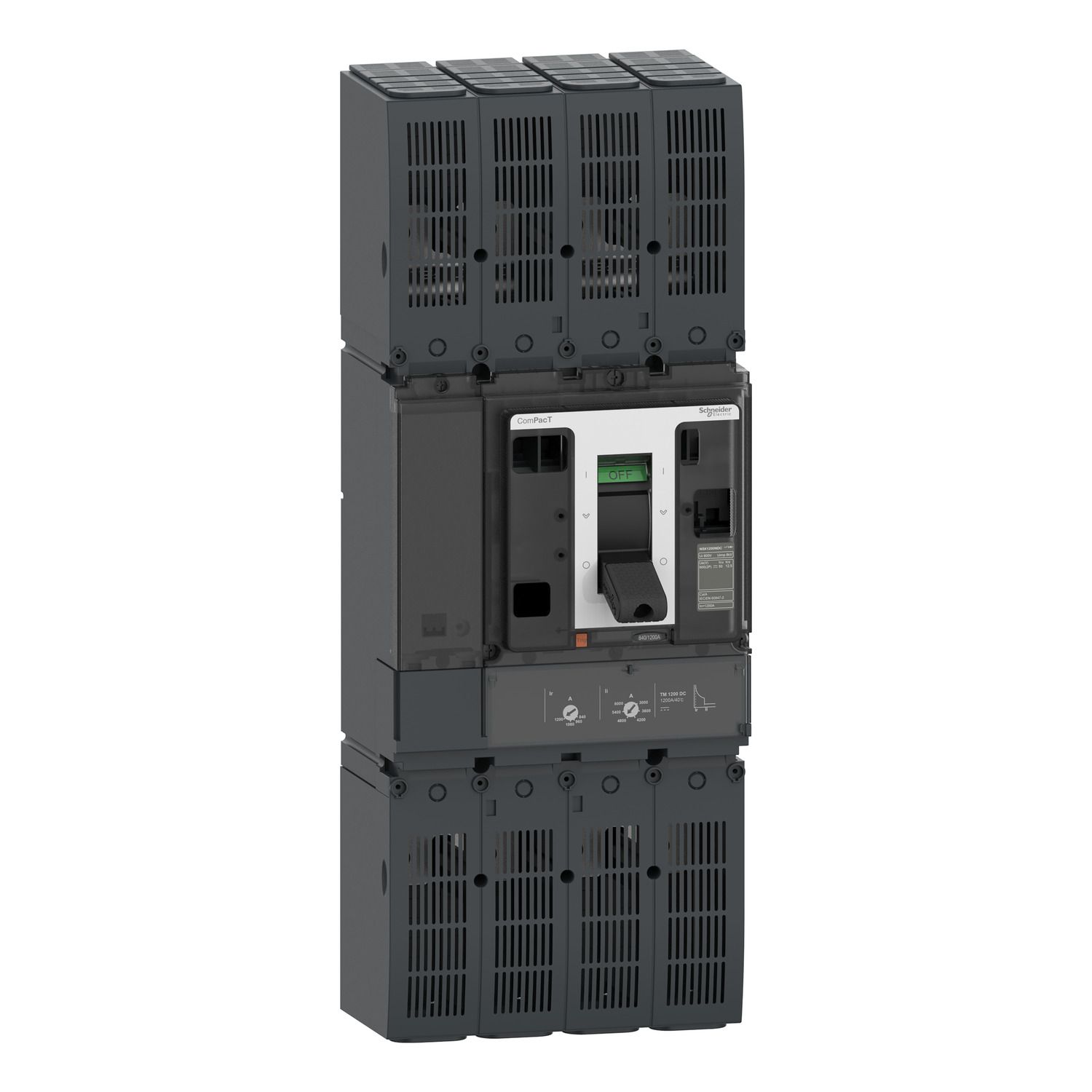

ComPacT NSX1200N DC is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 50kA rms at 600VDC. The operational voltage is 600VDC. This product embeds a 630A rating thermal-magnetic trip unit (TM-DC). TM-DC trip unit provides an adjustable thermal overload protection and an adjustable magnetic protection. The dimension is 350mm x 185mm x 110mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | NSX1200 DC |
| Device application | distribution |
| Breaking capacity code | N 50 kA 600 V DC |
| Suitability for isolation | yes conforming to EN/IEC 60947-2 |
| Breaking capacity | 50 kA Icu at 300...600 V DC 2 poles in series conforming to IEC 60947-2, 50 kA Icu at 24...300 V DC 1 pole conforming to IEC 60947-2 |
| Mounting mode | fixed |
| Control type | toggle |
| Range | ComPacT new generation |
| Protected poles description | 2D |
| Range of product | ComPacT NSX630...1200 DC new generation |
| Trip unit name | TM-DC |
| Trip unit technology | thermal-magnetic |
| Poles description | 2P |
| Utilisation category | category A |
| Product name | ComPacT NSX DC new generation |
| Product or component type | circuit breaker |
| Network type | DC |
| Trip unit protection functions | LI |
| [Ue] rated operational voltage | 600 V DC |
| [In] rated current | 630 A at 40 °C |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Connection pitch | 45 mm |
| Compatibility code | NSX630 |
| Mechanical durability | 5000 cycles |
| Trip unit rating | 630-630 A at 40 °C |
| Upside connection | front |
| Long time pick-up adjustment type Ir | adjustable |
| Long time pick-up adjustment range | 0.7...1 x In |
| Electrical durability | 1000 cycles at 600 V In, 2000 cycles at 600 V In/2 |
| Protection type | I : for short-circuit protection (magnetic), L : for overload protection (thermal) |
| Downside connection | front |
| Earth-leakage protection | without |
| Height | 485 mm |
| [Ics] rated service breaking capacity | 12.5 kA at 300...600 V DC conforming to IEC 60947-2, 12.5 kA at 24...300 V DC conforming to IEC 60947-2 |
| Depth | 110 mm |
| Width | 185 mm |
| Mounting position | flat on the back, horizontal and vertical |
| [Ui] rated insulation voltage | 750 V DC conforming to IEC 60947-2 |
| Net weight | 9.4 kg |
| Instantaneous pick-up adjustment type Ii | adjustable |
| Long time delay adjustment type | fixed |
| Number of slots | 6 slot(s) |
| Instantaneous pick-up adjustment range | 2.5...5 x In |
| Mounting support | backplate |
| Environment | |
| Relative humidity | 0-95 % |
| Ambient air temperature for storage | -50-85 °C |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Overvoltage category | class II |
| Operating altitude | 2000 m...5000 m with derating, 0...2000 m without derating |
| Electrical shock protection class | class II |
| Standards | EN/IEC 60947-2 |
| Product certifications | Marine, EAC, CCC |
