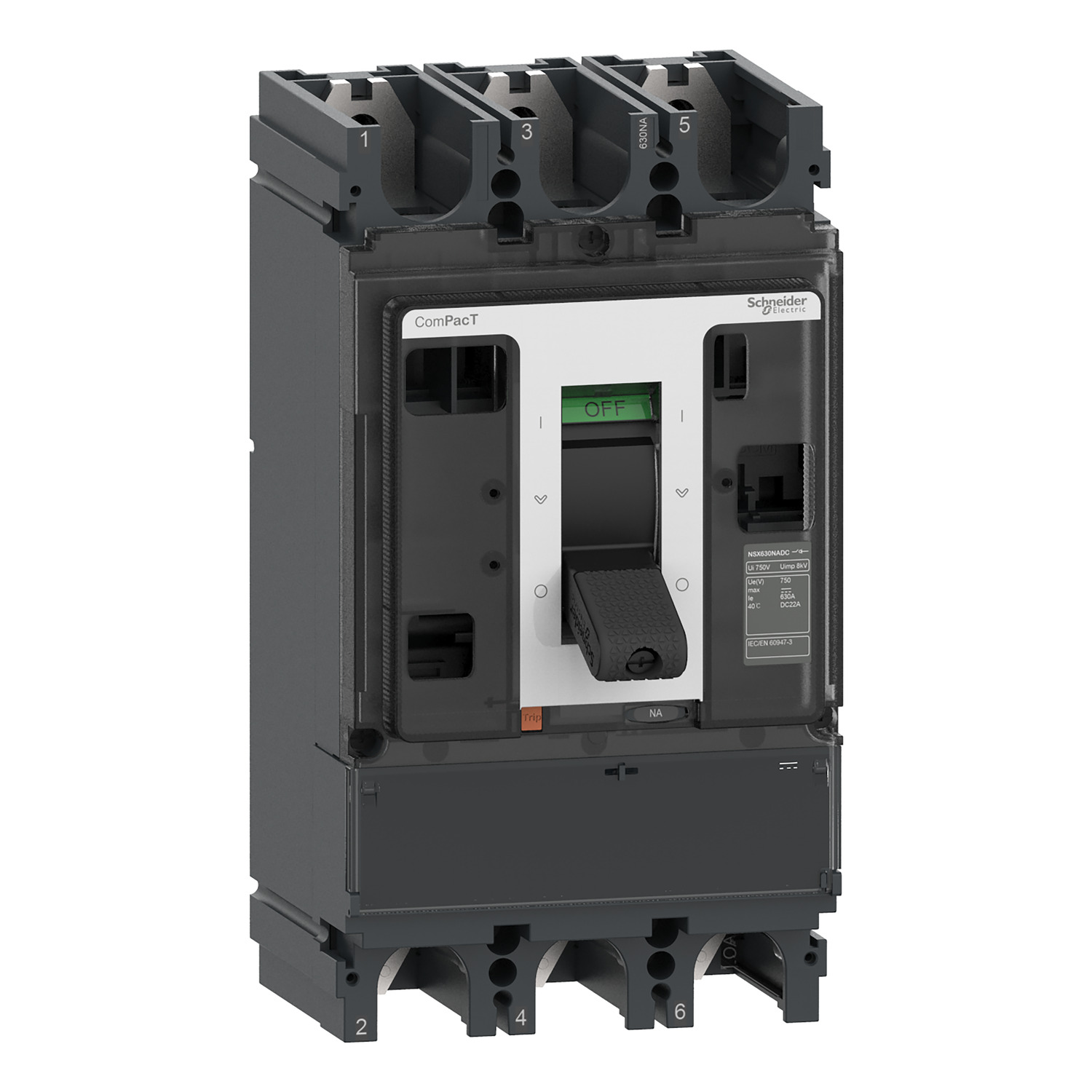

ComPacT NSX630NA DC is a complete 4 poles switch disconnerctor. It's used to control and isolate electrical distribution circuits. It requires an upstream protection. The operational current is 630A at 750VDC for DC-22A utilization categories. The operational voltage is 750VDC. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimension is 185mm x 255mm x 110mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | NSX630NA DC |
| Device application | distribution |
| [Icw] rated short-time withstand current | 7.5 kA during 1 s |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | DC-22A: 630 A DC 750 V |
| Suitability for isolation | yes conforming to EN/IEC 60947-3 |
| Mounting mode | fixed |
| Control type | toggle |
| Range | ComPacT new generation |
| [Ith] conventional free air thermal current | 630 A at 40 °C |
| Range of product | ComPacT NSX400...630 DC new generation |
| [Ue] rated operational voltage | 750 V DC |
| Poles description | 3P |
| [Ui] rated insulation voltage | 750 V DC |
| [Icm] rated short-circuit making capacity | 7.5 kA switch-disconnector alone |
| Utilisation category | DC-22A |
| Product name | ComPacT NSX DC new generation |
| Product or component type | switch disconnector |
| Visible break | no |
| Breaking capacity code | NA |
| Network type | DC |
| Contact position indicator | yes |
| [In] rated current | 630 A |
| Complementary | |
| Compatibility code | NSX630 |
| Electrical durability | 1000 cycles 750 V DC In |
| Upside connection | front |
| Downside connection | front |
| Connection pitch | 45 mm |
| Height | 255 mm |
| Depth | 110 mm |
| Width | 140 mm |
| Mechanical durability | 5000 cycles |
| Net weight | 6 kg |
| Mounting support | backplate |
| Standards | EN/IEC 60947-3, EN/IEC 60947-1 |
| Product certifications | CCC, EAC, CE |
| Environment | |
| Ambient air temperature for storage | -50-85 °C |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Electrical shock protection class | class II |
