Circuit breaker basic frame, ComPacT NSX630L, 150kA/415VAC, 4 poles, 630A frame rating, without trip unit

Manufacturer: Schneider Electric

SKU: C63L4

GTIN: 3606482003248

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $4,474.80 inc GST

Price: $2,994.20 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

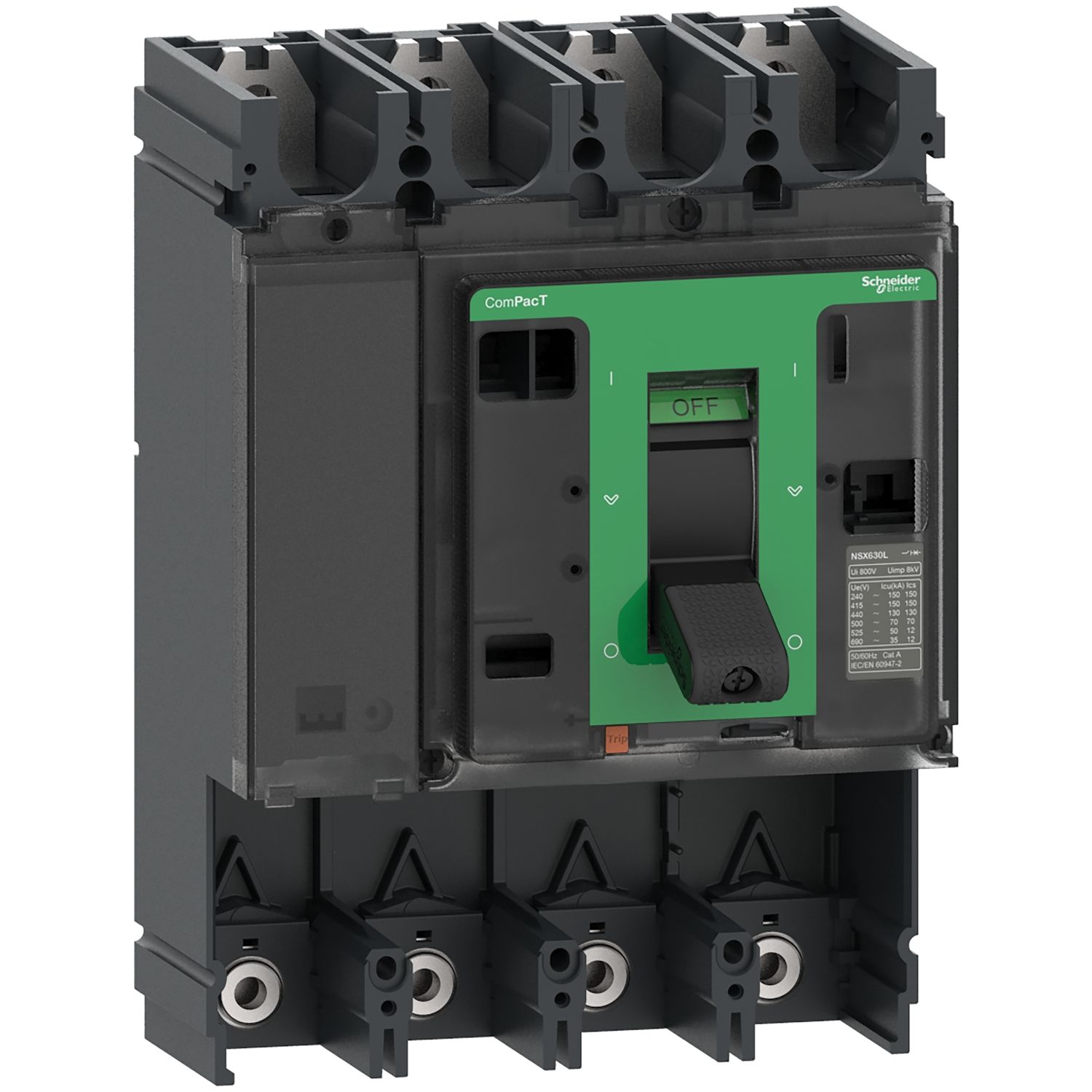

This is a 4 poles basic frame for ComPacT NSX630L. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 150kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 185mm x 255mm x 110mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630L is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to EN/IEC 60947-2
Neutral position	left
Utilisation category	category A
Network type	AC
Device short name	NSX630L
Breaking capacity code	L 150 kA 415 V AC
Breaking capacity	35 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 150 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 150 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Range of product	ComPacT NSX400...630 new generation
Poles description	4P
Product name	ComPacT NSX new generation
Product or component type	basic frame
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	630 A at 40 °C
Network frequency	50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Compatibility code	NSX630
Electrical durability	8000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 4000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2, 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Downside connection	front
Height	255 mm
[Ics] rated service breaking capacity	12 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 150 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 150 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability	15000 cycles conforming to IEC 60947-2
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
Protection type	without protection
Upside connection	front
Connection pitch	45 mm
Depth	110 mm
Width	185 mm
Mounting support	backplate
Environment
Ambient air temperature for storage	-50-85 °C
Product certifications	UL, CSA
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Standards	UL 508, EN/IEC 60947-2
