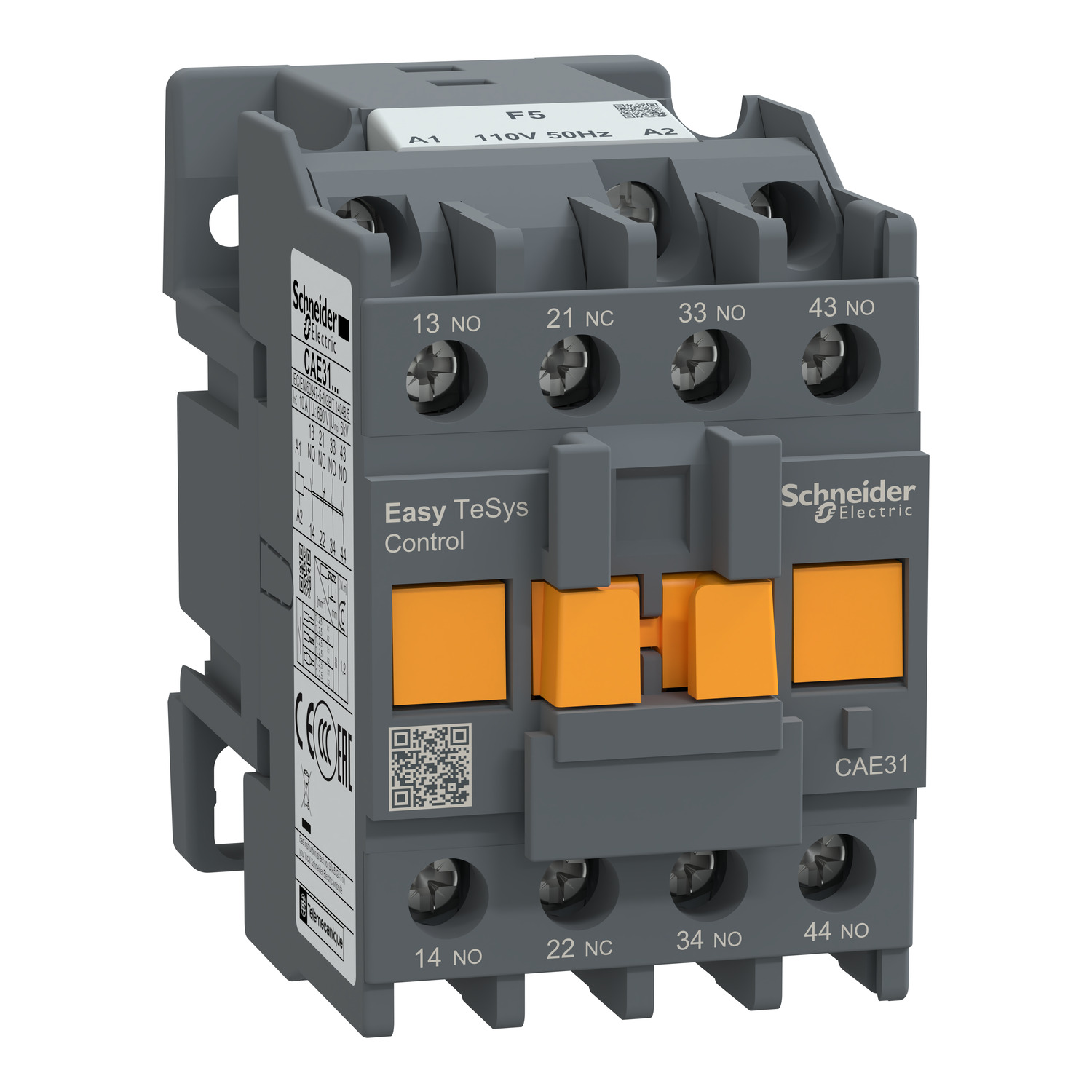

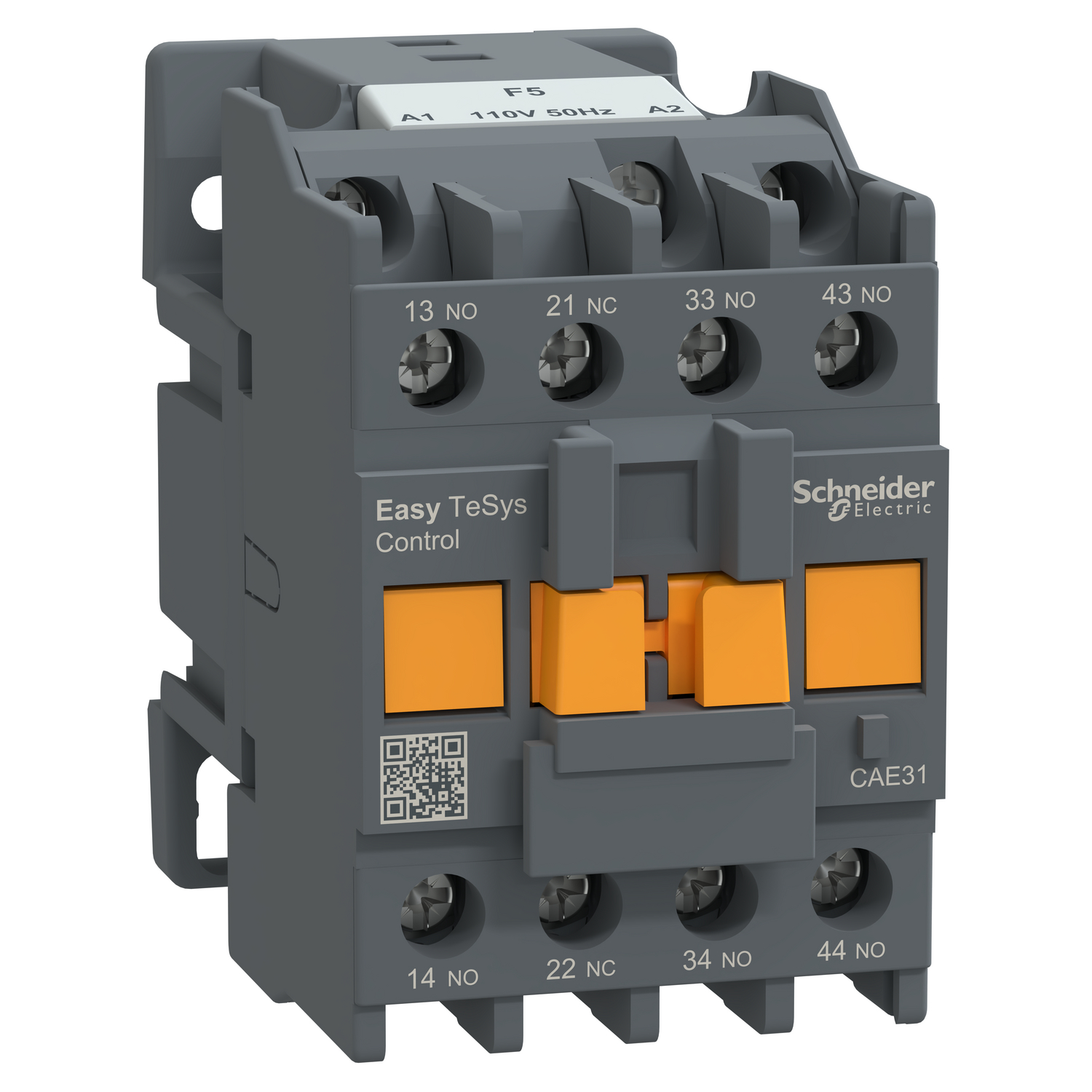

Easy TeSys control relay for utilization categories AC-15/AC-14 up to 10A/690V. It provides 4 instantaneous contacts (3NO+1NC), a 110V 50Hz AC coil, connections by screw clamp terminals. For demanding applications with standard operating rates until 3 cycles/second, it procures standard reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi-standards certified (IEC, CCC, EAC) and Environmental compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | CAE |
| Colour | grey (RAL 7011) |
| Range | Easy TeSys |
| Product or component type | control relay |
| Contactor application | control circuit |
| Range of product | Easy TeSys Control Relay |
| Complementary | |
| [Icw] rated short-time withstand current | 140 A - 100 ms, 120 A - 500 ms |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Depth | 80 mm |
| Width | 45 mm |
| Operating time | 6...17 ms coil de-energisation and NO closing, 4...12 ms coil de-energisation and NC opening, 12...22 ms coil energisation and NO closing, 4...19 ms coil energisation and NC opening |
| Hold-in power consumption in VA | 8-8 VA 50 Hz (at 20 °C) |
| Mechanical durability | 10 Mcycles |
| Tightening torque | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| Maximum operating rate | 180 cyc/mn |
| Minimum switching voltage | 17 V |
| Utilisation category | AC-15, AC-14 |
| Connections - terminals | screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end, screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end, screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end, screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end |
| Pole contact composition | 3 NO + 1 NC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Inrush power in VA | 70-70 VA 50 Hz (at 20 °C) |
| Net weight | 0.28 kg |
| Associated fuse rating | 10 A gG at 690 V conforming to IEC 60947-5-1 |
| Irms rated making capacity | 140 A at 690 V AC conforming to IEC 60947-5-1 |
| Insulation resistance | > 10 MOhm |
| [Uc] control circuit voltage | 110 V AC 50 Hz |
| Control circuit type | AC at 50 Hz |
| Mounting support | rail, plate |
| [Ith] conventional free air thermal current | 10 A (at 40 °C) |
| Control circuit voltage limits | drop-out: 0.3...0.6 Uc, operational: 0.85...1.1 Uc at 50 Hz |
| Height | 74 mm |
| [Ue] rated operational voltage | <= 690 V AC |
| Mechanical robustness | vibrations control relay closed: 3 Gn, 5...300 Hz, vibrations control relay open: 1.5 Gn, 5...300 Hz, shocks control relay closed: 10 Gn for 11 ms, shocks control relay open: 7 Gn for 11 ms |
| Minimum switching current | 5 mA |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Environment | |
| Operating altitude | 3000 m without derating |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60-80 °C |
| Standards | IEC 60947-5-1 |
| Ambient air temperature for operation | -20-70 °C |
| Product certifications | GOST |
